ByteBox Ecosystem – Fully Modular Parametric Storage System
A fully customizable, expandable 3D-printable storage ecosystem built for SSDs, HDDs, accessories, and modular tech organization.
Designed from the ground up for MakerWorld customization, this system lets you generate a tailored storage solution directly from the customizer—then expand it with interchangeable modules and accessories as your setup grows.
Features
- Fully parametric base tray for 2.5" / 3.5" / custom-sized devices
- Modular left/right end-wall passthrough system
- Selectable passthrough shapes:
- USB-C
- Dual USB-C
- SATA
- Barrel jack
- USB-C + Barrel combo
- Generic rounded slot
- Customizable rounded corners and overall dimensions

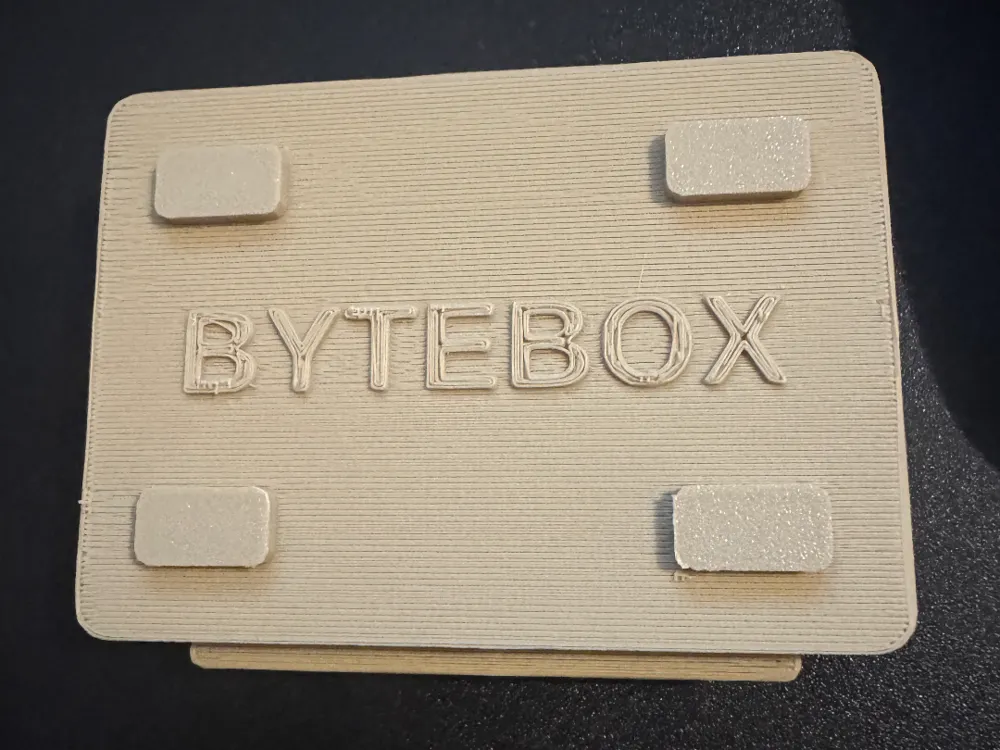

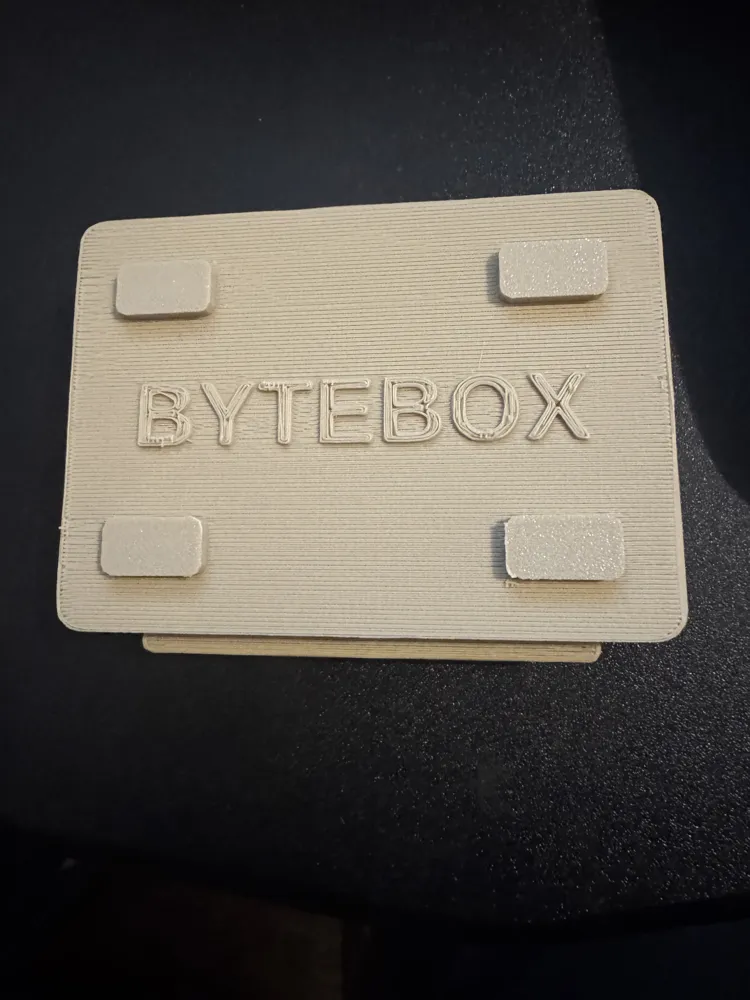

- Adjustable bottom text / branding placement
- Toggleable floor vents
- Customizable stacking feet and stack rim
- Snap-in interchangeable cable modules
- Separate configurable preview colors for every major part
- Designed for clean FDM printing with practical tolerances
Included Ecosystem Parts

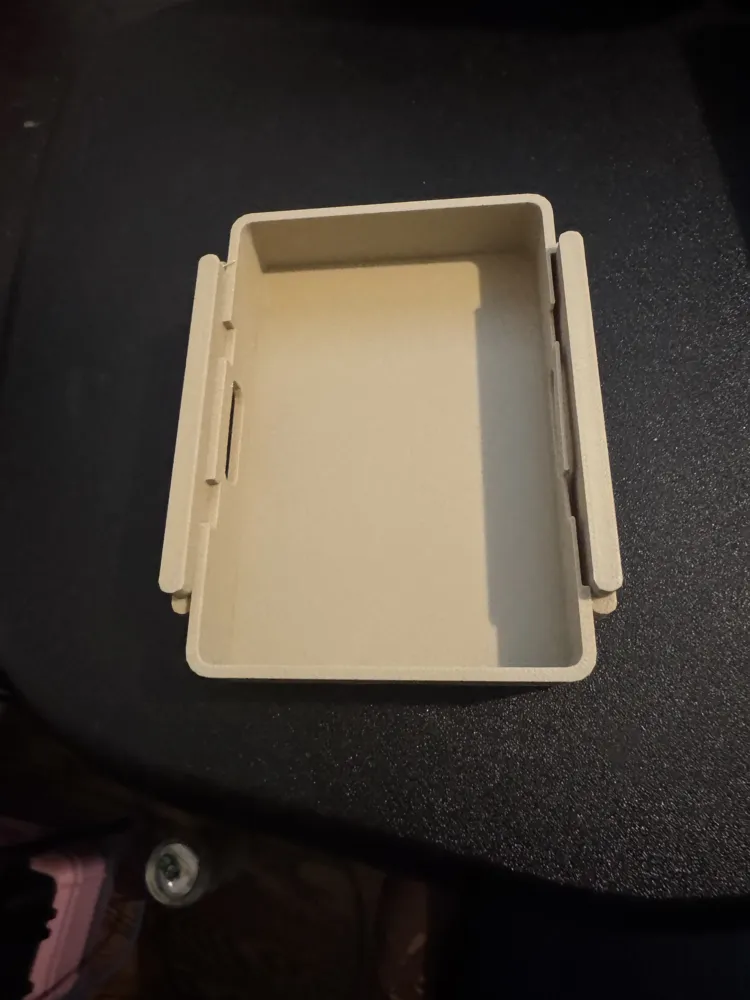

- Base Tray
- Lid
- Riser Insert
- Internal Divider
- Stack Connector Clip
- Left Cable Module
- Right Cable Module
- Blank End Module
- Label Plate
- Side Rail
- Mount Foot
- Cable Comb
- Text Test Tile
- Tolerance Test Chip
Print Recommendations
- Layer Height: 0.20mm
- Walls: 4
- Infill: 15–25% Gyroid
- Supports: None required for most parts
- Material: PLA / PETG / ABS
- Tolerance Test Recommended: Print the included snap-fit tolerance chip first
Suggested Uses
- SSD / HDD organization
- NAS drive staging trays
- Tech drawer organization
- Modular cable management
- Stackable electronics storage
- Workshop / desk modular bins
Notes
- Preview colors in the customizer are for visualization only
- STL export will not preserve color
- For multicolor printing, export parts separately or use 3MF workflows
- Tune snap-fit clearance if your printer runs tight/loose
If you build a custom configuration, post your remix/photos—I want to see what people do with the ecosystem.
This model is for personal use only. If you want to sell it them message me
