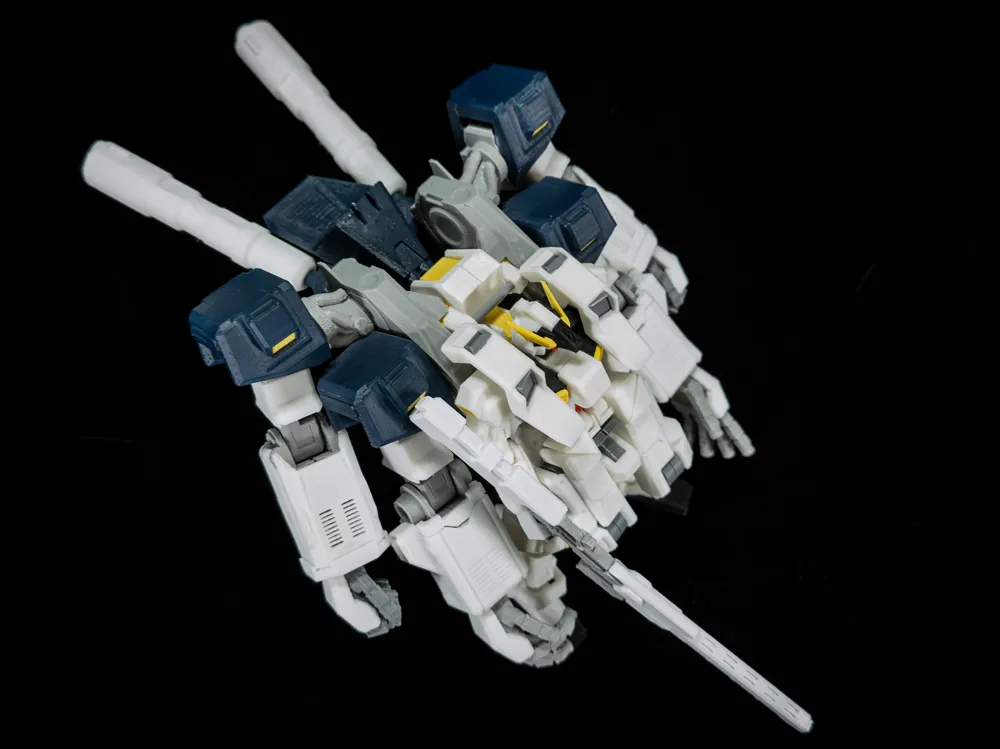

Articulated Figure: TR-1 and Weapon System – Eight-Armed Giant

Features:

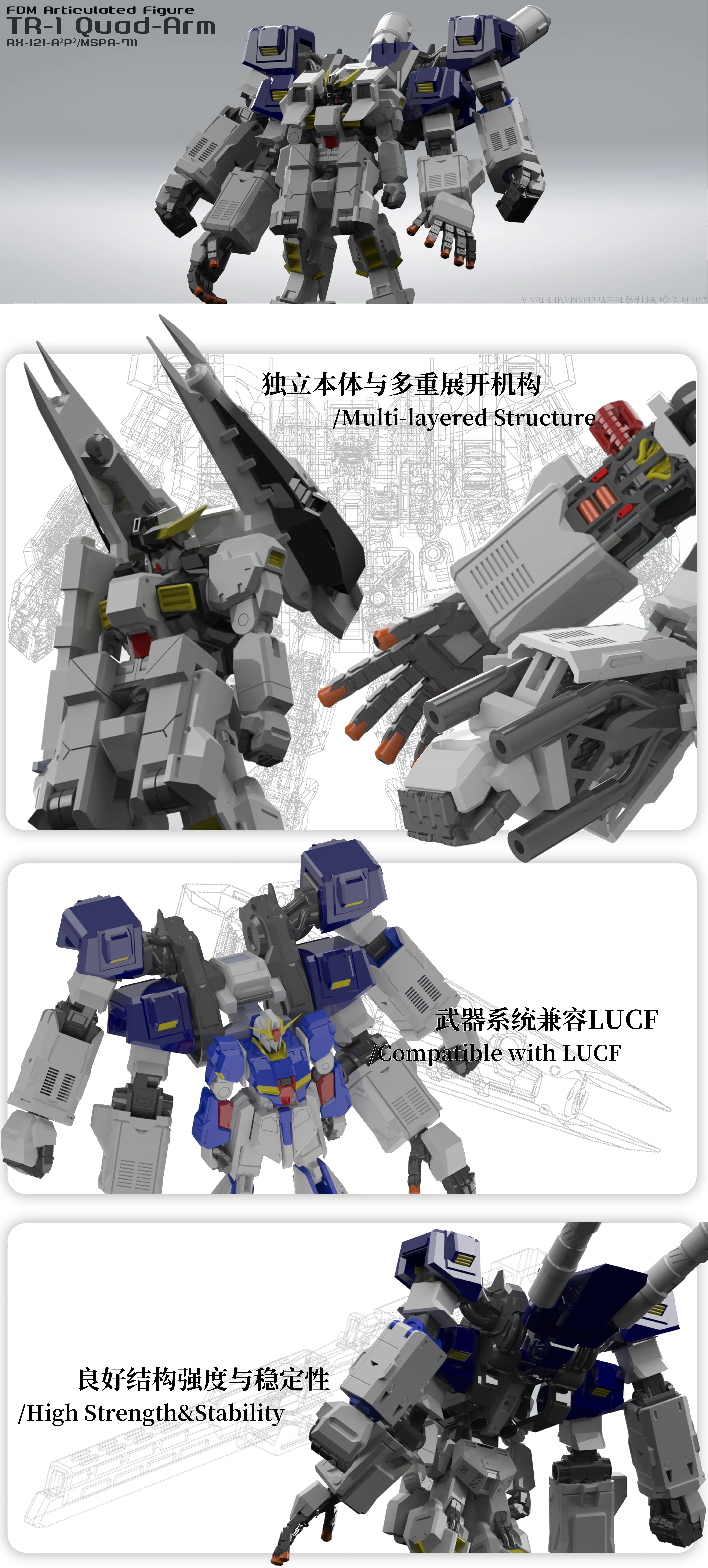

Independent body and weapon system; no AMS required for body color separation; single material, Print in Place damped joints.
The weapon system can be applied to preceding models (709/710).
Must Read:
When printing TR1, use print profile 1; when printing the weapon system, use print profile 2; when printing TR1+weapon system, print both profiles and skip plate 5 of print profile 2.
Before printing, you should read the instructions. I have also prepared a troubleshooting guide for print quality within the instructions.
Avoid using filament with extremely poor toughness. Bambu PLA Basic/Bambu PETG HF/Polymaker PETG have all passed critical component tests, and similar filaments can be used with confidence.
------More Information------
SPEC:
1/144: Head height 14cm, total height 18cm, body weight 126g (154g with 2A, 404g fully equipped), Articulated joints 39+42, beam rifle ×1/shield ×2/small auxiliary arm ×2/large auxiliary arm ×4.

Lore:
This unit is not the RX-121-2P Hazel Owsla + Gigantic Arm Unit. It uses the RX-121-1 as its base, incorporates features of the RX-121-2A, and heavily modifies the MRX-009 arms. The proportions largely adhere to the original design, but the outer skirts have been enlarged to enhance balance, and additional thruster units are used as stands.
This work continues to explore the possibility of adding internal structures, but unlike the 006 which strives for precise reproduction, the 121's part breakdown simplifies while focusing on depicting the exterior. Considering the two sets of arms, bare joints are removed, and an optional locking mechanism is added to the knee joints for maximum stability.

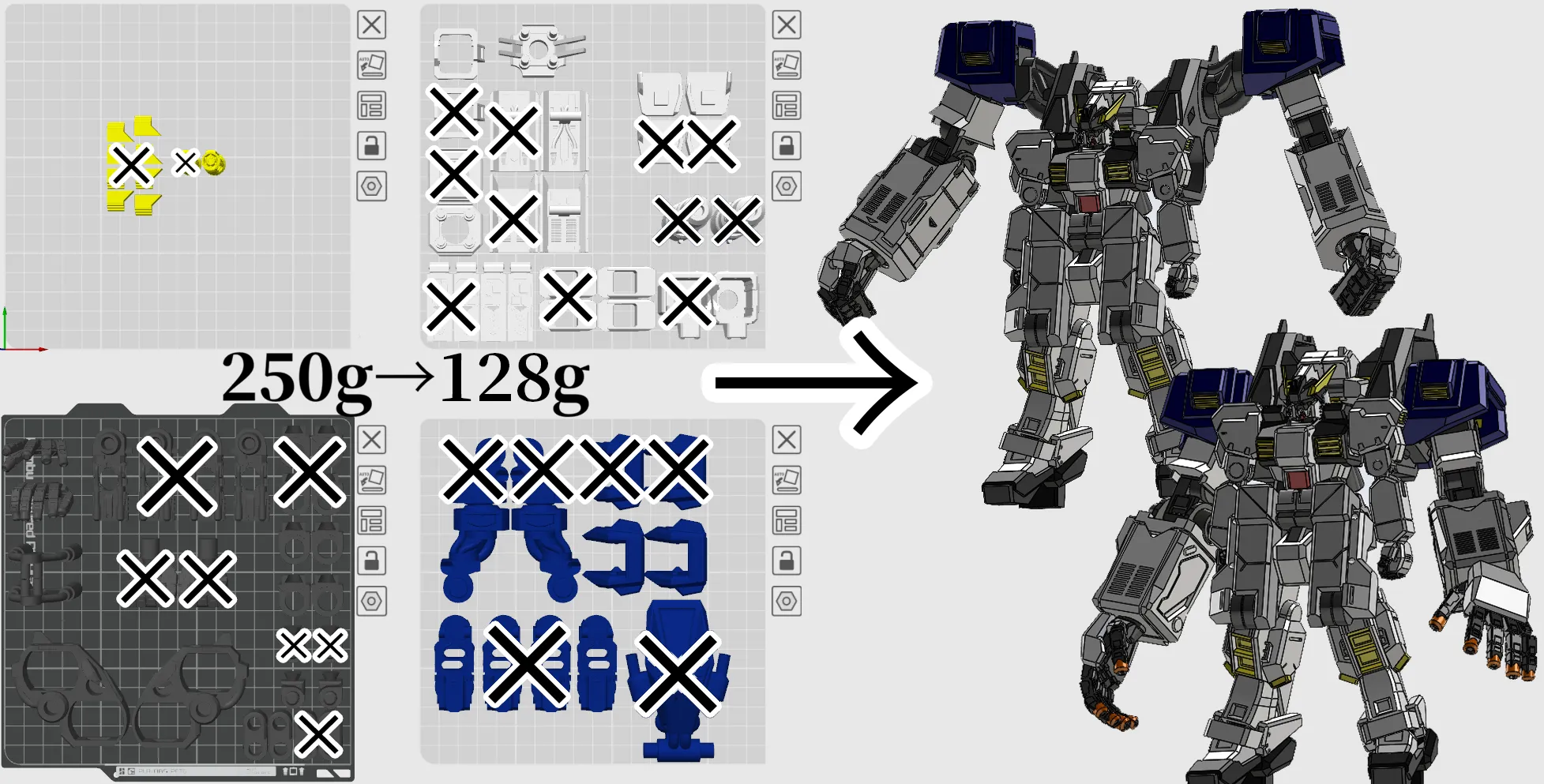

Parts marked with an X in the diagram can be skipped for weight reduction (if keeping one of each type of auxiliary arm, adjust skipped objects as needed):
