Magnetic Bit Holder EDC 5–7 Bits

Magnetic Bit Holder Keychain (5–7 Bits)

This compact and functional 3D-printed bit holder is the perfect companion for on-the-go. Designed as a keychain, it offers space for 5 bits for secure storage as well as 2 additional slots, which also serve as practical tool holders.

Whether as an EDC tool (Every-Day-Carry), attached to a backpack, or traditionally on a keychain – this bit holder is versatile and always at hand.

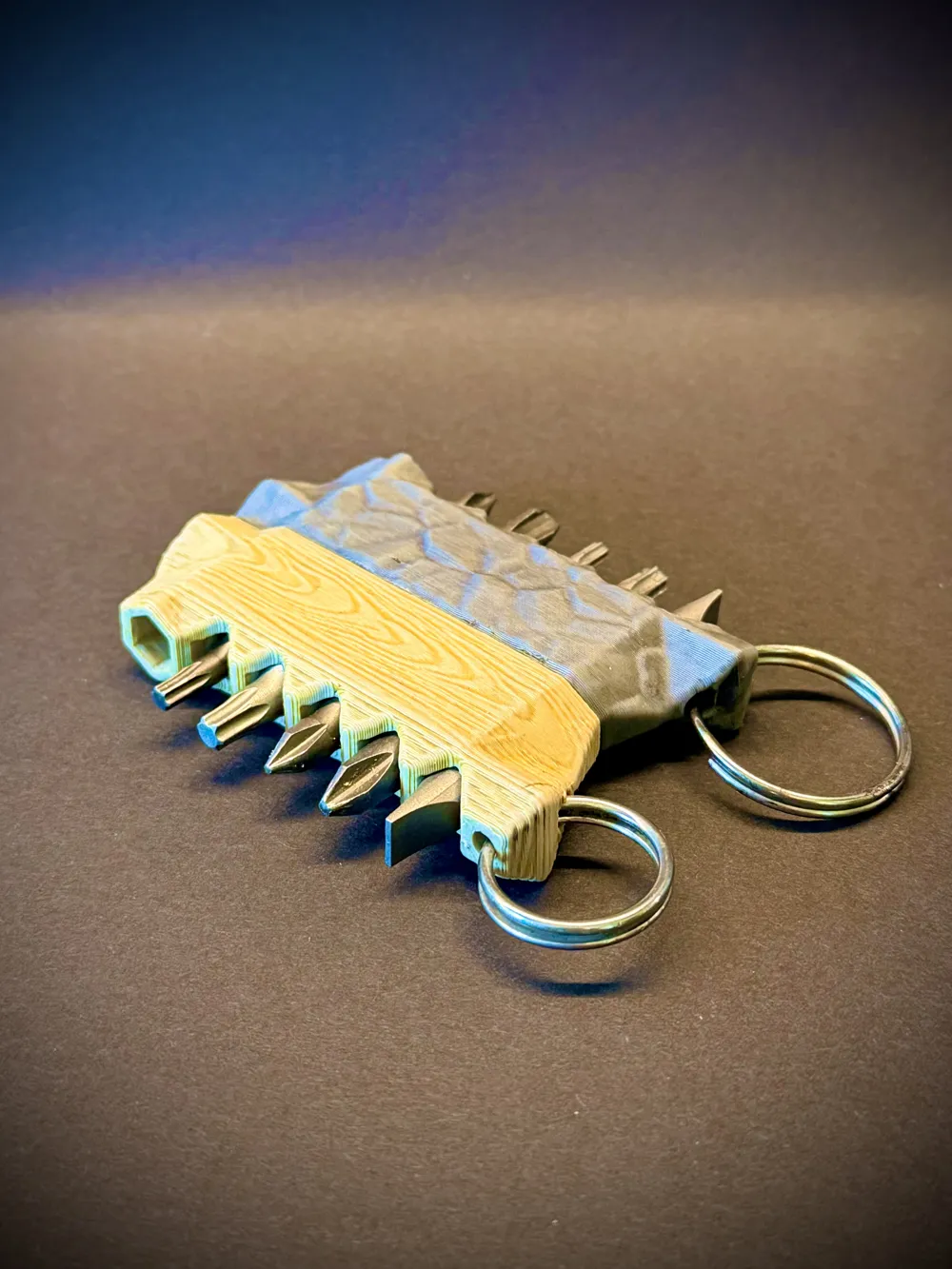

Thanks to integrated magnets, your bits stay securely in place – and with the correct pole orientation, multiple holders can even be connected together.

Features:

• Capacity: 5 securely stored + 2 as tool holders (total 5–7 bits)
• Magnetic system for firm hold and modular expansion
• Compatible with 20 mm and 25 mm keyrings

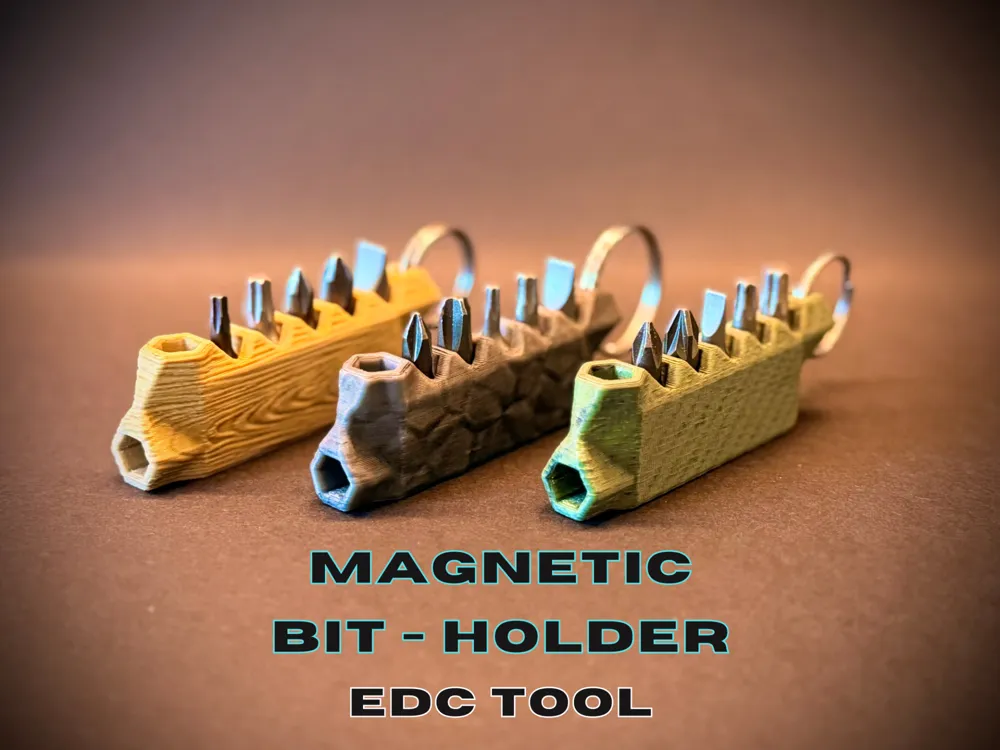

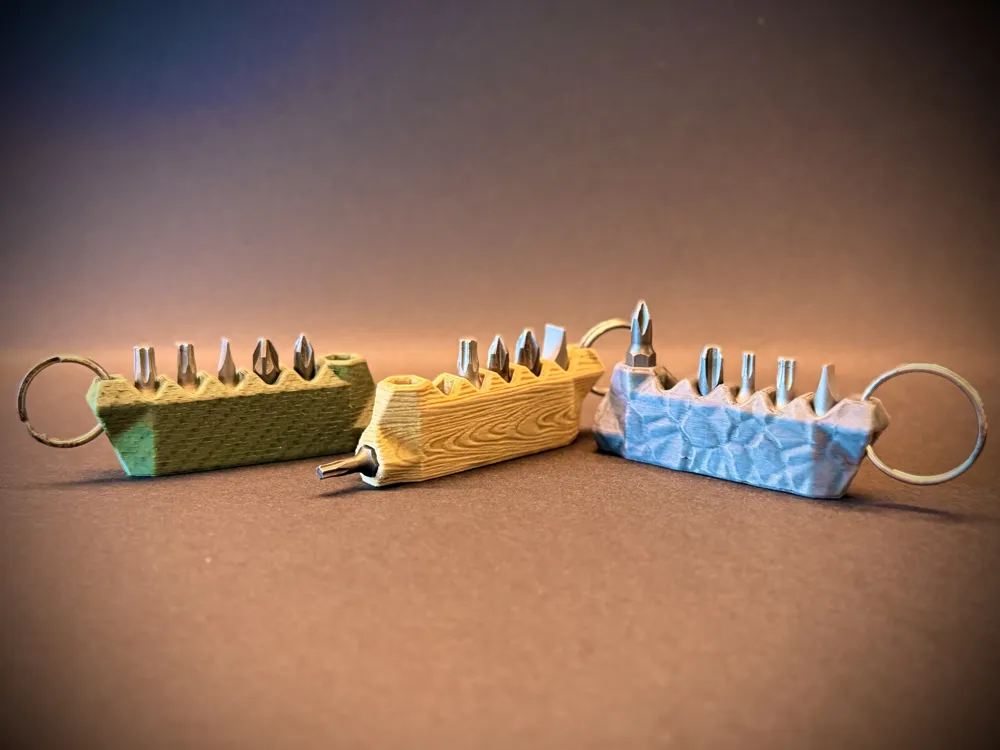

• Three design variations:

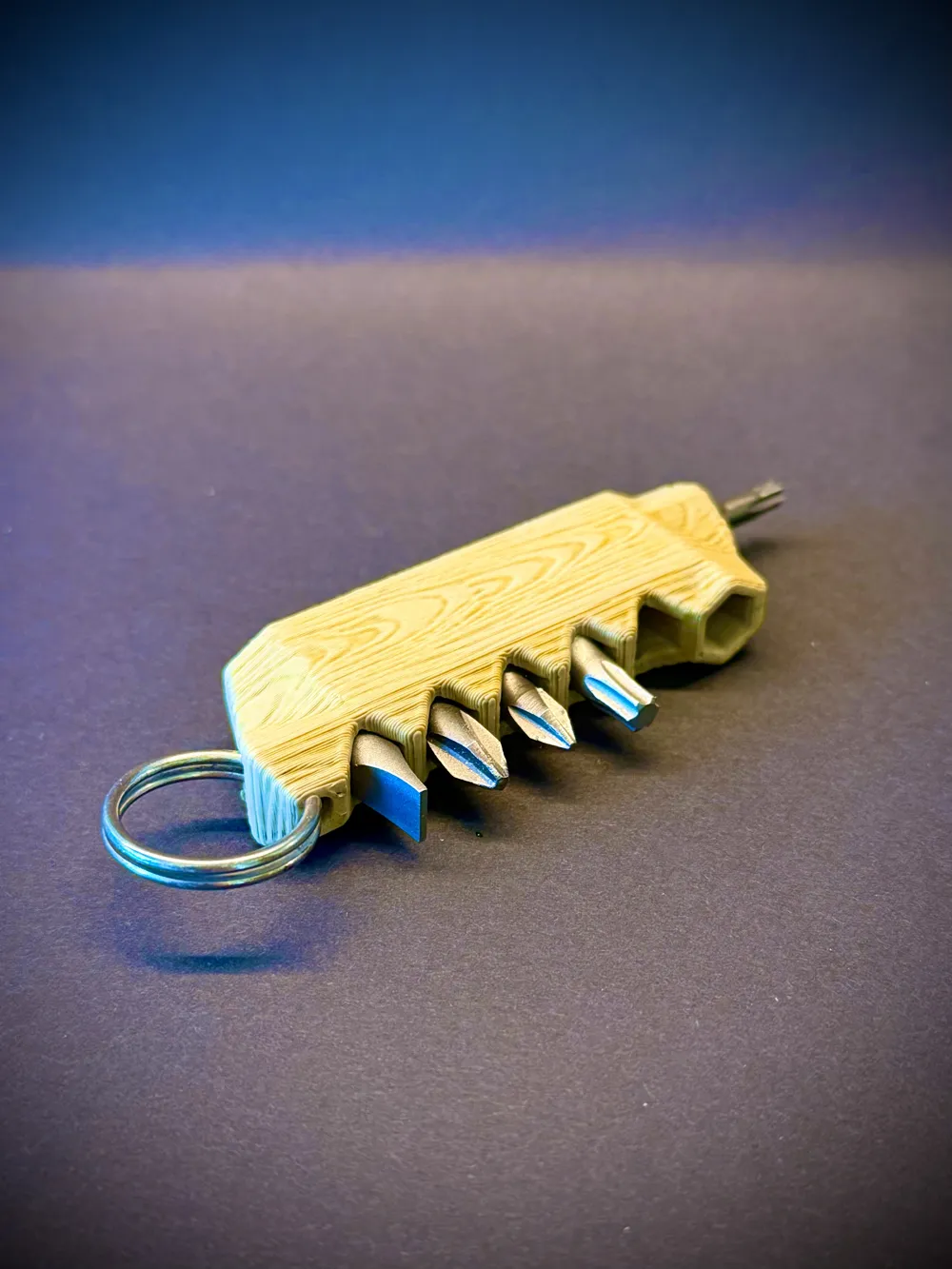

  • Wood-look

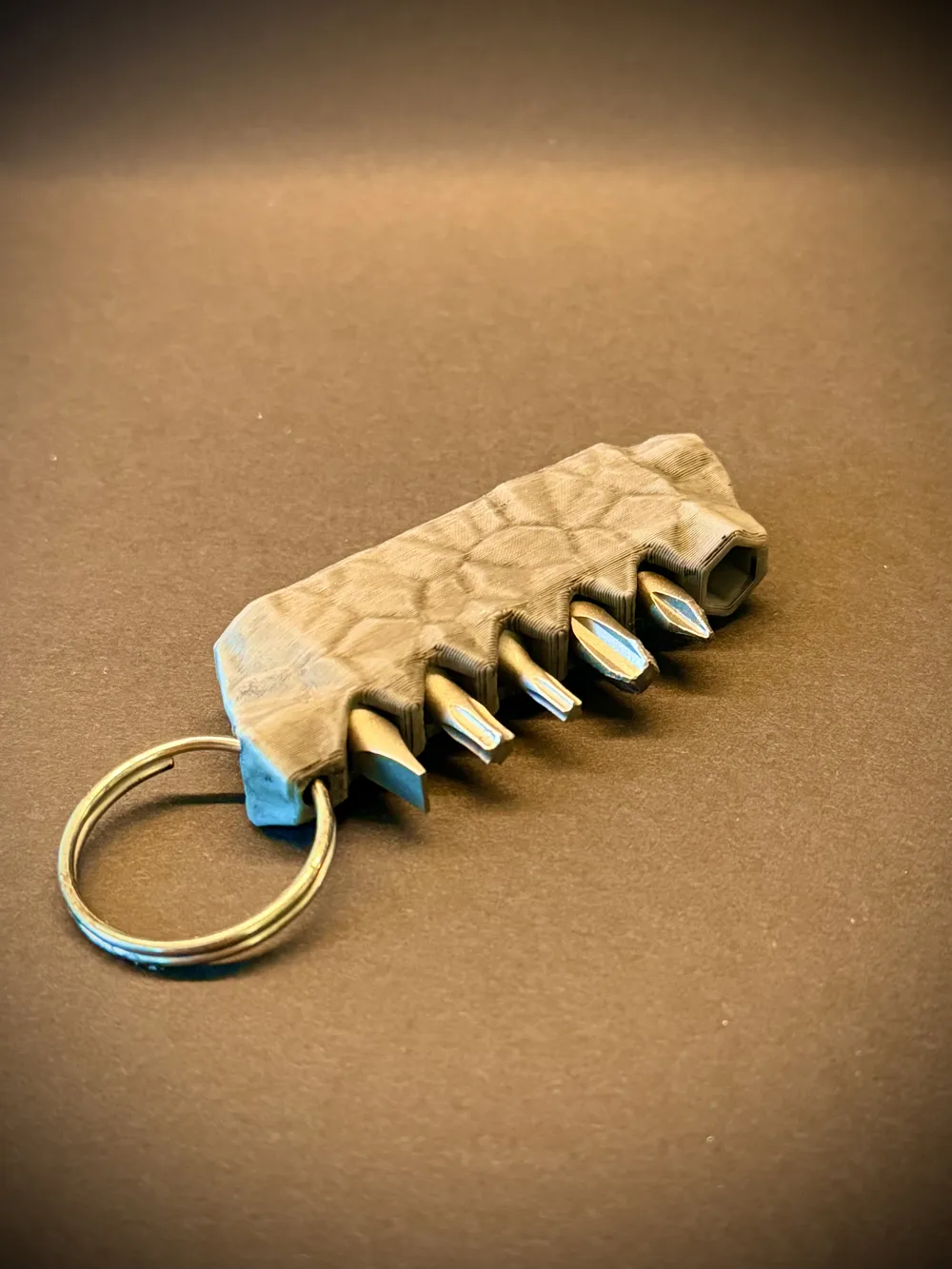

  • Stone-look

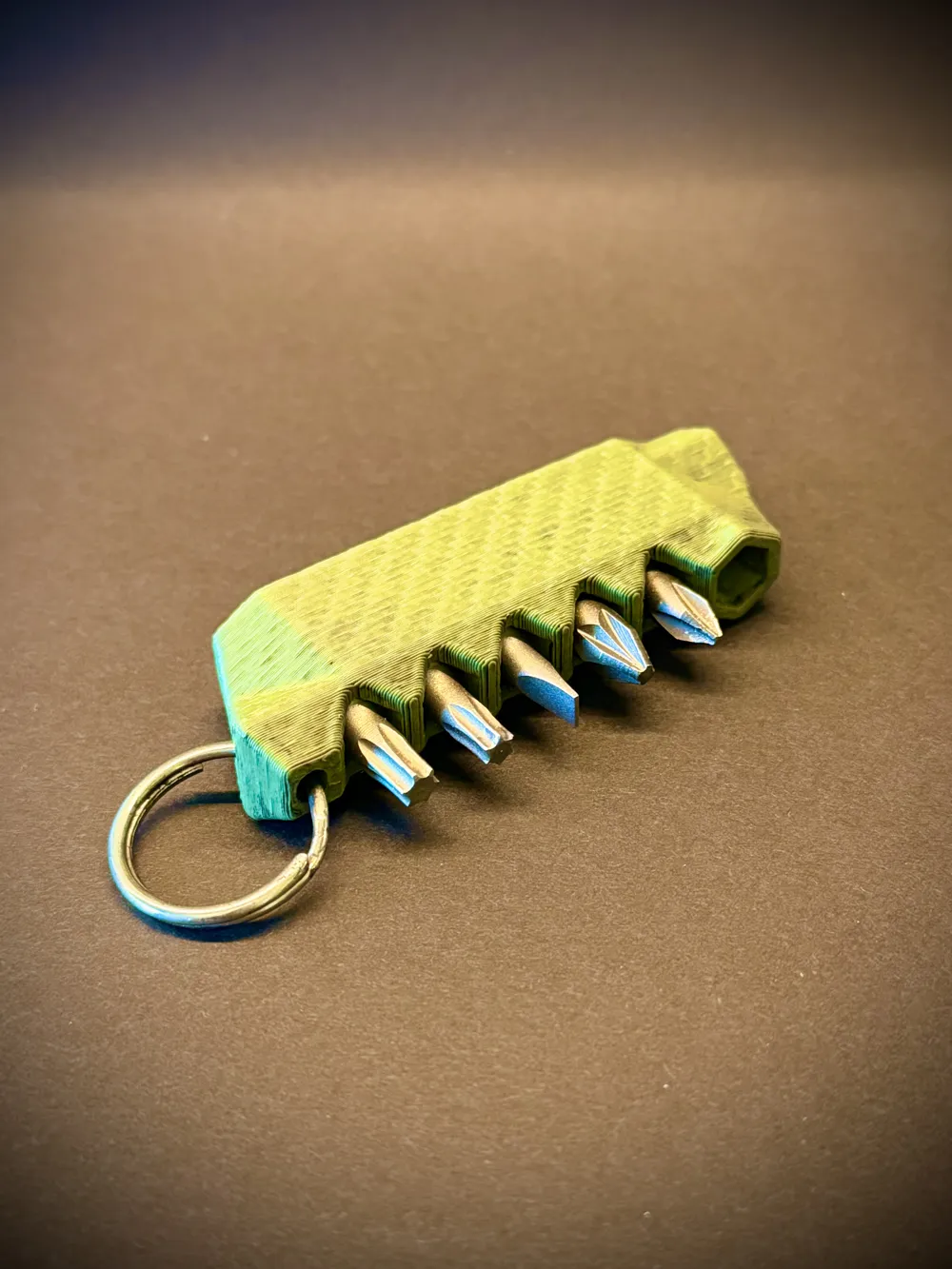

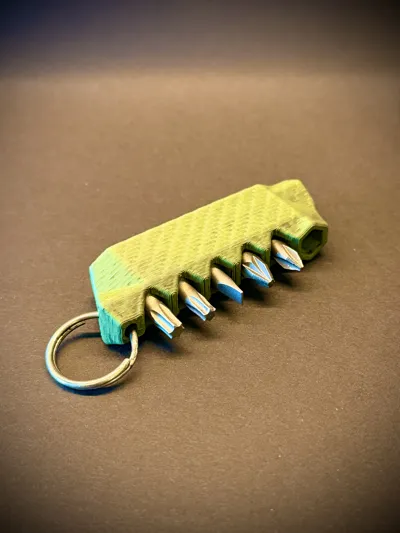

  • Carbon-look

The special surface structures were created using the Bumpmesh tool – a big thank you to CNC Kitchen for this great feature!

Printing instructions:

• 6 magnets (Ø 6x2 mm) are needed
• The print pauses automatically twice:
  1. For inserting the magnets in the storage position
  2. For the tool holder position (If the magnet sits too loosely, a drop of superglue can help here)
• Absolutely pay attention to the correct polarity of the magnets, especially if 2 holders are to be combined

Important note:
A clean calibration of the printer and filament is highly recommended. Otherwise, the bits may not fit optimally. If necessary, the model can be slightly scaled to adjust the fit.

Have fun printing and organizing your bits!
