PTFE Tube Cutting Guide

A simple, clean, and support-free tool for cutting PTFE (Teflon) tubes to consistent lengths.

✨ Features
🔧 No supports required
🖨 Easy to print
📏 Consistent, repeatable cuts
🔄 Simple circular cutting workflow

📦 Overview

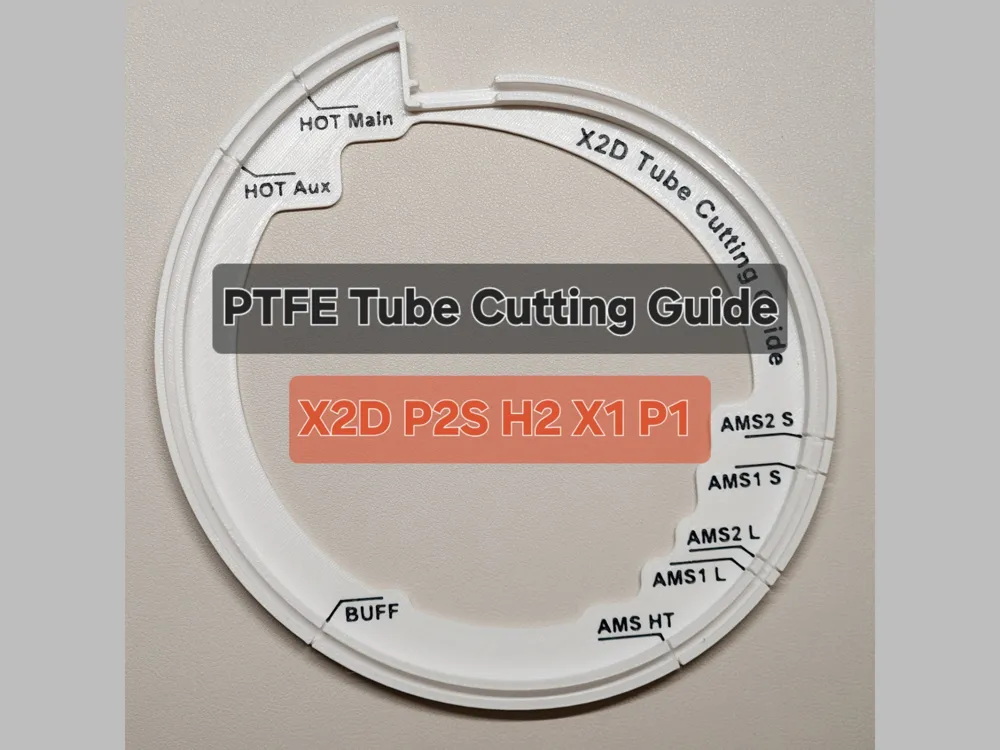

Designed as a circular guide, this tool allows you to route a PTFE tube around the track and cut it precisely at predefined positions.

🔧 How to Use

Insert the PTFE tube into the outer entry hole.
Route the tube along the circular path until it reaches the end.
At the desired marking (indicated by the labels), insert a blade and cut the tube.
After cutting, pull the tube out through the opposite hole. Done!

🧩 Versions

X2D (tested)
P2S (same spec as X2D, expected to be compatible)
H2 Series (H2S / H2D / H2C — not tested yet)
X1 & P1 Series (not tested yet)

⚠ Notes

Only the X2D version has been physically tested.
P2S appears to share the same dimensions as X2D, so compatibility is likely.
H2 and X1/P1 versions require verification.

💡 Summary
A minimal, reliable PTFE tube cutting guide designed for ease of use and consistent results—no supports, no complexity, just clean cuts.

Comment & Rating (22)

@SnailCat

Boosted

Print Profile

0.2mm layer, 2 walls, 15% infill

(Edited)

The profile uploader has replied

@gamma4d

Thank you! Does it work well?

@SnailCat

Boosted

Replying to @gamma4d :

It does seem to be a bit smaller sized/scaled? or if intentional on your part, to have slightly shorter PTFE tubes than original? This is one of the spare extra tubes that came with AMS 1, 23cm putting it in the guide its ~3mm longer than the cut mark, if cut would be ~22,7cm

@gamma4d

Replying to @SnailCat :

There are two possible causes. It’s likely one of the following: 1. The tube was not inserted all the way As shown in the picture, the tube should be pushed in until it touches the end. This ensures it is cut to the intended length. 2. Slight shrinkage occurred About 1% shrinkage may have occurred after printing, which could make the guide slightly smaller than its original size and result in a shorter cut. Since the shrinkage rate varies depending on the filament type, no separate compensation was applied. If needed, you can print it about 1% larger.

(Edited)

@hjan0134

Boosted

What is the difference between hot aux and hot main

The designer has replied

Show original

@gamma4d

As you know, the X2D has two nozzles. The left is the main, and the right is the auxiliary. We have distinguished them because the lengths of the tubes going into these two hot ends are different. For reference, the tube for the auxiliary hot end usually needs to be ID 2.0mm, not Bambu Lab's standard ID 2.5 OD 4.0mm

Show original

@hjan0134

Boosted

Replying to @gamma4d :

Thank you for the good information! It's time to buy Capricorn 😅

Show original

@rakwireless_ph

Looks interesting, but can you give some info what AMS2 S, AMS1 S, AM2 L, AMS1 L means.

The designer has replied

@gamma4d

The AMS is equipped with PTFE tubes to supply filament. Slots 1 and 4 use slightly longer tubes, while slots 2 and 3 use slightly shorter ones. There is also a slight difference in tube length between the AMS (older version) and the AMS 2 Pro. You can interpret the labels as follows: AMS2 L: Long tube for the AMS 2 Pro (for slots 1 and 4) AMS1 S: Short tube for the AMS (older version)

@rakwireless_ph

Replying to @gamma4d :

Got it. Thanks for the explanation.

@rlogiacco

can you explain the meaning of the labels, please?

The designer has replied

@gamma4d

HOT Main → Main hotend PTFE tube length HOT Aux → Auxiliary/secondary hotend PTFE tube length (dual nozzle setup) BUFF → Buffer section PTFE tube length AMS1 S → AMS 1st Gen short tube length AMS2 S → AMS 2 Pro short tube length AMS1 L → AMS 1st Gen long tube length AMS2 L → AMS 2 Pro long tube length AMS HT → AMS HT model tube length
