6801 Bearing Extractor and Press
Print Profile(1)
Description
6801 Bearing press and removal tool

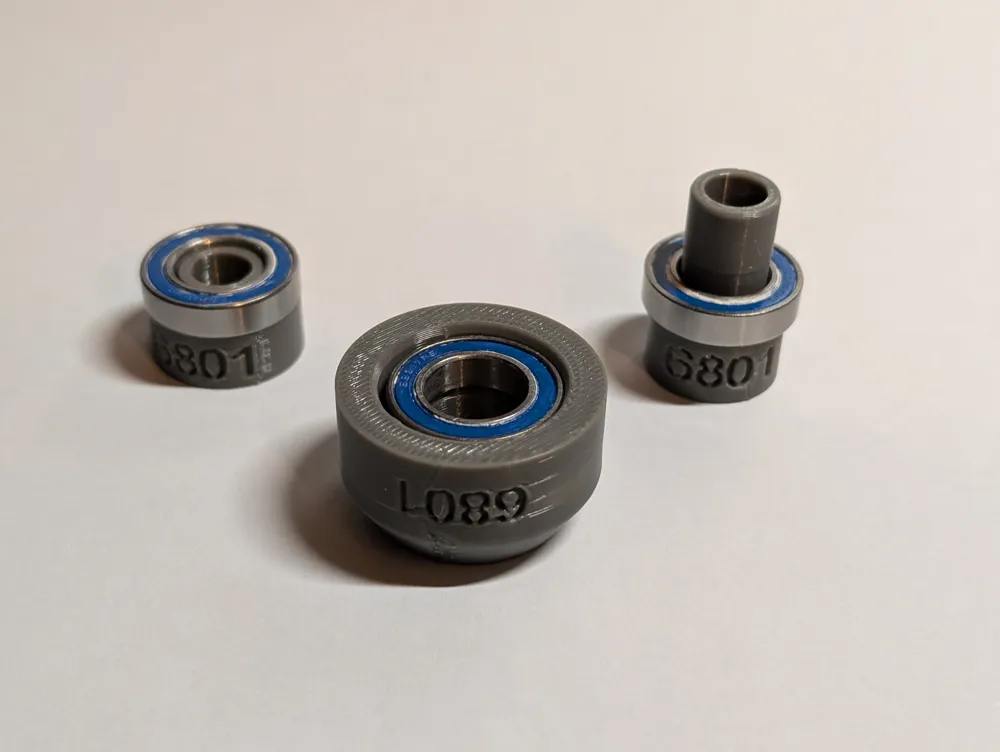

This is a three piece bearing press and removal tool for a 6801 bearing. I designed for use in Mountain Bike suspension linkages

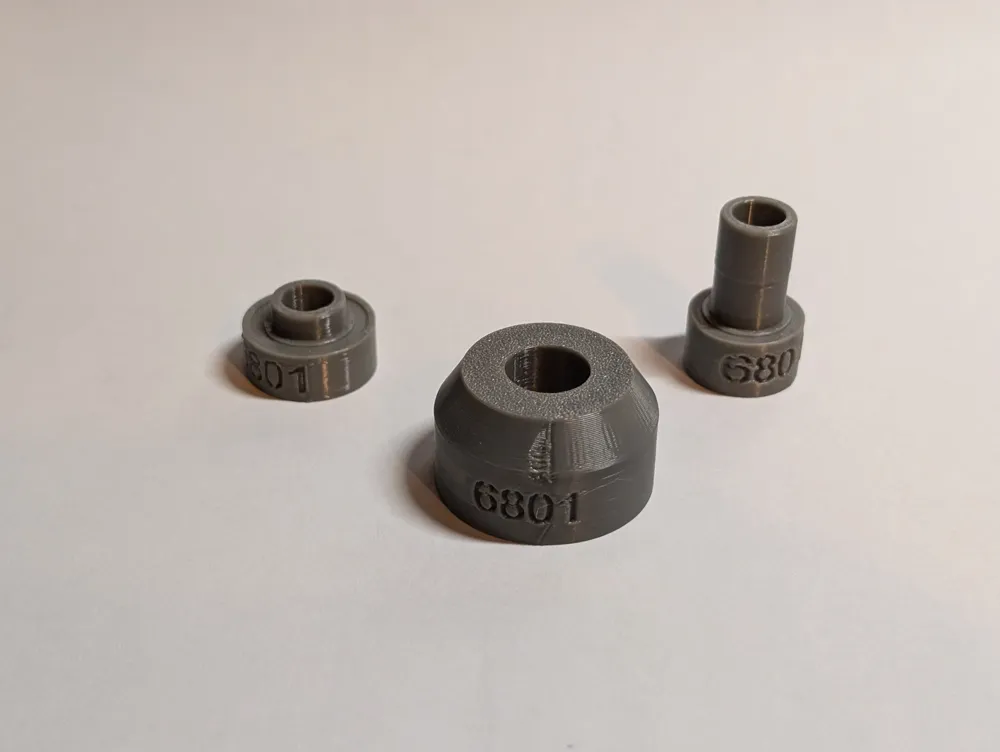

The three pieces are
- a receiver cup to press the bearing into
- a removal press piece which takes into account the bearing abutment dimensions to enable removal the bearing out of the linkage
- a install press piece to install the bearing into the suspension linkage.
Features
These are designed to work with an bearing press tool with an 5/16th or 8mm threaded bar.
For removal the long press piece is designed to pass through the bearing and centralize in the hole on the receiving cup for a smooth removal
The press fit has a raised lip to apply pressure to the outer rim
The removal tool takes into account the abutment dimensions of the outer shoulder
6801 Bearing Dimensions
12 mm (inner diameter) x 21 mm (outer diameter) x 5 mm (width)
Abutment Dimensions: Typically 14 mm (inner shoulder) and 19 mm (outer shoulder)
Looking for another bearing press, check out my other models

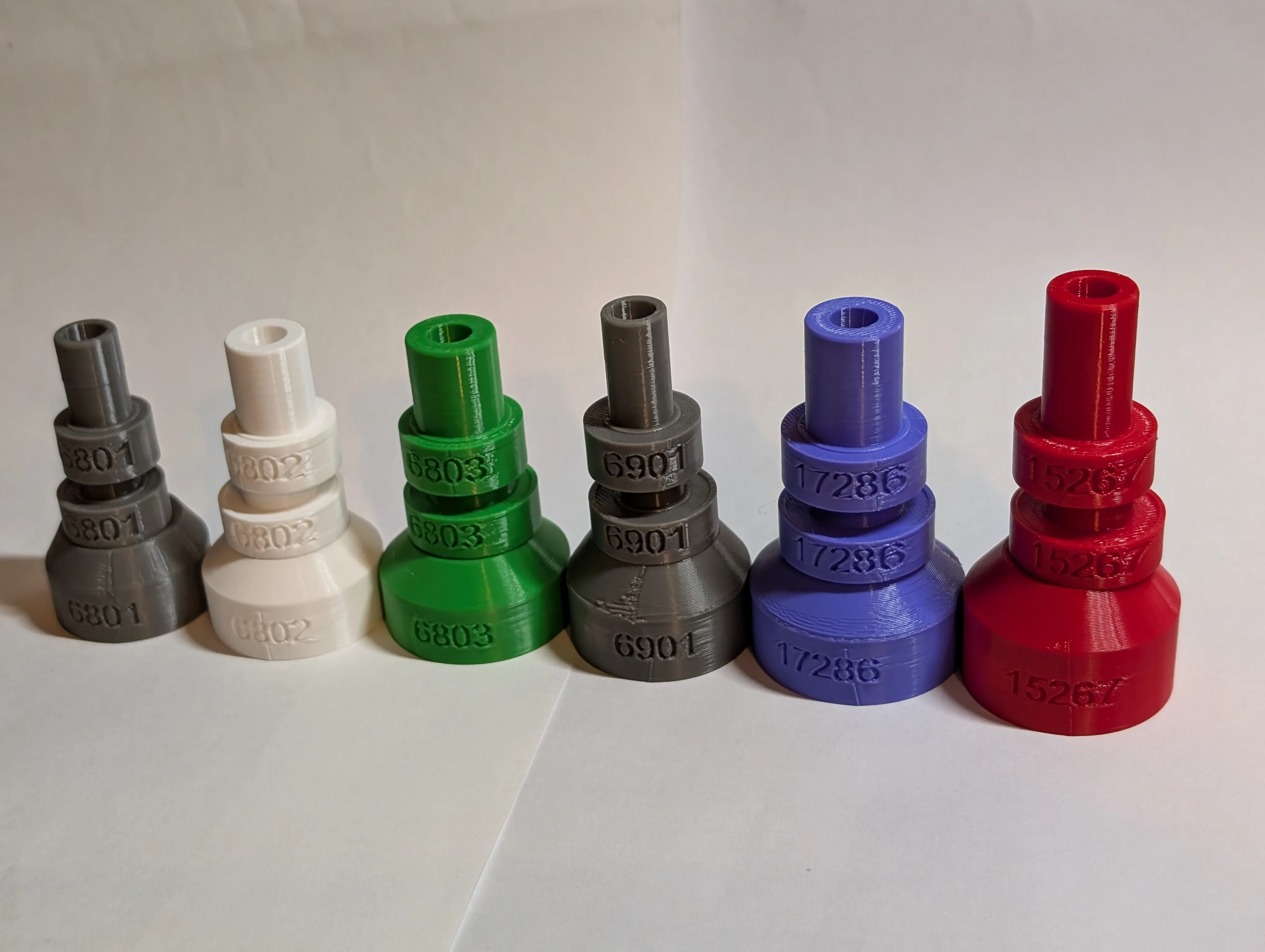

17286 Bearing tool
