Xiaomi Ultra 5 – Rear Signal Light Mount

What is this? Custom mount to add aftermarket turn signal lights to the rear fender of the Xiaomi Electric Scooter Ultra 5. Greatly improves rear visibility and safety during night rides.

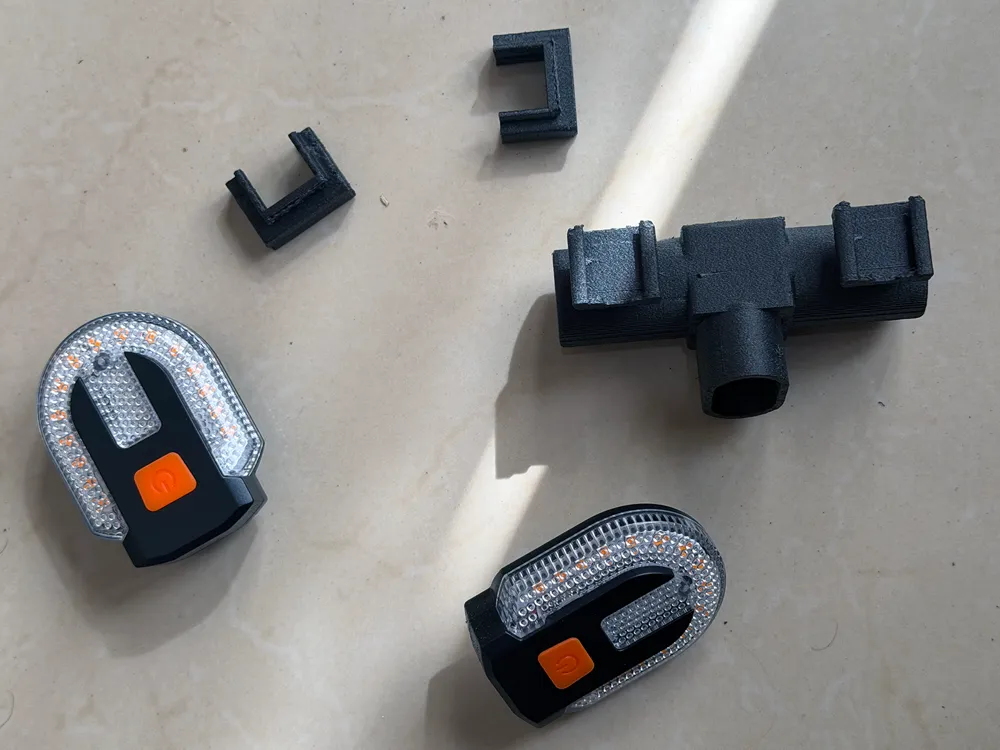

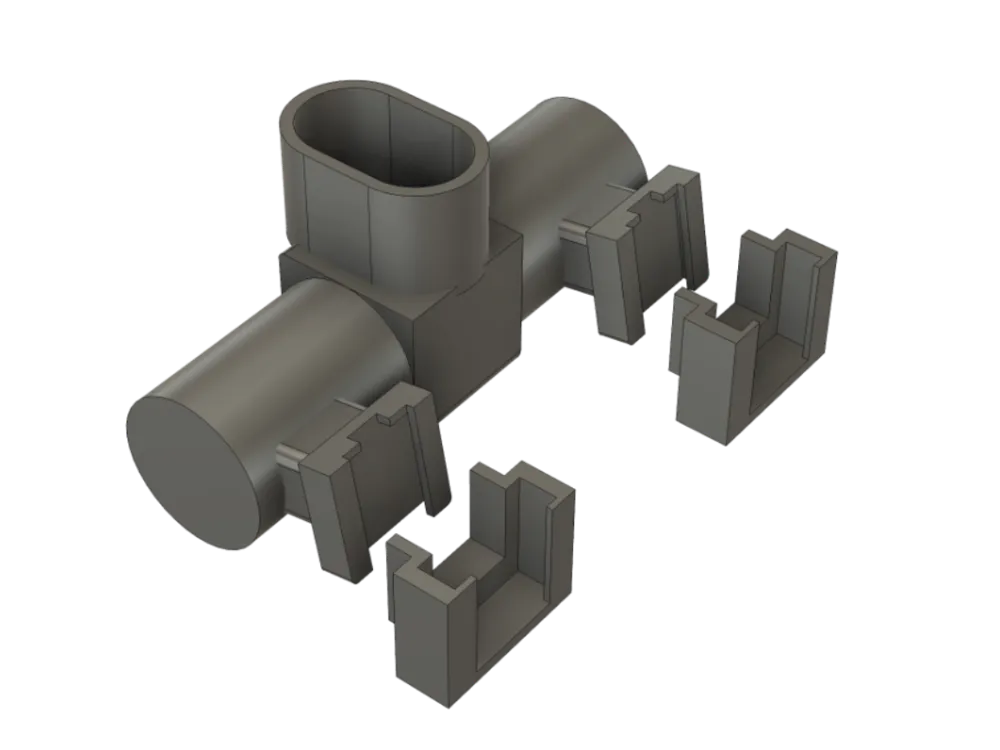

What's included

• Main clamp body (fits the rear fender post)
• 2× light bracket holders with integrated clip locks

Compatibility ✅ Xiaomi Electric Scooter Ultra 5 ⚠️ May fit other Xiaomi models with similar rear fender post — verify before printing

Print Settings

• Material: PETG or ABS (recommended for outdoor use)
• Layer height: 0.2 mm
• Infill: 40%+
• Supports: Yes
• Perimeters/Walls: 3+

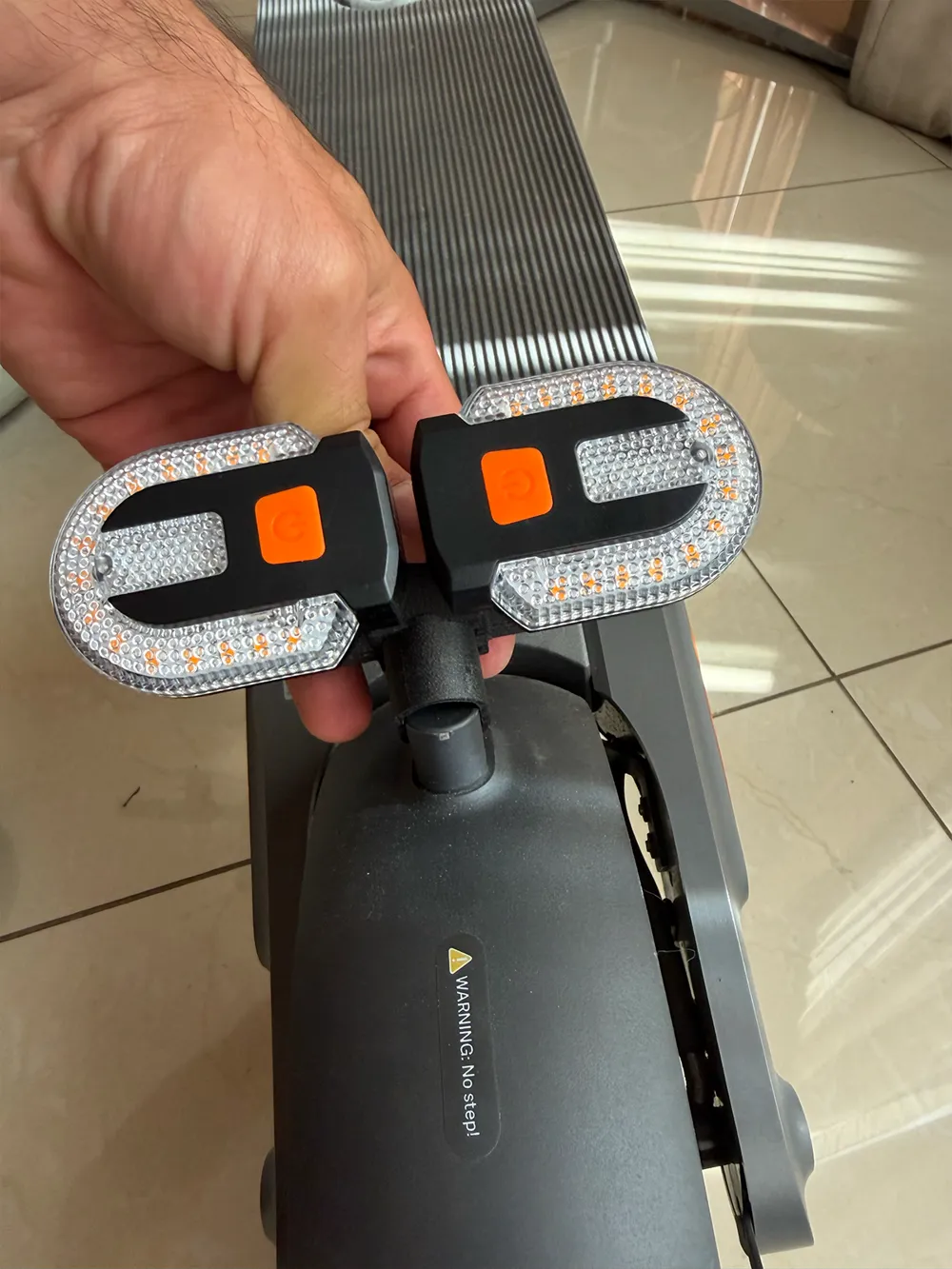

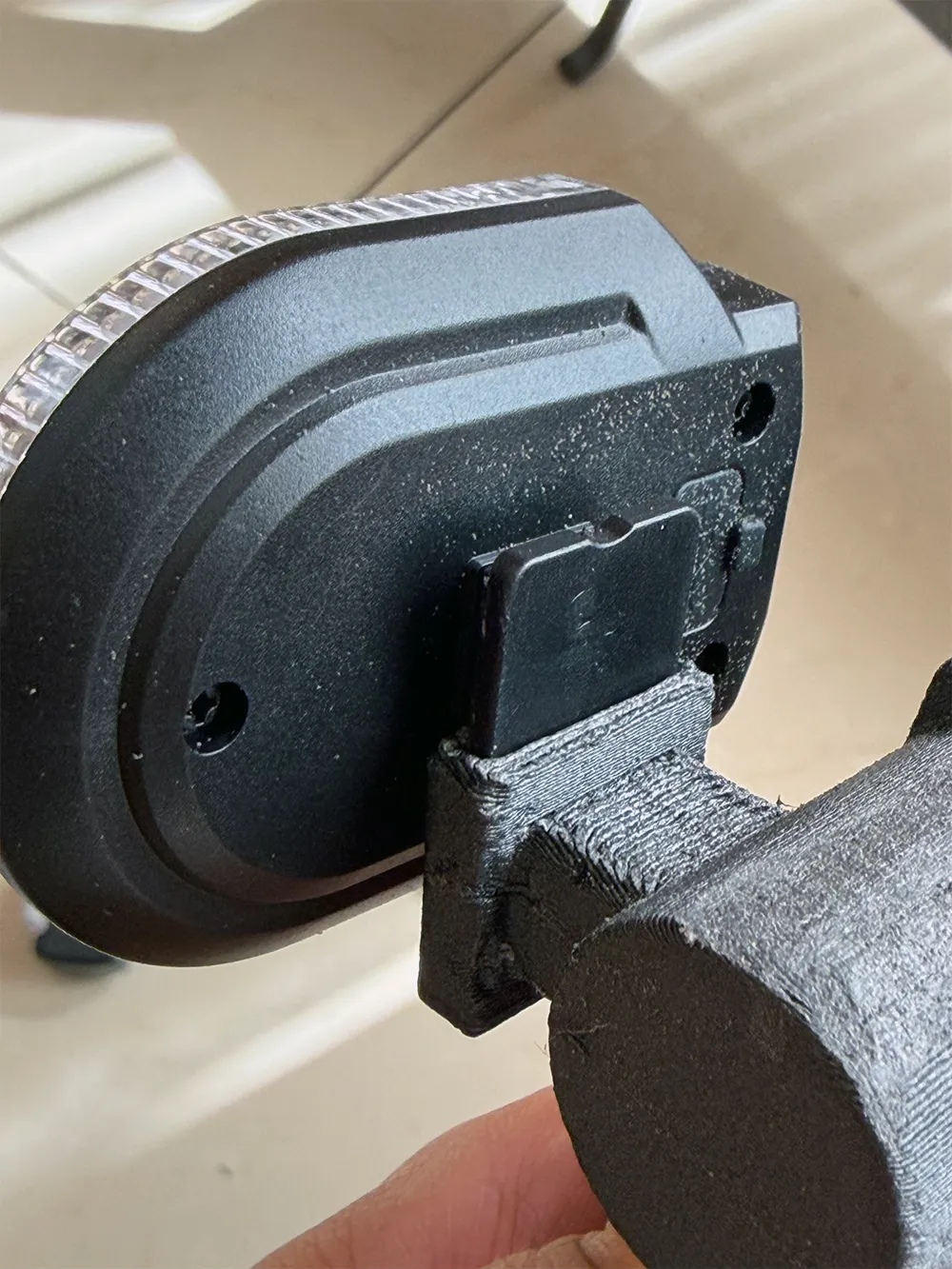

Assembly: No screws needed. Clamp snaps onto the fender post. Lights slide into the bracket slots and lock with the side clips.

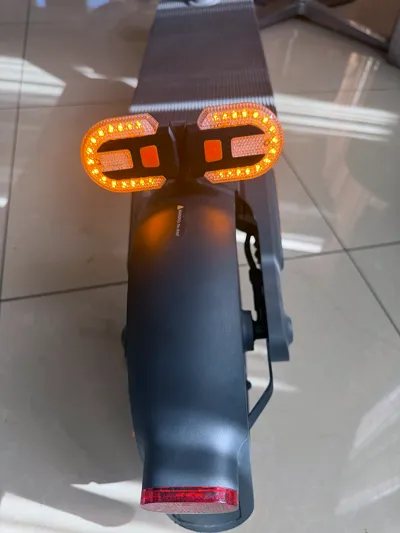

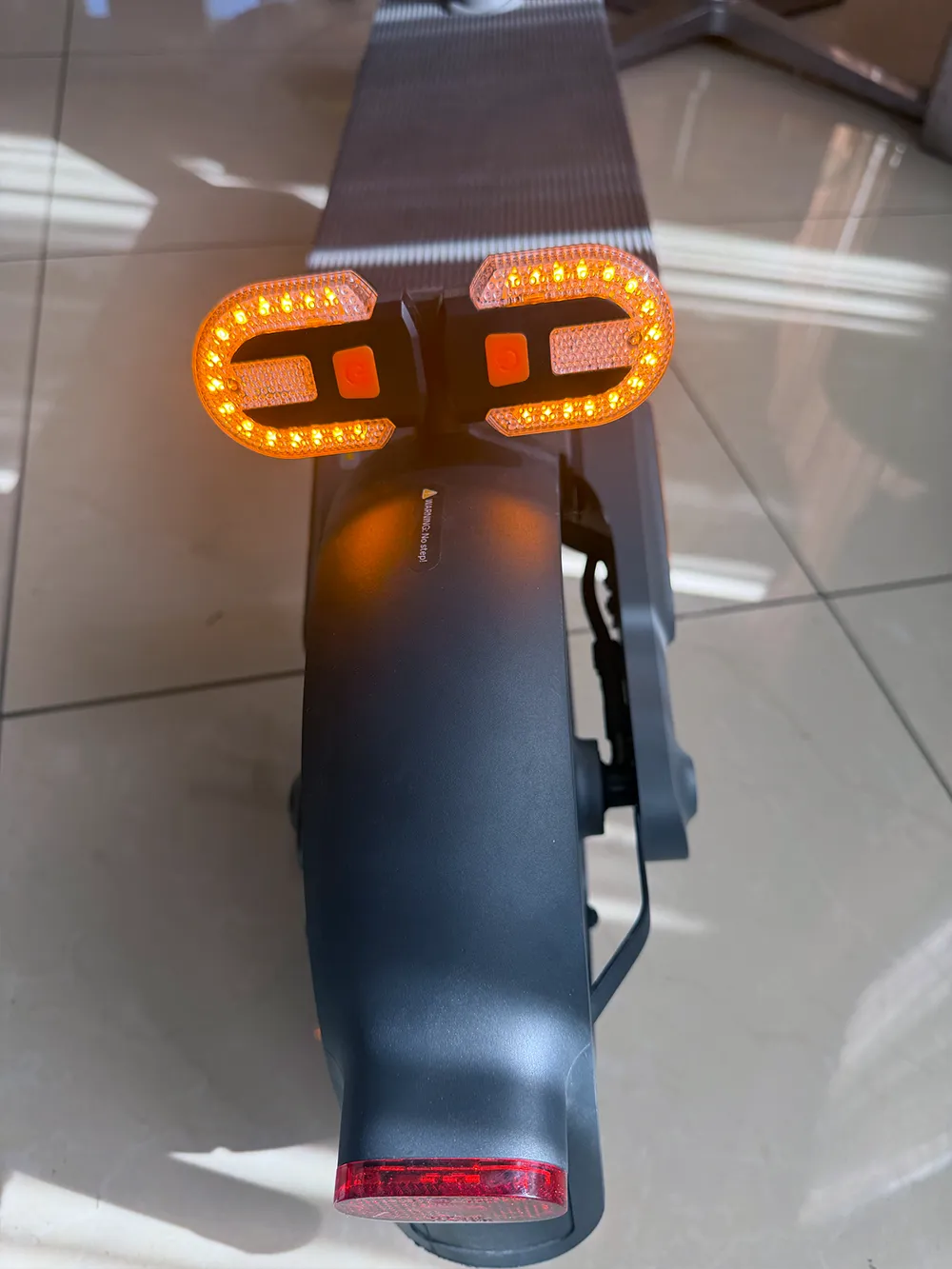

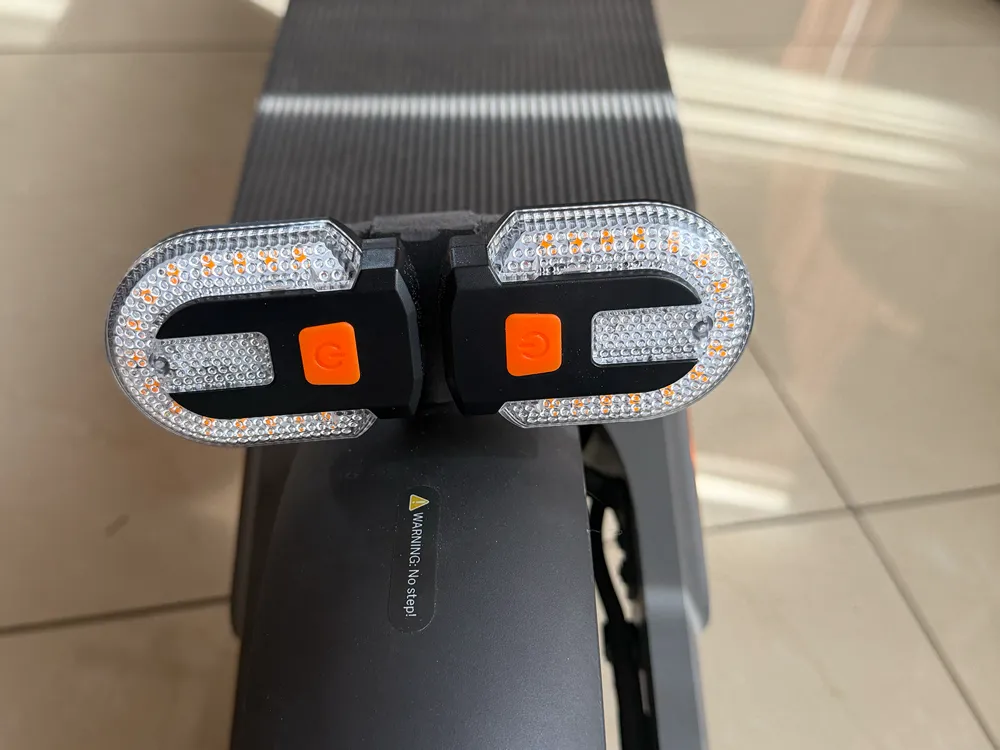

Notes: Designed for aftermarket H-shaped oval indicator lights (as shown in photos). Tested on a real Xiaomi Ultra 5 — fits snugly with no wobble.
