Customizable Waste Chute for H2D, H2S & H2C

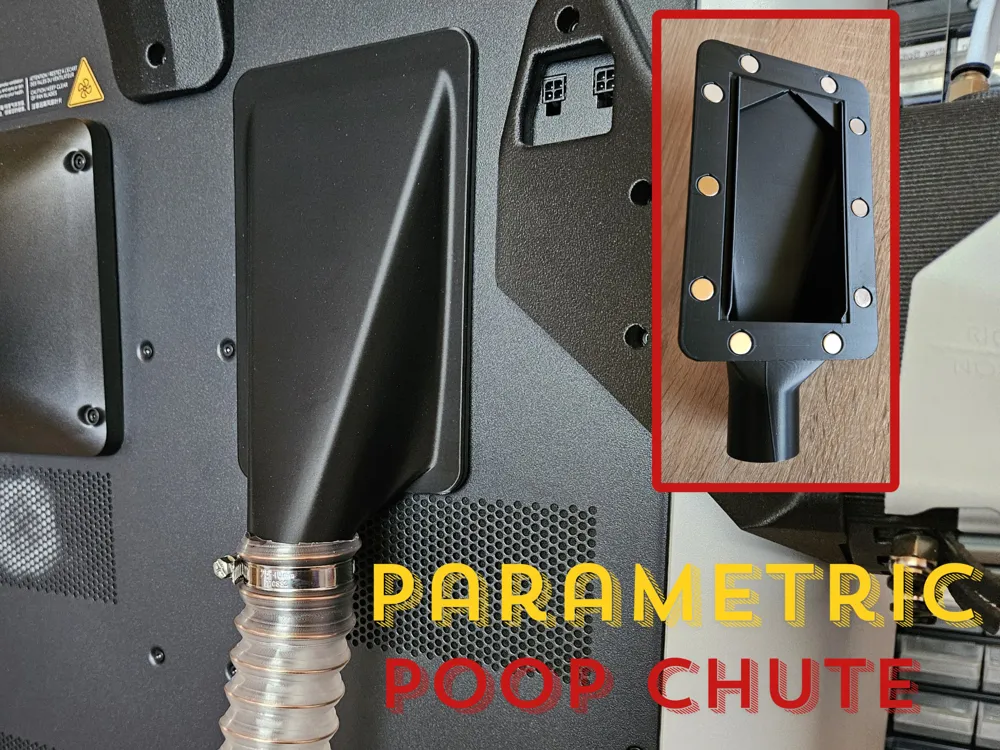

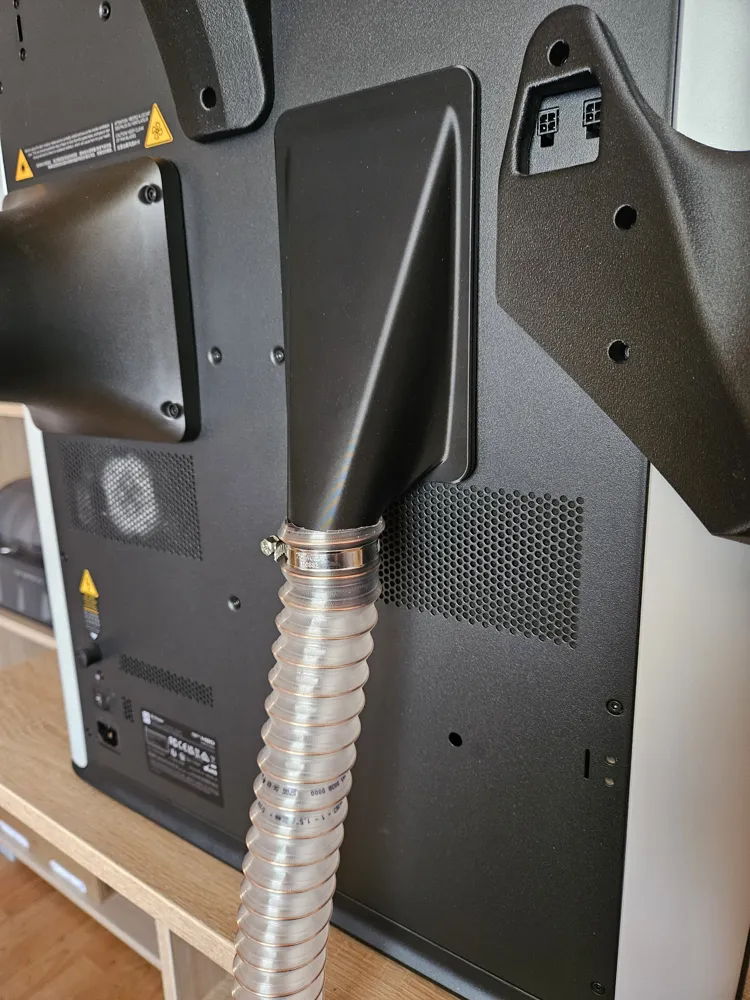

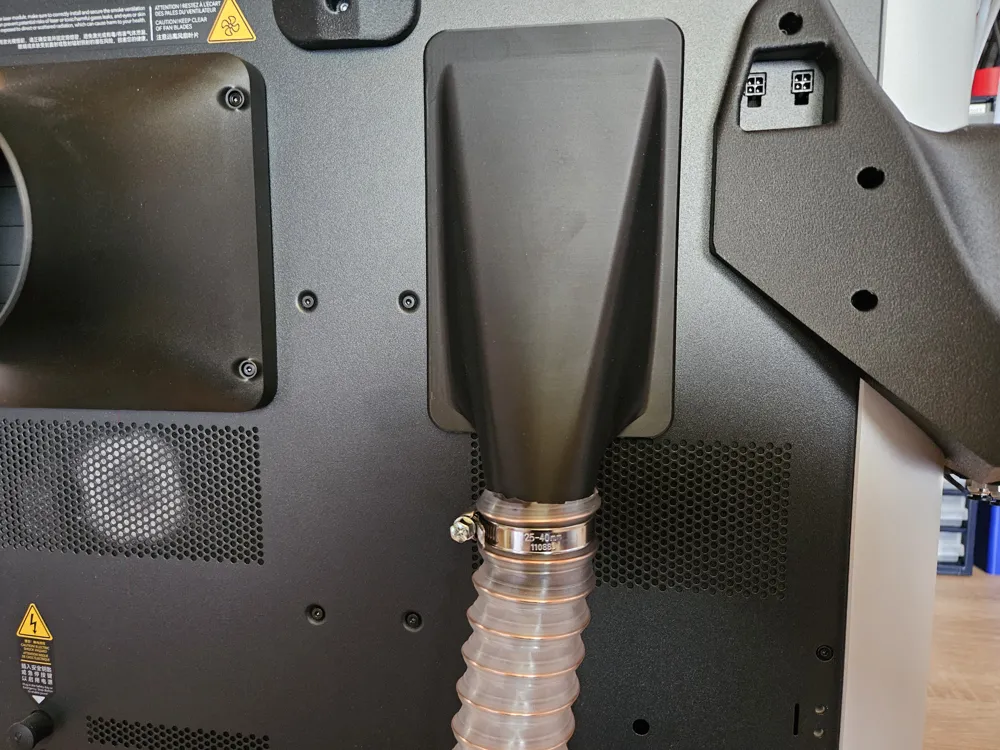

This waste chute directs purge waste directly into a hose. It is designed to be highly flexible and can be perfectly adapted to your magnets and hose sizes. Thanks to strong magnets and two additional small lips for fixation, the waste chute stays securely and stably in place.
Features & Customization:
- Hose Connection: Pipe diameter from 35 mm to 78 mm (corresponds to 1 1/2" to 3" hoses).

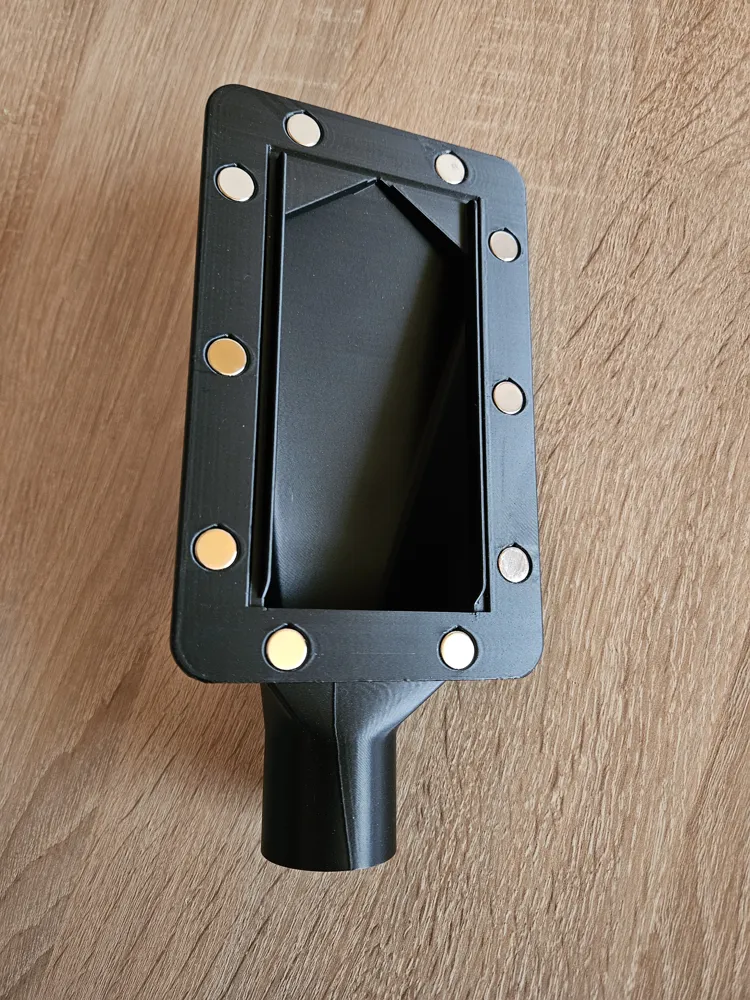

- Magnet Mount: Customizable up to max. 10.2 mm diameter and 3.2 mm depth.
- Tip: Add a 0.2 mm buffer to your magnet dimensions for diameter and depth for a perfect fit. The magnets should be glued in.
Print Settings:
- Walls: 3
- Infill: Gyroid

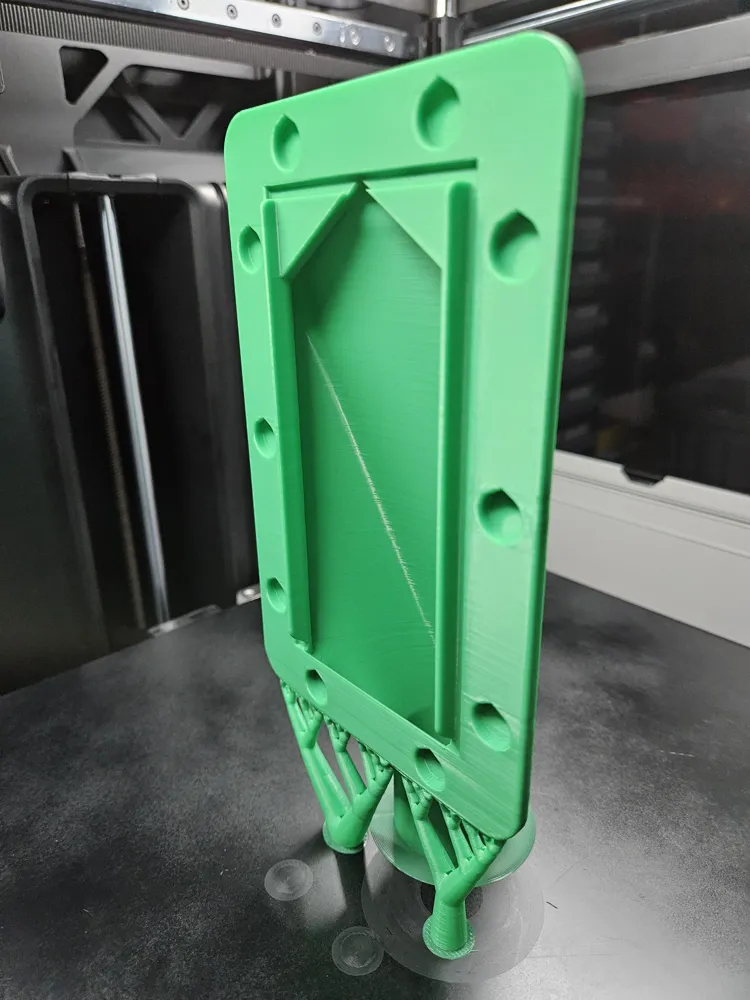

Support: Only required on the bottom edge.
