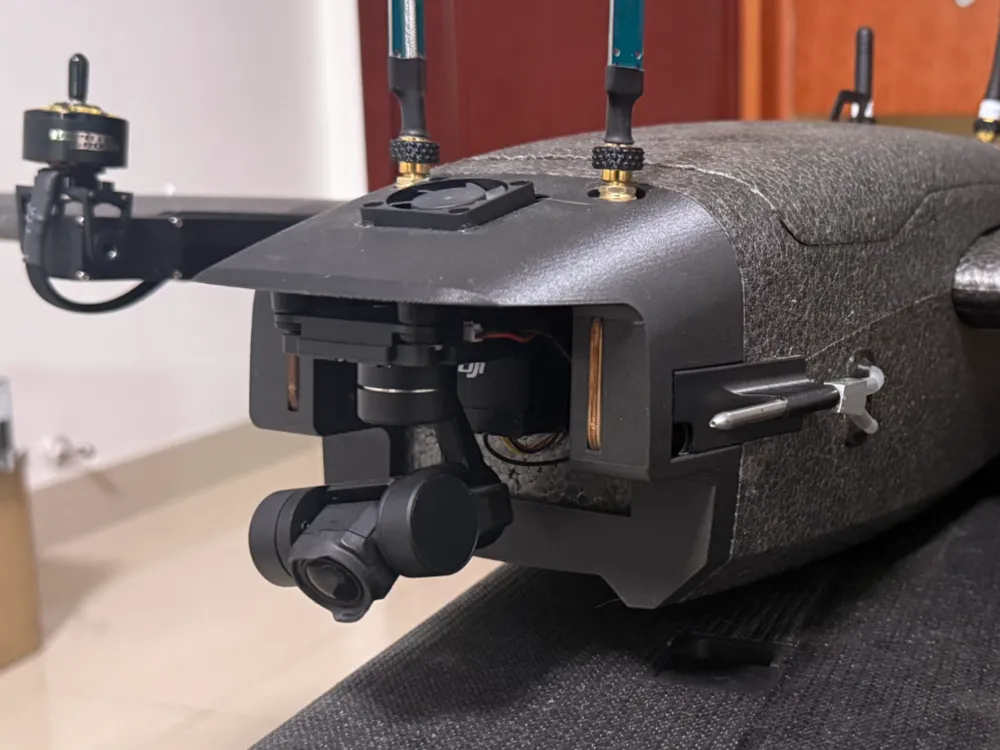

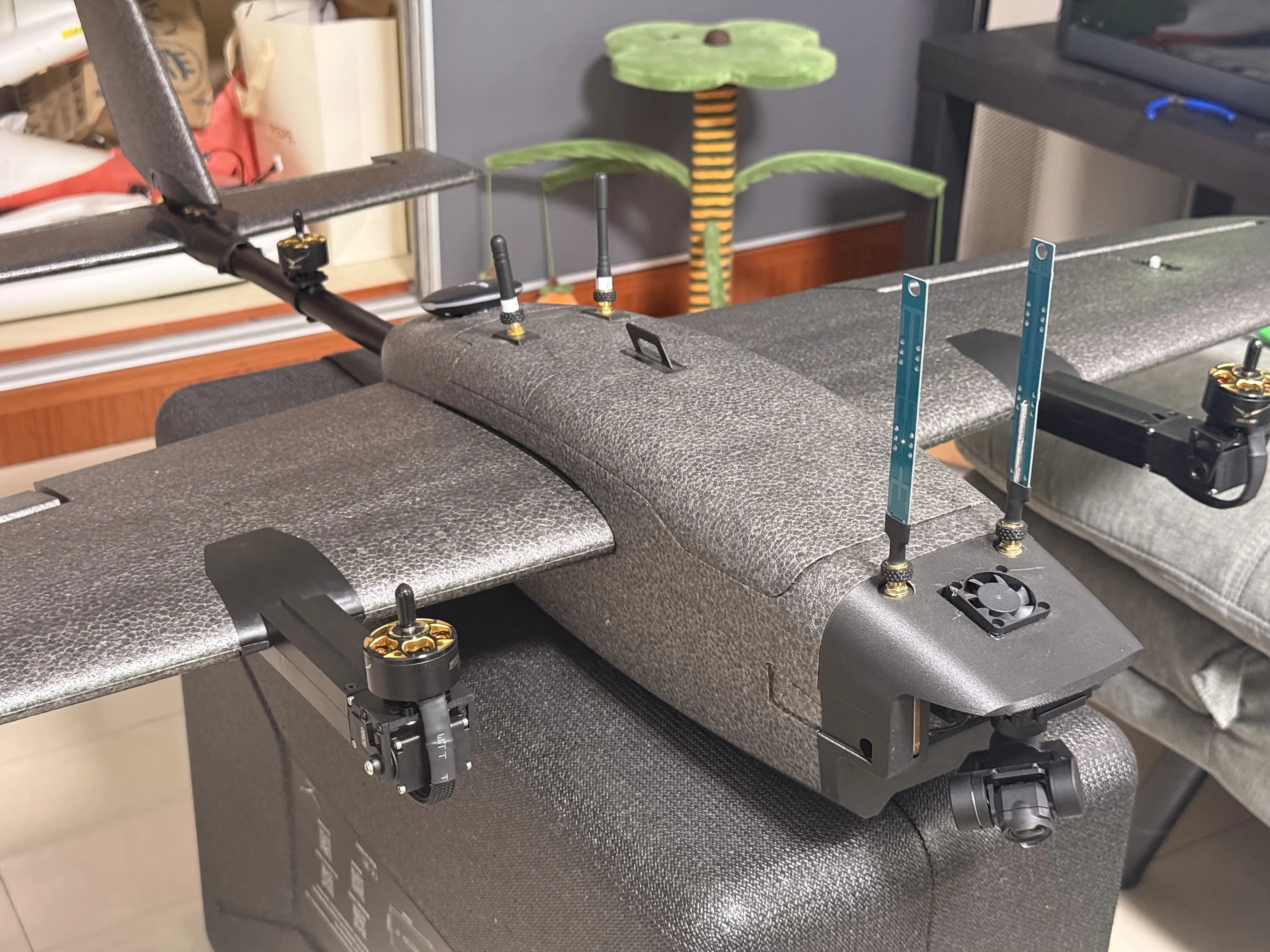

Gimbal Nose for HEEWING T-2 Fixed-Wing UAV, compatible with Hoqi three-axis gimbal and DJI transmission system
Print Profile(1)
Description
Modified from the original factory nose model file; thanks to Boss Qiu for open-sourcing it
The original design is compatible with Hoqi gimbals and O3 transmission. Based on its dimensions, it is also compatible with O4 Pro transmission. For small O4, don't bother looking, as the gimbal won't fit. The Xianfei gimbal has not been tested, so it's hard to say; it is recommended to check the dimensions first.
The required accessories are as follows
| No. | Name | Quantity | Remarks |
| 1 | M2*2*3 Knurled Brass Heat Set Insert Nut | 2 | For side locking holes of the nose, installed from inside out |
| 2 | M3*3*4.5 Knurled Brass Heat Set Insert Nut | 4 | For installing the gimbal |
| 3 | Measure gimbal mounting screw dimensions yourself | 4 | |
| 4 | M2*7 Screw | 2 | For fixing the nose |
| 5 | M1.6*10 Screw | 4 | For fixing the O3 Air Unit |
| 6 | IPEX to SMA Feeder Cable 15cm | 2 | Antenna extended to the nose |
| 7 | Cable | 1 | User-provided |
| 8 | 4cm Fan | 1 | Optional if there is sufficient cooling equipment on the ground; can be directly adhered with foam adhesive |
