IRONBOX Mech Desktop Collectible Robot Figure

IRONBOX Mech — Desktop Collectible Robot Figure

A compact, highly detailed mech robot figure designed for FDM and resin 3D printing.

Perfect as a desk companion, display piece, or gift for mecha/sci-fi fans.

FEATURES:

• One-piece print — no assembly needed

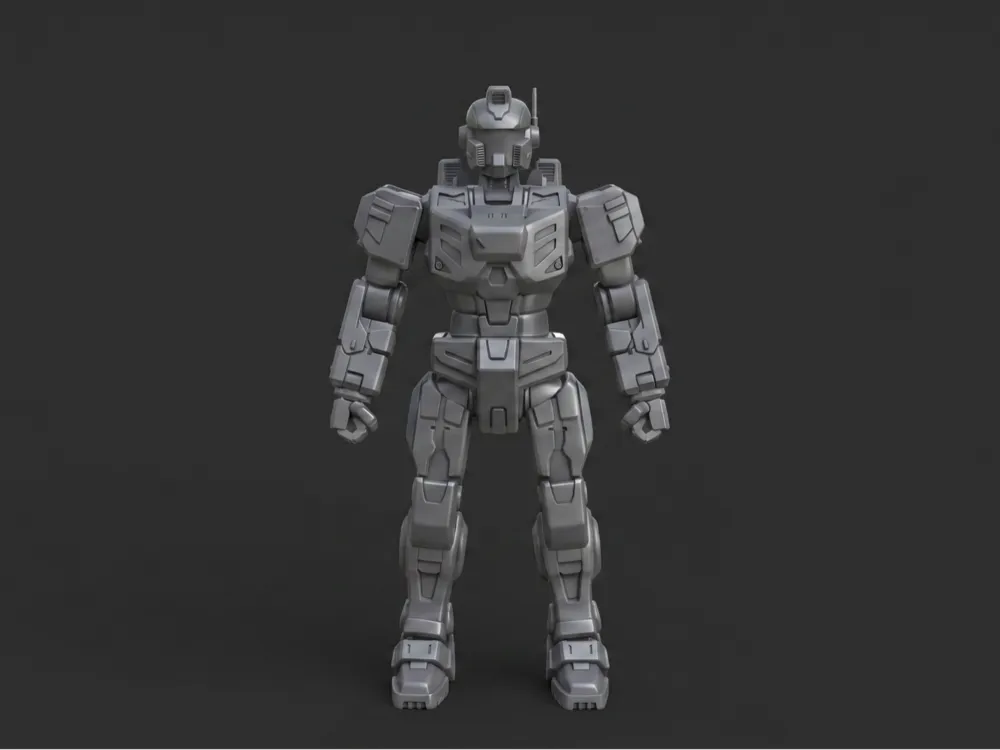

• Detailed surface: panel lines, vents, antenna, shoulder armor

• Height: 10cm (100mm) — scalable

• Standing pose with stable flat feet

• Solid collectible figure

PRINT SETTINGS (FDM):

• Nozzle: 0.4mm

• Layer Height: 0.12-0.16mm

• Infill: 15-20% (Gyroid or Grid)

• Walls: 3-4 perimeters

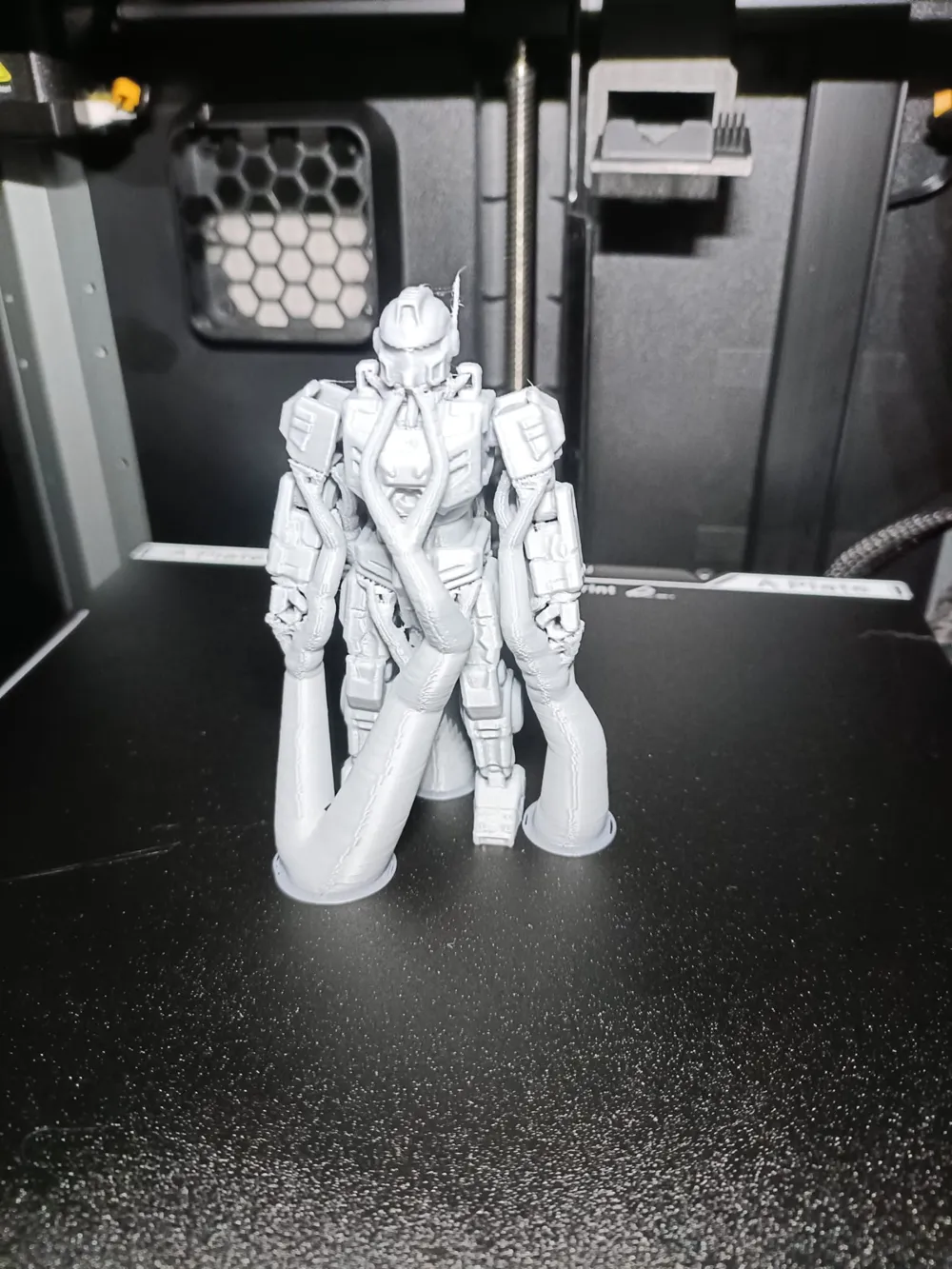

• Supports: YES — Tree Supports

• Support Locations: Under arms, chin/visor, between legs

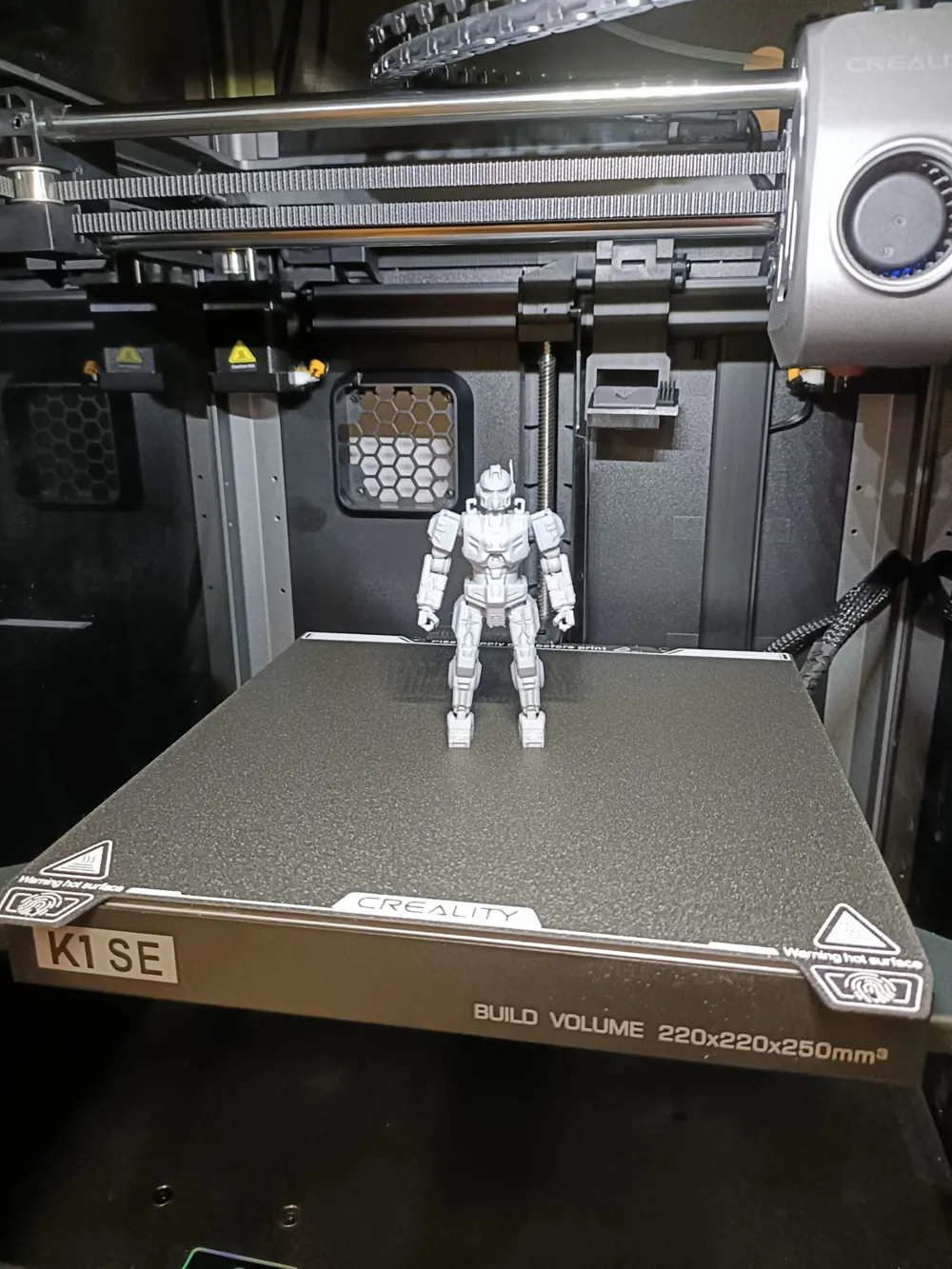

• Print Orientation: Standing upright on feet

• Material: PLA or PETG

• Print Speed: 40-60 mm/s

• Print Time: 4-6 hours

• Filament: 30-50g

• Brim: Recommended 3-5mm PRINT SETTINGS (RESIN):

• Layer Height: 0.05mm • Supports: Light auto-supports

• Orientation: Upright or 15° tilt

TIPS:

• Use tree supports (Bambu Studio / Cura) for easy removal

• 0.12mm layer height for best detail

• Sand with 220 grit for smooth finish

• Optional: Spray prime and paint for weathered mech look

IMPORTANT NOTE: The antenna on the helmet is thin and fragile. Handle with care after printing, or replace with a 1.5mm metal wire for extra durability.

Part of the IRONBOX Mech collection!
