Parametric Drip Tip 510/810 Anti-Spitback

Parametric Drip Tip (510 / 810) with Anti-Spitback Design


Fully customizable drip tip designed for both 510 and 810 standards, with an optional internal anti-spitback system to improve comfort and reduce liquid projection.

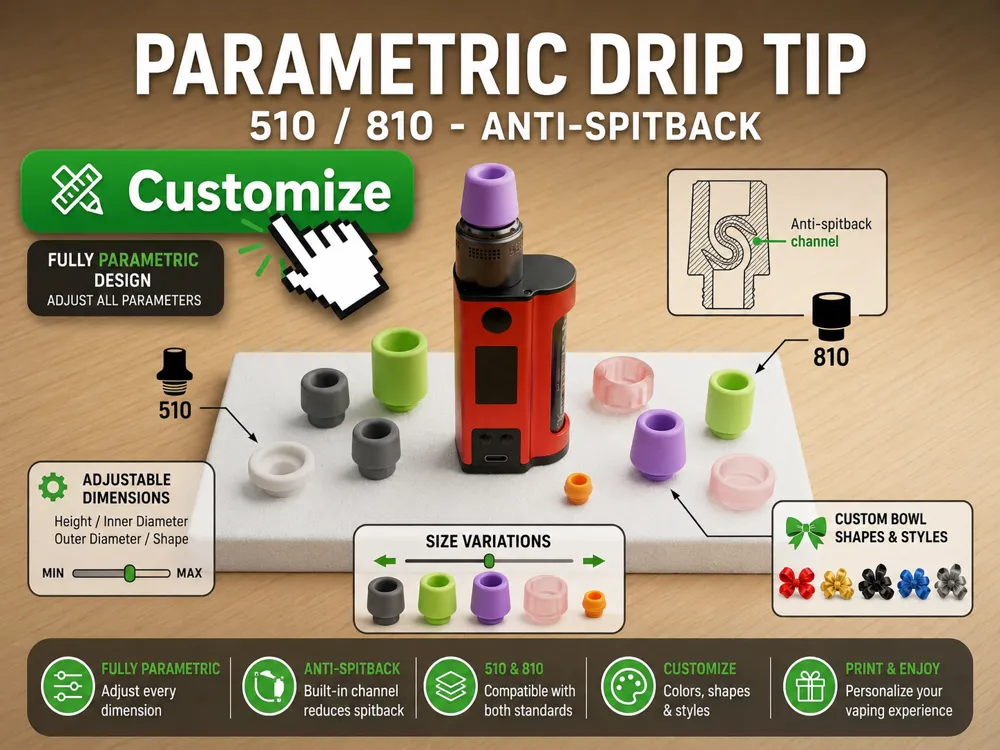

This model is entirely parametric, allowing you to easily adjust:

• Height
• Inner and outer diameters
• Body shape (straight or tapered)
• Dome comfort
• Airflow bore
• Anti-spitback geometry

💨 Anti-Spitback System

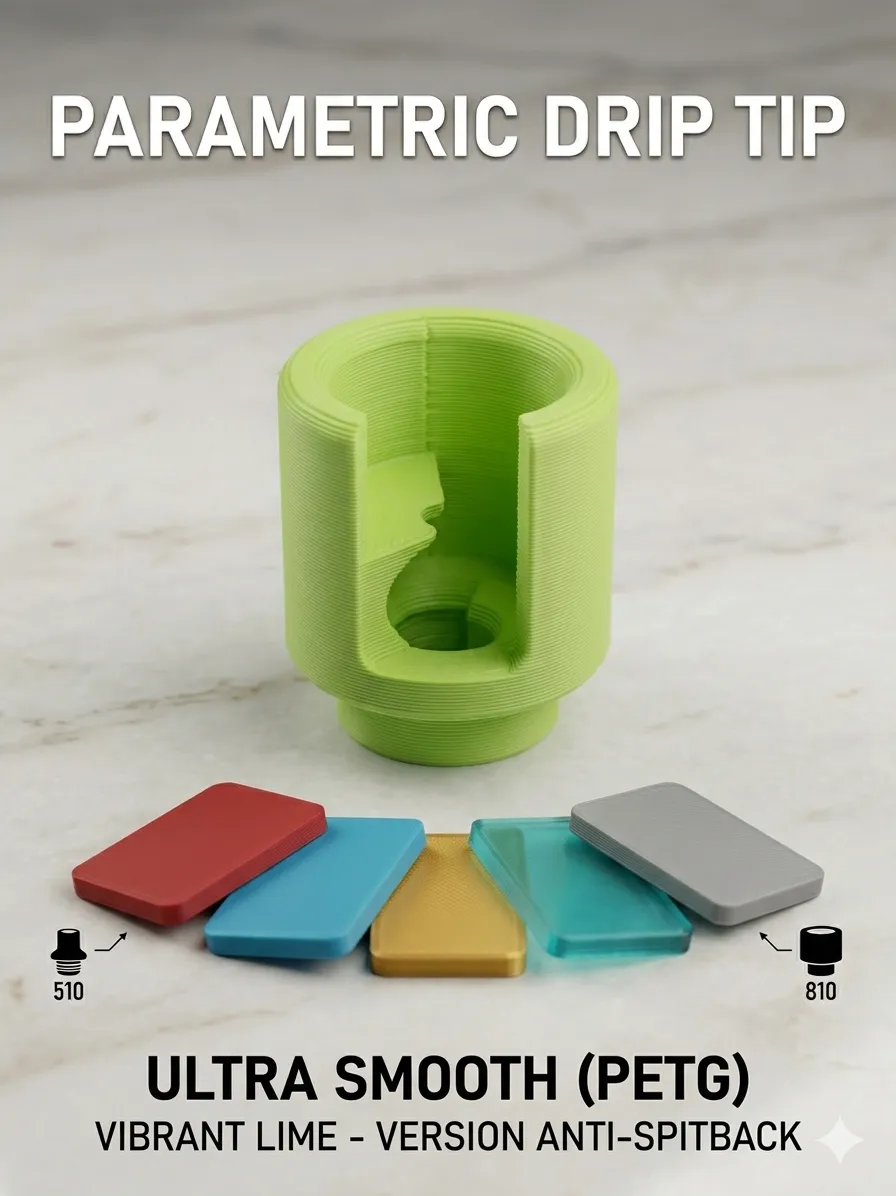

When enabled, two staggered internal plates create a deflected airflow path that helps prevent liquid from reaching your mouth while maintaining good airflow.

The system automatically adapts to the available space, ensuring reliable results across different sizes.

🖨️ Printing Recommendations

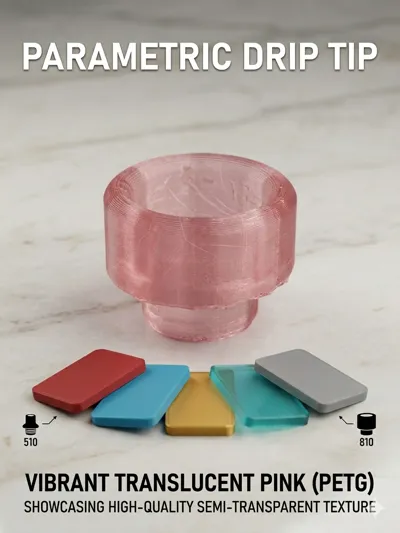

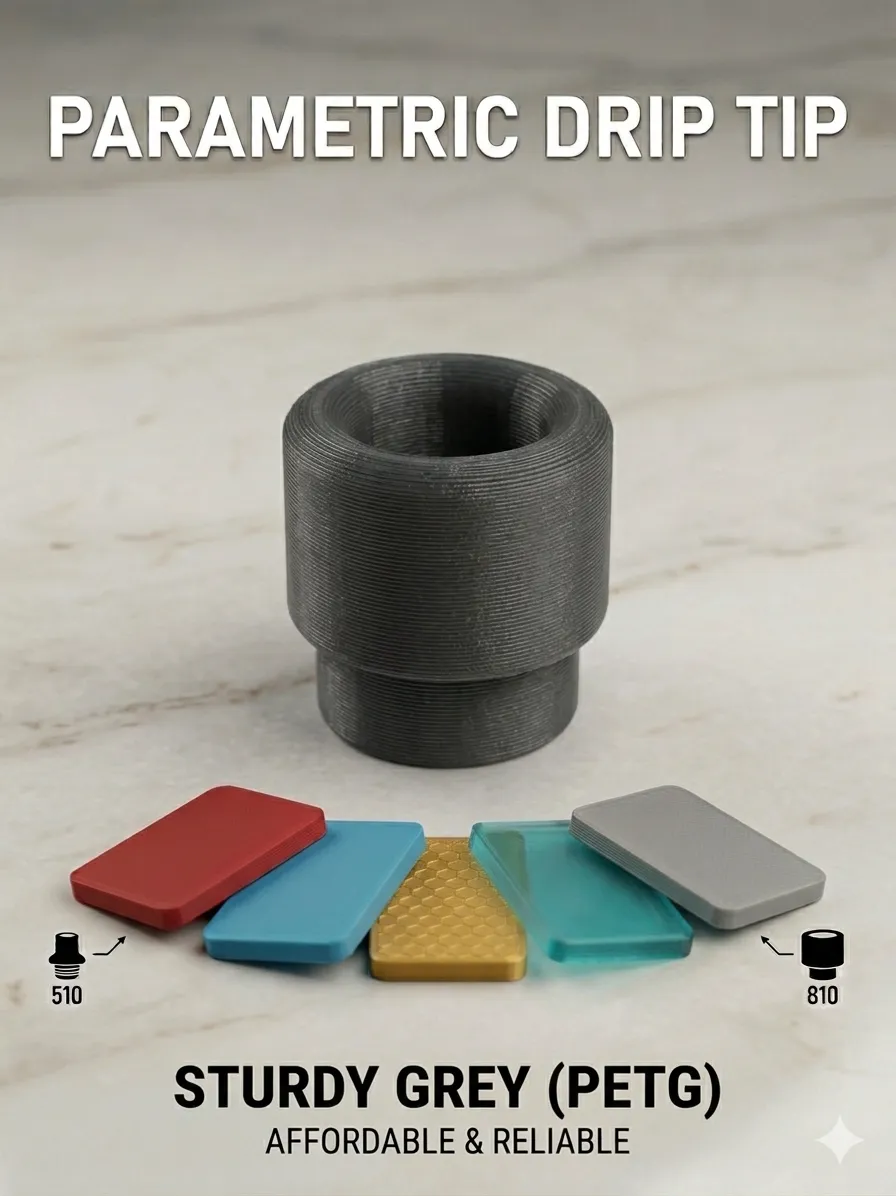

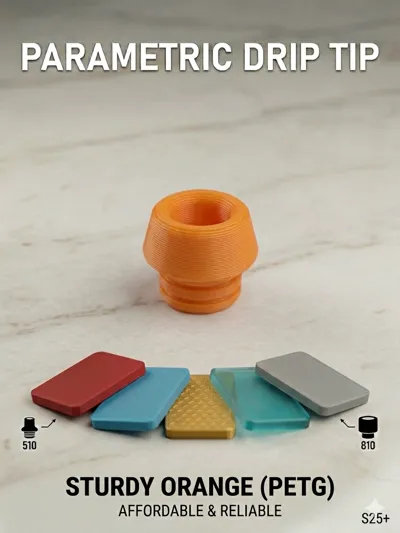

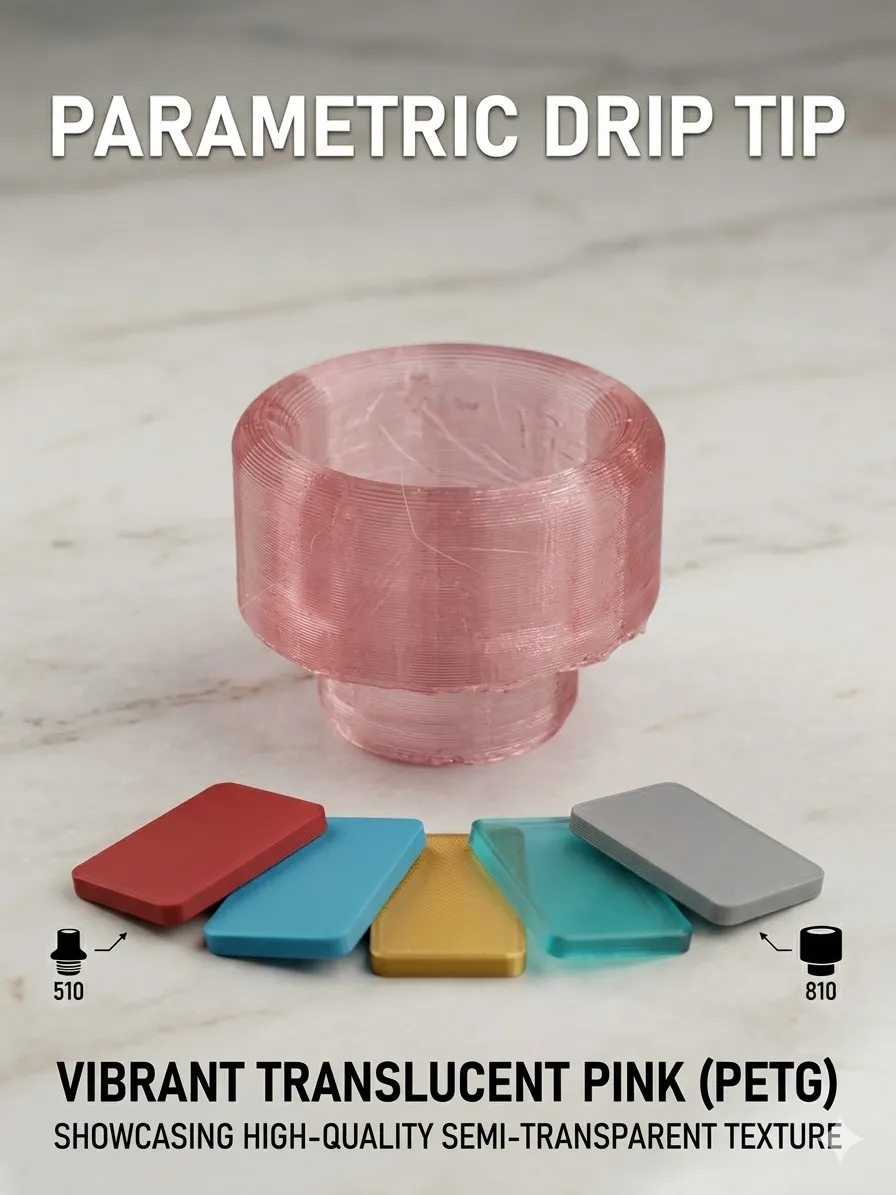

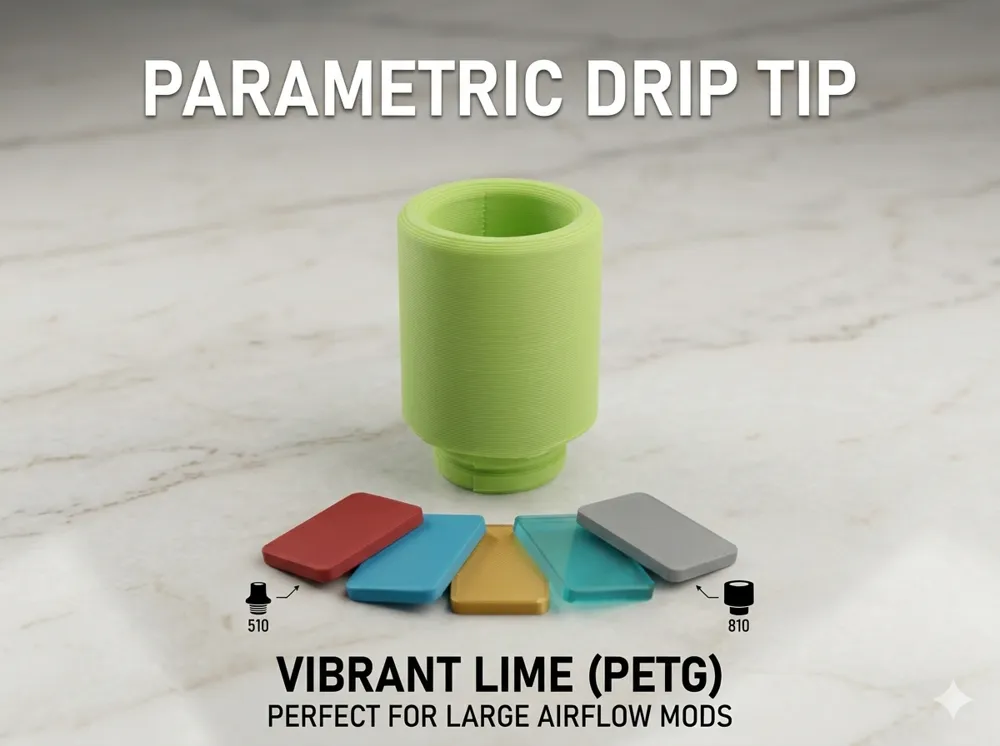

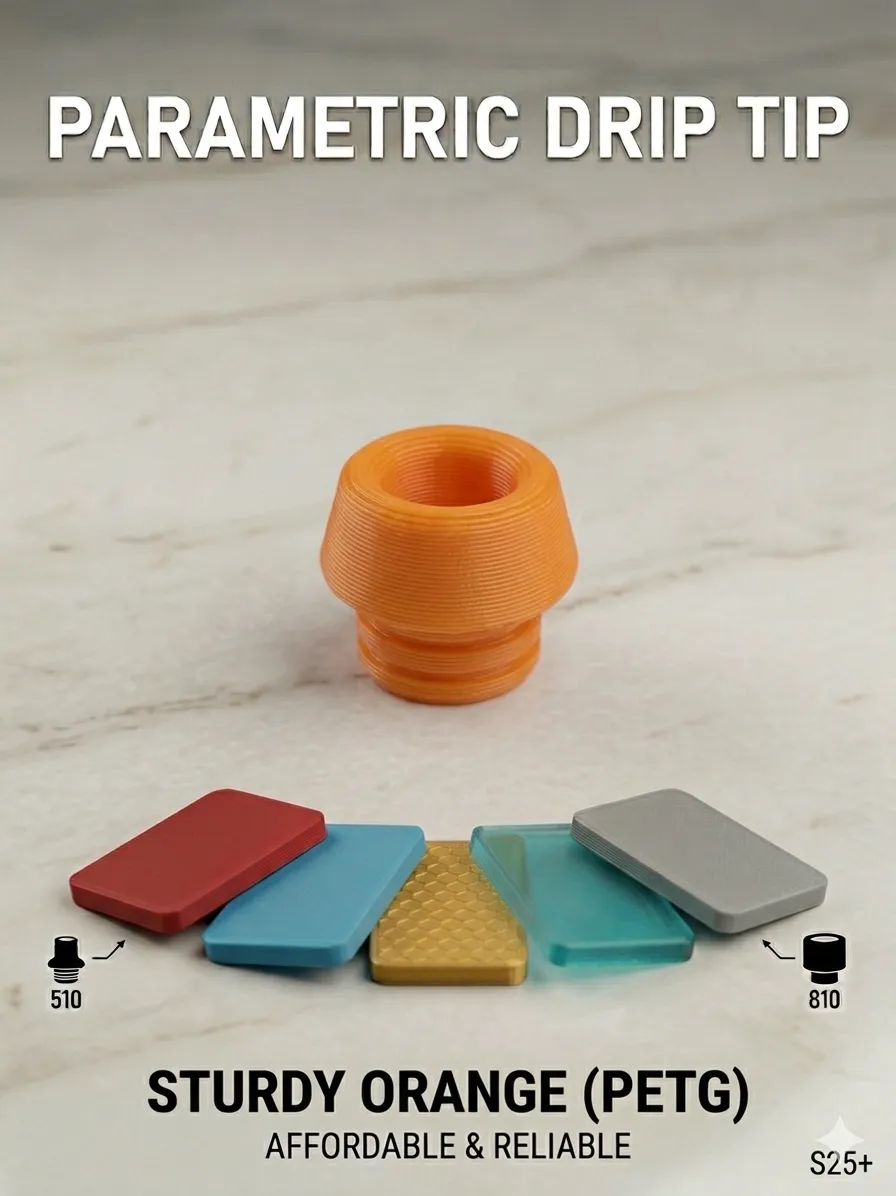

• Material: PETG recommended (safe and heat-resistant)
  ⚠️ Do NOT use PLA (not suitable for heat and hygiene)
  ⚠️ Avoid ABS / ASA (not recommended for mouth contact)
• Infill: 100% (better hygiene and heat resistance)
• Layer height: 0.12 – 0.2 mm
• Adaptive Layer Height: Recommended for smoother curves and better surface finish
• Speed: Slow printing recommended for better layer bonding
• Supports:
  • Not required in most cases
  • May be needed if anti-spitback is enabled (easy to remove)

🧩 O-Rings

Optional O-ring grooves can be generated depending on your settings.
Separate O-rings can be printed using TPU for proper sealing and flexibility.

⚙️ Parametric Usage

Use the Customizer to generate your own drip tip:

• Switch between 510 / 810
• Enable or disable anti-spitback
• Adjust dimensions to match your setup

⚠️ Disclaimer

This model is intended for personal use.
Always ensure your chosen material is suitable for contact and temperature conditions.

🏁

Designed for performance, customization, and clean airflow.
Simple, efficient, and fully adaptable to your needs.
