Blink Doorbell Gen 2 Backplate & 30° Angle
IP Report
Print Profile(1)
0.2mm layer, 3 walls, 15% infill
Designer
1.8 h
1 plate
Open in Bambu Studio
Boost
1
7
1
0
14
8
Released
Description
Content has been automatically translated.
Hello everyone,

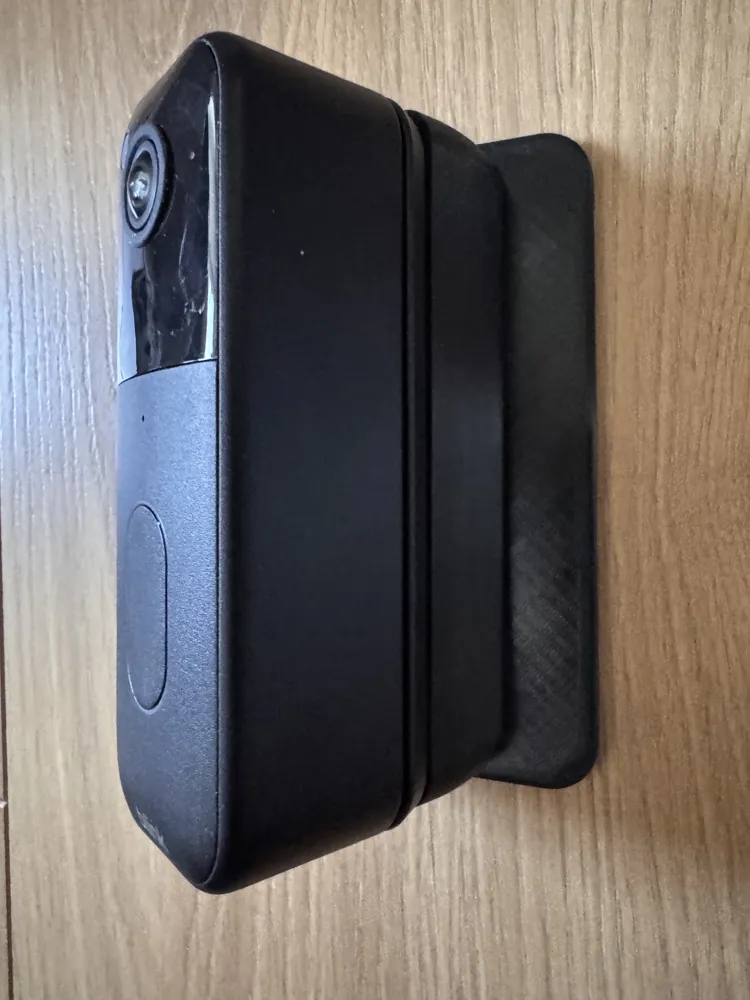

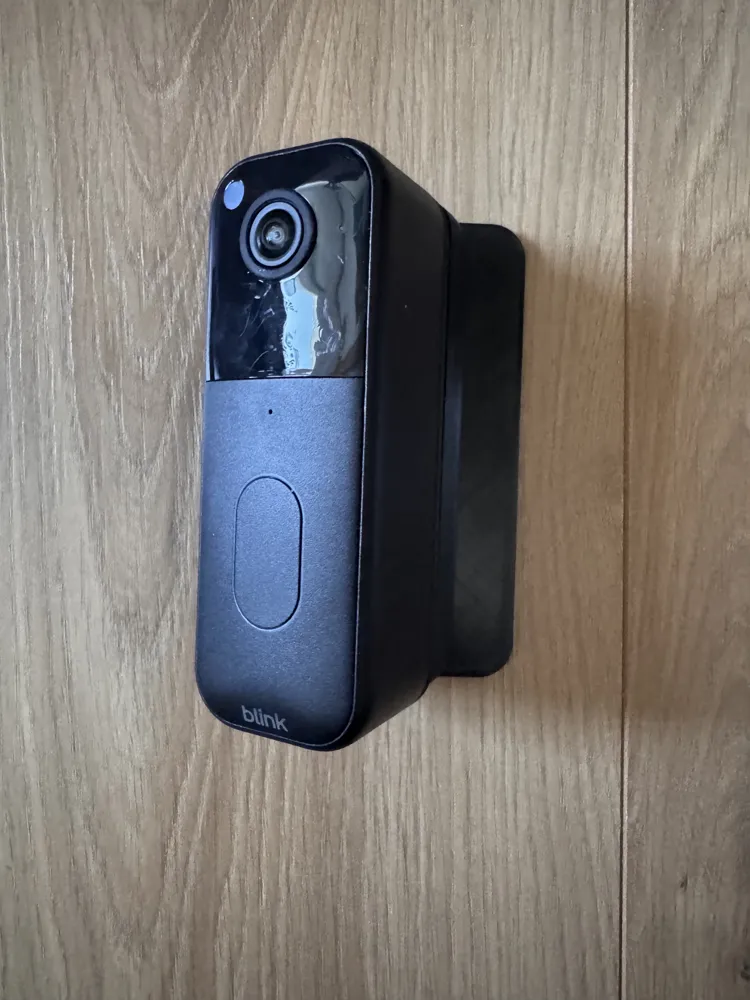

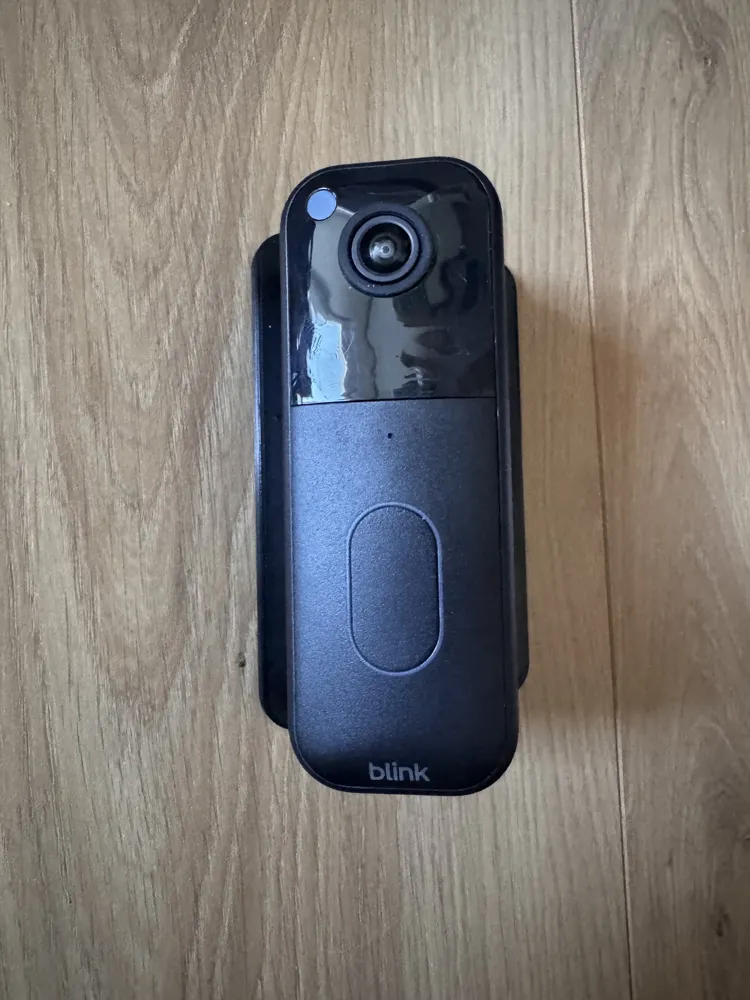

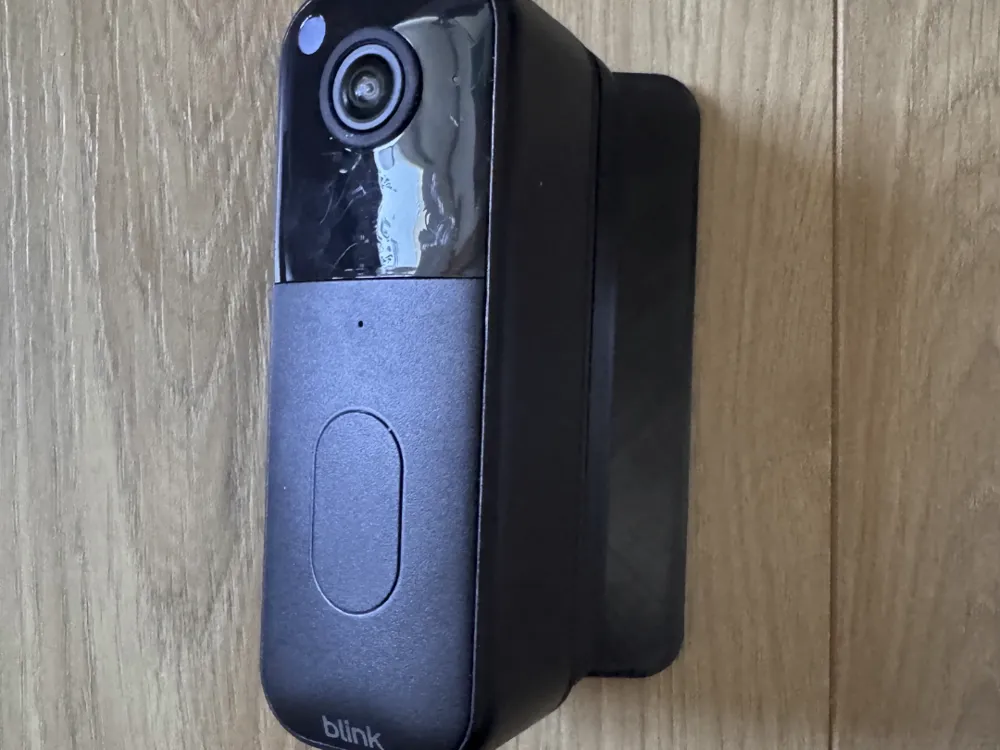

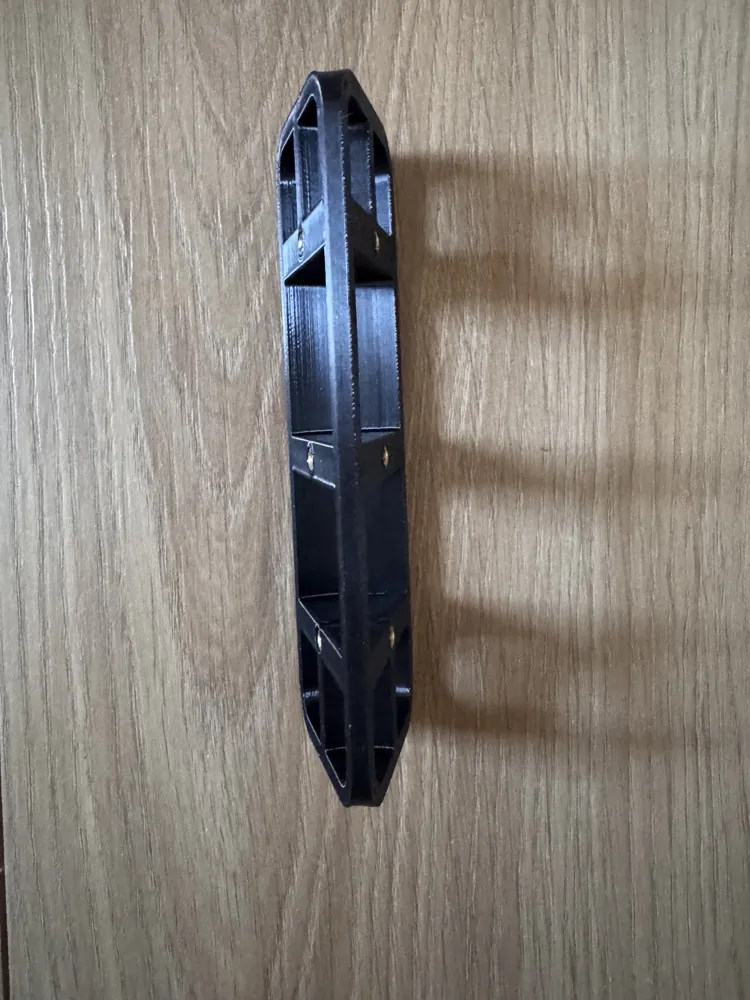

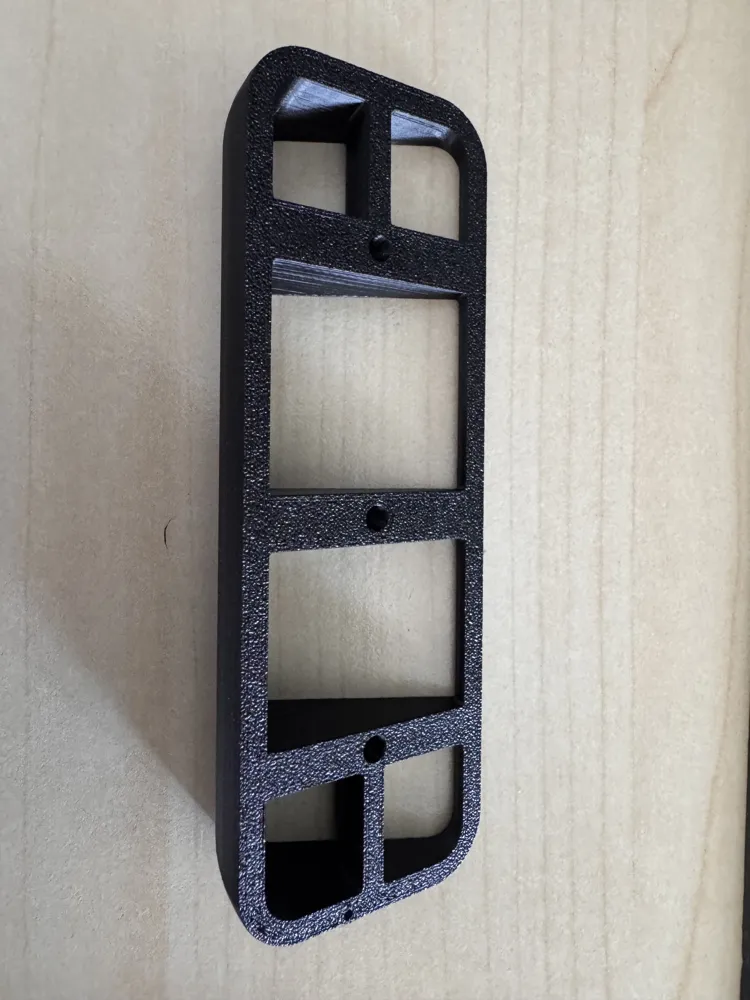

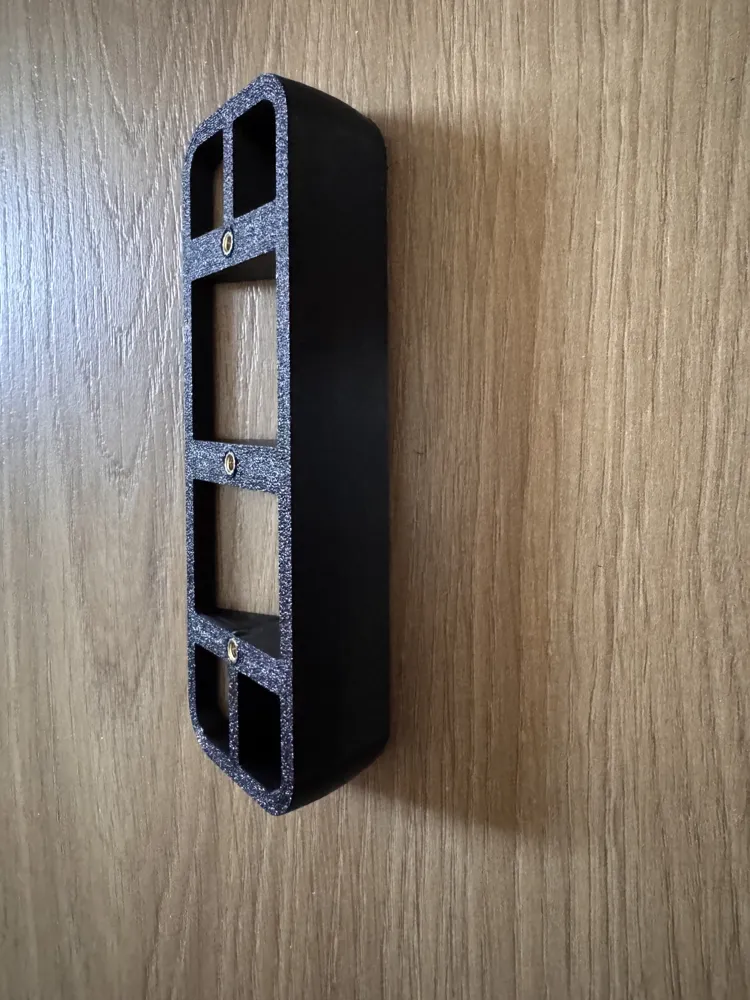

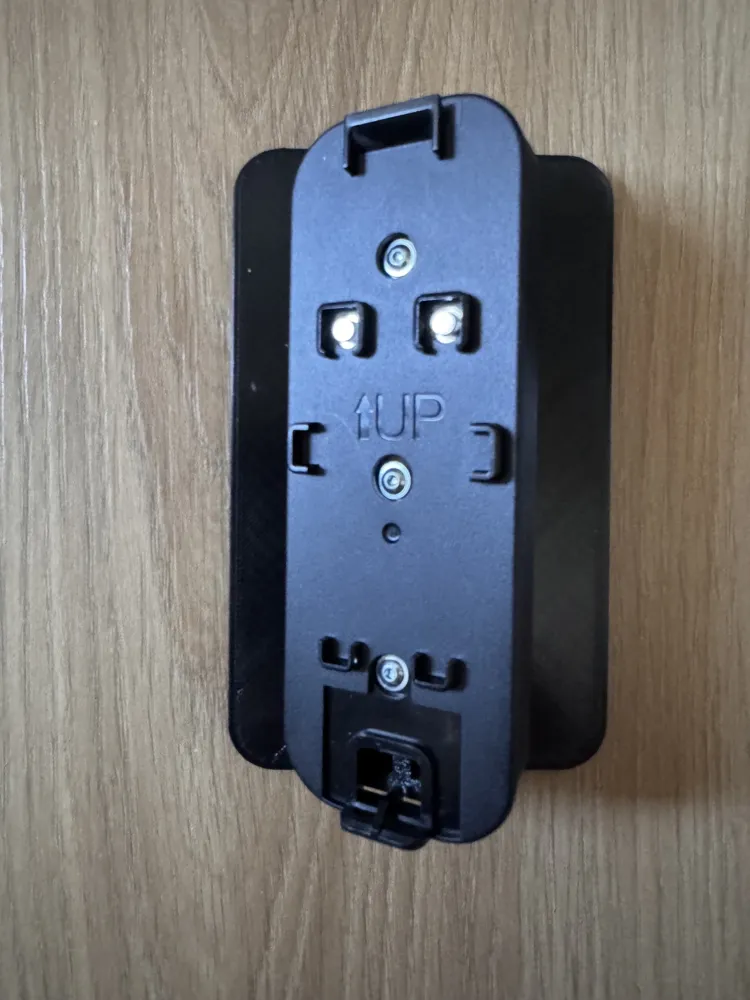

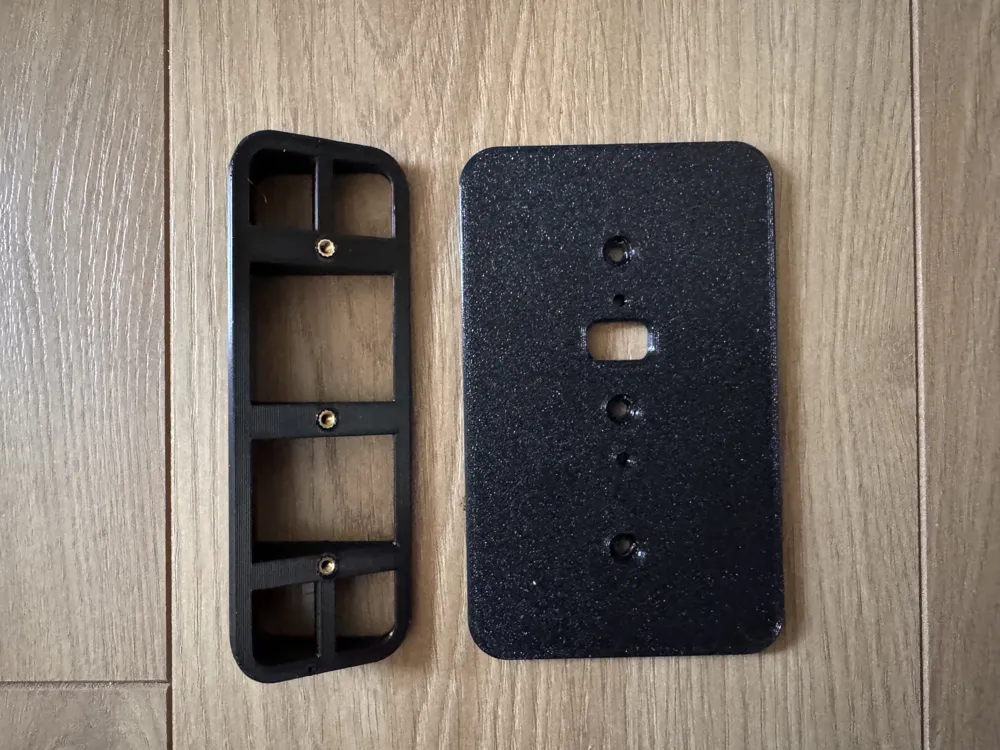

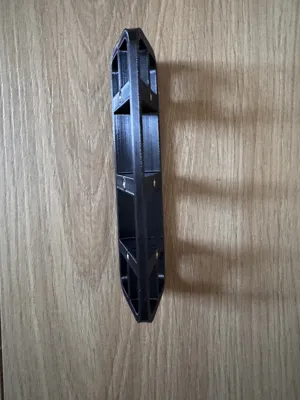

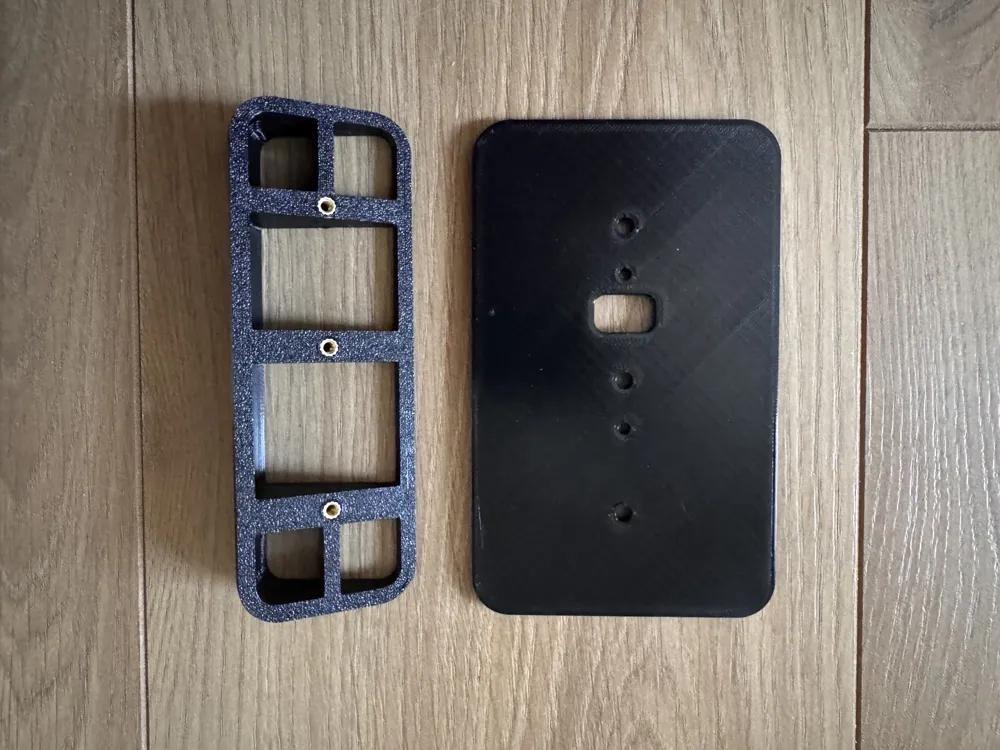

my first model here. This is a mount for the new 2nd generation Blink Doorbell and a 30° angle to see the correct cutout.

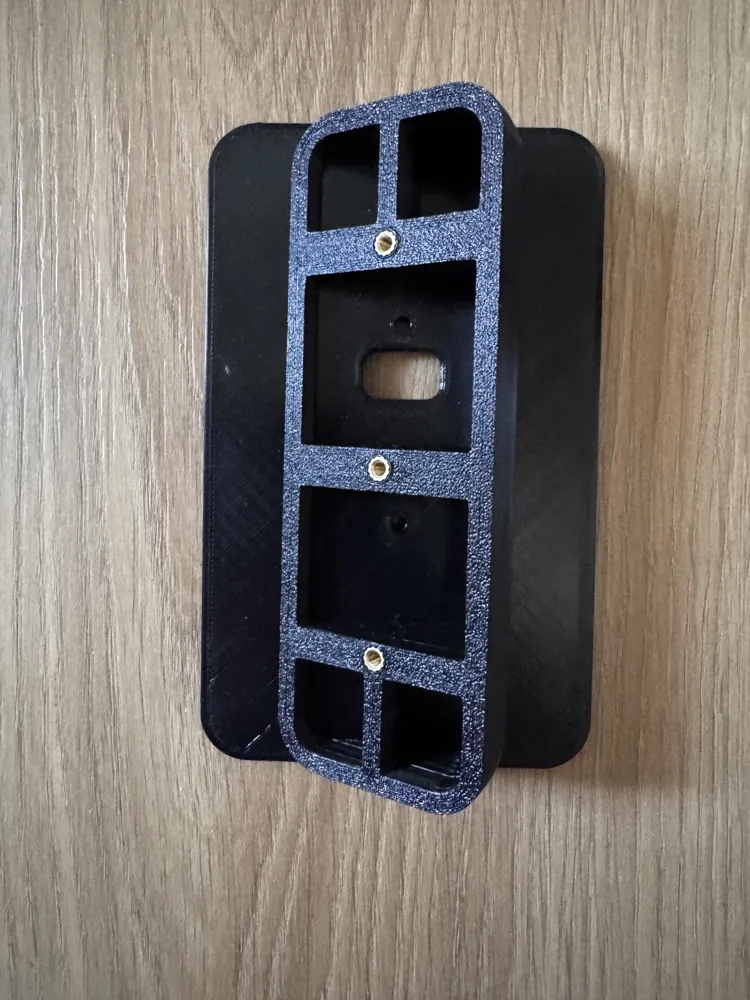

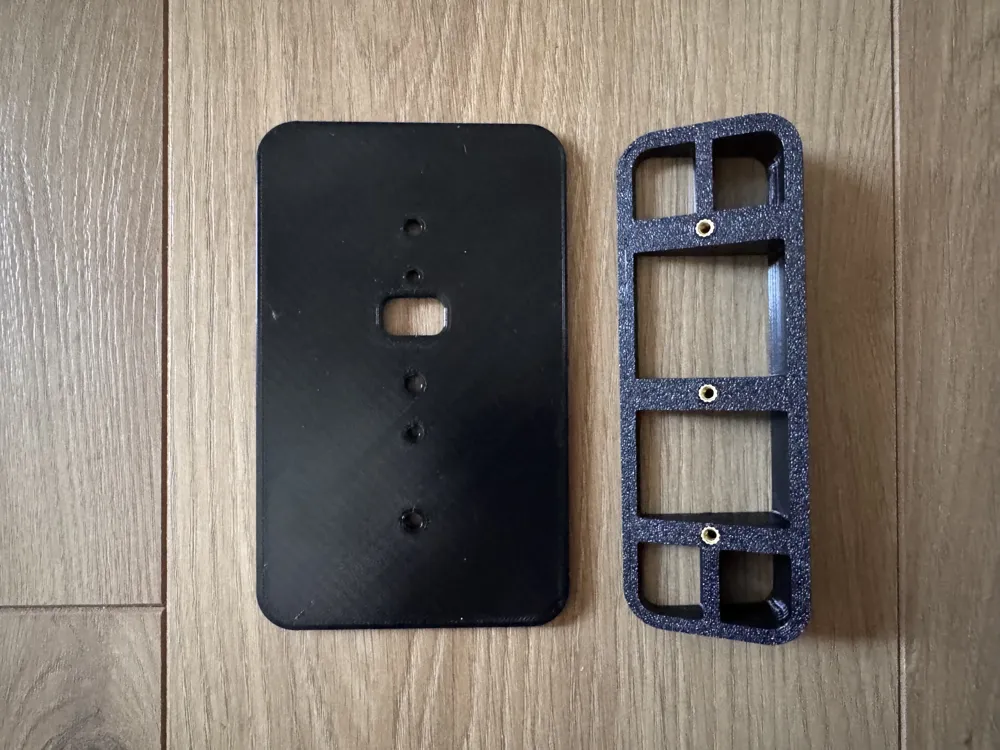

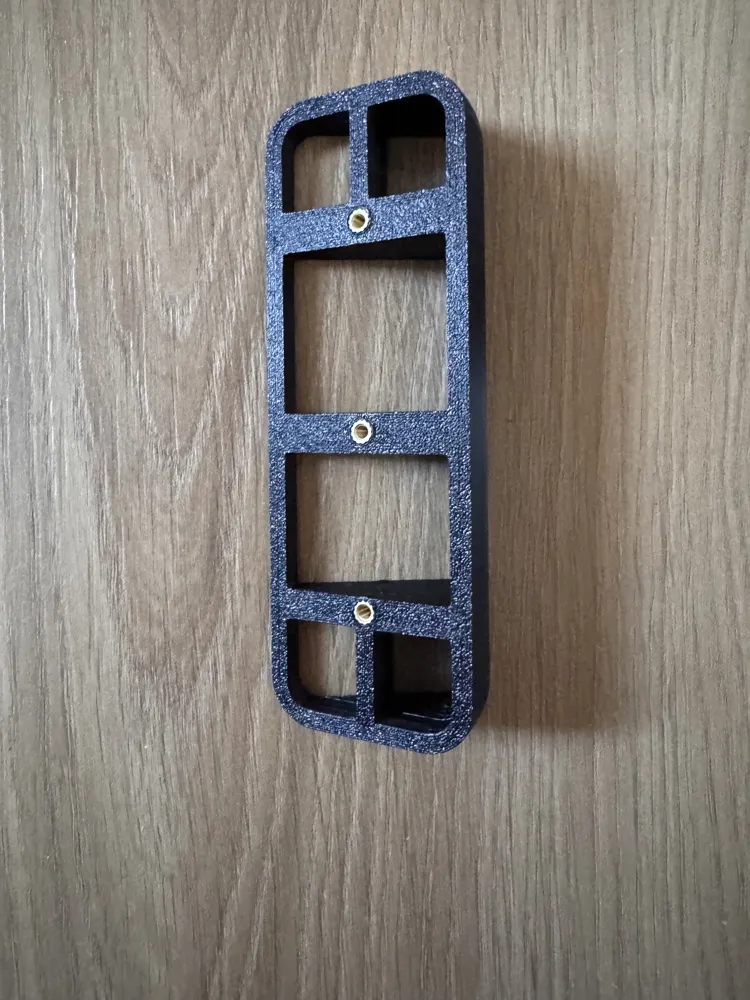

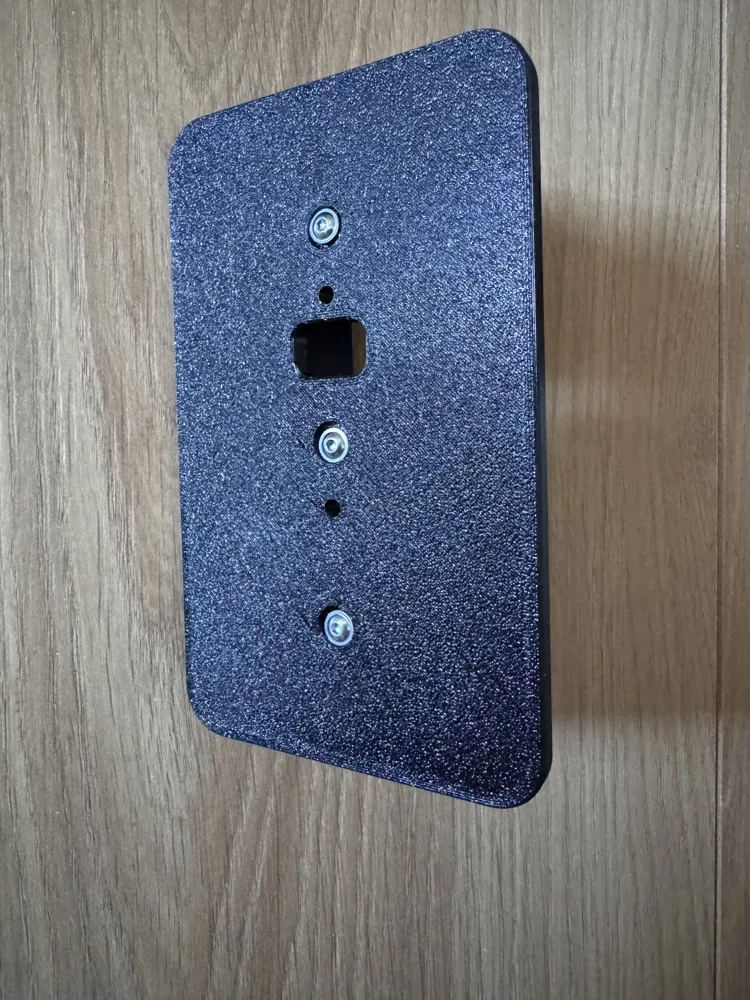

For mounting, I used M3x5mm heat-set inserts on the front and back and M3x10mm screws with a pan head.
If you have any questions or need other angles or holes without using heat-set inserts, let me know.

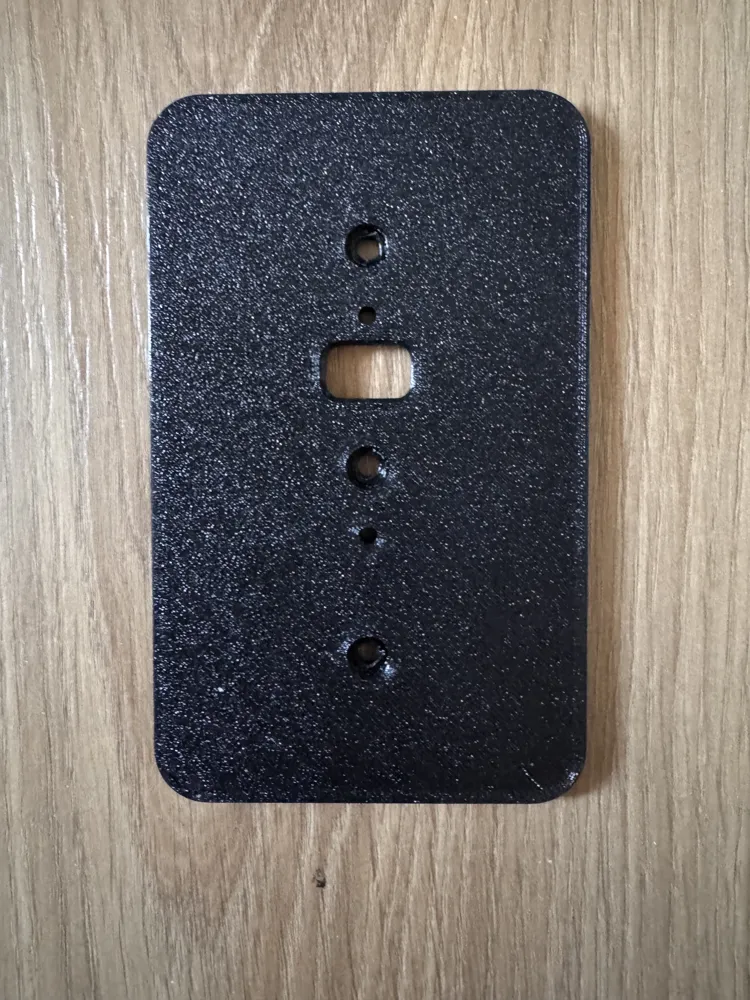

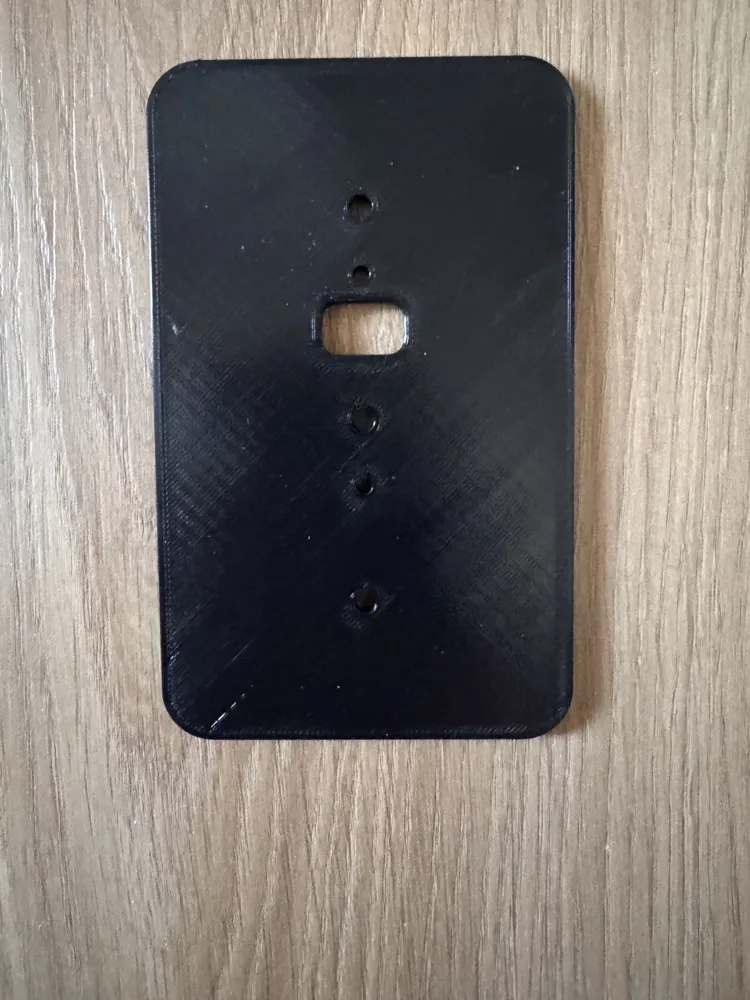

I printed the base plate with support so that the visible surface looks better (I have a textured PEI plate) and the countersunk holes can be printed.
