HKS SQV 4 Recirculation hose adapter

I got this HKS BOV second hand and it didn't come with the recirculation hose, I did some googling and found out the hose that I was missing wasn't even going to fit my vehicle as this was off of a 2018 Subaru STI(I have a 2005 Subaru legacy). With my vehicle having a MAF sensor, you can't have 100% VTA BOV, so I decided to make my own adapter to see if this would even work, or if I would have a vacuum leak that would end up still stalling the car.

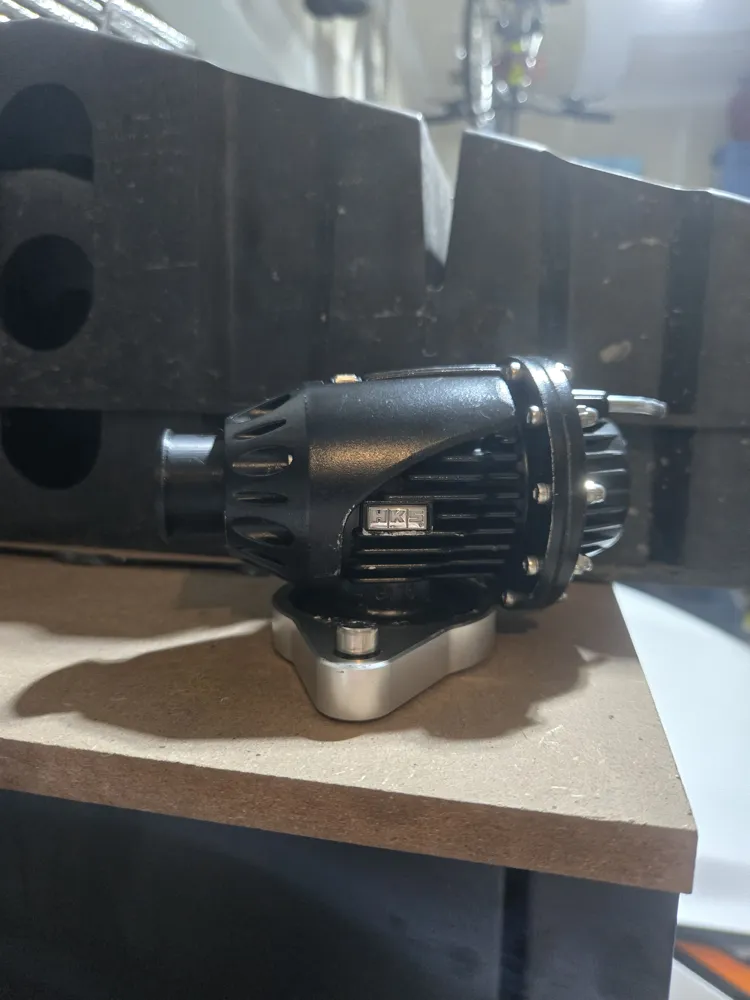

I bought the flange for my car and swapped the HKS BOV over, then I proceeded to trial and error. Eventually I got it to work, no vacuum leaks, and runs perfectly, it is now a fully functioning 100% Recirculation BOV. I designed it to be a very snug fit with no play once installed (literally no play) to ensure a tight seal against the gasket.

Installation.

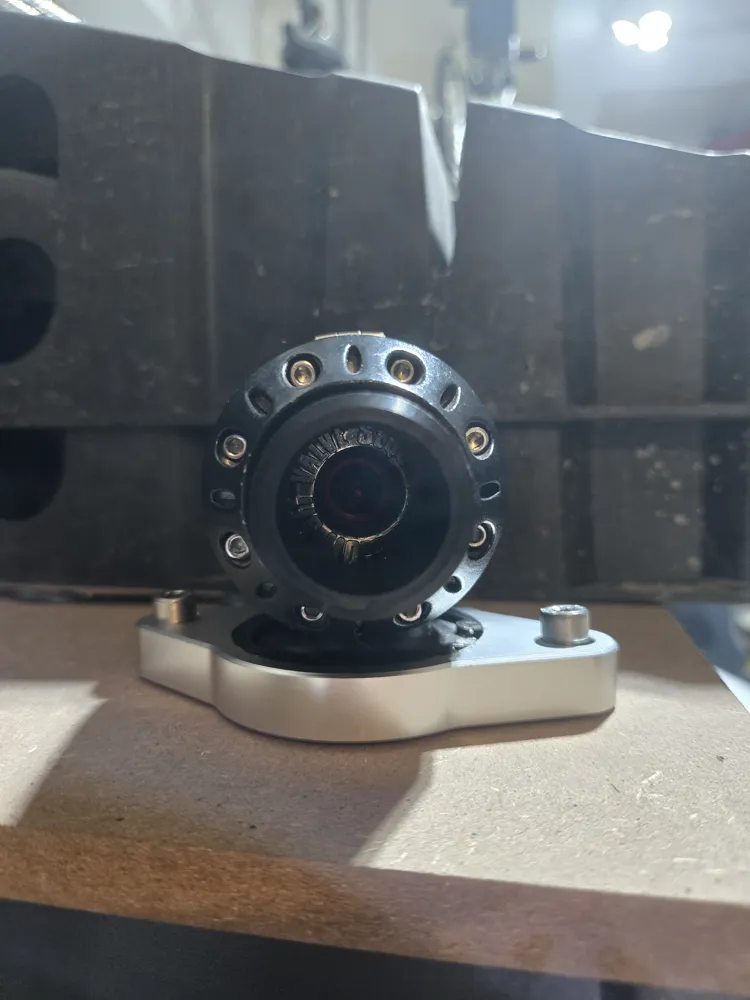

1. There are a total of 8 screws on the front of the HKS BOV, you need to undo the 4 protruding(closer to the surface) screws to take off the fin cover and get access to the plastic chrome divider.

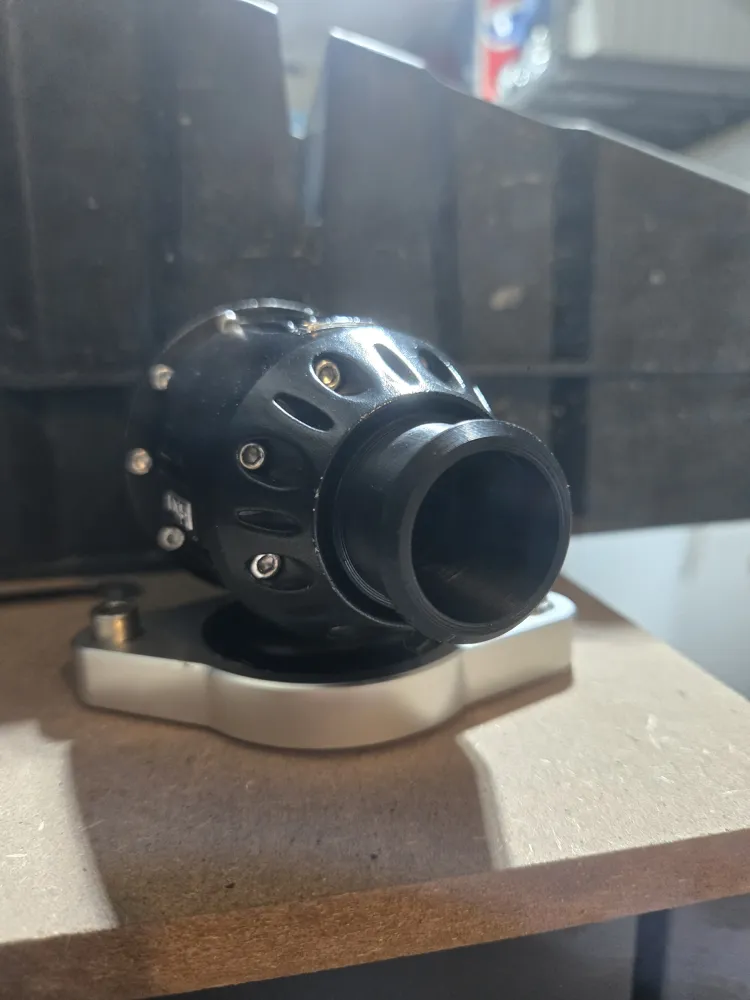

2. take out the plastic chrome tri-fin and install your new 3D printed adapter, ensure the larger tab is on the bottom and the thinner tab on the top, it should be a very snug fit.
3. reinstall the same 4 screws to put the fin back on.

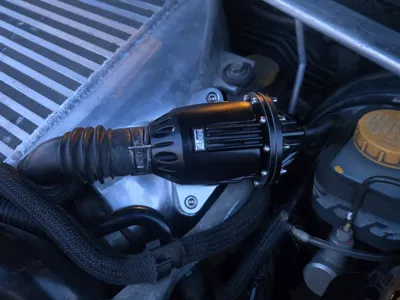

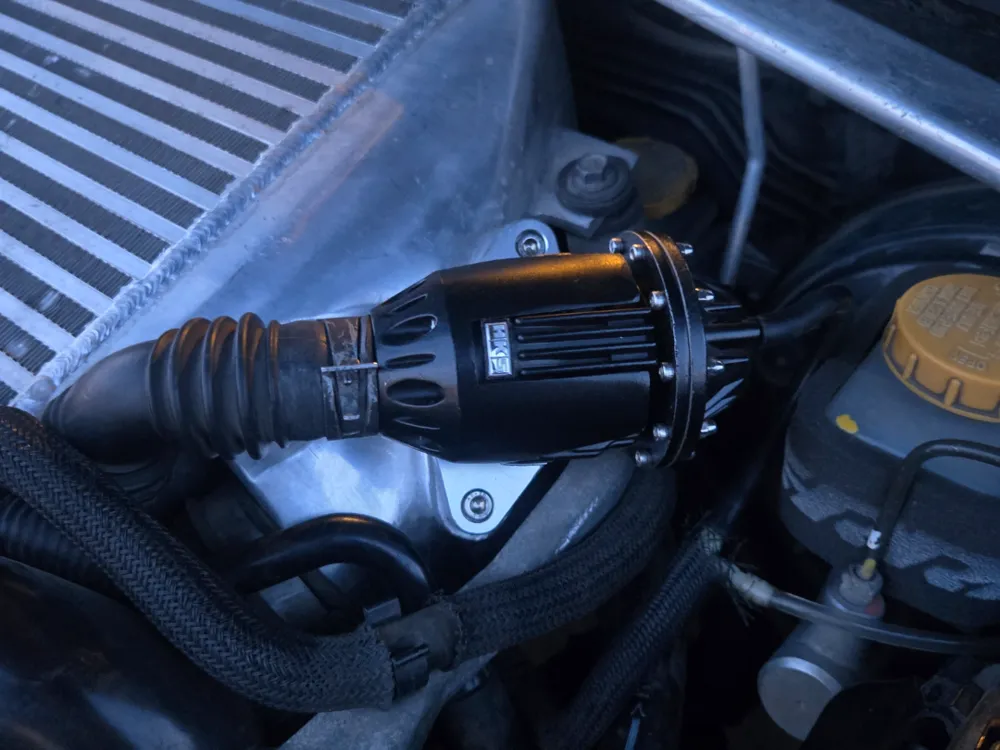

4. install in engine bay and you're done!

The good:

• Fully functional with no leaks
• Has to be made in ABS, ASA, or PA-6 CF to handle engine bay temps and constant stress from the hose clamp.
• Easy print in under 1 hour with 3MF settings
• Good alternative if you want to switch your car back to full recirculation like OEM.
• No modifications required to the rest of the engine bay.

The bad:

• you loose the cool “PShhhhh” sound that a BOV normally makes or you don't get the iconic HKS BOV sound. :(
