Skidoo/BRP Clutch Shaft Removal tool

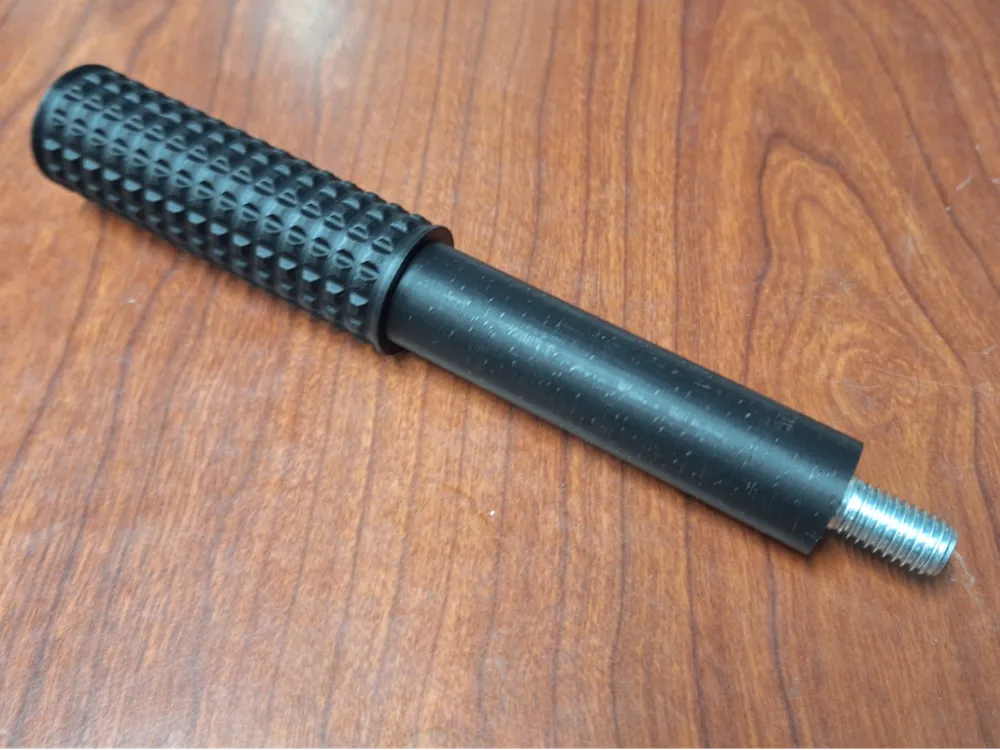

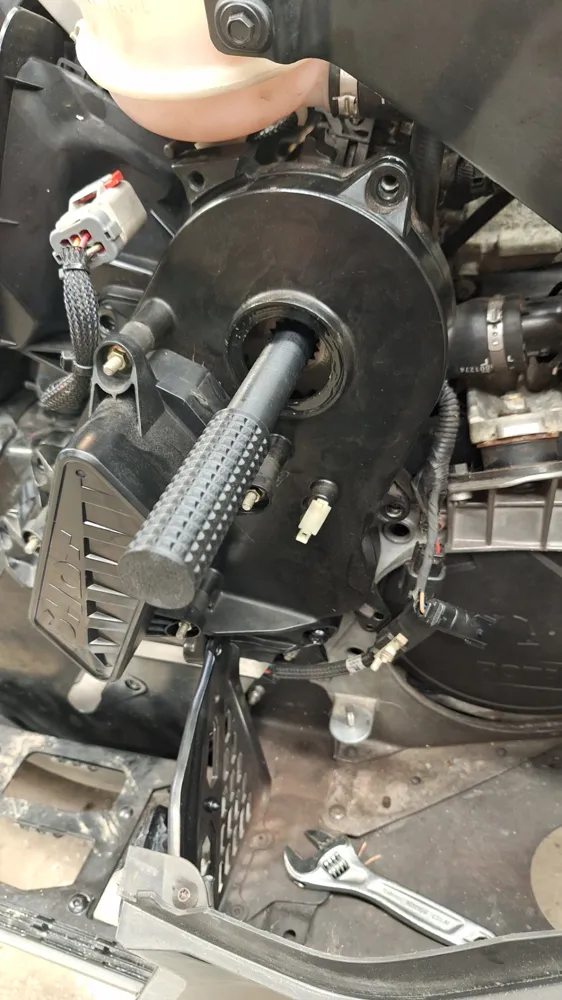

This is a tool for a Skidoo/BRP 600/850 E-TEC Snowmachine. I made it for when you pull the clutch shaft out of the chain case without taking the chain case cover off, it holds the sprocket and chain up when you pull the shaft out.

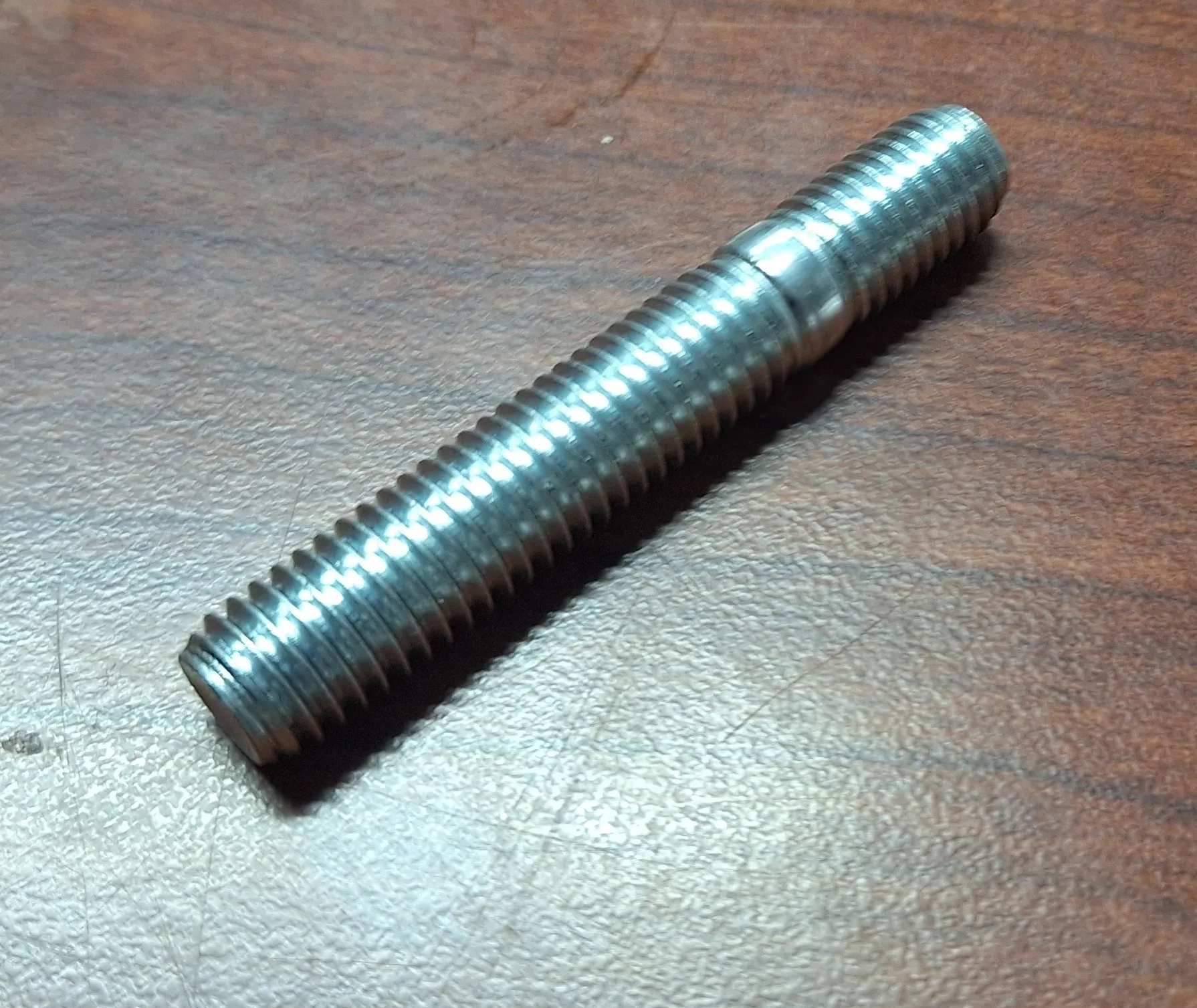

-The thread in the end of this part matches the bolt that came out of the clutch shaft - 10x1.5mm, you will need a 10x1.5x70mm Stud like this or either cut a bolt head off, or a piece of threaded rod. I did this rather than printing the threaded stud for sturdiness so it won't snap off in the clutch shaft.

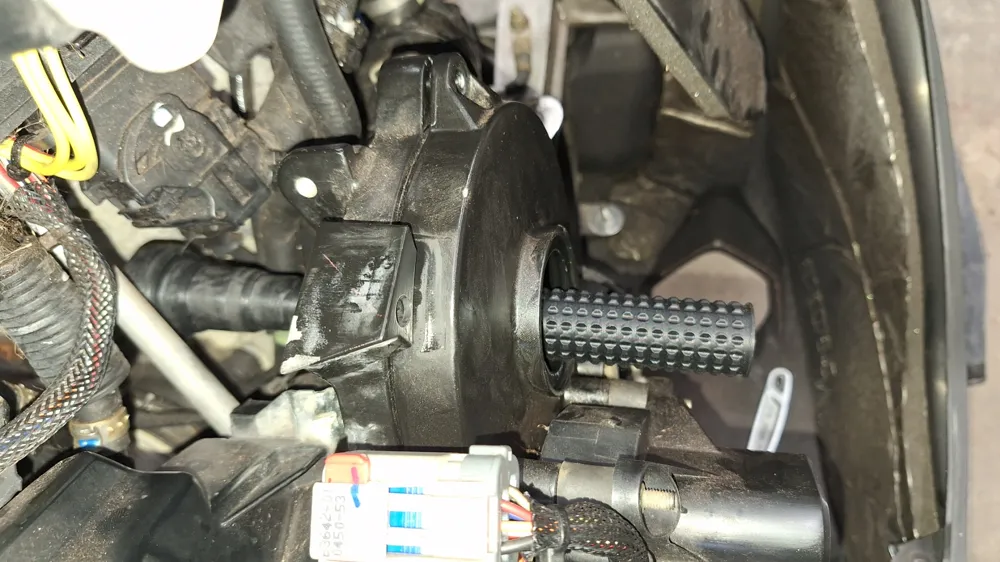

-After you pull the shaft out using this shaft removal tool, you can insert this plug/holder in place of the steel shaft I made as well.

https://makerworld.com/en/models/2731907-skidoo-brp-clutch-shaft-chain-case-service-plug#profileId-3028047

Then you can reinstall the bolt to hold the plug and sprocket in place. Then you can reinstall the cap rubber. This way everything is sealed tight for long term storage so you don't have to worry about anything getting in you chain case while you service the rest of the machine. you can also move the machine around with this inplace incase the track spins.

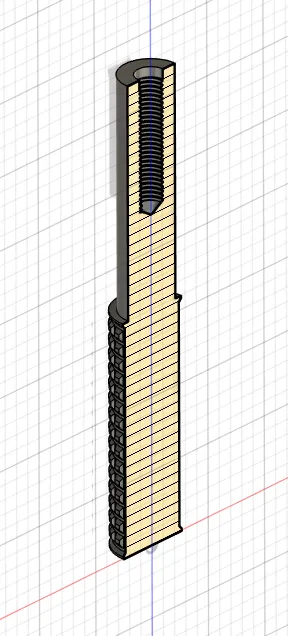

-Printed in PETG and I offset the thread faces to make the stud thread in easy

-Added Brim support at bottom for better bed adhesion with the part standing up.

-10 Bottom walls for better sturdiness in case you need to use a hammer to remove the shaft
