MR-1 Flood coolant halo with internal magnets
IP Report
Print Profile(1)
0.2mm layer, 6 walls, 25% infill
Designer
1.9 h
1 plate
Open in Bambu Studio
Boost
5
4
2
0
13
5
Released
Bill of Materials
Bambu Filaments
Select all
.jpg)
List other parts
- 16mm diamter magnets 5mm tall x 4:
Description

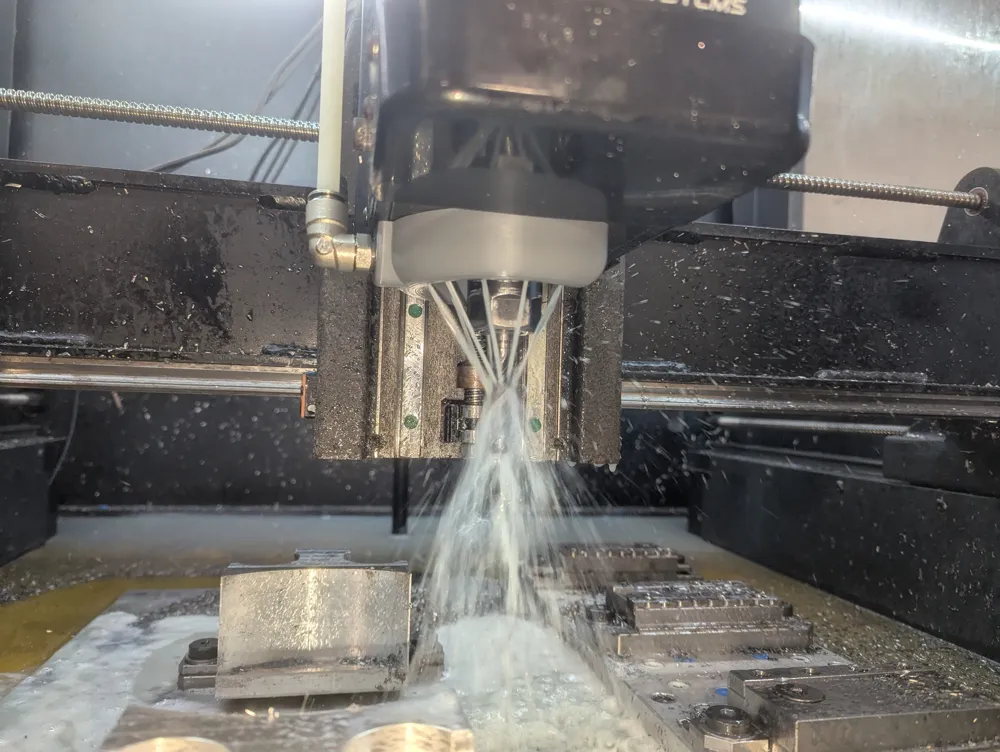

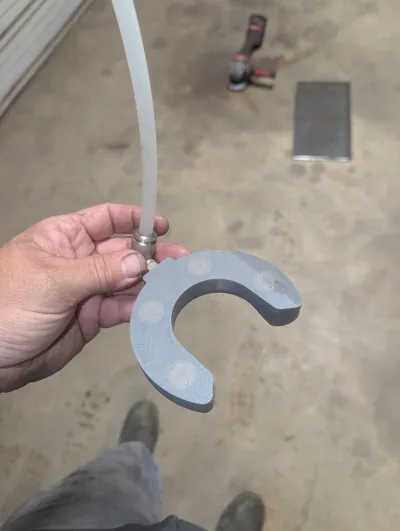

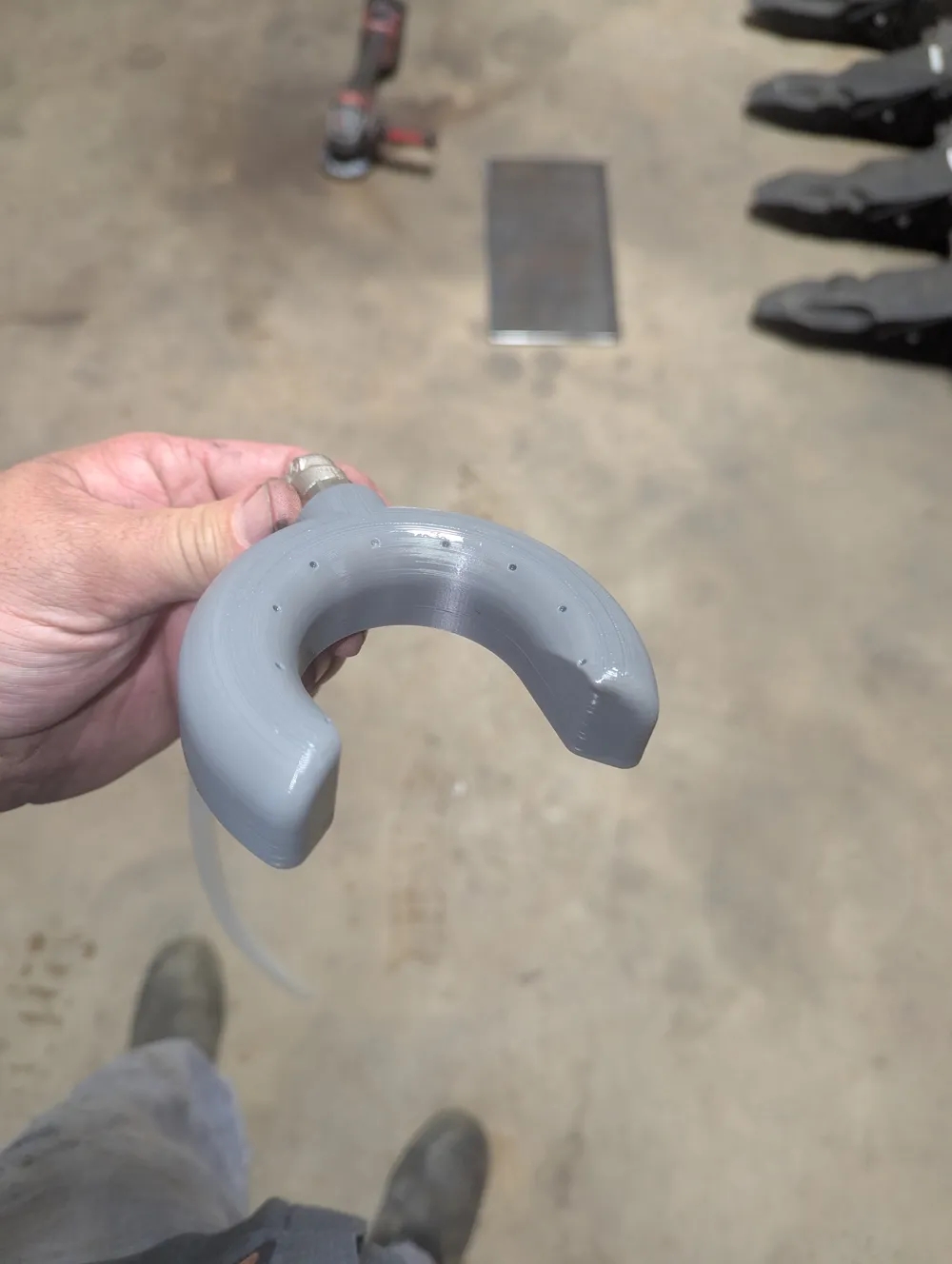

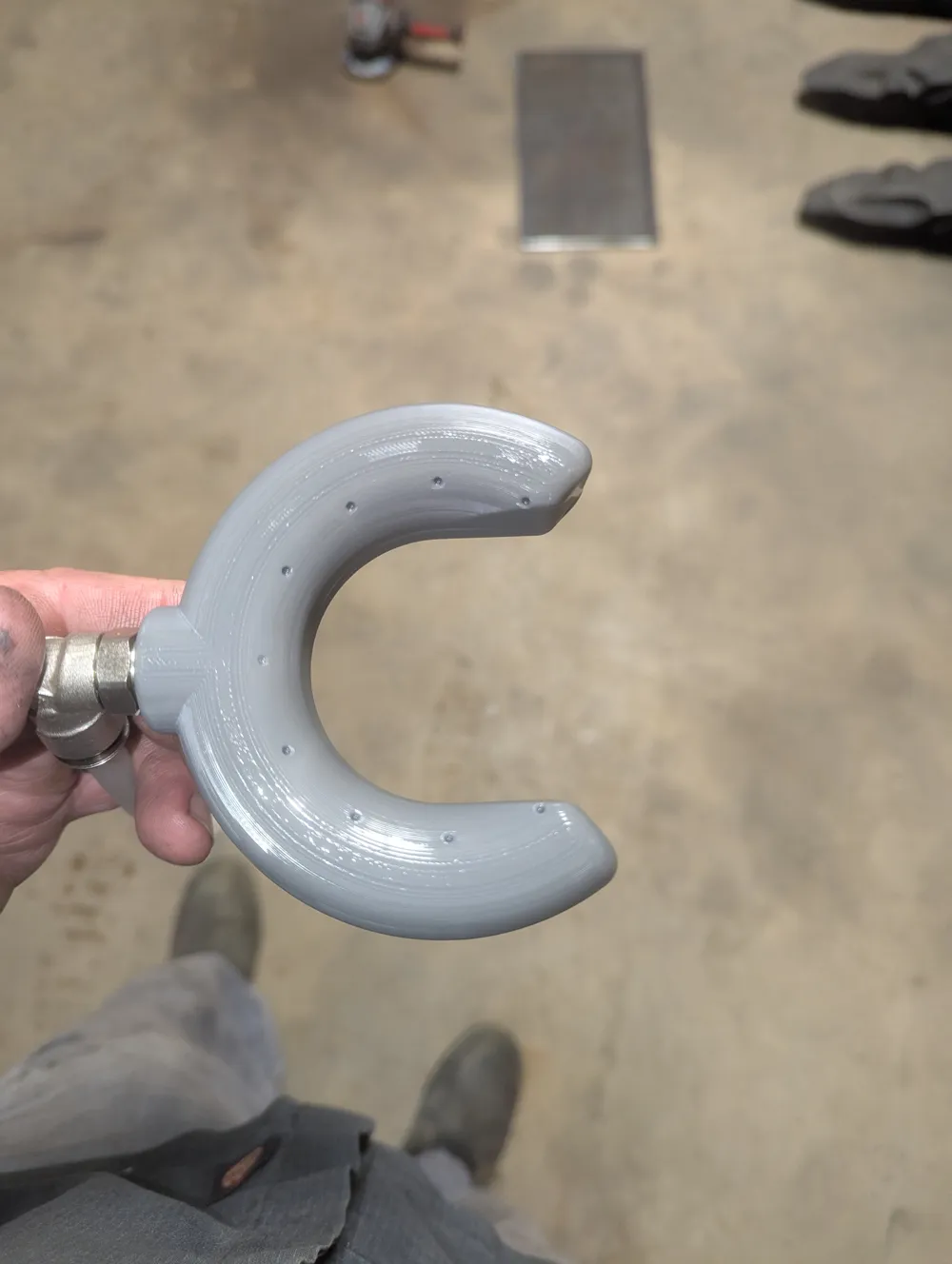

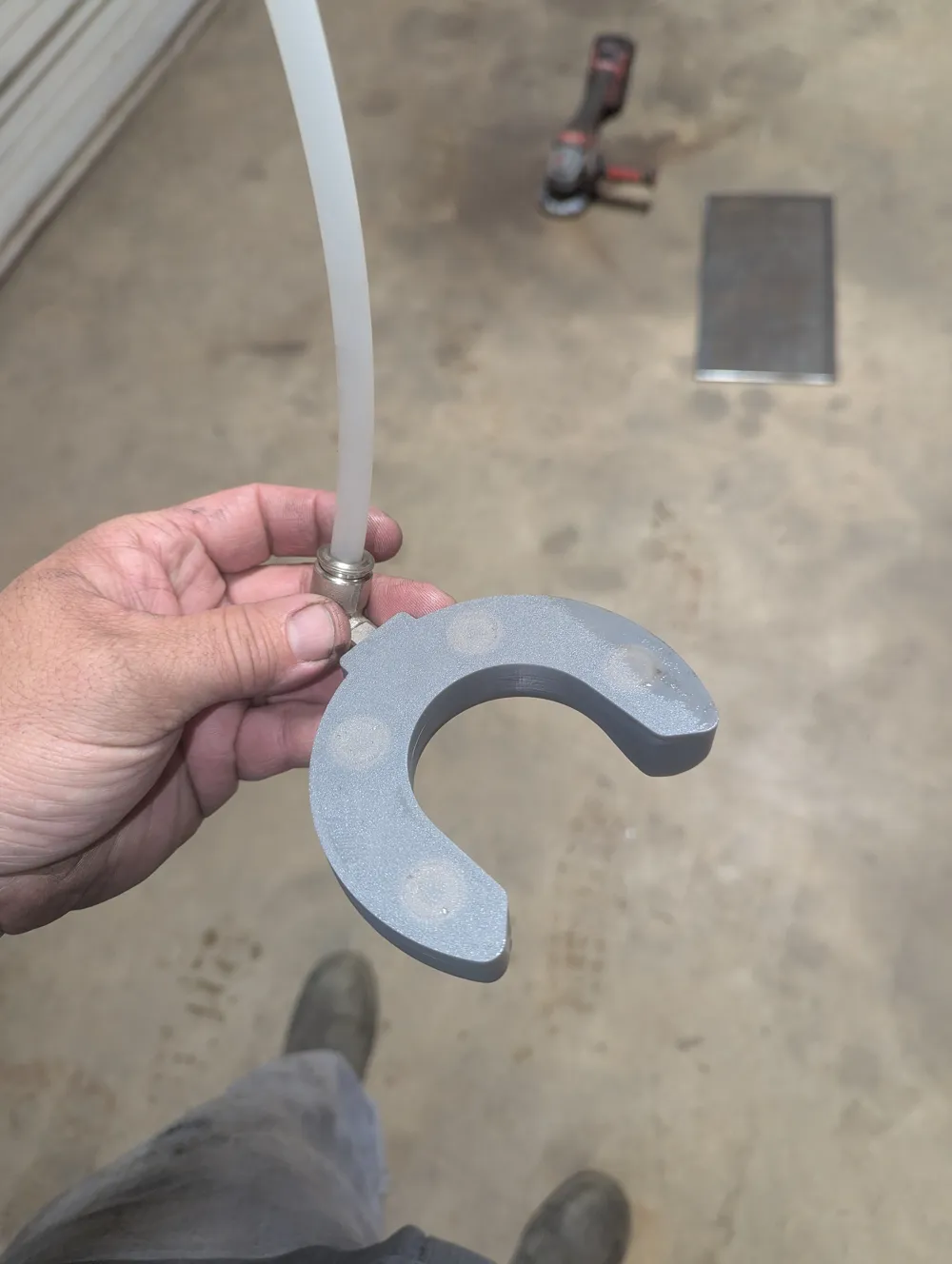

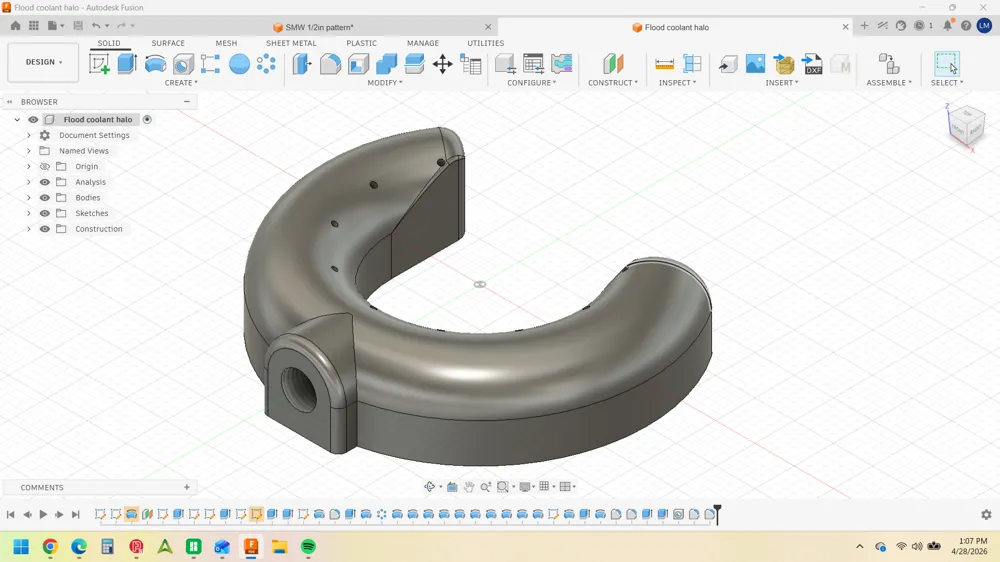

This is a halo with 9 nozzles pointed at the 2 inch mark on the bit. It has slots for internal magnets 5mm thick by 16mm diameter.

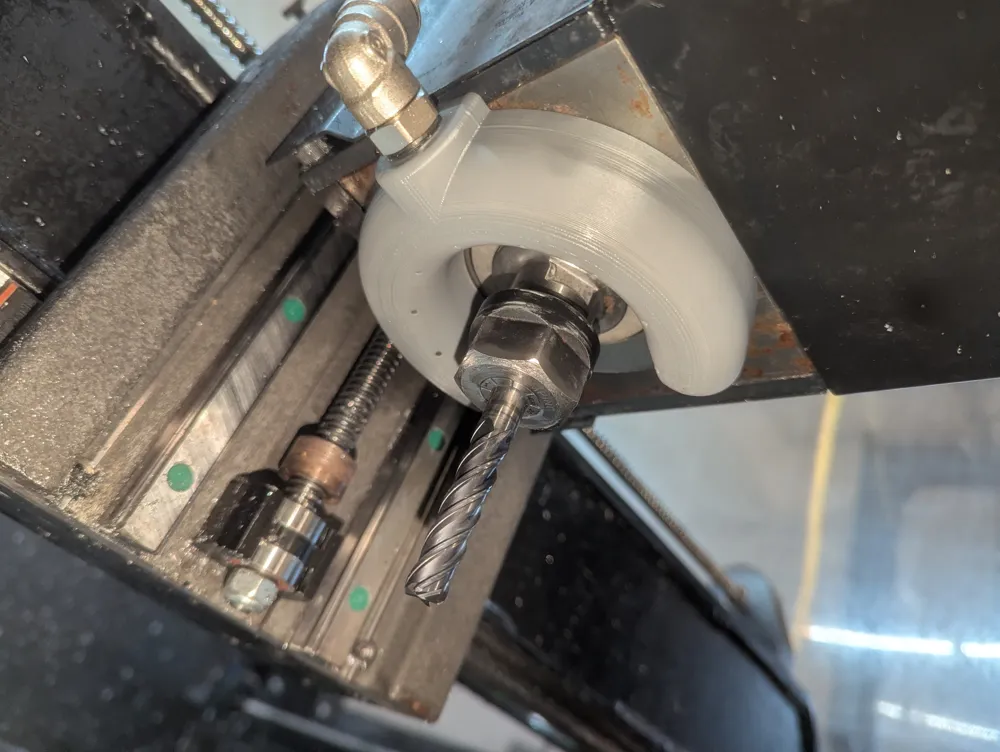

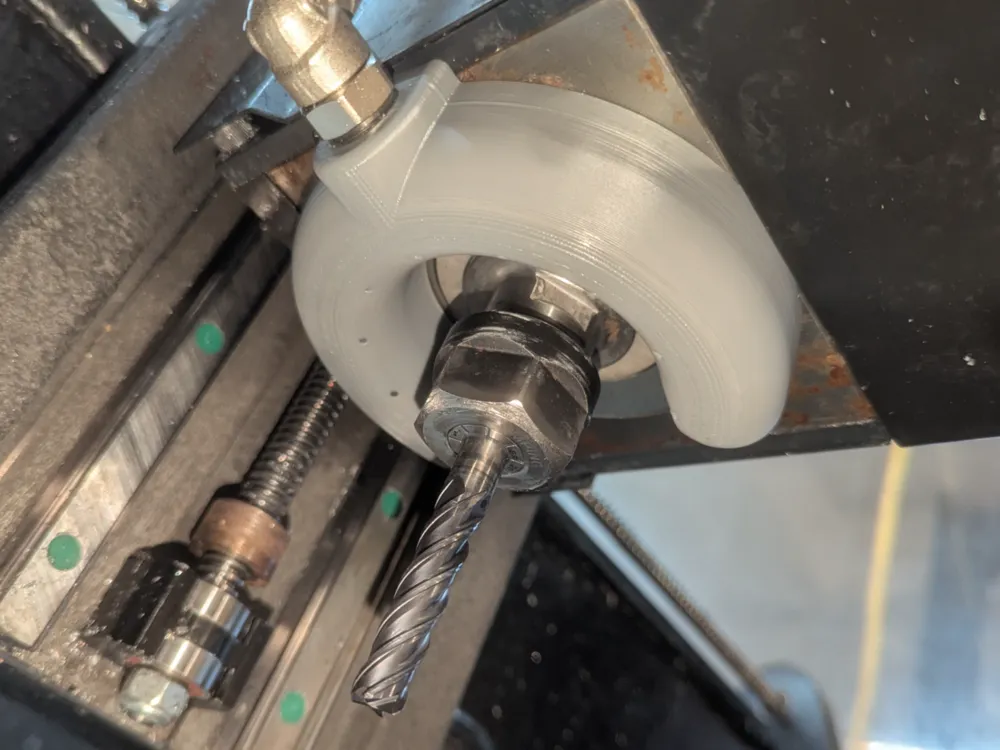

I paused the print and installed the magnets for easier cleaning. The inlet is set for a 1/4 npt tap to be used to cu the threads. I installed a 3/8" push to connect 90 to my supply line and relocated the factory fitting to the top mount. I added an inline shut off valve to control the flow.
