40K 11th Edition Footprint - Triangle (8” x 11.5”)
Print Profile(7)
![[A1 mini] Single Color](https://makerworld.bblmw.com/makerworld/model/US5bb0881ae70921/840867270/instance/6c983ca6bb96a1c9.jpg?x-oss-process=image%2Fresize%2Cw_100%2Fformat%2Cwebp)
![[H2] Single Color](https://makerworld.bblmw.com/makerworld/model/US5bb0881ae70921/840878007/instance/b1e71250c725ee98.jpg?x-oss-process=image%2Fresize%2Cw_100%2Fformat%2Cwebp)
Bill of Materials
Description

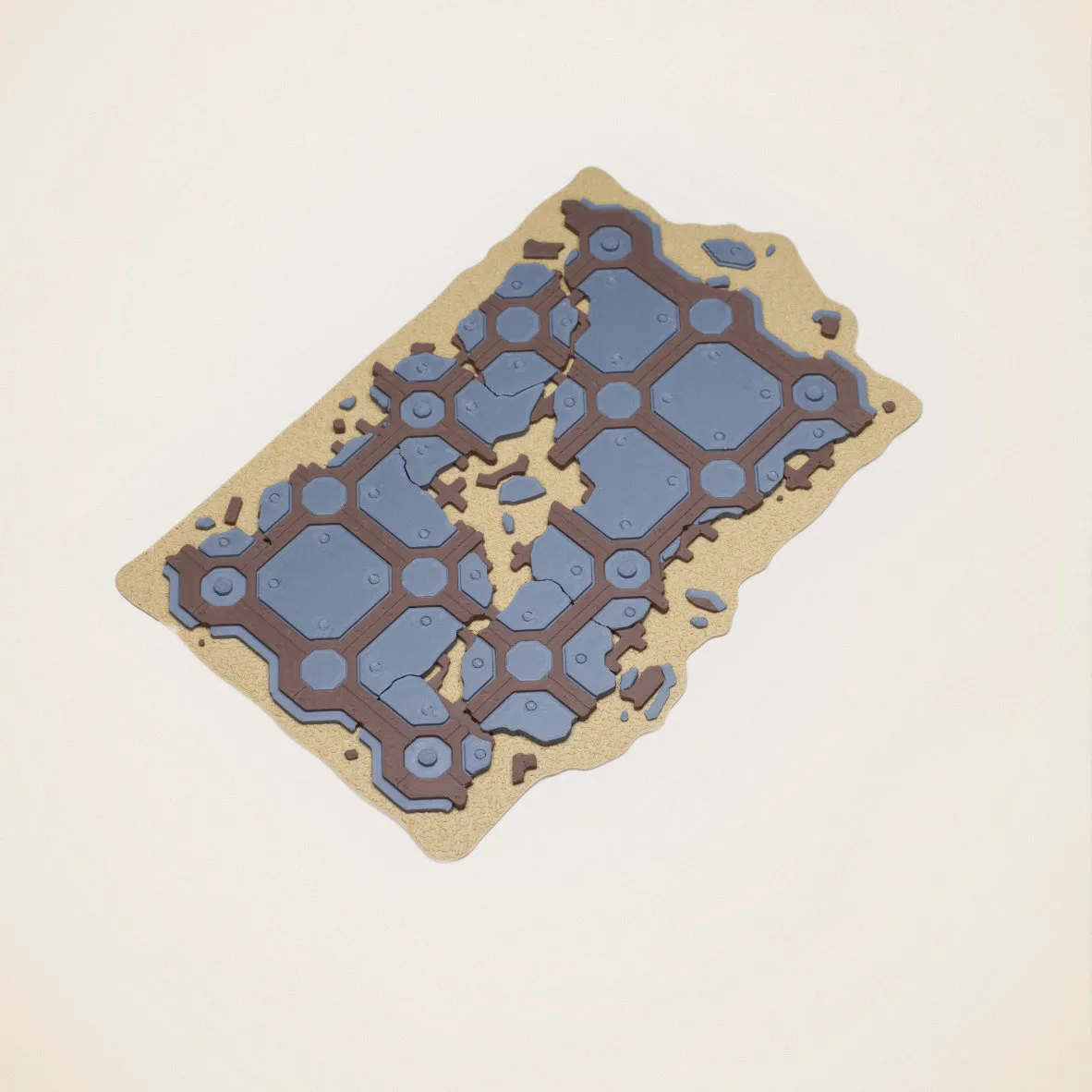

Sculpted area terrain footprint for 40K 11th Edition.
Designed to match official footprint sizes while adding surface detail that looks good when FDM printed.
⠀
Sizes
 | 📍 Large Triangles - 8” x 11.5” |
 | Large Rectangles - 7” x 11.5” |
 | Medium Rectangles - 6” x 4” |
 | Long Lines - 10” x 2.5” |
 | Short Lines - 6” x 2” |
⠀
Features
- Custom design made to be compatible with Battlezone Manufactorum and Sector Imperialis buildings, but can be used with other terrain
- Optimised for 0.2mm layers and fast prints
- Flat top surfaces minimise visible layer lines
- Scatter bits can be placed at an angle but are printed flat
- Prevent compatible buildings from sliding around using included connectors
- Anti-Slip solution: add 0.9x16mm rubber bands to prevent your bases from sliding on the table
⠀
Printing notes
- Make sure you have good bed adhesion! Please clean your plate with dish soap before printing.
- Let the model cool completely before removing it from the build plate.
Overlapping joints are only 2 layers thick to keep the base slim. Remove carefully!
⠀
⁉️
Which plates should I print?
How do I mirror a footprint?Can I print without the sand texture?
How can I reduce slicing/print time?
→ Check the FAQ PDF below in the Documentation section
⠀
Boost Me (for free)
If you like the model, a boost is greatly appreciated - it helps support further designs and iterations!
⠀
Assembly
P1S equivalent or larger
- 1A, 1B, 1C form one triangle (2A, 2B, 2C form the second)
- Align 1A and 1B using the triangle cutout
- Glue 1C on top using CA (superglue)
- Add scatter pieces wherever you want!
A1 mini
- 1B Top, 1B Bottom, 1B Con form one subassembly (2B Top, 2B Bottom, 2B Con form the second)
- Use this subassembly as 1B (or 2B respectively) and follow P1S assembly guide
The base includes a subtle textured top surface on the ground. You can enhance it further with sand, rocks, or tufts!
⠀
⠀
➡️ Follow me for other sizes and designs.
Have fun printing and let me know your ideas!
⠀
⠀
⠀
If you want to follow my progress, join me for free on patreon.com/marcorei.
A commercial license is also available if you want to print and sell my original models.
