Flyoff Handbrake Lever for AliEx* Handbrake 20x20mm
Print Profile(0)
Description

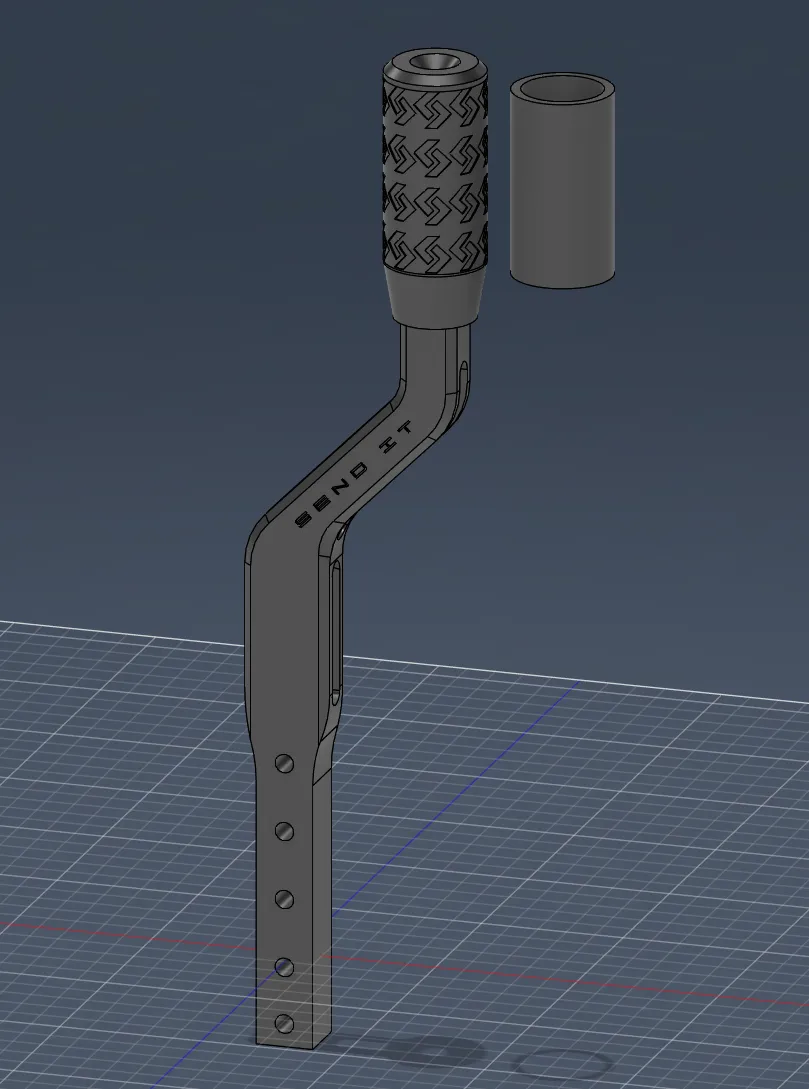

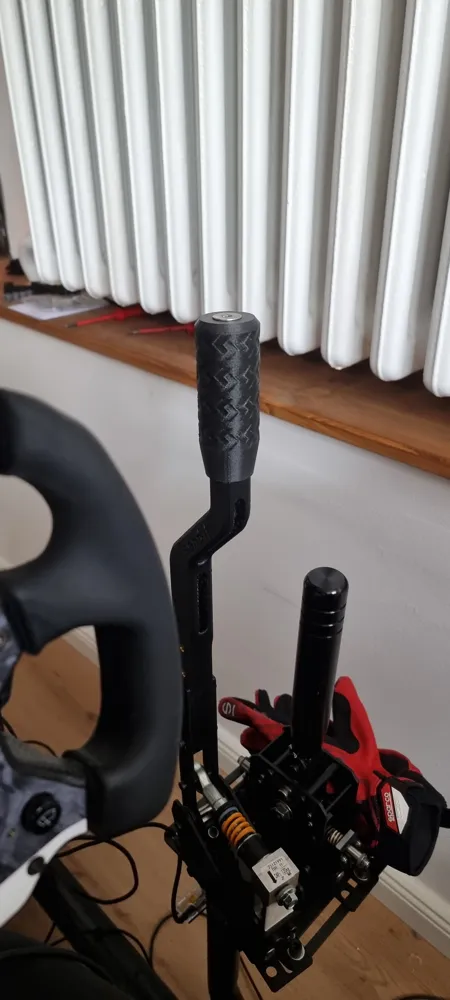

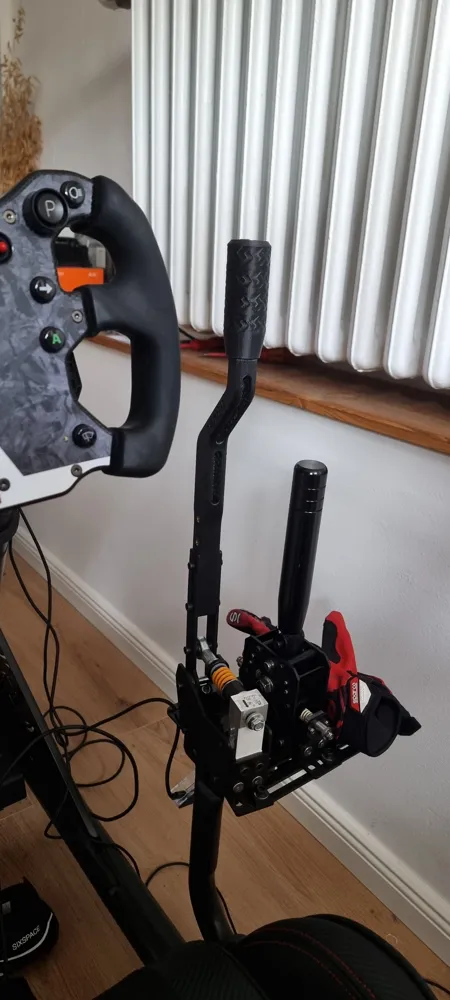

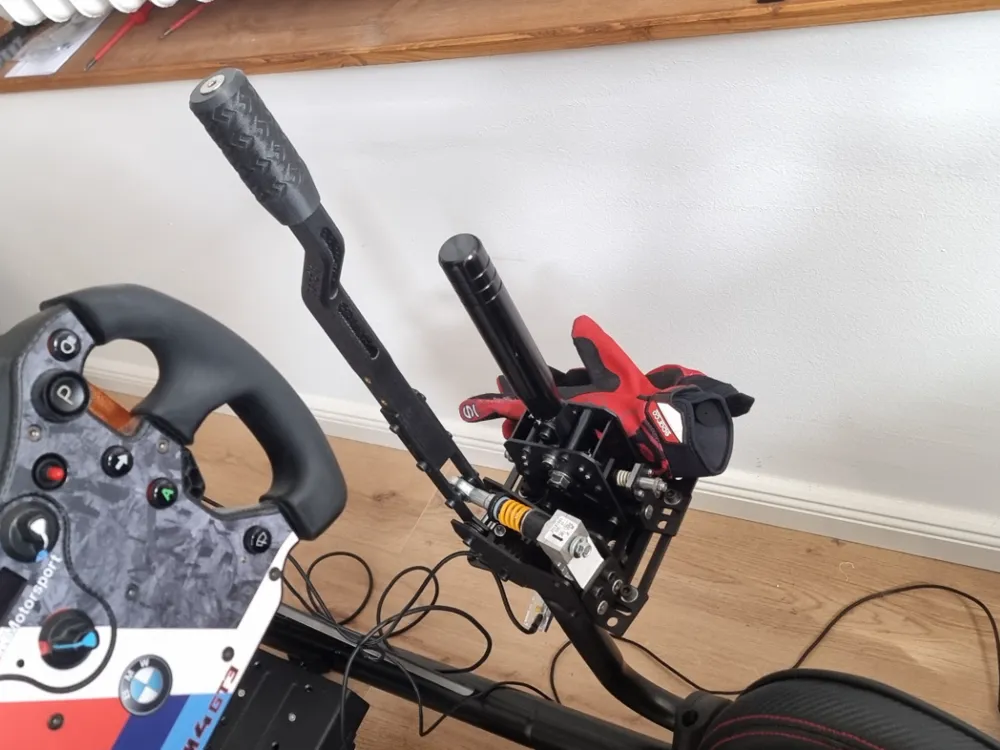

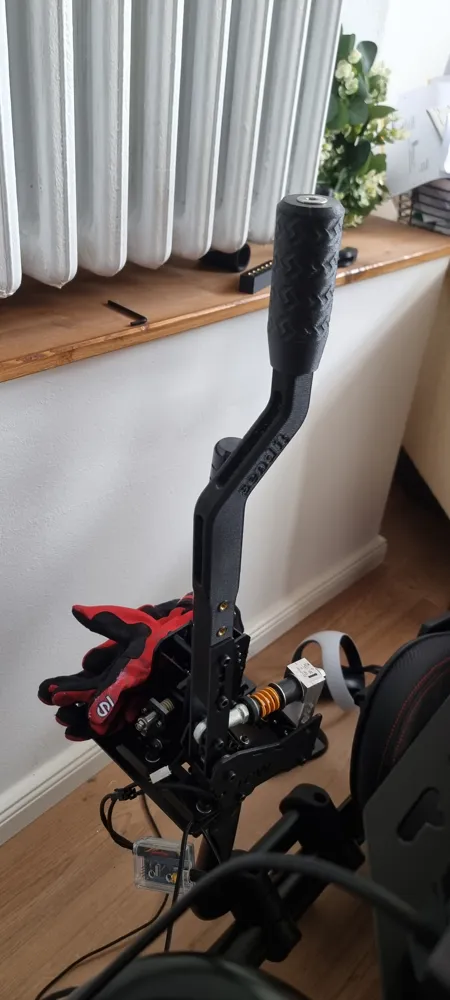

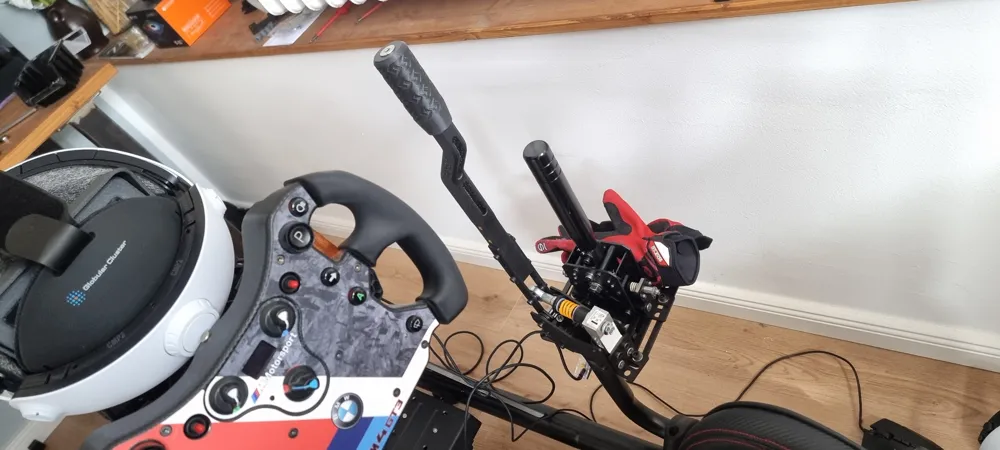

Flyoff Handbrake Lever for AliExpress Handbrake
Long handbrake lever with 20x20mm connection
Requires M5 Ruthex heat set inserts and M5 screws (originally included) or suitable screws for mounting without Ruthex threads.

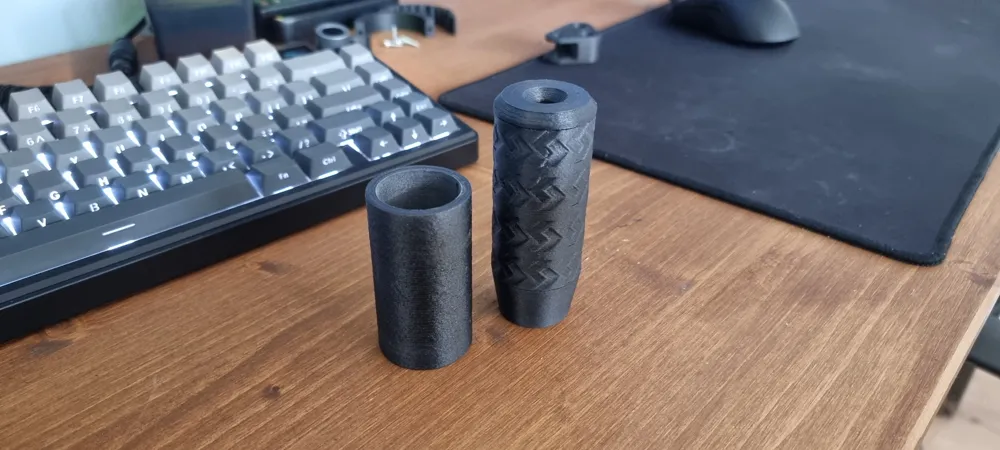

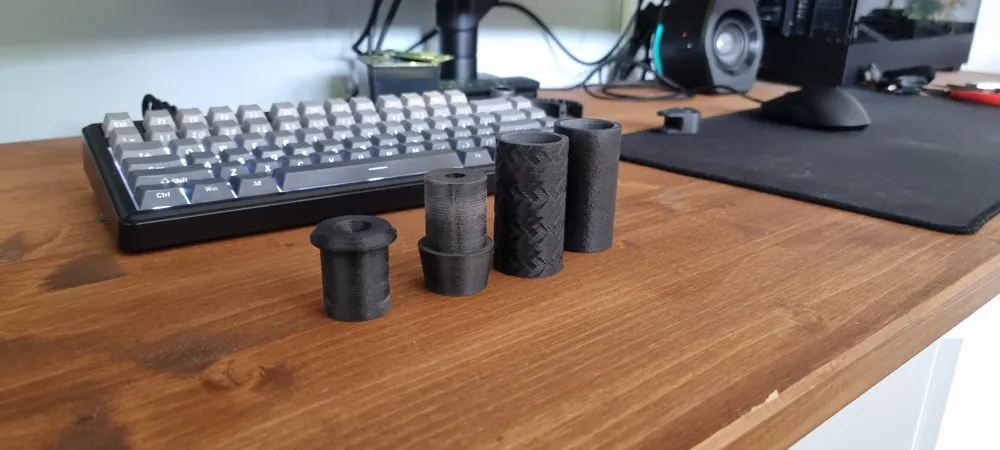

The grip piece comes once with a grip pattern and once blank. As an example, I printed one here with Fuzzyskin.

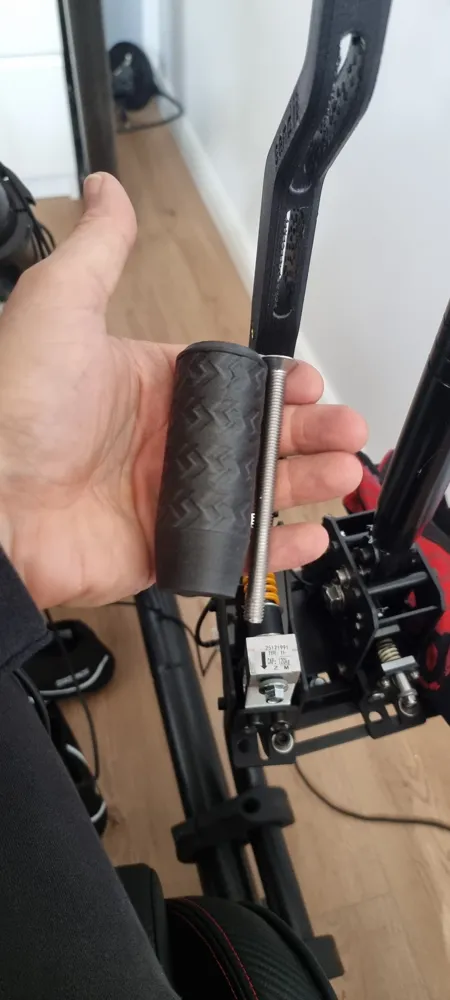

For mounting the grip piece, you need an M8 Ruthex heat set thread and a 100mm long M8 countersunk screw.
Recommendation 5 to 6 walls. 50% Infill ! Less depending on the material; I printed mine from PPA-CF on a Bambu P1P with housing.
Have fun printing and drifting :)
