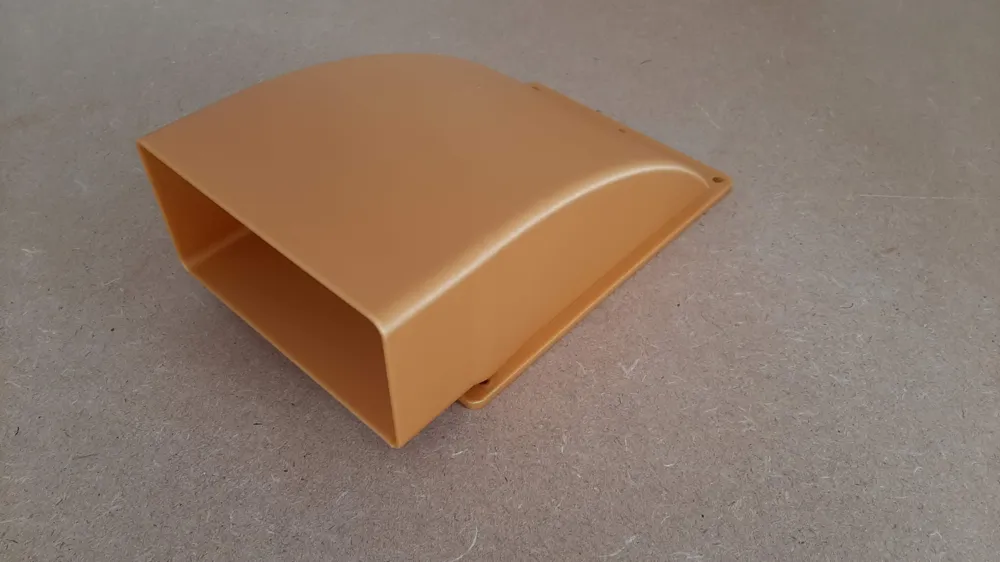

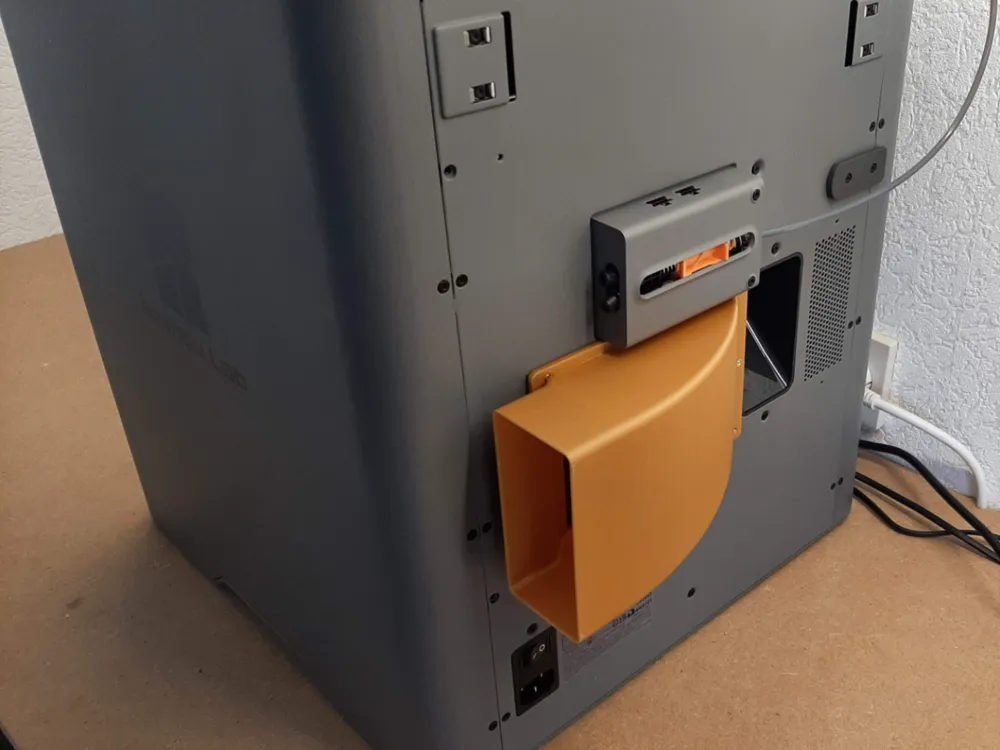

P2S exhaust flat 110x55

For limited space behind printer.

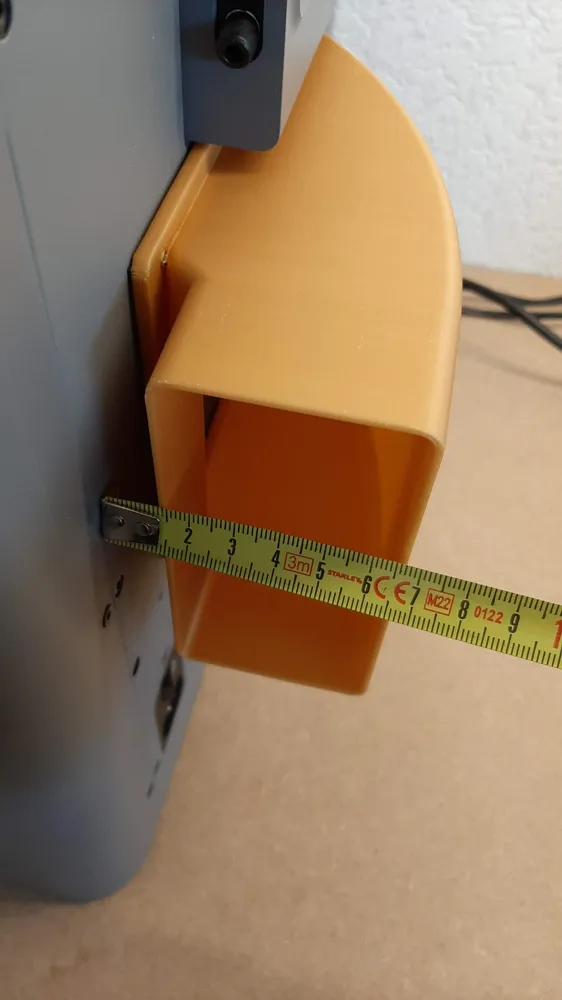

Only little less than 7 cm deep.

Needs external fan.

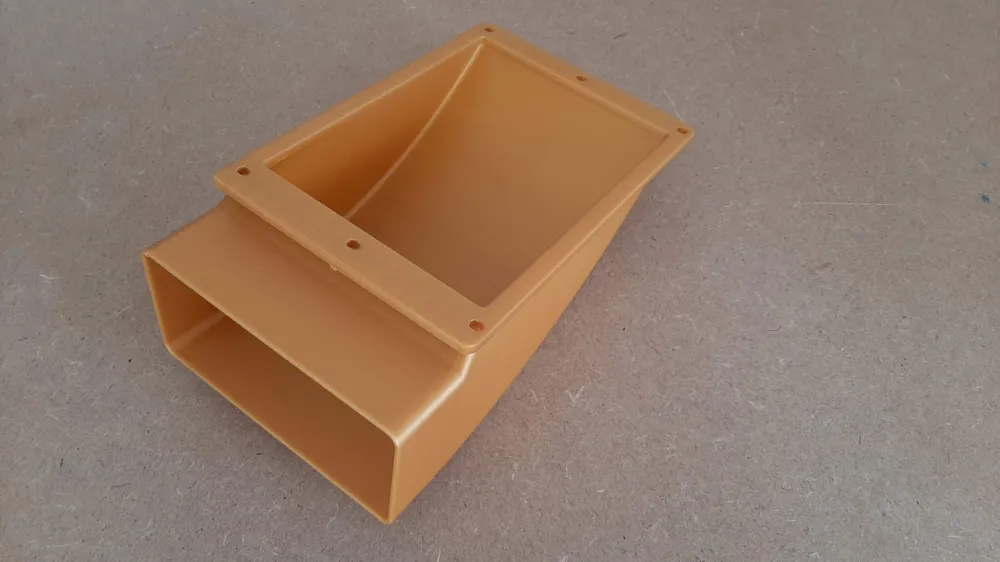

Fits 110x55mm flat duct / 110x55mm flat ventilation channel system.

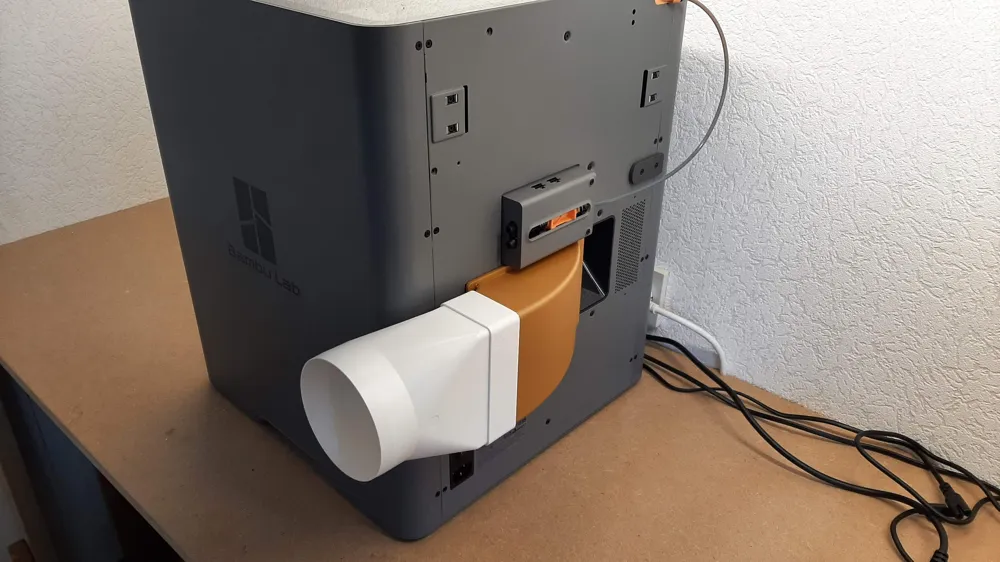

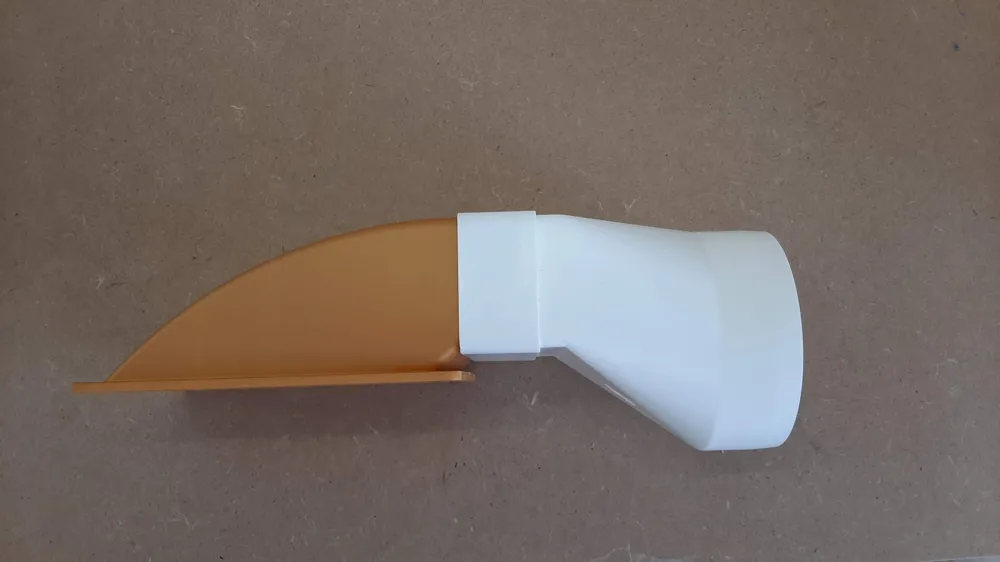

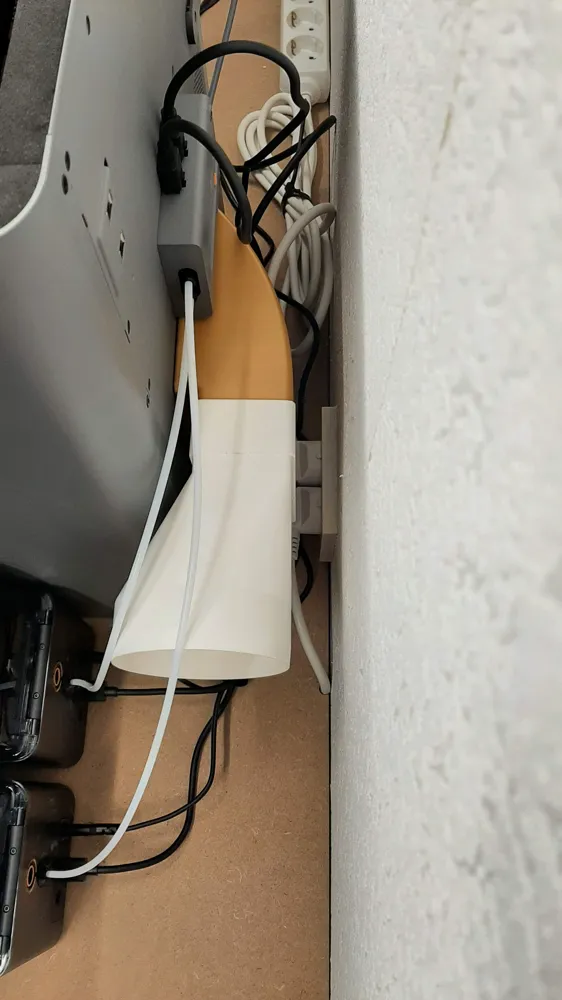

The white part is a bought part and is an adaptor for flat 110x55 channel to flexible ventilation tube round 100mm .

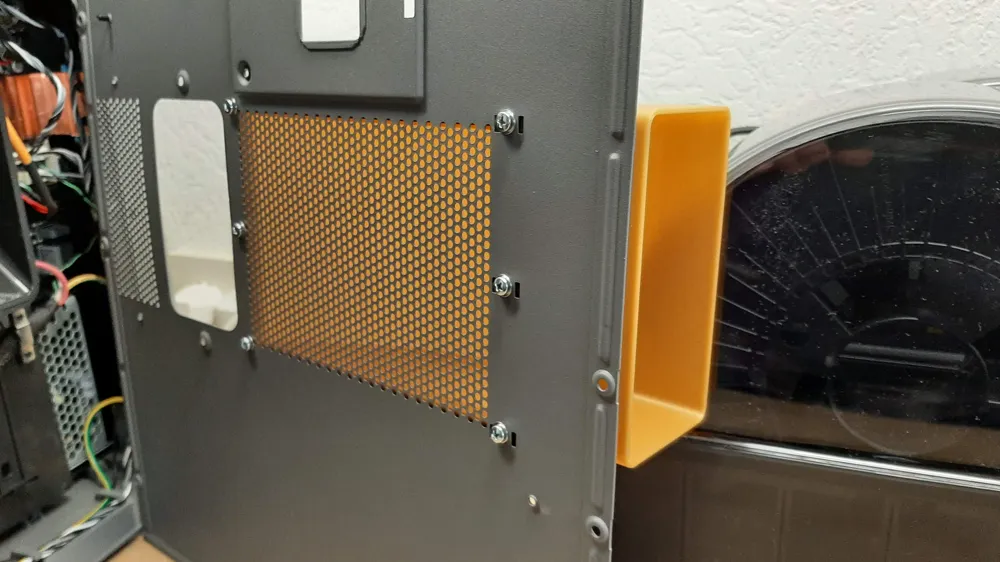

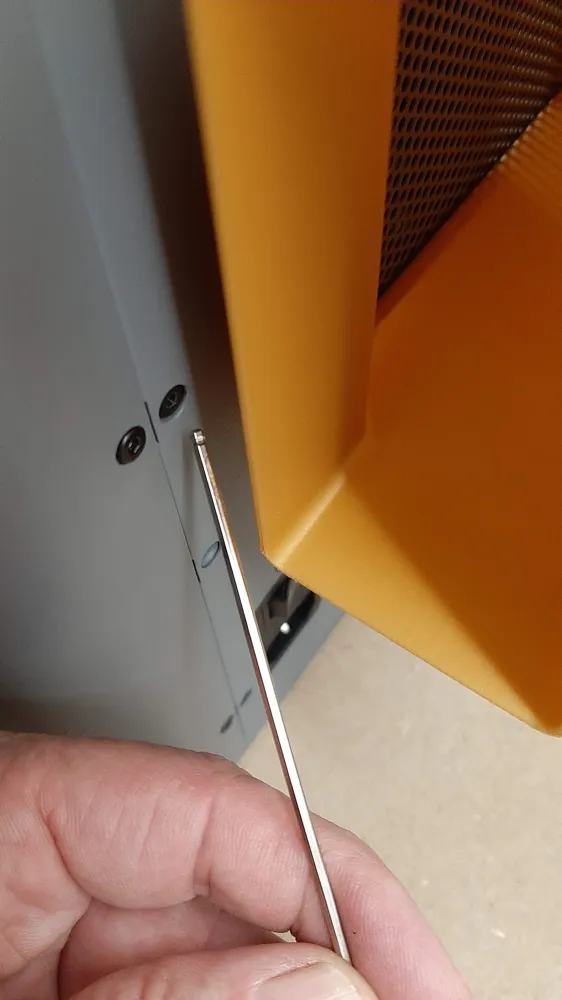

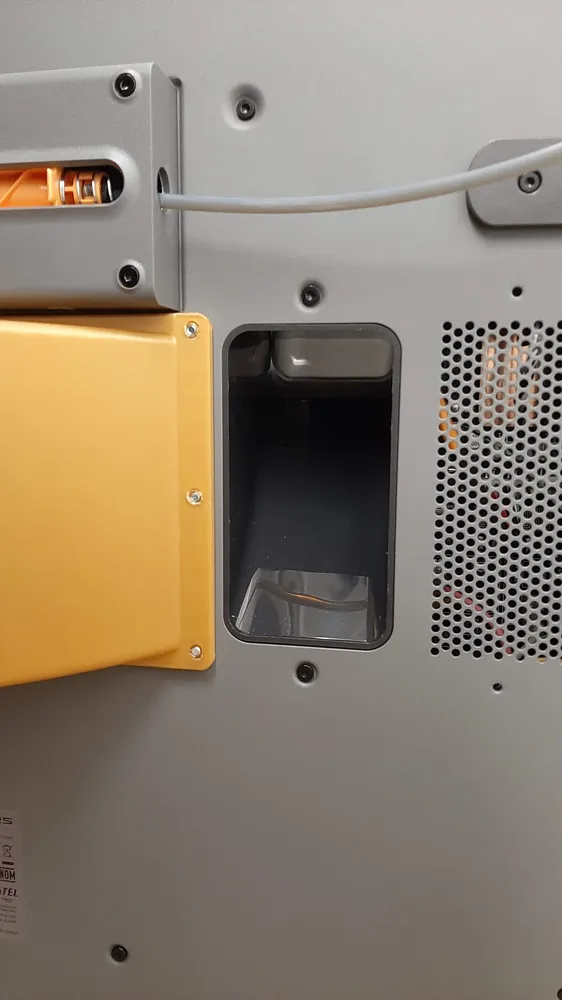

Rear panel needs to be opend for mounting, see here how to https://wiki.bambulab.com/en/p2s/maintenance/replace-rear-panel

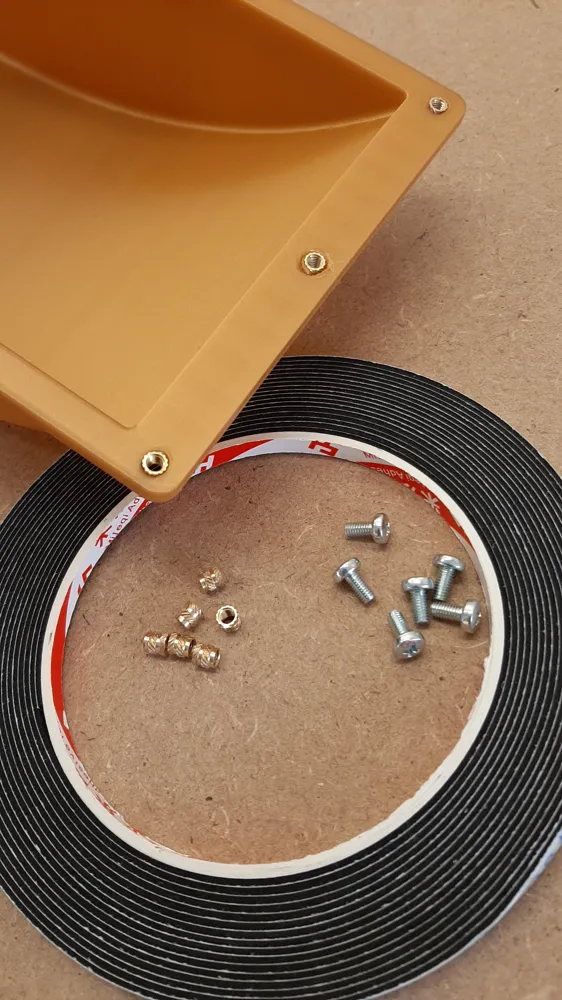

I used heat inserts M3, length 4mm, washers and screws for mounting.
U also can use screws, washers and nuts instead of the heat inserts.

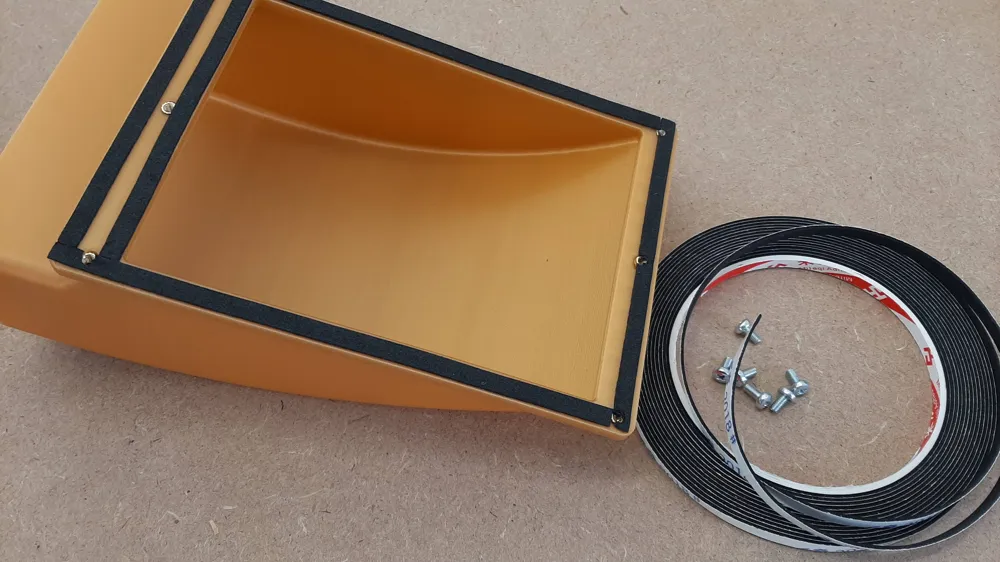

Also used sealing tape 5mm for nice fit and prevent false airflow.

I printed mine with PLA, 0.4 nozzle.

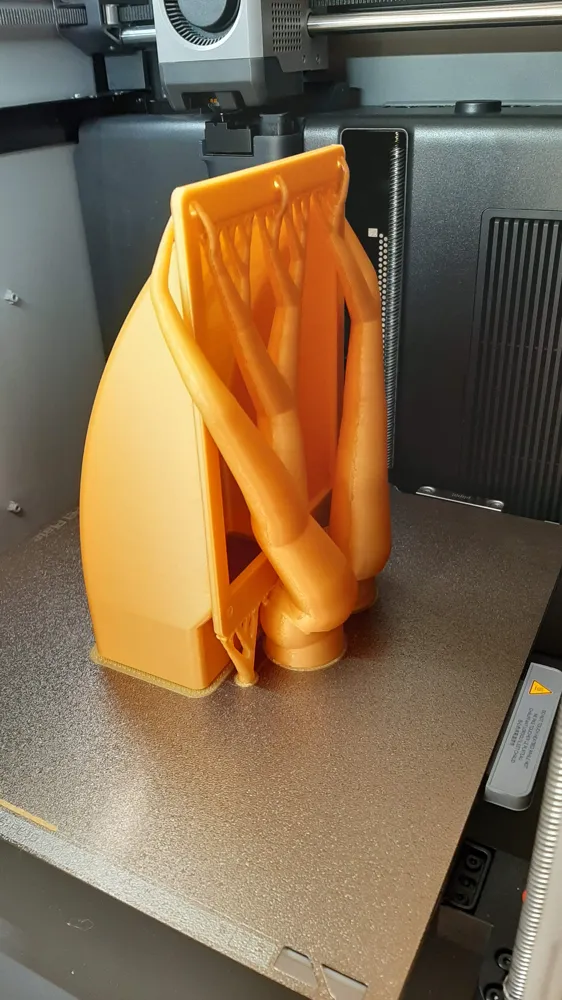

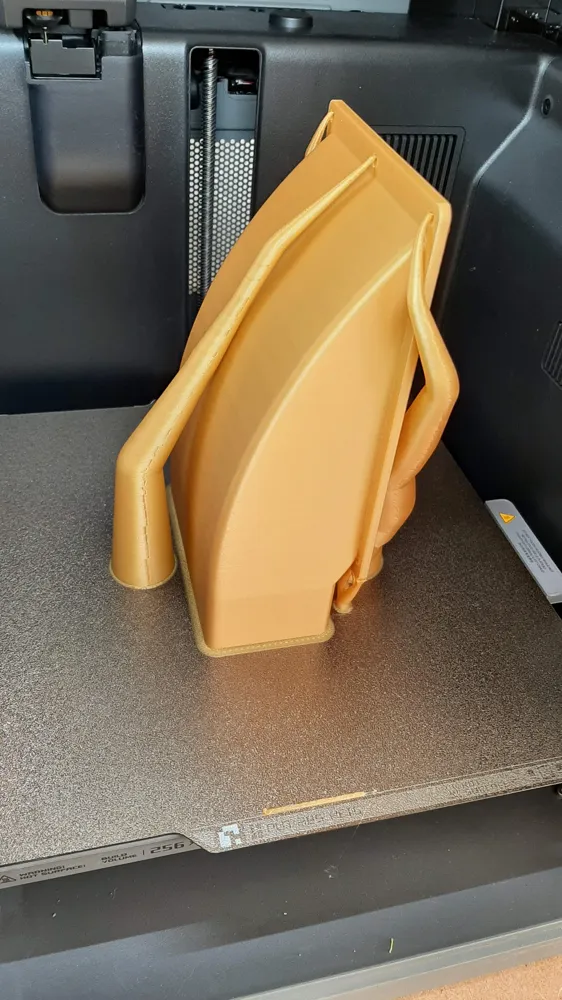

Printed standing straigt up with support.

Restulting that the mounting holes where not perfect round but oval, by placing the model flat on the printbed you can avoid this.

Hope you enjoy this model.
