Shot Glasses Tray for 16 and 9 small cups / shots

ABOUT COMMERCIAL USE

I'm happy to share my designs but please note that them are for personal use only. This means you can print them for your own pleasure but I have NOT provided any commercial license to anyone to sell either digital or physical copies of my designs (e.g.: you cannot sell 3D-prints of this design). I will not hesitate to report to Etsy or other sites admin if I find them being sold there for profit.

A friend printed the beautiful “appetiser cup service tray” by llamakarmarama (link) and I liked it very much: the mentioned model fits perfectly on A1 and P/X series plates and works perfectly.

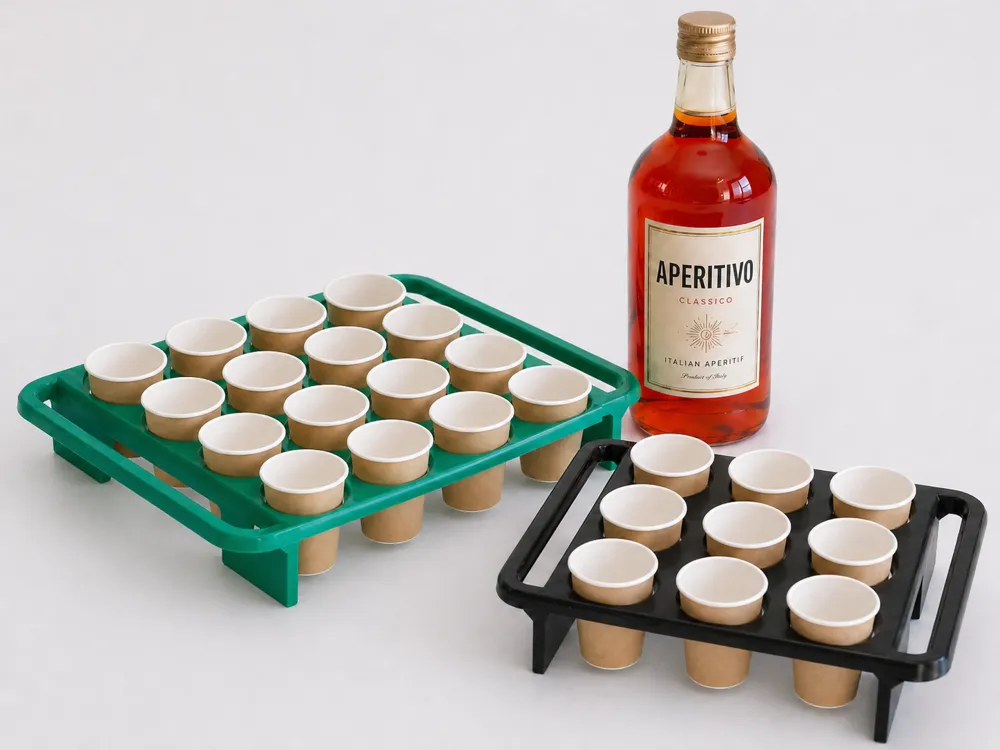

I wanted for me something sturdier and having handles, so I designed my own version starting from scratch. The 4x4 version, due handles, will fits only on H series printers (H2D, H1S, H2C actually) since handles needs more room. Anyway I also designed a smaller version for 9 cups (3x3) suitable for A1/P/X series

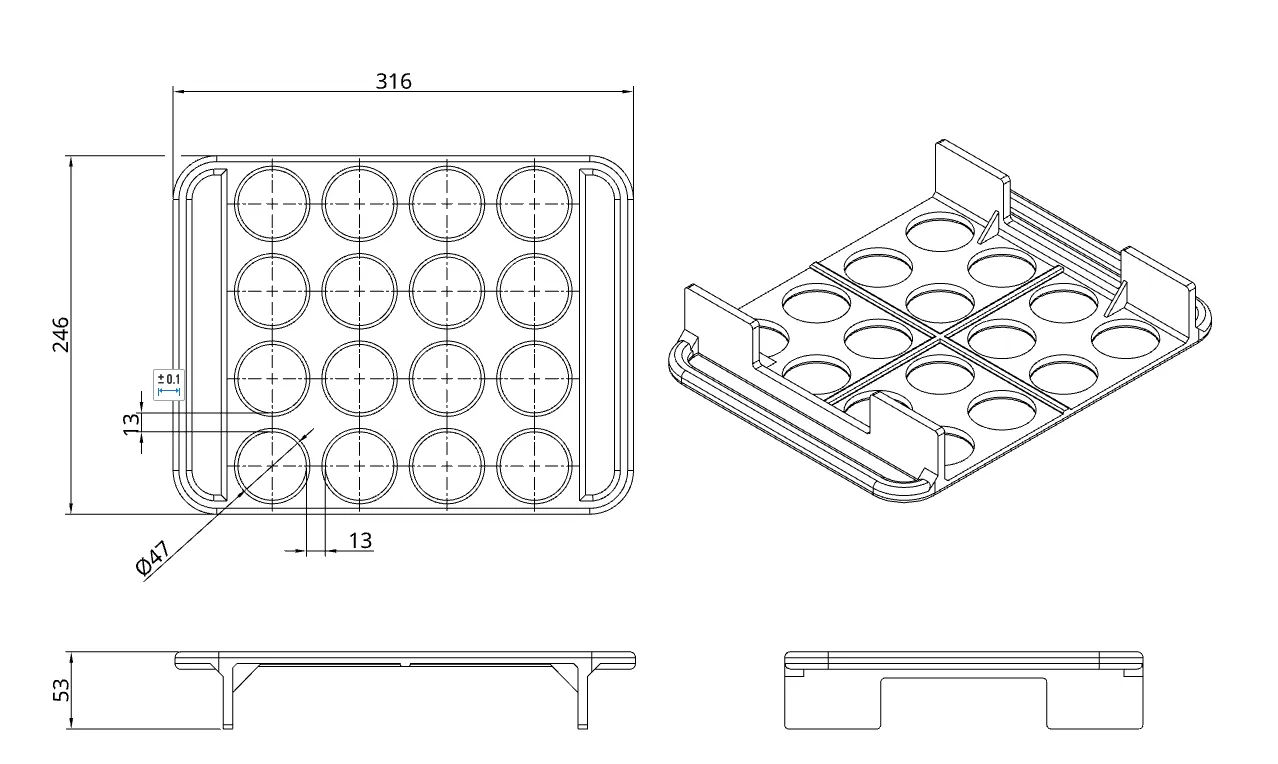

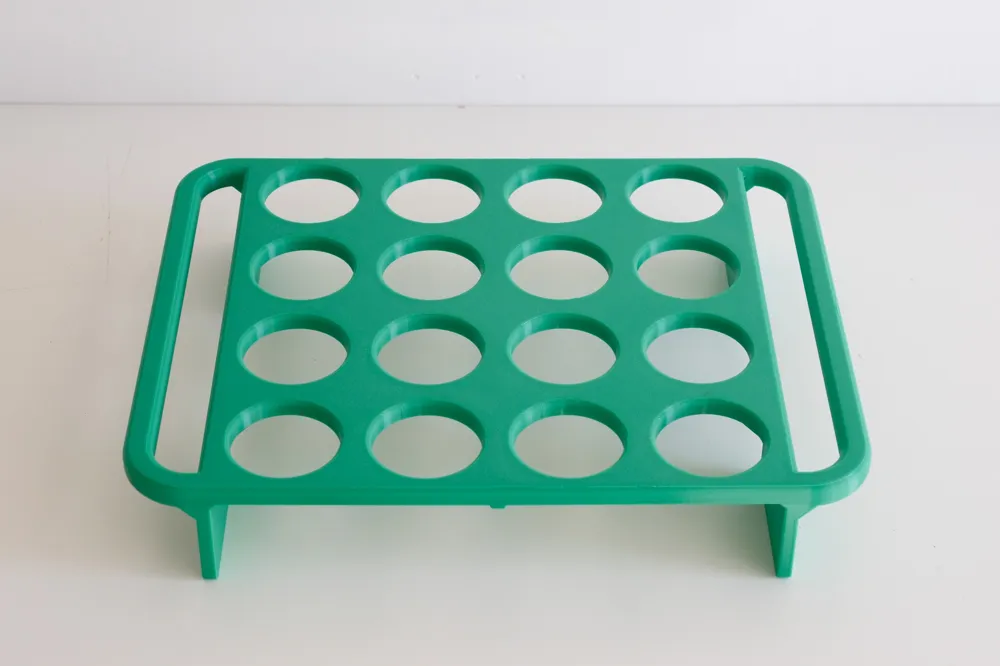

Here are the dimensions of 16 cups tray (4x4 grid):

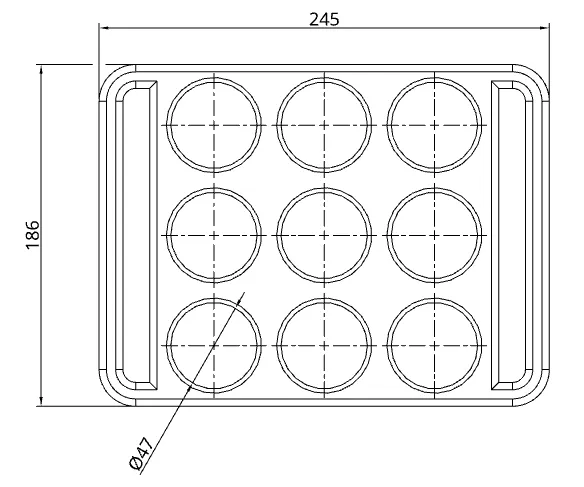

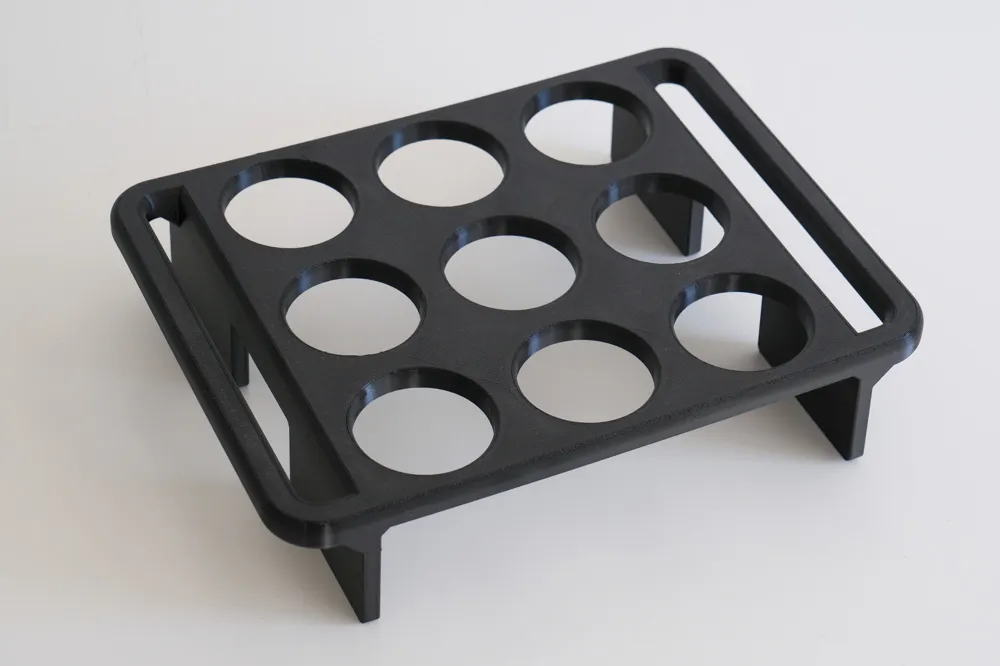

The variant for 9 cups (3x3 grid), as said, can be printed on all bambulab printers but A1 mini:

Holes are 47mm and will fit perfectly some small paper cups having following dimensions:

• lower diameter: 39mm
• upper diameter: 57
• height: 58mm

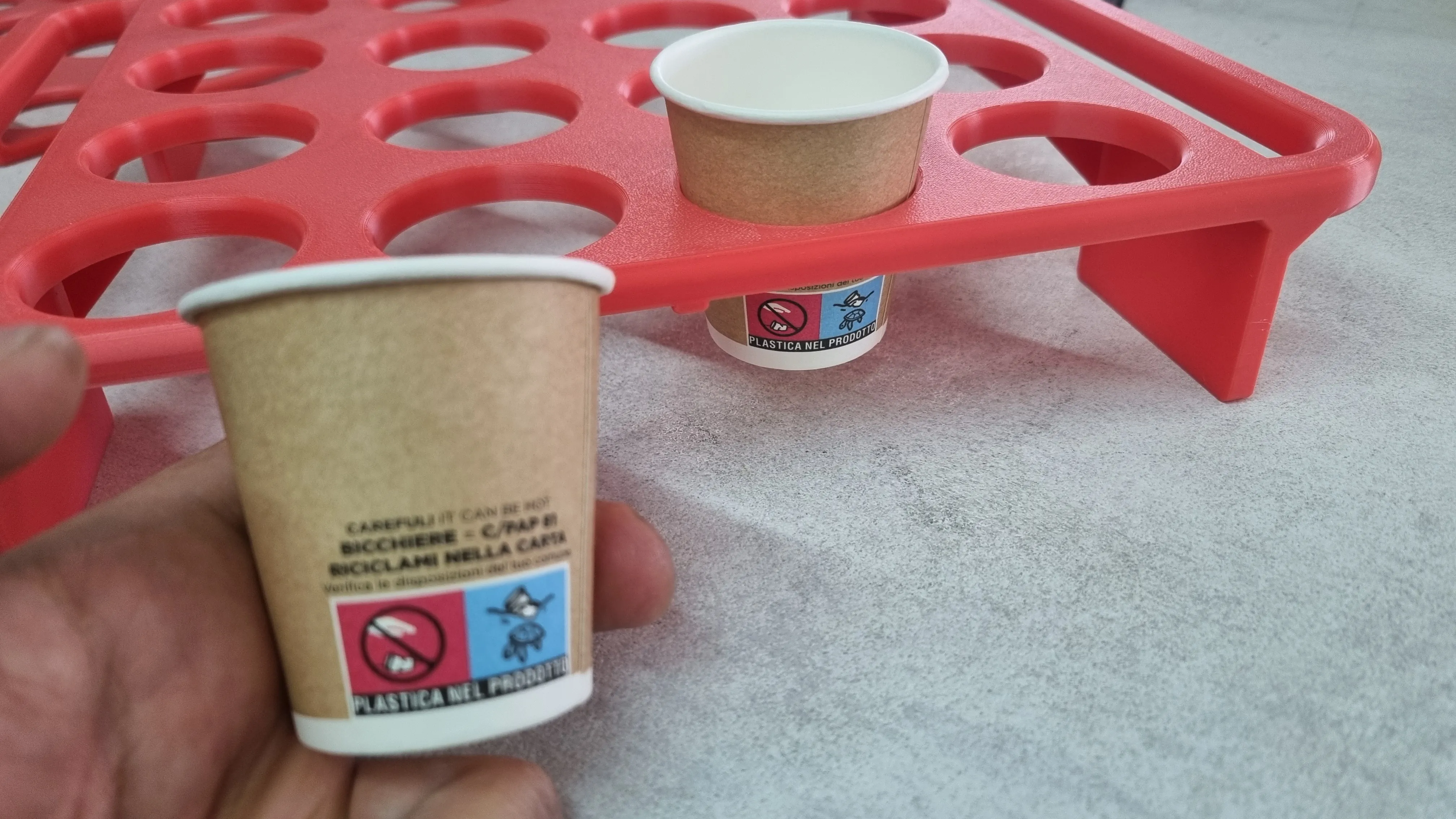

So the 47mm hole diameter will allow this specific model of paper cup to say inside at half height allowing cups don't touch each other on top:

My advice is to use at least PETG for printing.

PROBLEMS WITH THIS DESIGN?

If you had a problem with this design or you need some edits for fit your own needs, first than leave a bad review please let me know what is your problem/need. You can leave a comment (I prefer this since anyone can benefit from it) or send me a direct message. I can make edits to my designs or change printing profiles for fit your own needs. Please note I can actually understand Italian and English language, so please don't write in another language since I can have problems with automatic translation.
