P2S/X2D Insulation Film Window Sealing Magnetic Exhaust Terminal Solution
Print Profile(0)
Description

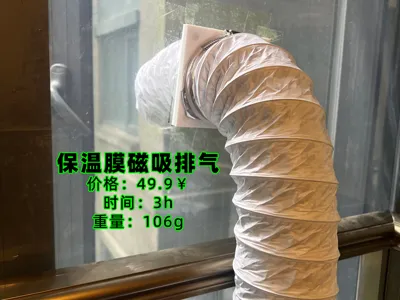

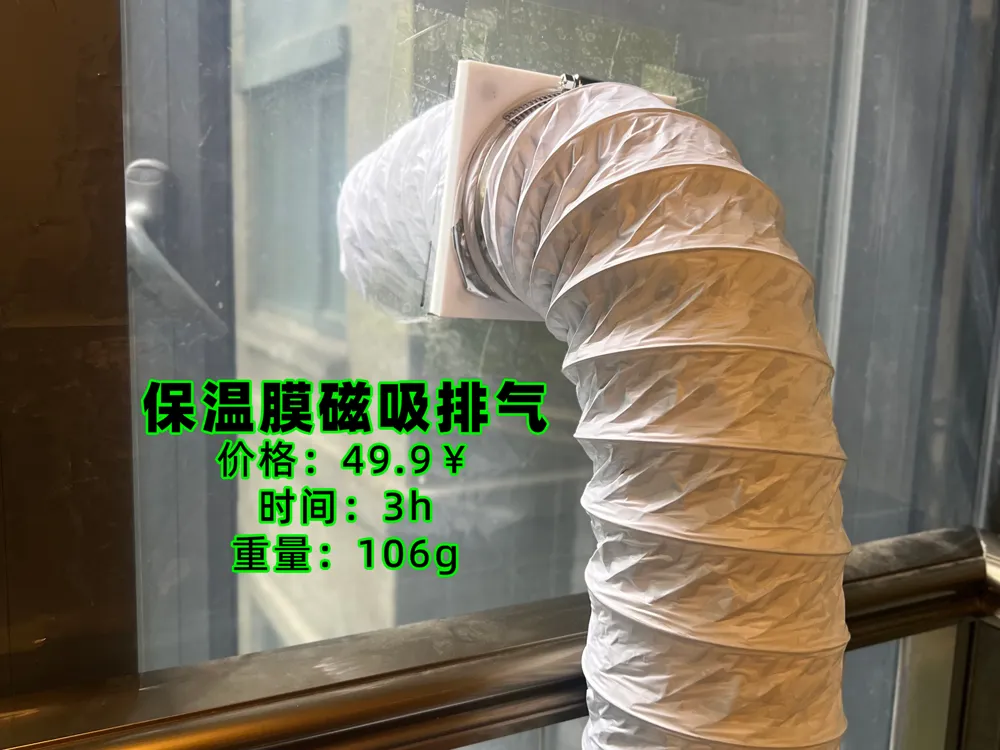

Magnetic exhaust outlet designed for insulation film
Compatible with any window that can be fitted with insulation film

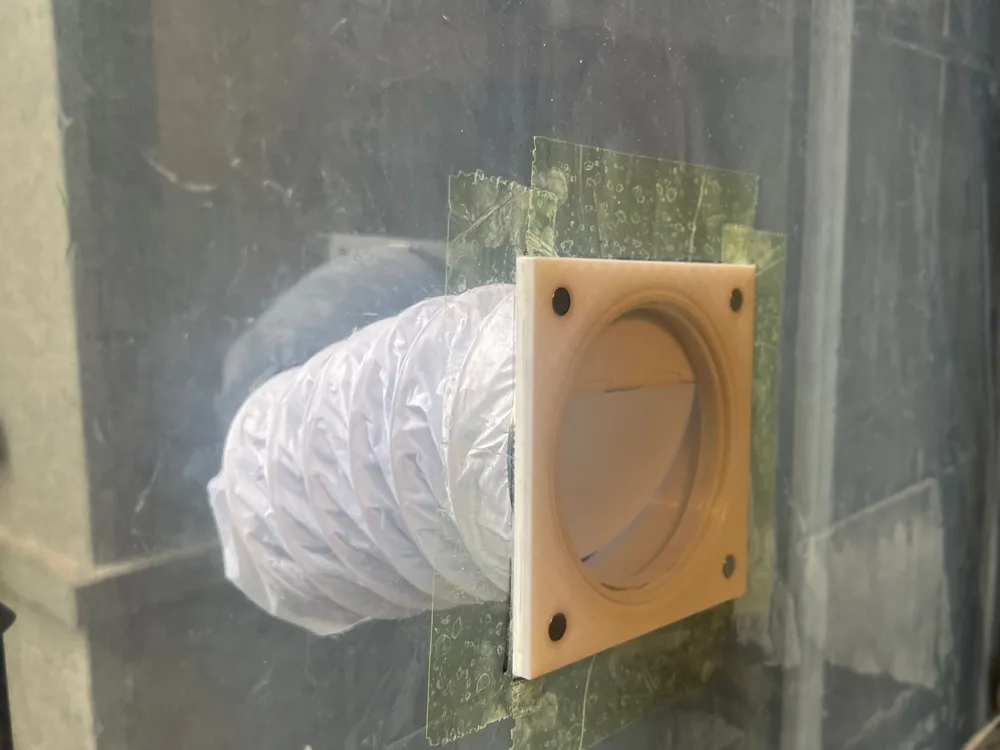

With check valve to prevent wind and rain
TPU printed sealing strip can be used to improve airtightness
Compatible with 100mm diameter PVC exhaust duct

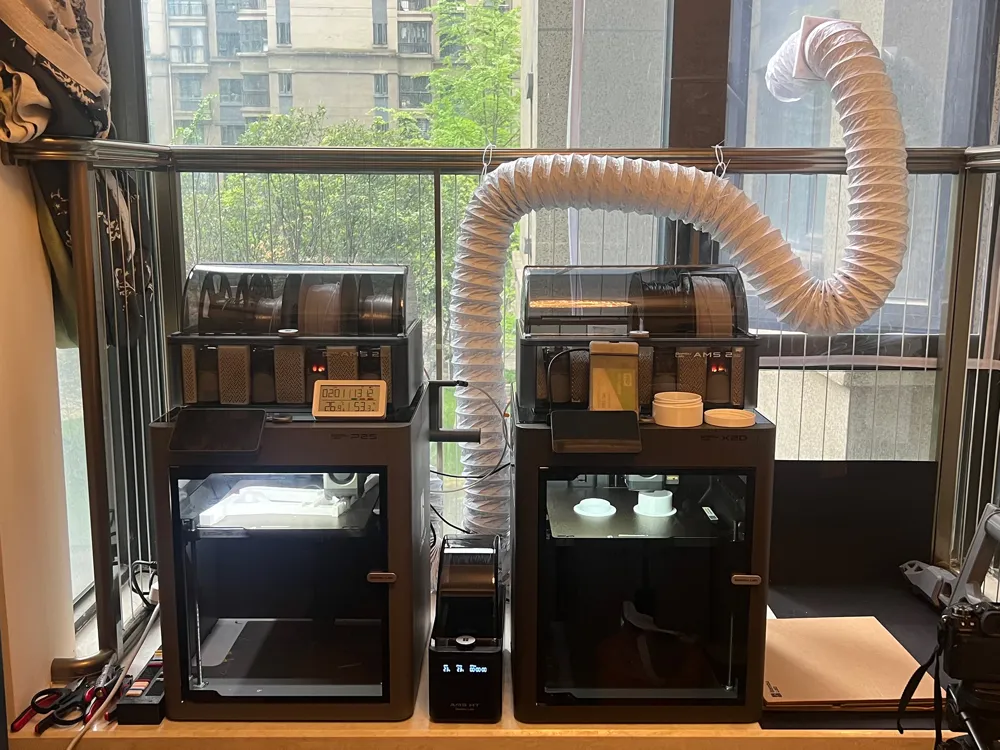

Compatible with Bambu Lab official P2S dedicated external exhaust kit print model
See assembly guide for installation details
Bill of Materials
Winter window insulation film 1 pc self-install
N52 magnets 12 pcs 8mm diameter x 3mm thickness (Note: Must be N52, not N35, otherwise the magnetic force will be insufficient)
PVC flexible exhaust duct 1 pc 5 meters length, 100mm outer diameter
Stainless steel hose clamps 2 pcs 4 inch (90-110mm)
