Xerses Remix - X2D Single 4-in-1 Adapter Holder
Print Profile(2)
Description

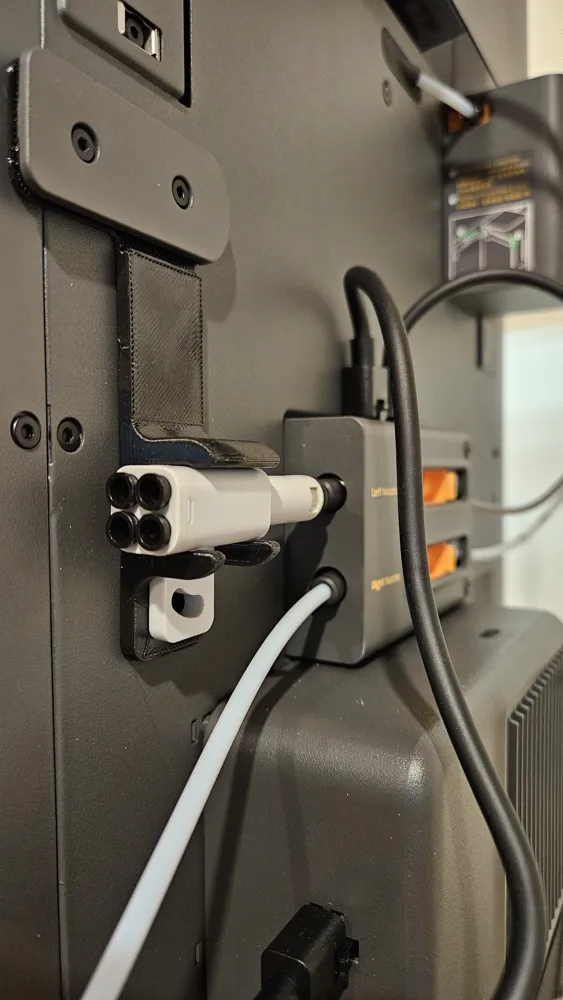

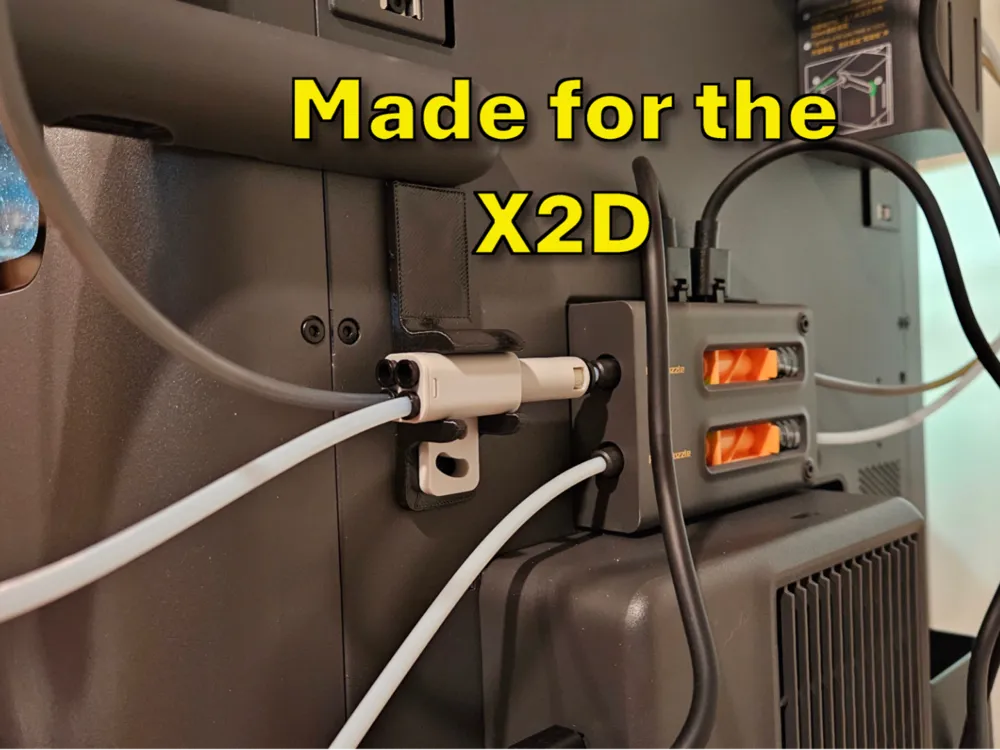

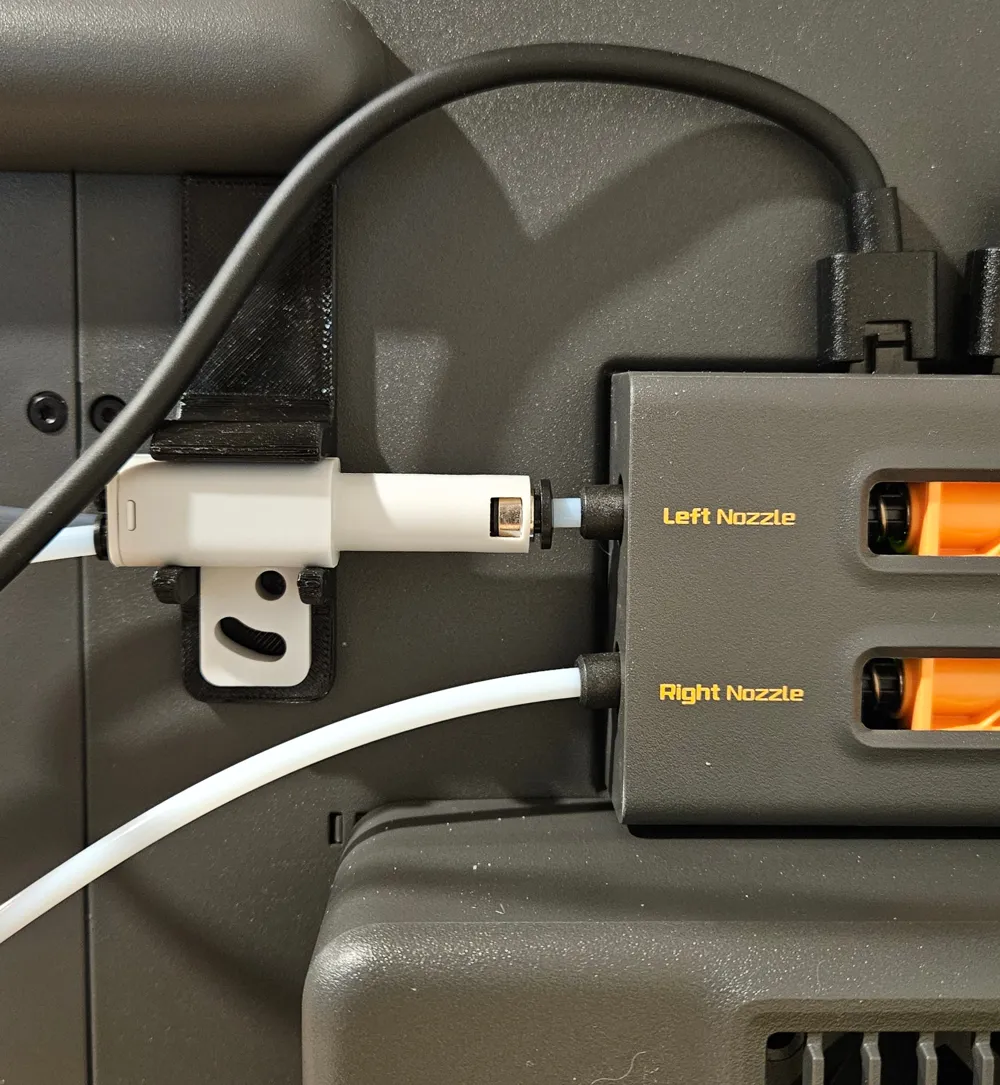

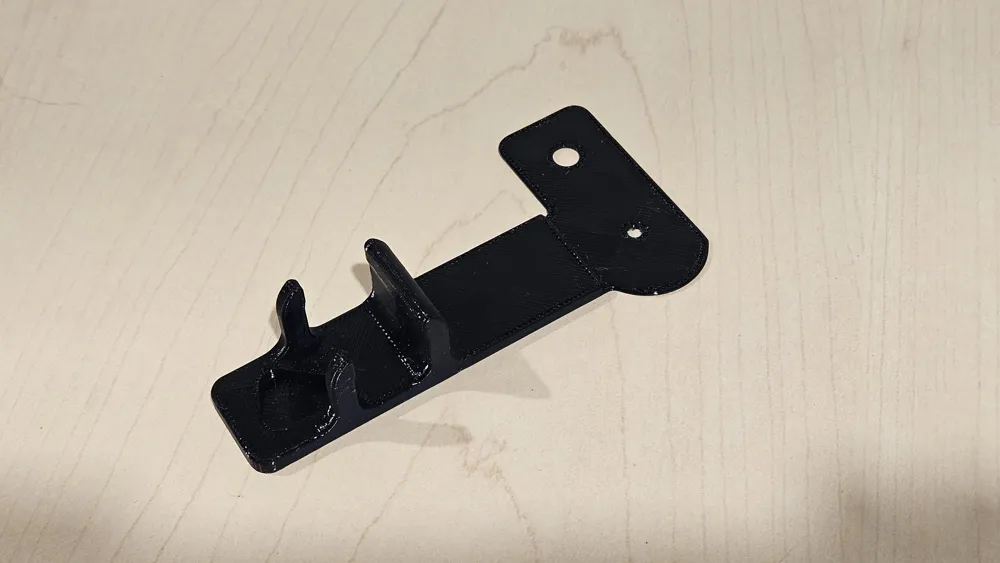

I wanted something to hold the Bambu 4-in-1 PTFE Adapter directly in line with the X2D buffer's main nozzle. I found another model, but the alignment was not 100% perfect and I am a stickler for details, so I used the excellent “P2S Bambulab 4-in-1 PTFE Adapter Mount (no screws)” model from Piitaya and remixed it so it aligned perfectly for the X2D.
This design is fully compatible with the cable management add-on. You can see it in the pictures of my new dual version linked below.
Boost Me (for free)
If you like this remix I would really appreciate it if you would boost it. It let's me know that the effot to make things is worth it :-) Thank you.

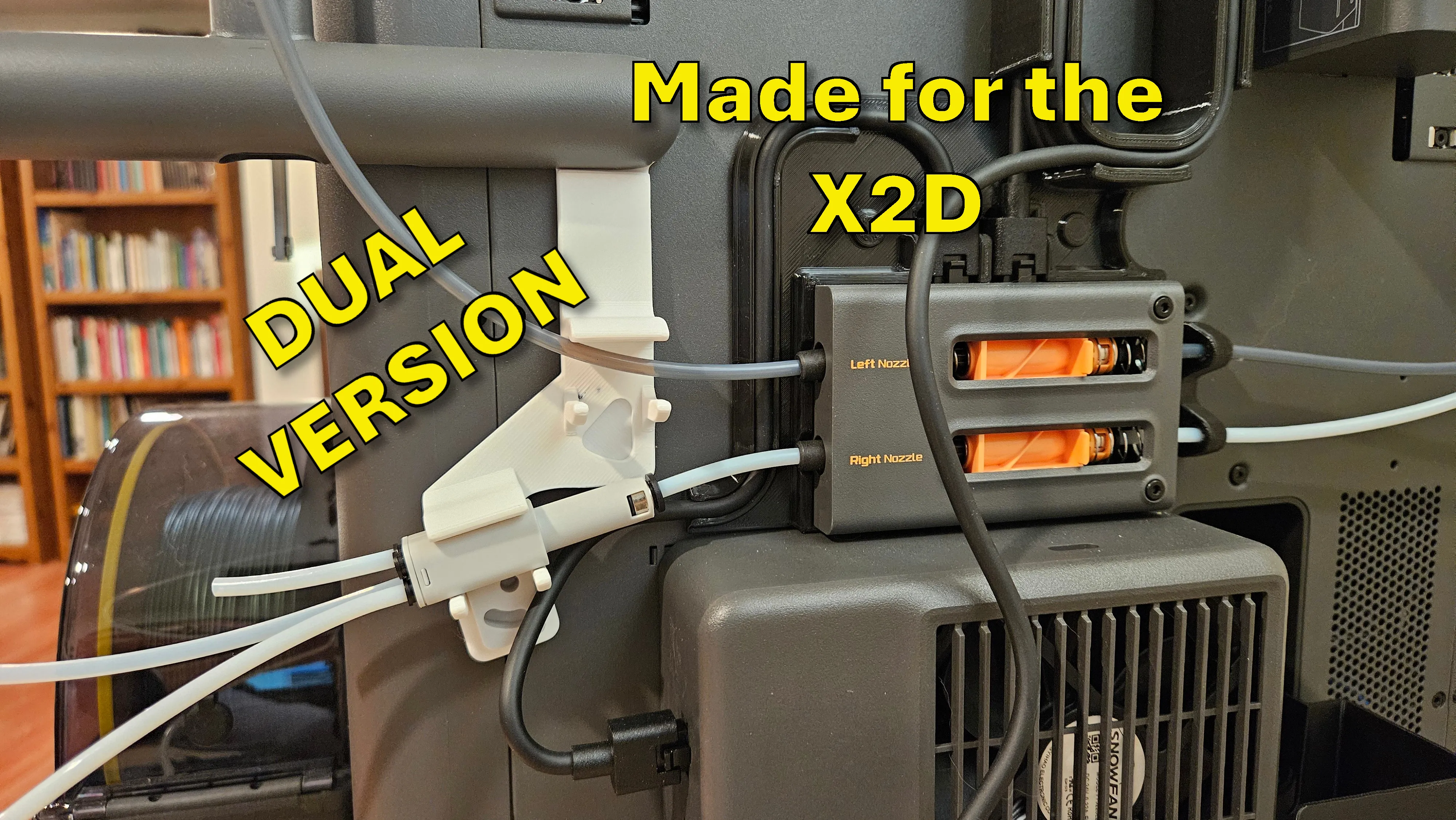

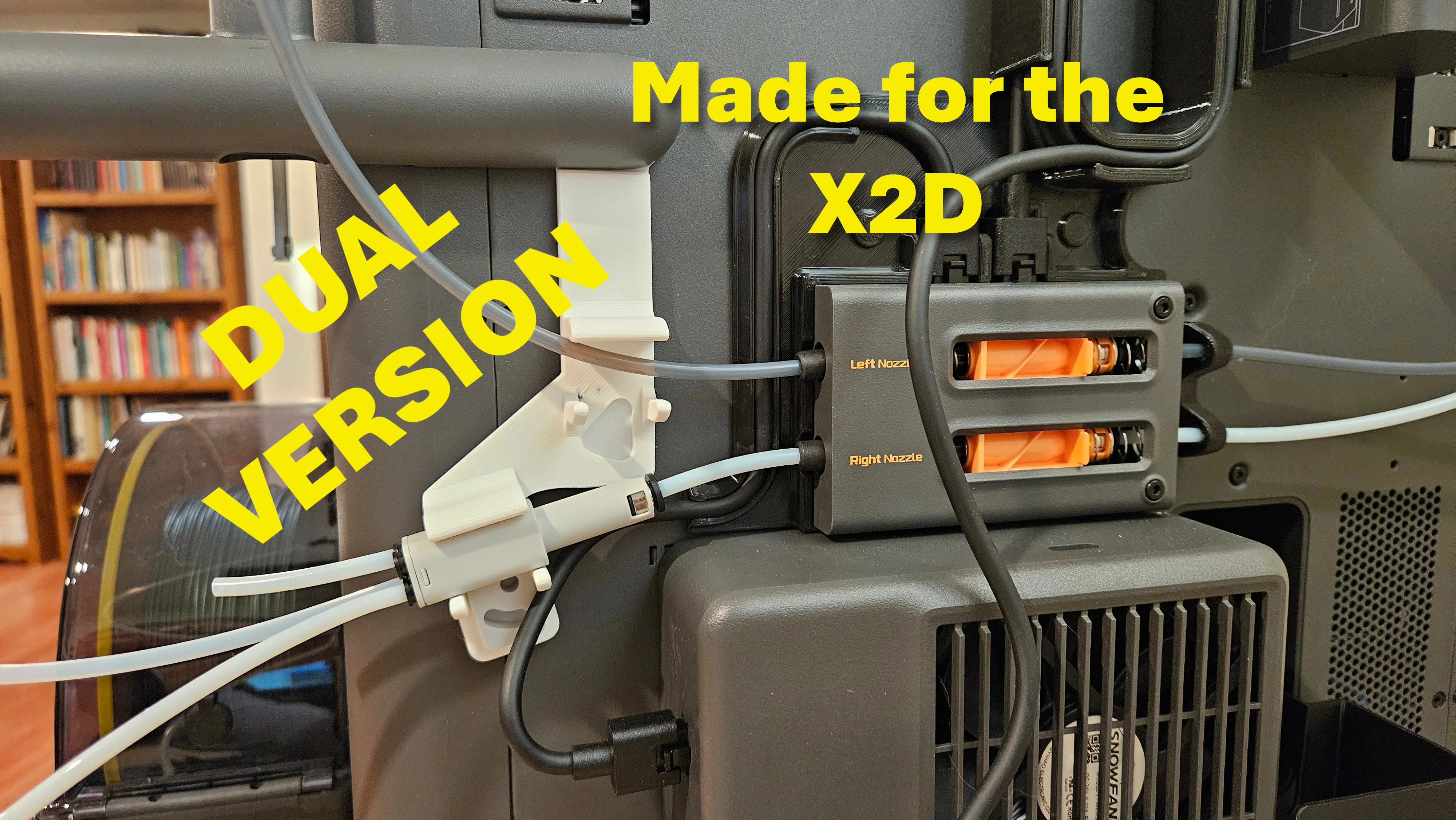

*** New Dual Version available ***

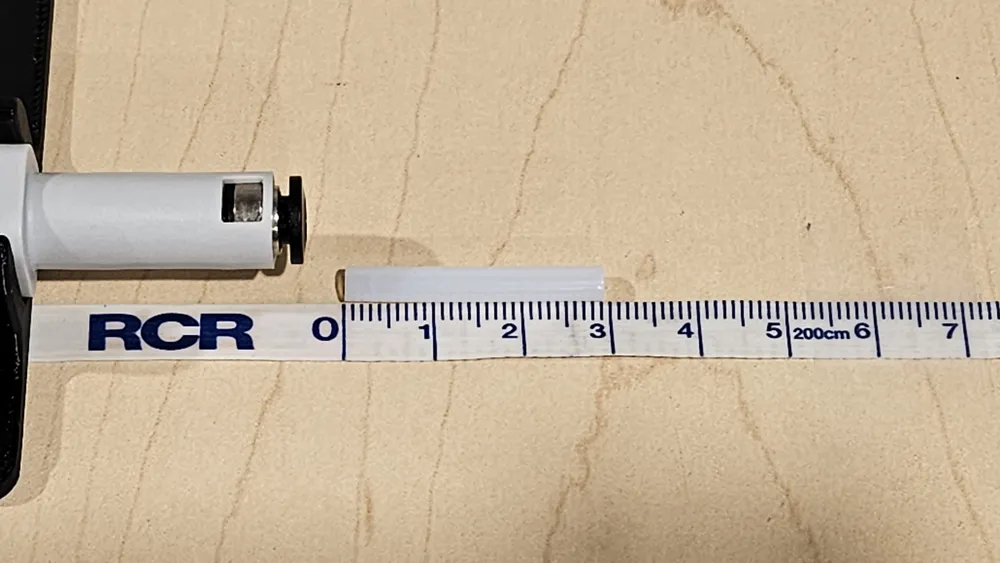

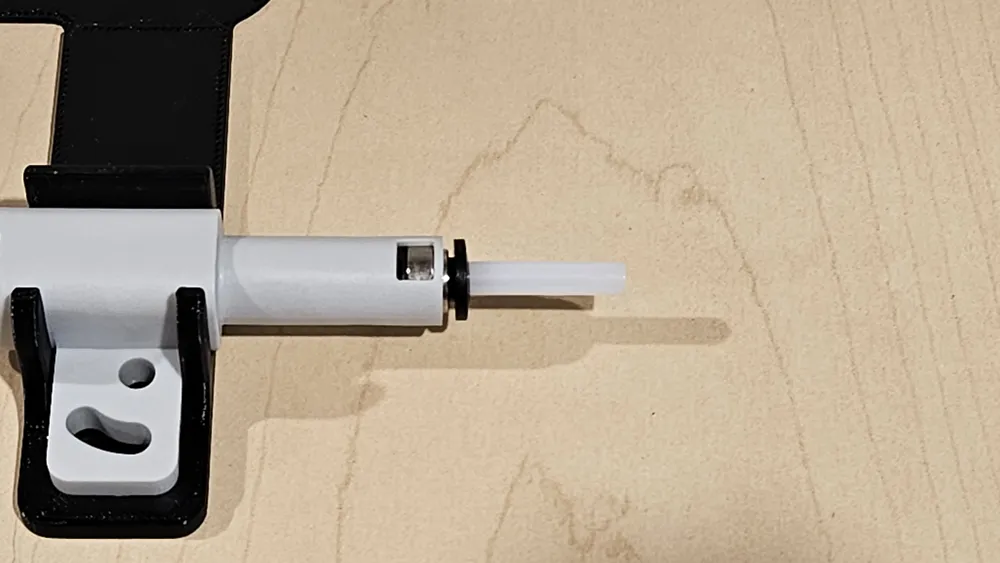

IMPORTANT NOTE: The PTFE tube between the 4-in-1 adapter and the buffer inlet is very short. I measured 3 times and cut twice ;-) and ended up finding that 29mm is the perfect length for PTFE tube engagement in both the adapter and the buffer.

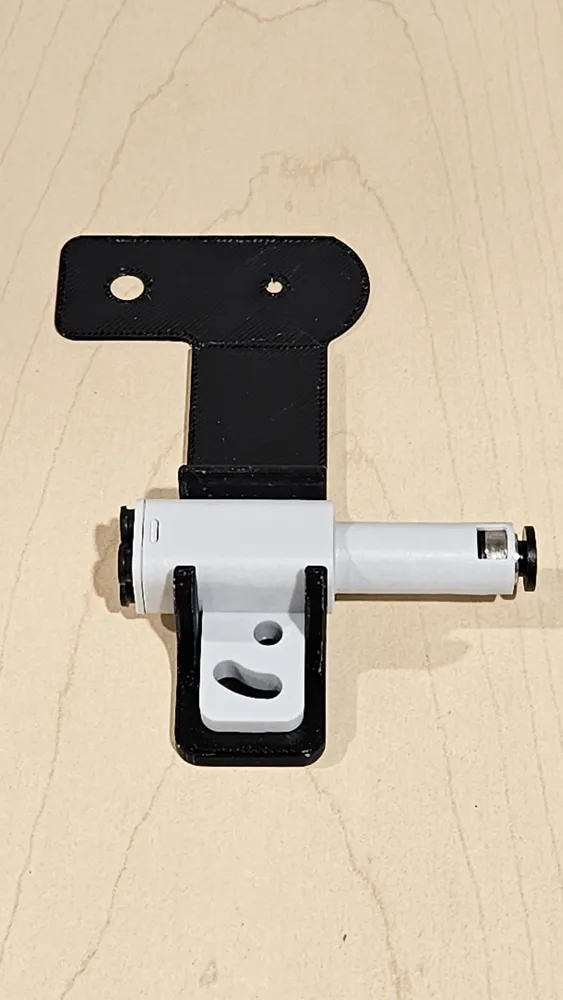

I printed the bracket in PETG since the X2D enclosure can get pretty hot when using the heated chamber. If you use my 3MF you don't have to change any settings, it prints perfectly.
Don't forget to rate the profile and post a picture, and if you really liked it then a boost would be greatly appreciated.
If you are looking for my Dual Version of this adapter, click this text.
This remix is based on
