Mounting plate Eton PA2 on an Eton PA1 or PA4
Print Profile(2)
Description

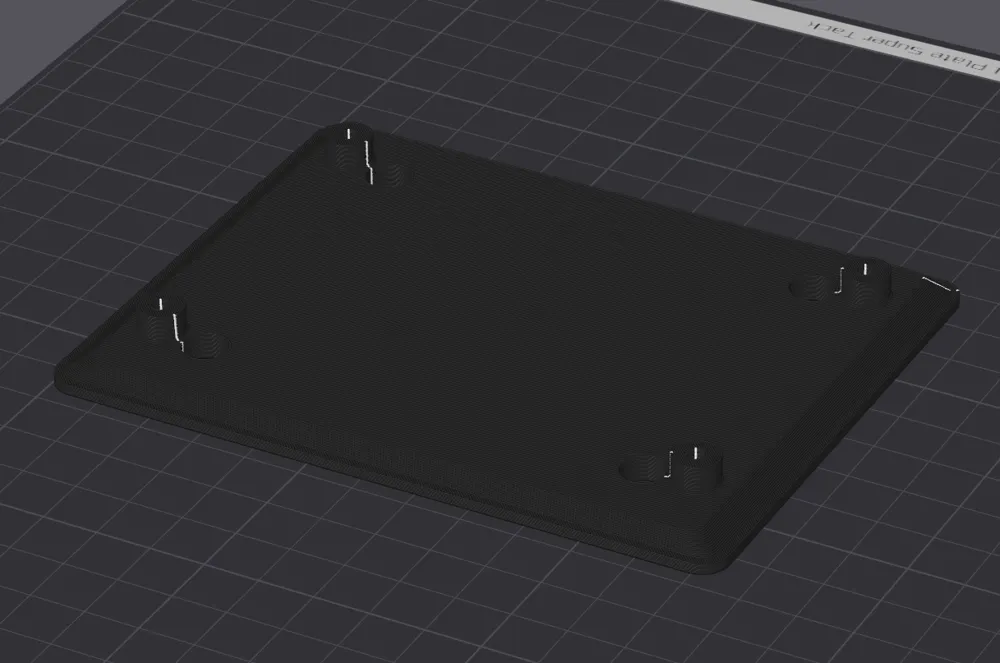

With this adapter, an Eton PA2 can be mounted on an existing Eton PA1 or Eton PA4.
The original head plate of the PA1 / PA4 is removed. This adapter is then inserted onto the existing mount. After that, the PA2 can be placed on the adapter.
Advantages:
- Easy retrofitting of existing systems
- No complete replacement necessary
Assembly:
- For assembly, first unscrew the pins from the original head plate of the Eton PA1 or PA4 and insert them into the adapter.
- The TPU rubber stoppers from the separate print file should also be printed out and inserted into the designated openings of the adapter.
- Place the adapter onto the PA1 or PA4
- Next, the spare pins, which are usually included with the PA2, are mounted on the underside of the Eton PA2.
- Insert PA2 with the pins into the rubber stoppers of the adapter
Print recommendation:
Material: PETG / ABS / ASA recommended
Note:
Please check dimensions before use. Use at your own risk. For high loads, only use with suitable material and appropriate print settings.
