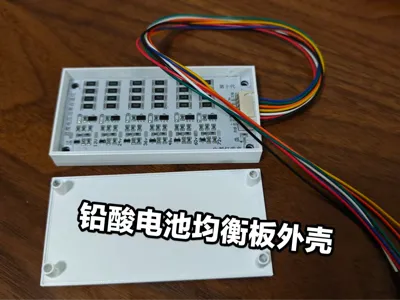

Lead-acid battery balancing board protective case
Print Profile(1)
Description
The passive balancing board for electric vehicle lead-acid batteries bought on Pinduoduo came without a case. After three iterations, the hole positions are precise. An additional 4 M4 screws with a length greater than 5 and less than 14 can be used.
Typically, a set of lead-acid batteries is 12V and requires multiple cells in series to increase the voltage. However, there is a downside to series connection: if the voltage of one battery pack is too high or too low, it will affect the entire series battery pack. This will affect battery life over time.

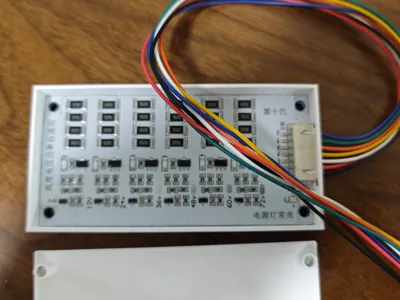

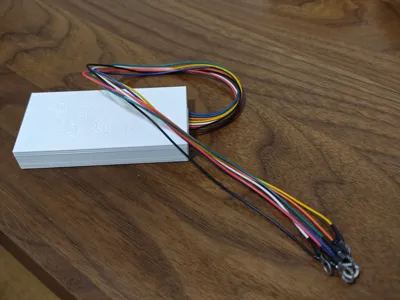

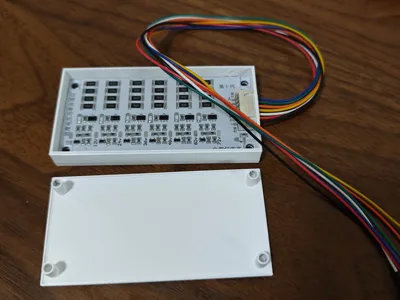

Therefore, I bought a passive balancing board on Pinduoduo. To better fit it into the battery compartment, I designed a case for it. If sealing is required, apply some glue to the gaps after installing the screws.

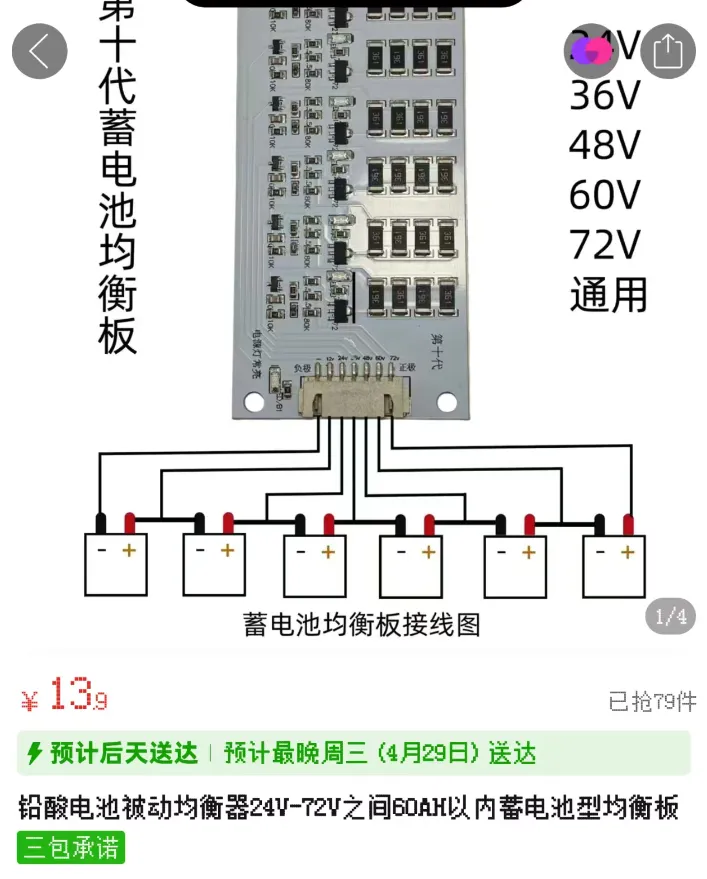

As shown in the picture: You don't have to buy from this store. Other stores should be pretty much the same. I precisely located the hole positions after three test versions.
It is recommended to use PETG for better resistance and durability than PLA.
Have fun everyone. If you have any spare boost coupons that are about to expire, bring them on.
https://mobile.yangkeduo.com/goods1.html?ps=gJuneFNqsy
Boost Me (for free)
The boost coupons will expire. Don't waste them. Thank you, handsome and beautiful people
