Haha Big Dog Stacked Creative Embossed Bookmark | Creative Embossed Bookmark | [Animal Series Bookmark]
Print Profile(1)
Description

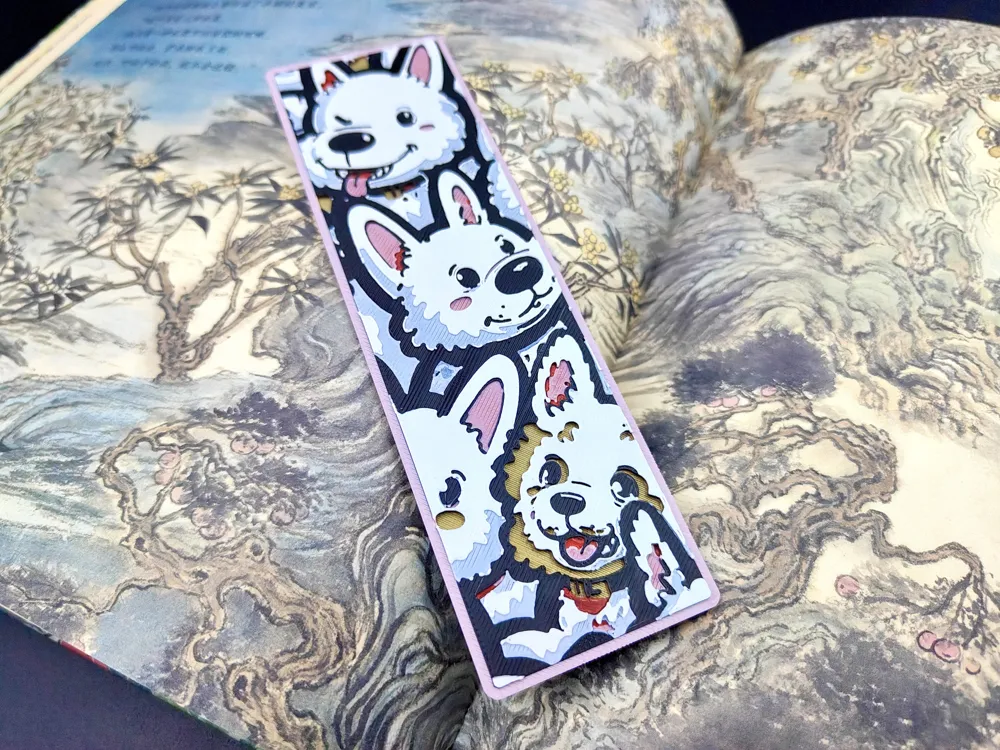

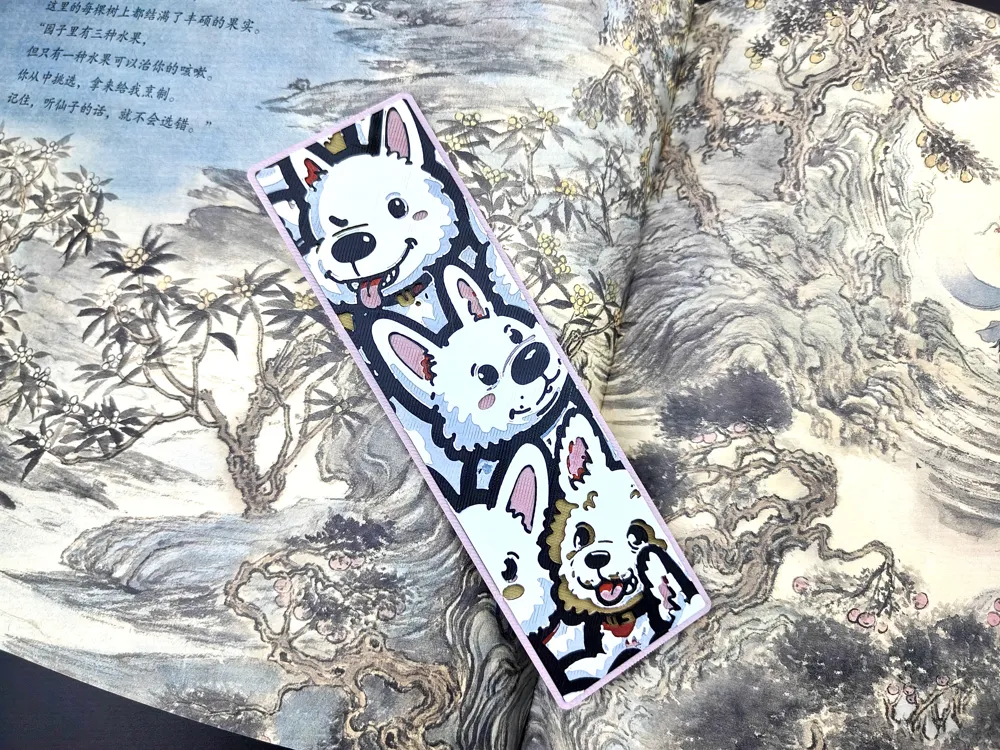

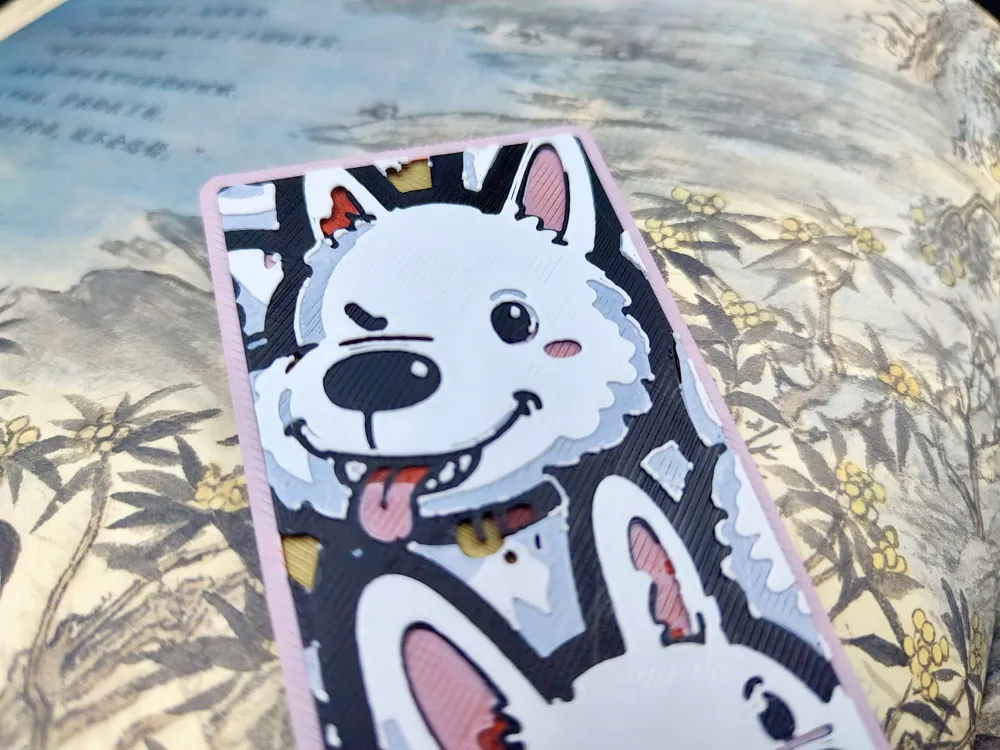

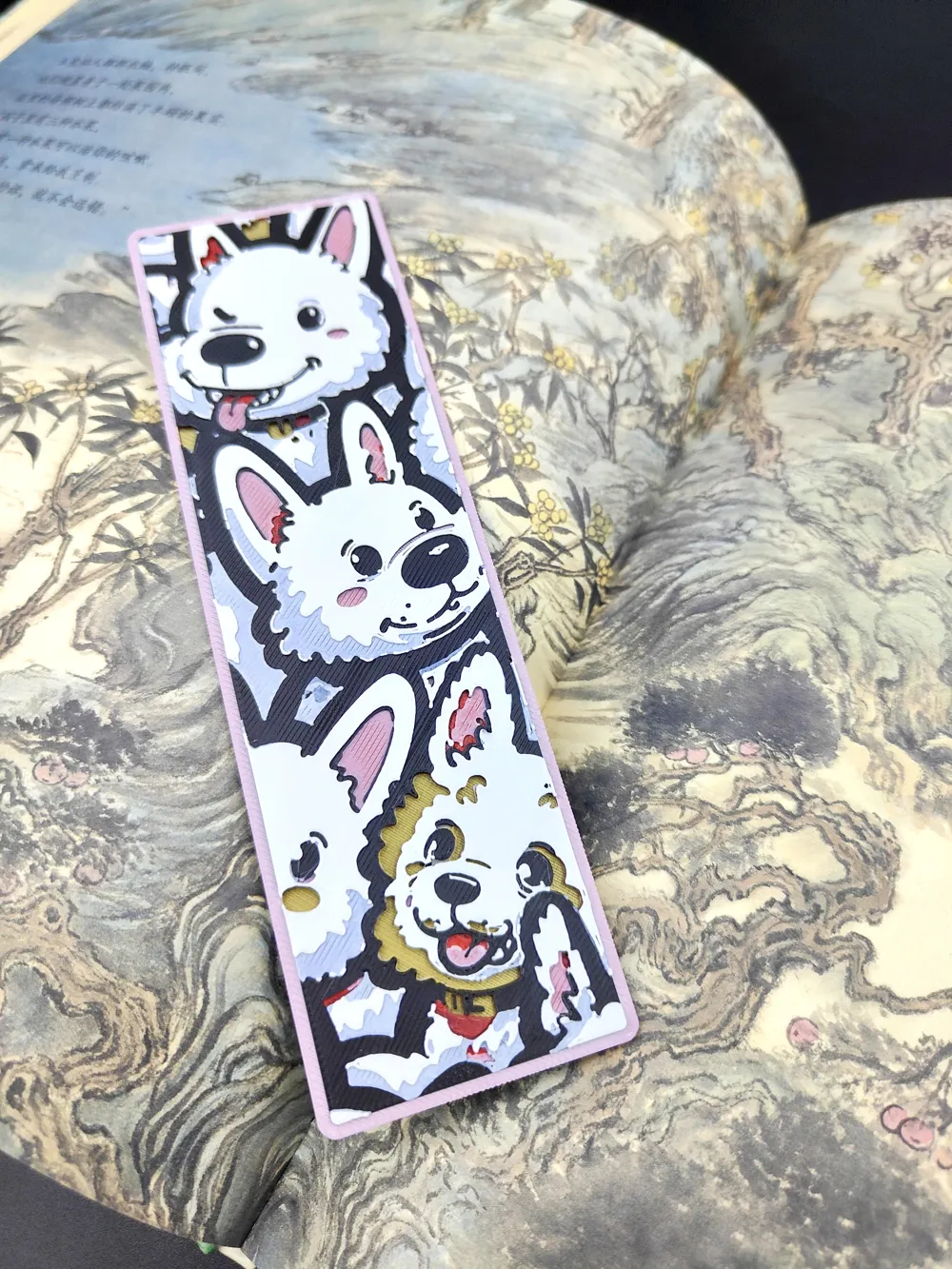

🌟 [Haha Big Dog Stacked Creative Embossed Bookmark]
🎨 Introduction | Description
Cartoon big dog head, hope you like it----------More exciting bookmarks, please look forward to them...
🚀 Core Technology: hicolors-3d
This model is generated using the hicolors-3d workflow, which offers the following advantages compared to traditional processes:
No AMS color changing system required: Adopting a layered color change design approach, no color changing system is needed to print models, you only need to manually change the filament at the corresponding layers, extreme material saving.
Precise layer height: By physically simulating all possibilities of stacked colors, the effective height is distributed into a limited layer height, saving layer height occupation.
Intuitive matching: Based on color and region matching logic (there is no situation where a region cannot be matched to the desired color), it is more intuitive than traditional grayscale matching.
Physical-level simulation: The preview effect is the print effect, accurately simulating color stacking at different layer heights.
Light and shadow aesthetics: Specifically designed for FDM printing, fully utilizing the translucent color-stacking properties of PLA materials and others.
🔄 Color Change Instructions | Color Change Instructions
No multi-color printer (AMS) required, a common single-nozzle machine can change colors manually:
Color change information is included in the 3mf file, just download and view it.
Here is the filament information used for printing, for your reference:
***Base (base) color**
- Color name: Black
- Brand: Cai Duo Wu
- HEX: #000000
- RGB: rgb(0, 0, 0)
- TD: 0.1
- Layers: 6
| Color Change Height | Accumulated Layers | Change to | Brand | HEX | RGB | TD |
|----------|----------|--------|------|-----|-----|-----|
| 0.64mm | 7 | Golden Yellow | Dajian | #eab242 | rgb(234, 178, 66) | 2.3 |
| 0.88mm | 10 | White | Cai Duo Wu | #ffffff | rgb(255, 255, 255) | 4.4 |
| 1.04mm | 12 | Black | Cai Duo Wu | #000000 | rgb(0, 0, 0) | 0.1 |
| 1.12mm | 13 | Dark Red | Cai Duo Wu | #a3282b | rgb(163, 40, 43) | 3.2 |
| 1.44mm | 17 | White | Cai Duo Wu | #ffffff | rgb(255, 255, 255) | 4.4 |
| 1.60mm | 19 | Black | Cai Duo Wu | #000000 | rgb(0, 0, 0) | 0.1 |
| 1.84mm | 22 | White | Cai Duo Wu | #ffffff | rgb(255, 255, 255) | 4.4 |
🛠️ Print Settings | Print Settings
For best results, please strictly adhere to the following settings:
Infill: 100% (Mandatory)
Layer Height: 0.08mm
First Layer Height: 0.16mm
Nozzle recommendation: 0.2mm recommended (for strongest detail), 0.4mm also acceptable (actual photo taken with 0.4mm).
Model scale: Please do not adjust the Z-axis scale of the model to ensure correct layered color change information, you can freely adjust the X and Y-axis scaling to get the desired size.
Post-processing tip: Quickly sweep a lighter over the model's surface to perfectly remove common minor stringing in FDM. 🔥

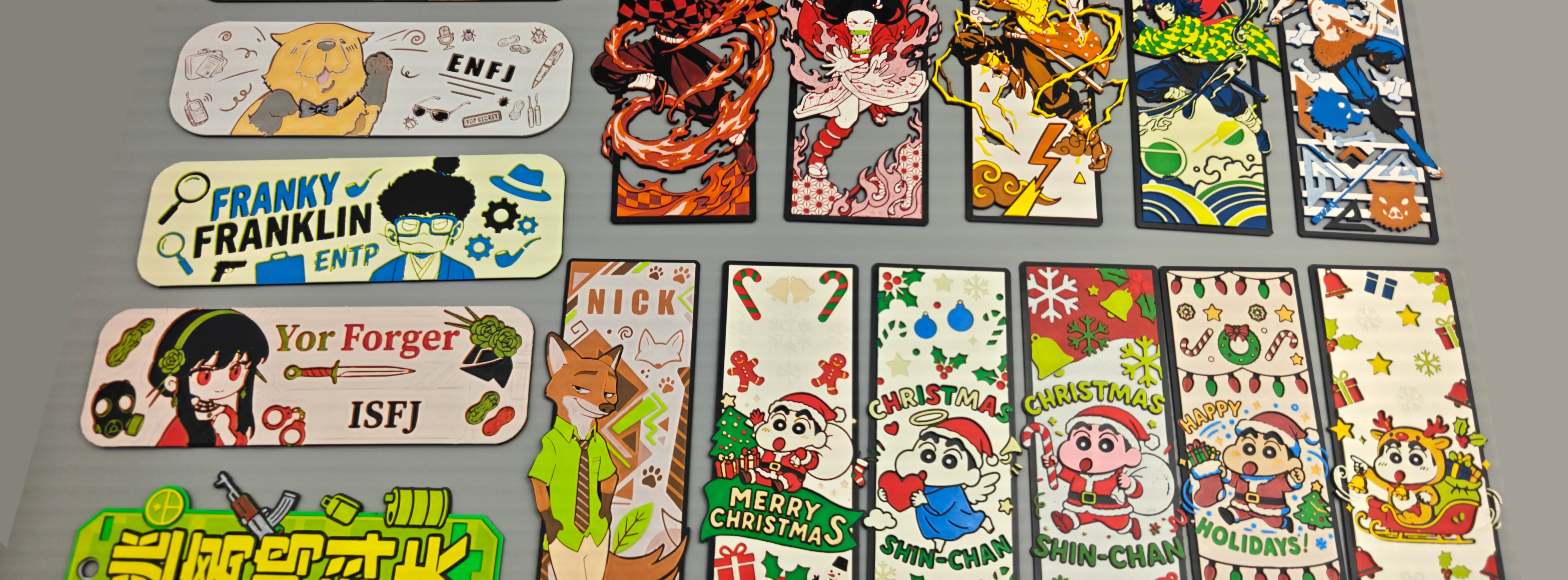

✨Click on the homepage to view more of our high-quality works
💰 Commercial Authorization and Support | Commercial License
Software communication: Want to experience hicolors-3d software? Please follow our social media accounts. Bilibili account has the same name.
