MODULAR DUST COLLECTOR WITH BALL VALVE

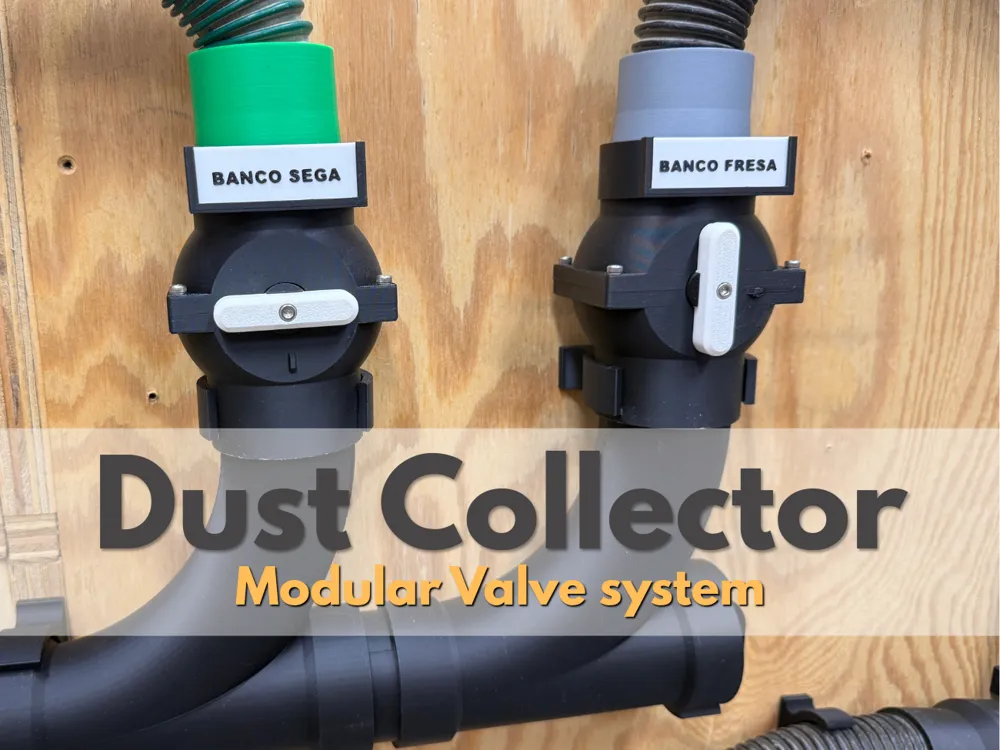

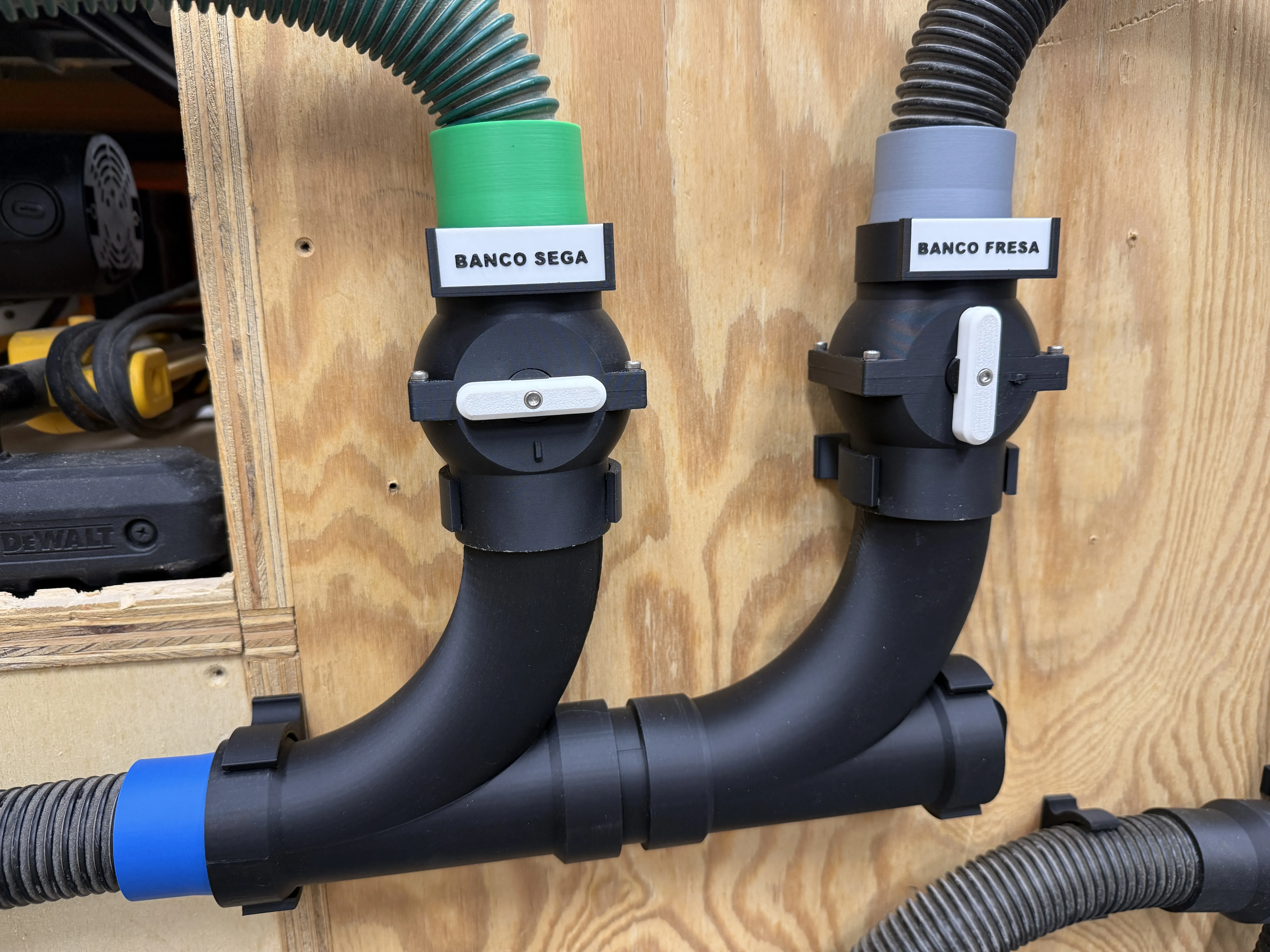

I was looking for an expandable and functional system for my multifunction workbench, saw bench / router table, and I adapted this valve to a system that can virtually accommodate infinite branches
The pipe has an internal diameter of 42mm, a size suitable for accommodating the airflow generated by common hobby or semi-professional vacuum cleaners

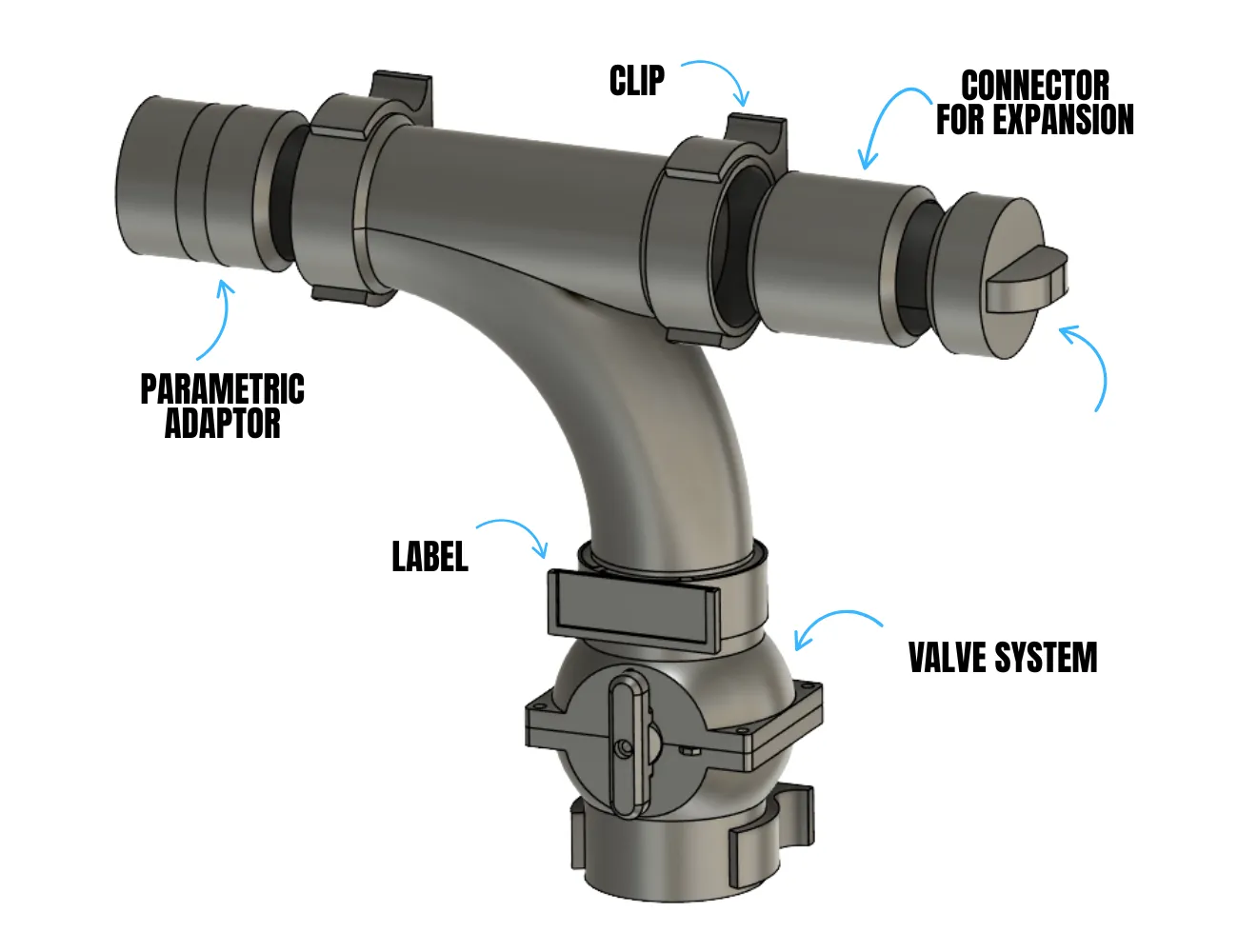

Using the parametric adapter, you can connect any pipe you own within a range of 30 to 80mm in diameter
The parametric adapter is designed to fit both input and output

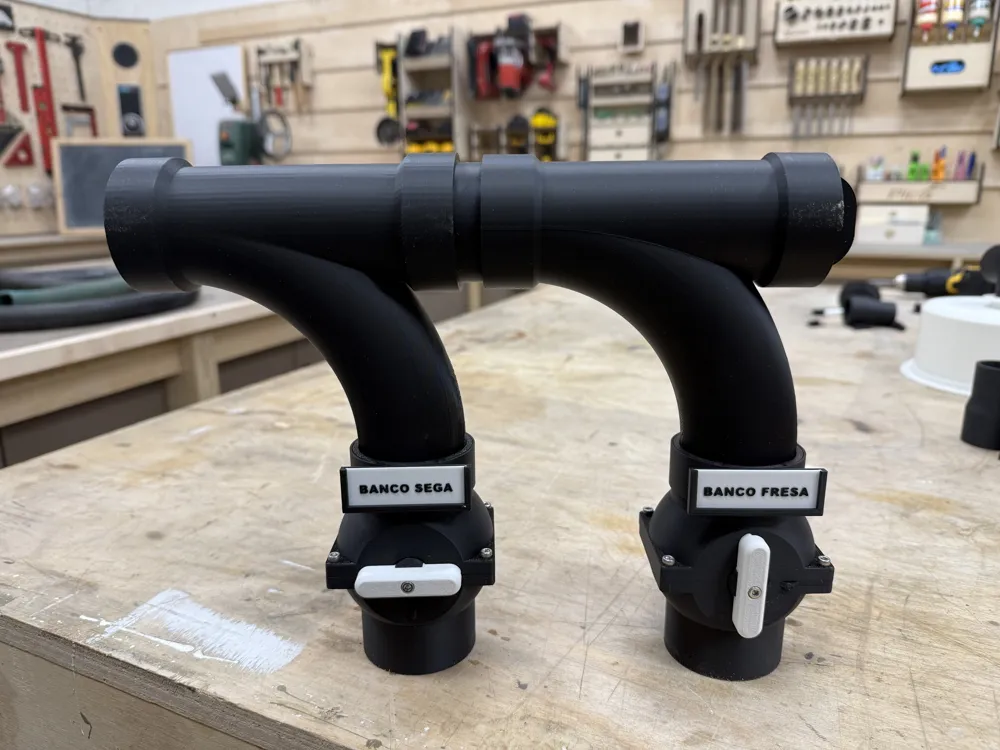

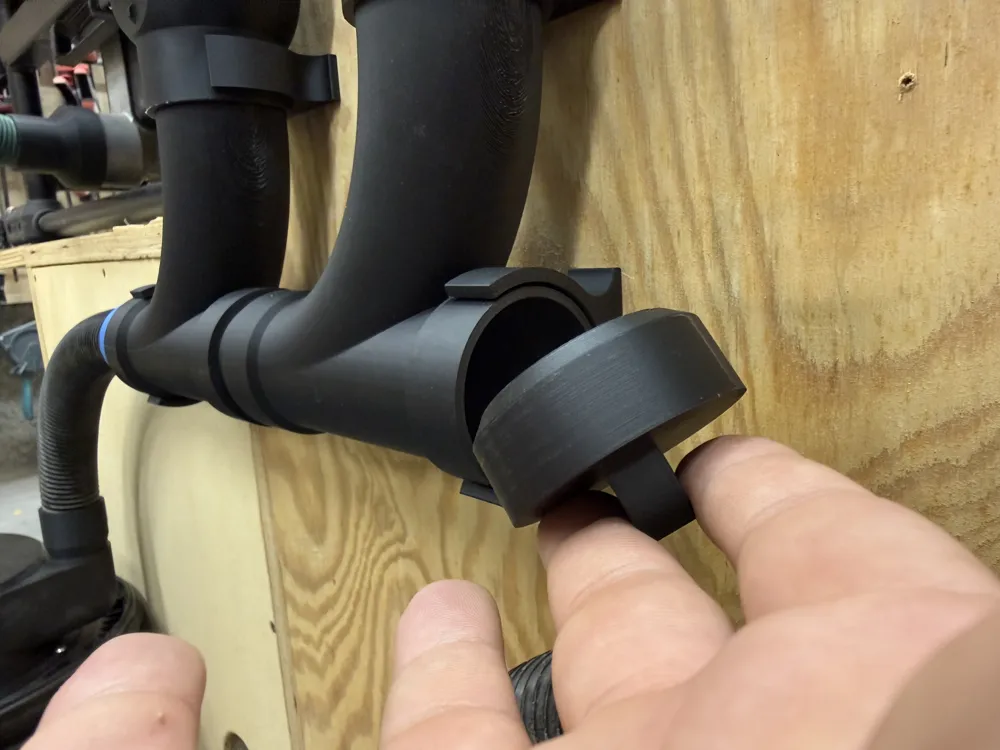

The expansion adapter, on the other hand, is used to connect multiple outputs simultaneously, as shown in the figure
Boost Me (for free)
Make me happy and give me a BOOST!

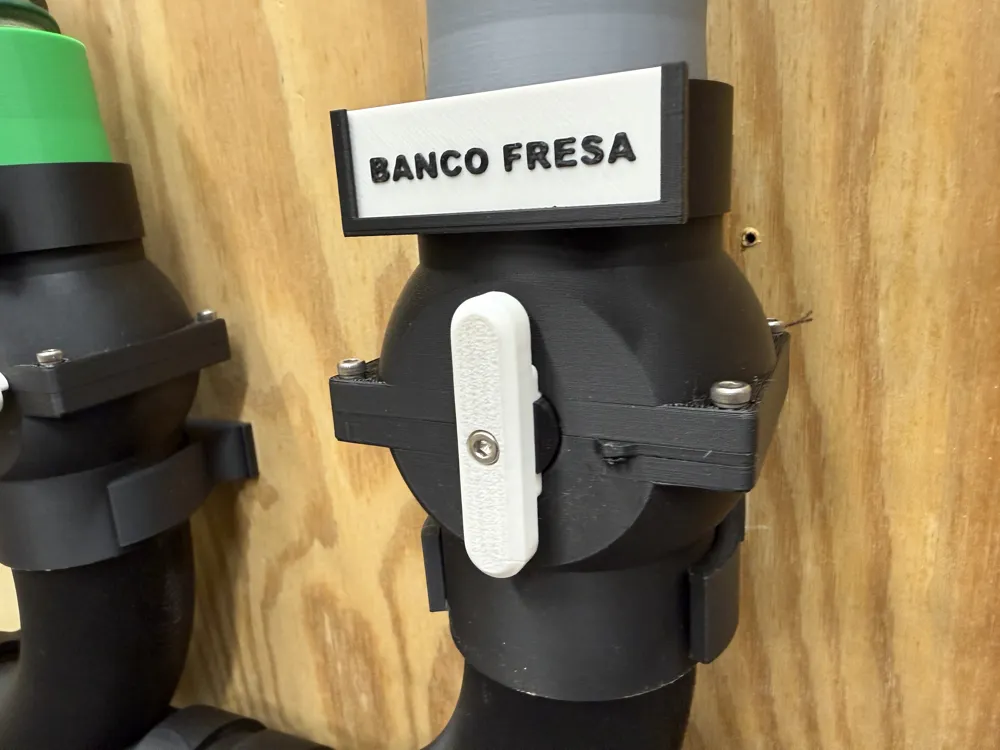

The system uses a ball valve with a tolerance that allows movement without causing detectable leaks

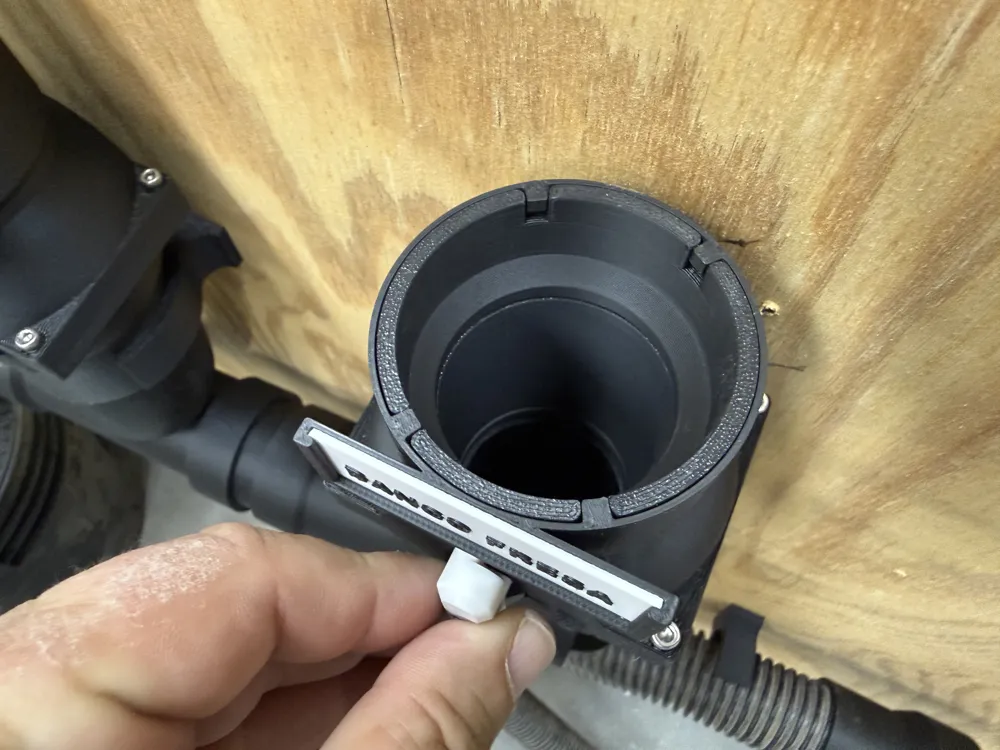

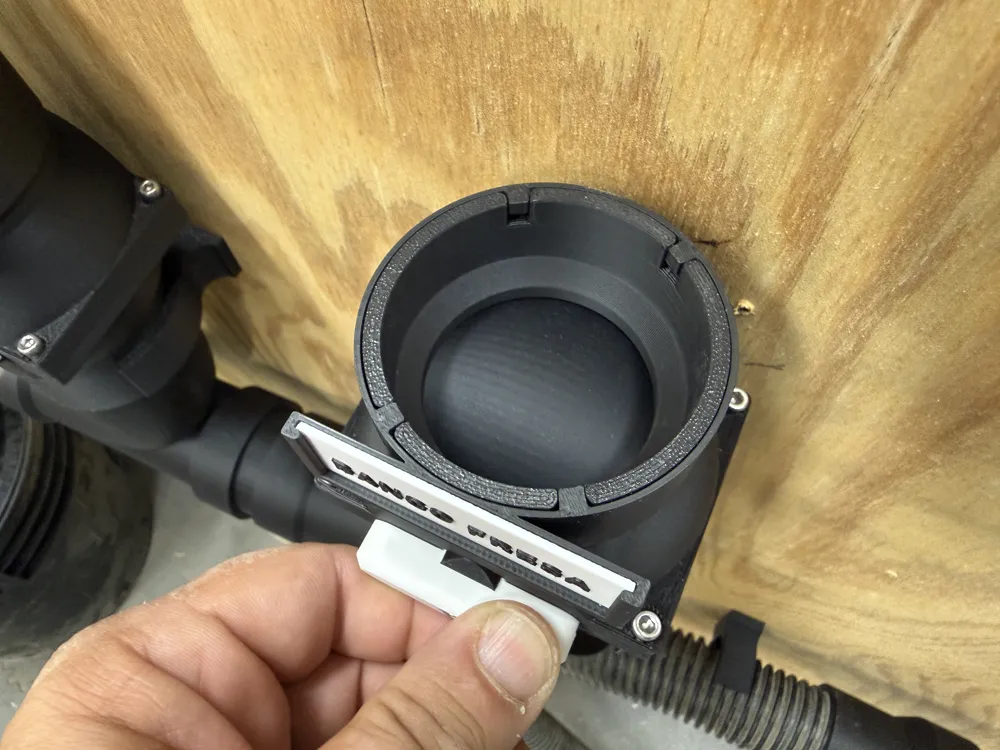

Customizable labels via Bambu Studio

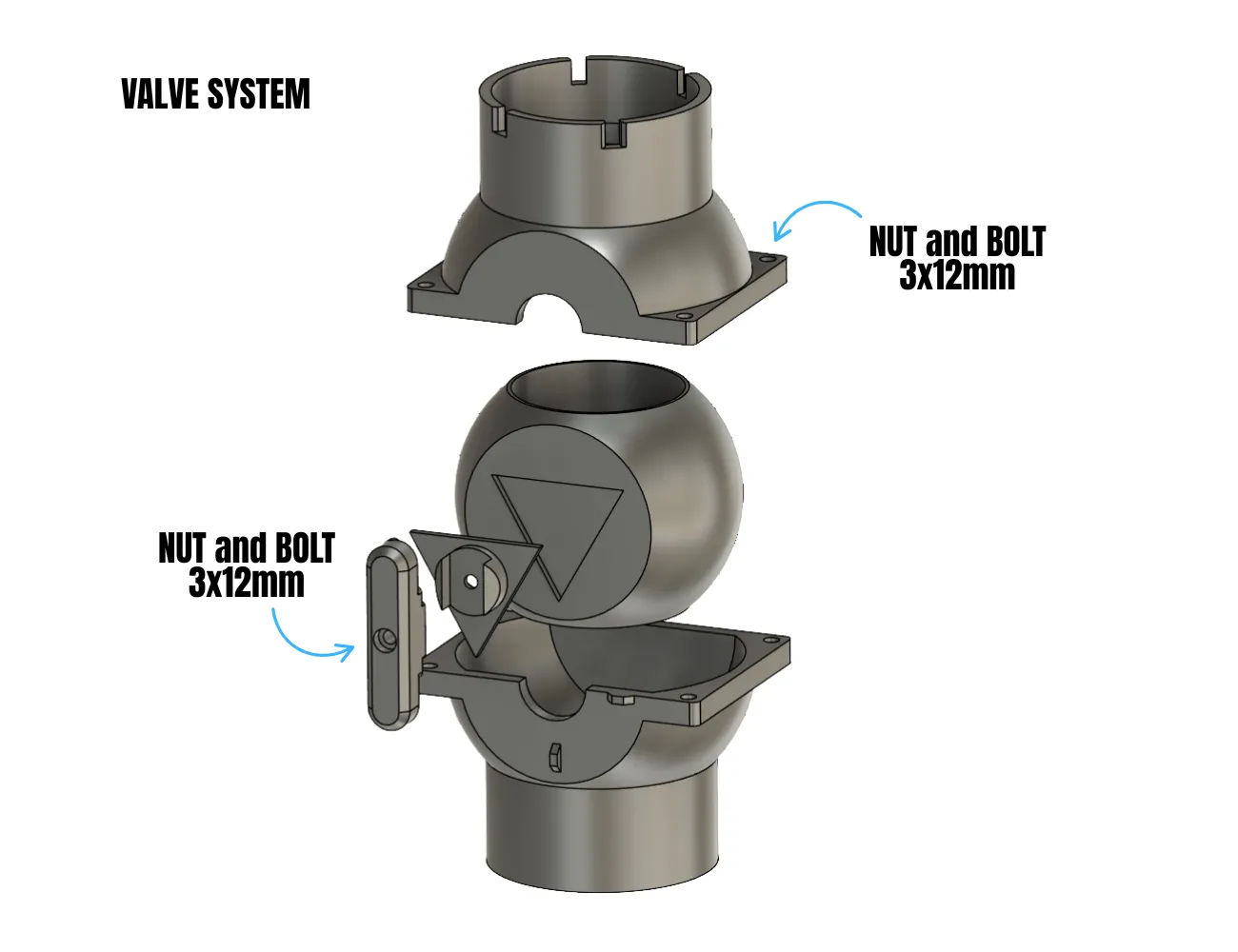

For assembly, M3 screws and bolts like these are required
