M56x1 Male to M54x1 Male Adapter
Print Profile(1)
Description
M56x1 Male to M54x1 Male Adapter for Early Sky-Watcher 72ED (Pre-2019)

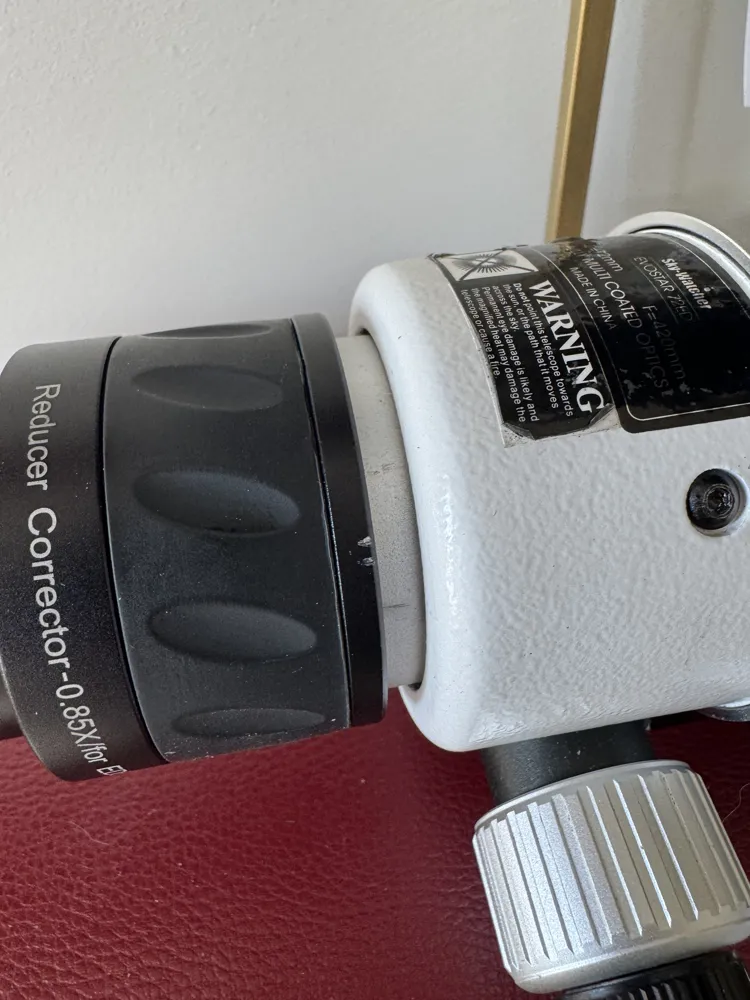

Adapter designed for early versions of the Sky-Watcher Evostar 72ED, especially when used with the Sky-Watcher 72ED 0.85x Reducer/Flattener
On certain models before 2019, the original 0.85x reducer's rotating ring can cause several issues:
- Insufficient focus travel (lack of inward focus travel)
- Difficulty reaching focus with certain optical trains
- Risk of tilt introduced by the rotating ring
- Assembly lacking rigidity in astrophotography

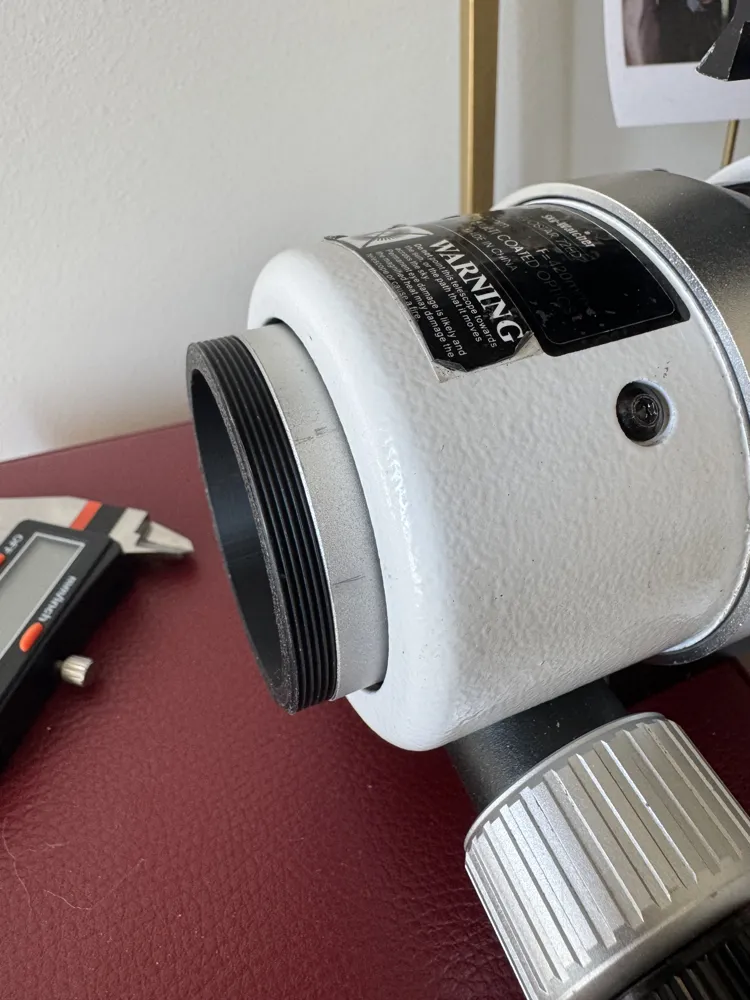

This adapter replaces this problematic ring with a shorter and more rigid direct threaded connection
Function

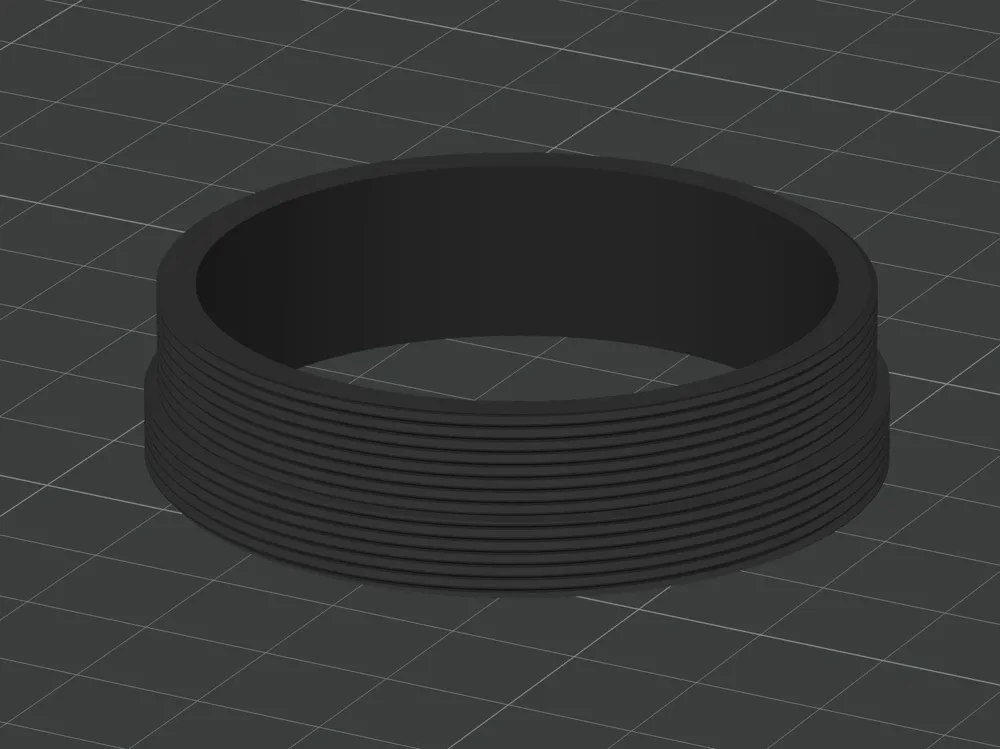

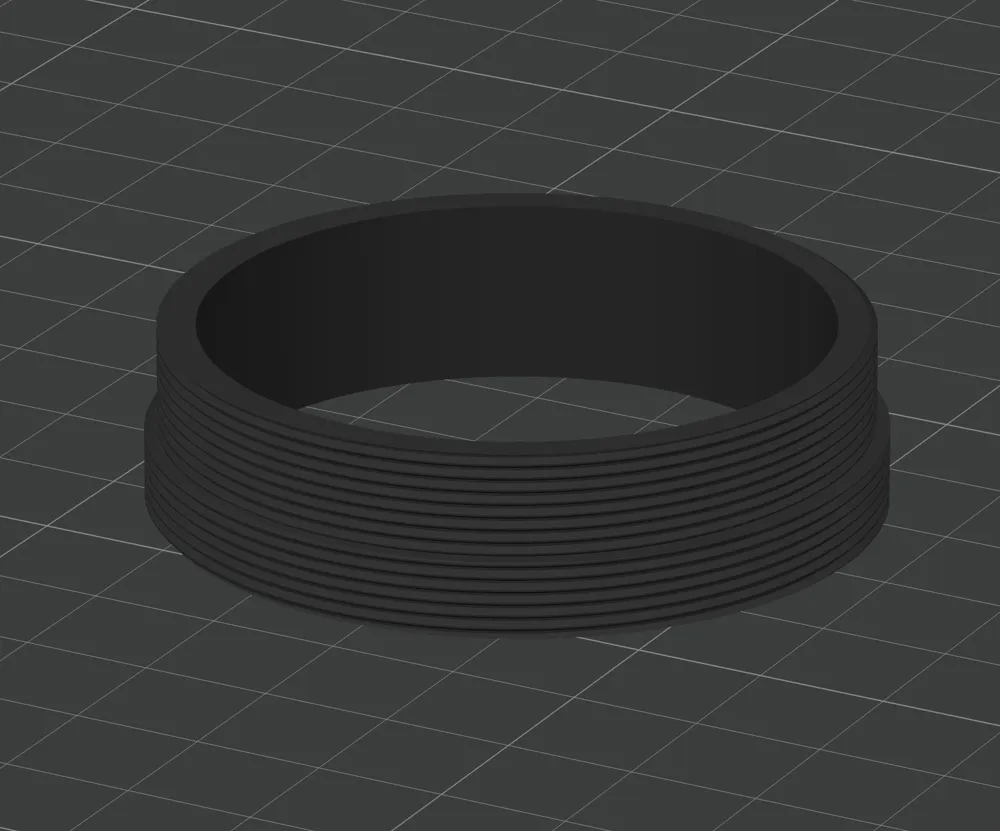

- Converts M56x1 male → M54x1 male

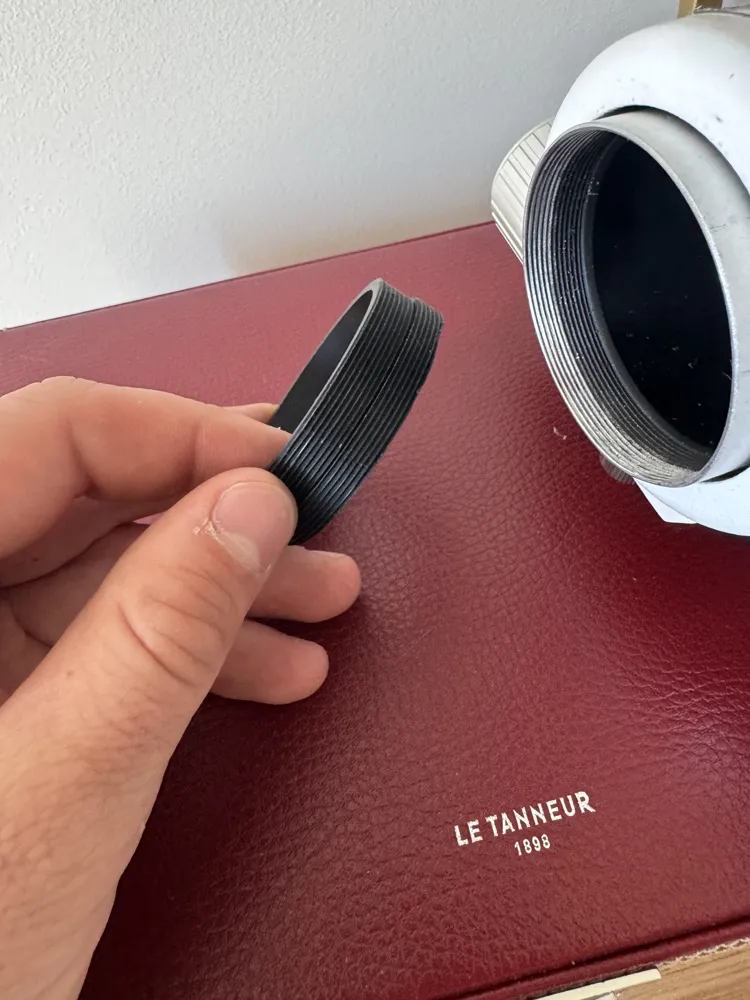

- Removes the original rotating ring
- Reduces mechanical backfocus
- Recovers focus travel
- Improves optical train alignment
Print Recommendations
- 0.2 mm nozzle
- 0.08–0.12 mm layer height
- 100% infill
- 4–6 perimeters
- Vertical printing
- no supports
Recommended Materials
- PETG / PETG-CF
- ASA / ASA-CF for better thermal stability
Why this model exists
This model was designed as a solution for early generations of the 72ED where the original design of the 0.85x reducer could prevent sufficient focus travel
If you have an older 72ED and a focus issue with the reducer, this model may be useful
