DIY Stream Deck, switches & Volume Mixer
Print Profile(1)
Description

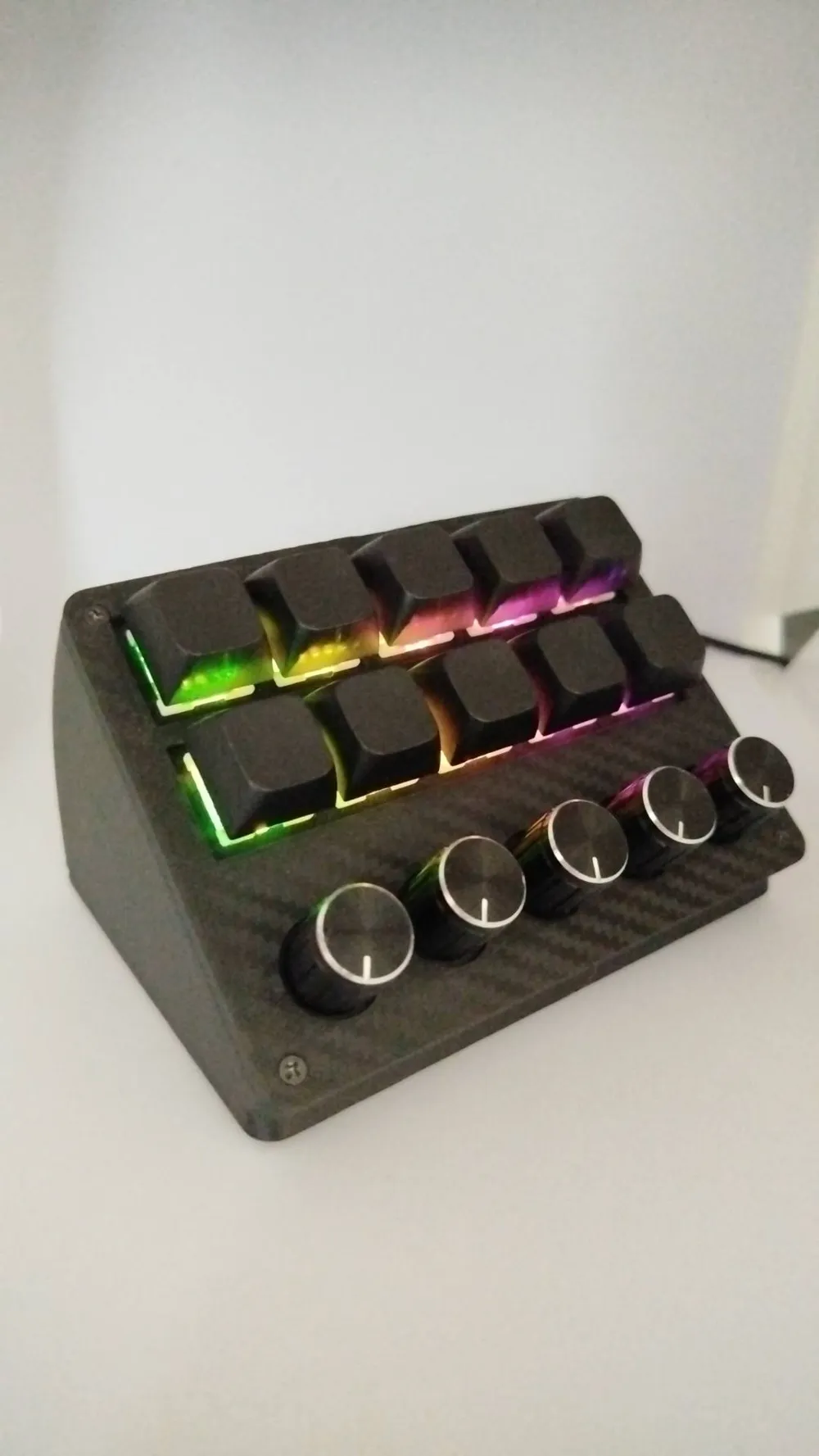

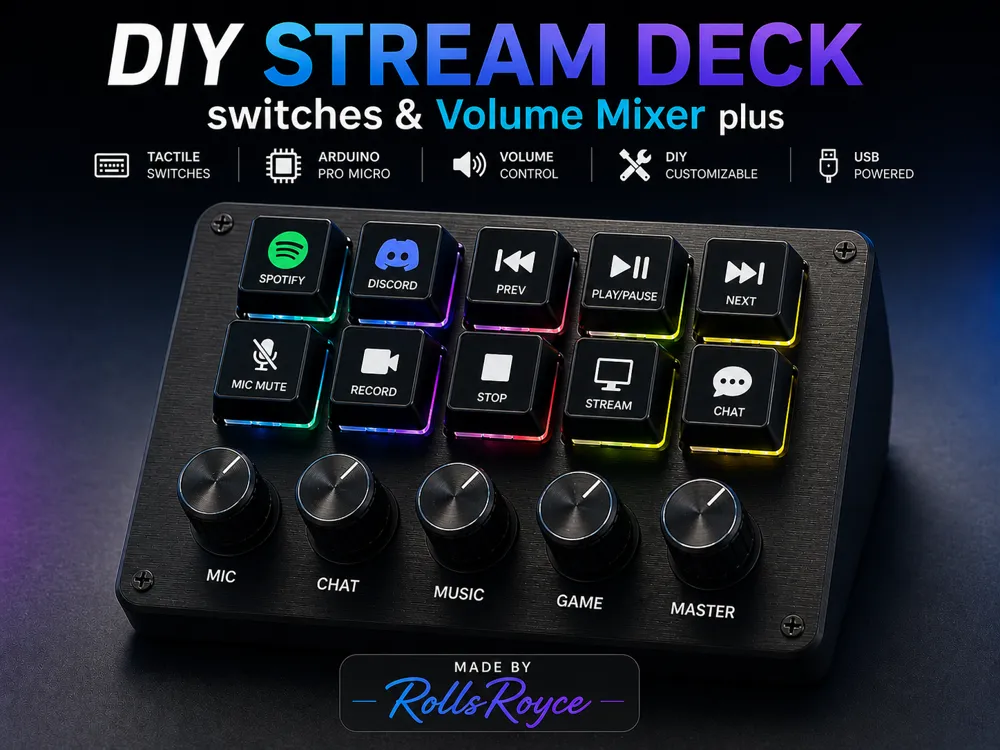

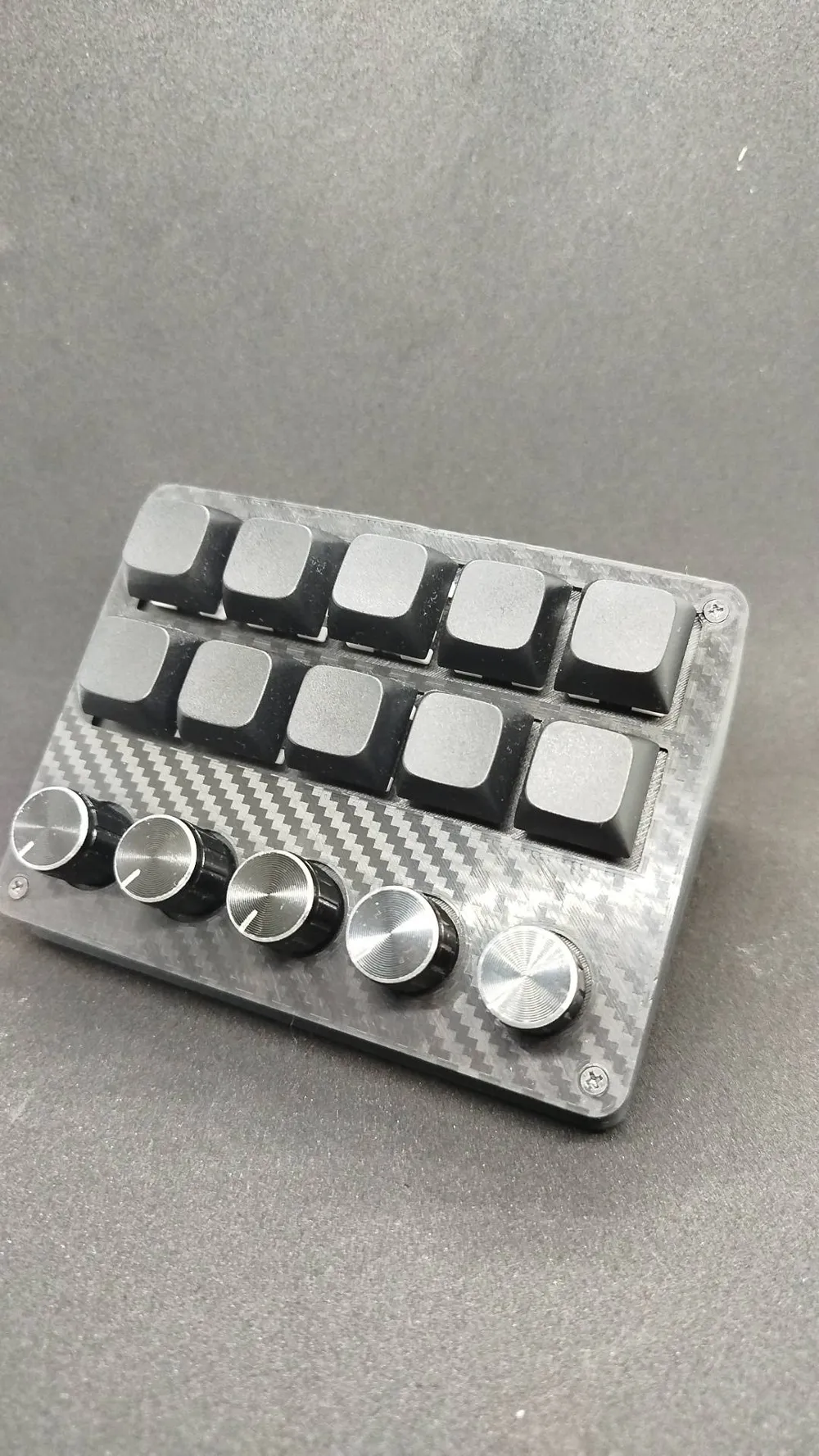

DIY Stream Deck & Volume Mixer | 10-Button Expanded Edition
Take your productivity and streaming setup to the next level! This is a functional remix of the budget-friendly DIY Stream Deck, specifically redesigned to double the macro capacity. While the original version featured 5 switches, this expanded edition accommodates 10 mechanical switches, giving you much more flexibility for shortcuts and application controls.
Bill of Materials (BOM)
To build this version, you will need:
- Microcontroller: Arduino Pro Micro with native USB HID support.
https://a.aliexpress.com/_EudYap0 - Switches: 10x Mechanical Switches.
https://a.aliexpress.com/_EvanoKS - Potentiometers: 5x potentiometers for smooth volume control.
https://a.aliexpress.com/_EuUX4zs - Keycaps: 10x Standard keycaps.
https://a.aliexpress.com/_ExejNlG - Hardware: 4x M2x8 screws for securing the housing.

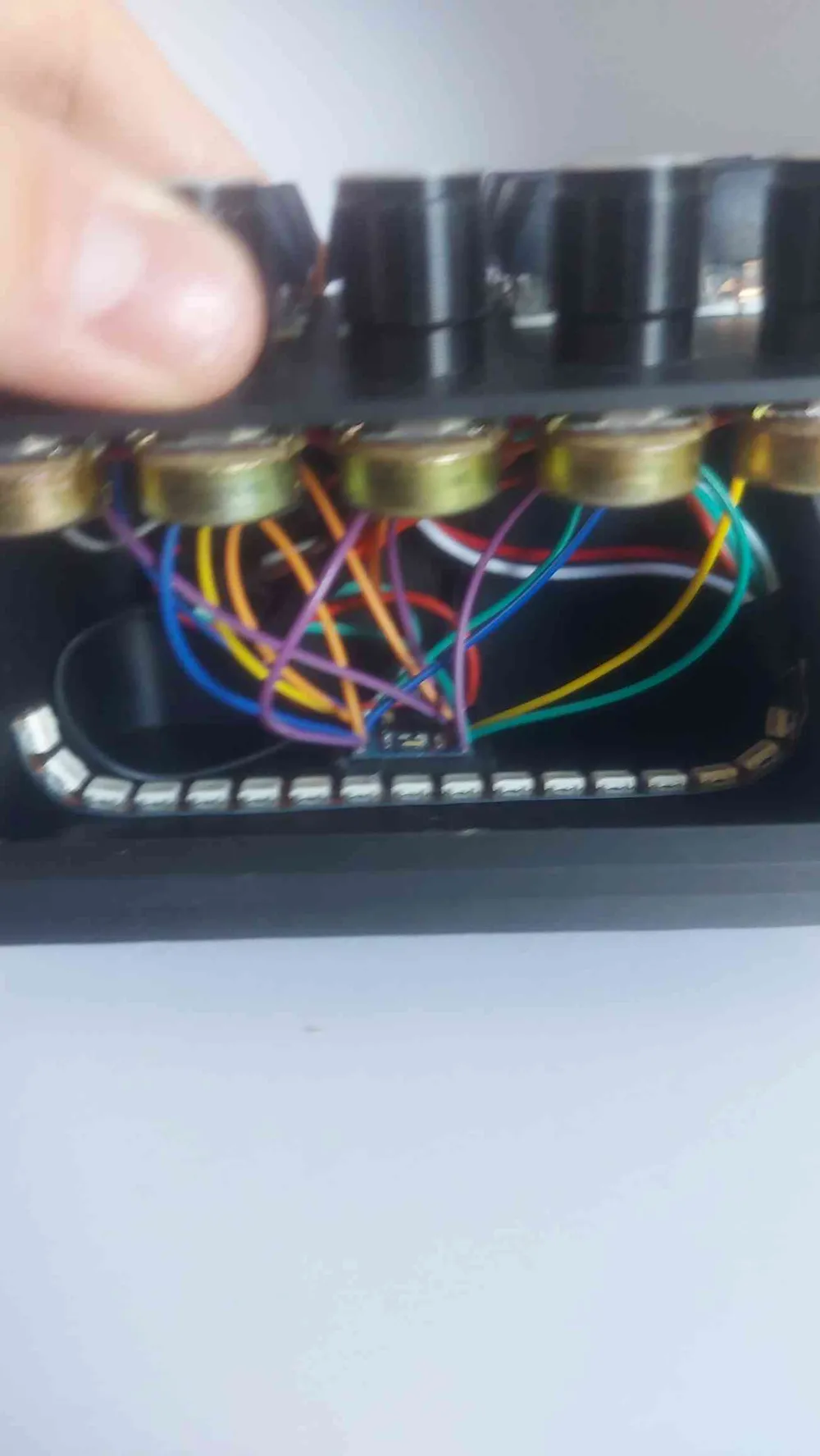

- Wiring.
https://a.aliexpress.com/_EvId3Ro
Optional

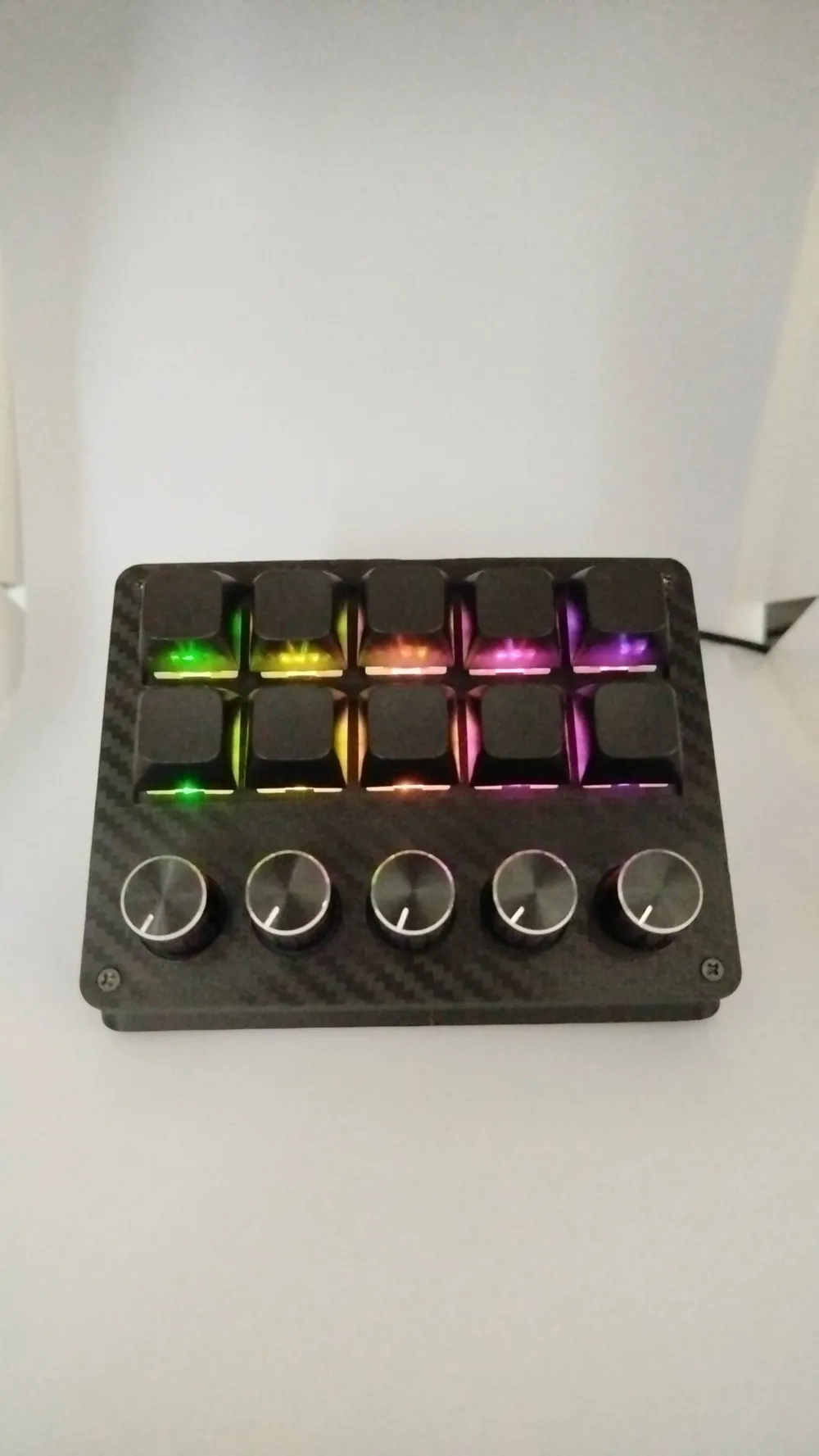

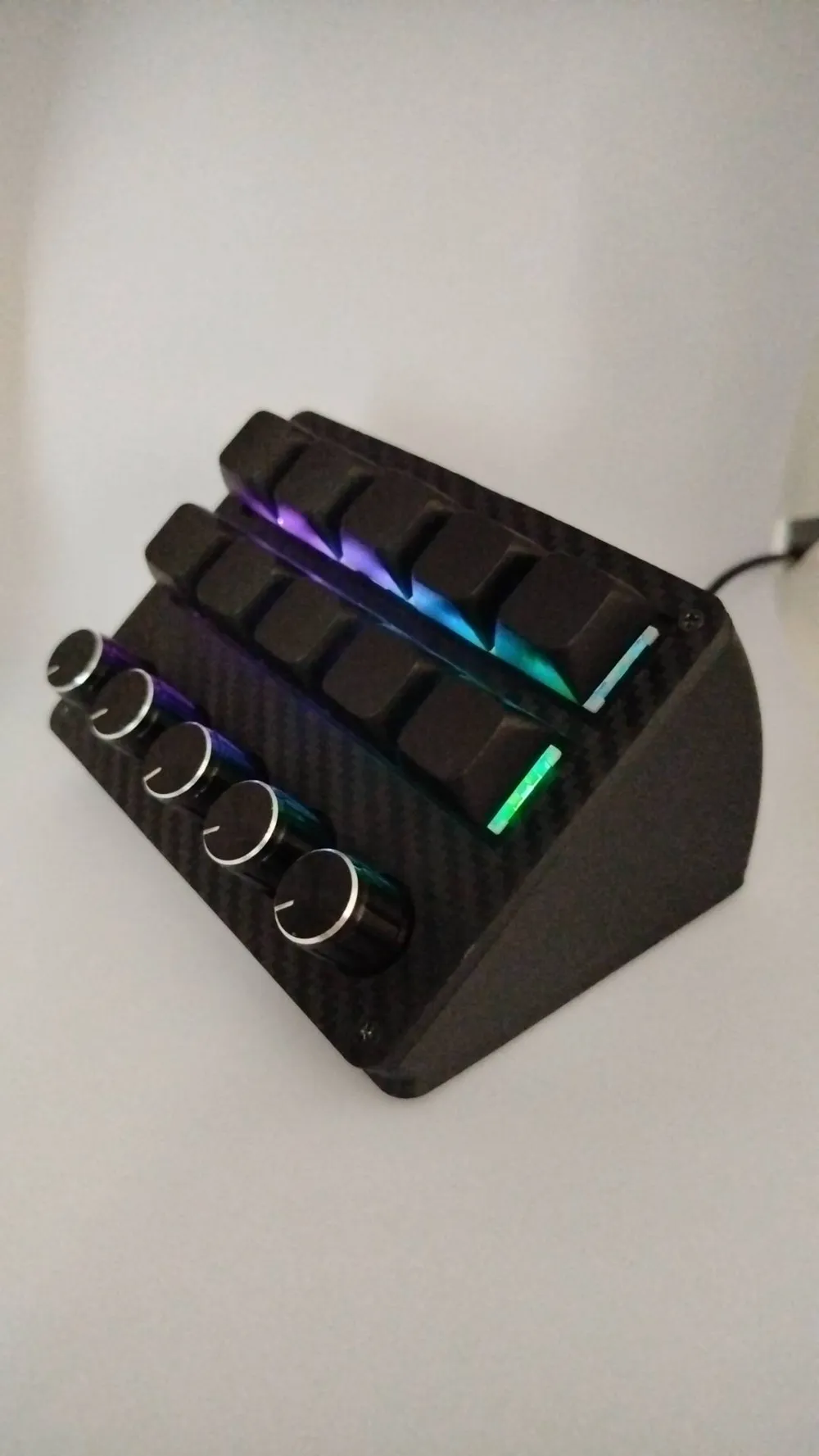

RGB LED Strip
https://a.aliexpress.com/_EvSiy4W
Github:
https://github.com/RollsR0yce/DIY-Stream-Deck-switches-Volume-Mixer
Boost Me (for free)
Saving up for a new printer! If you like my work, your Boost would be a huge help in reaching this goal. Thanks for supporting my journey!
I am always online on MakerWorld, so if anything is unclear or not working,
please feel free to contact me via MakerWorld or Discord: rollsroyce0991
Special Thanks to the Original Creator! 🙏

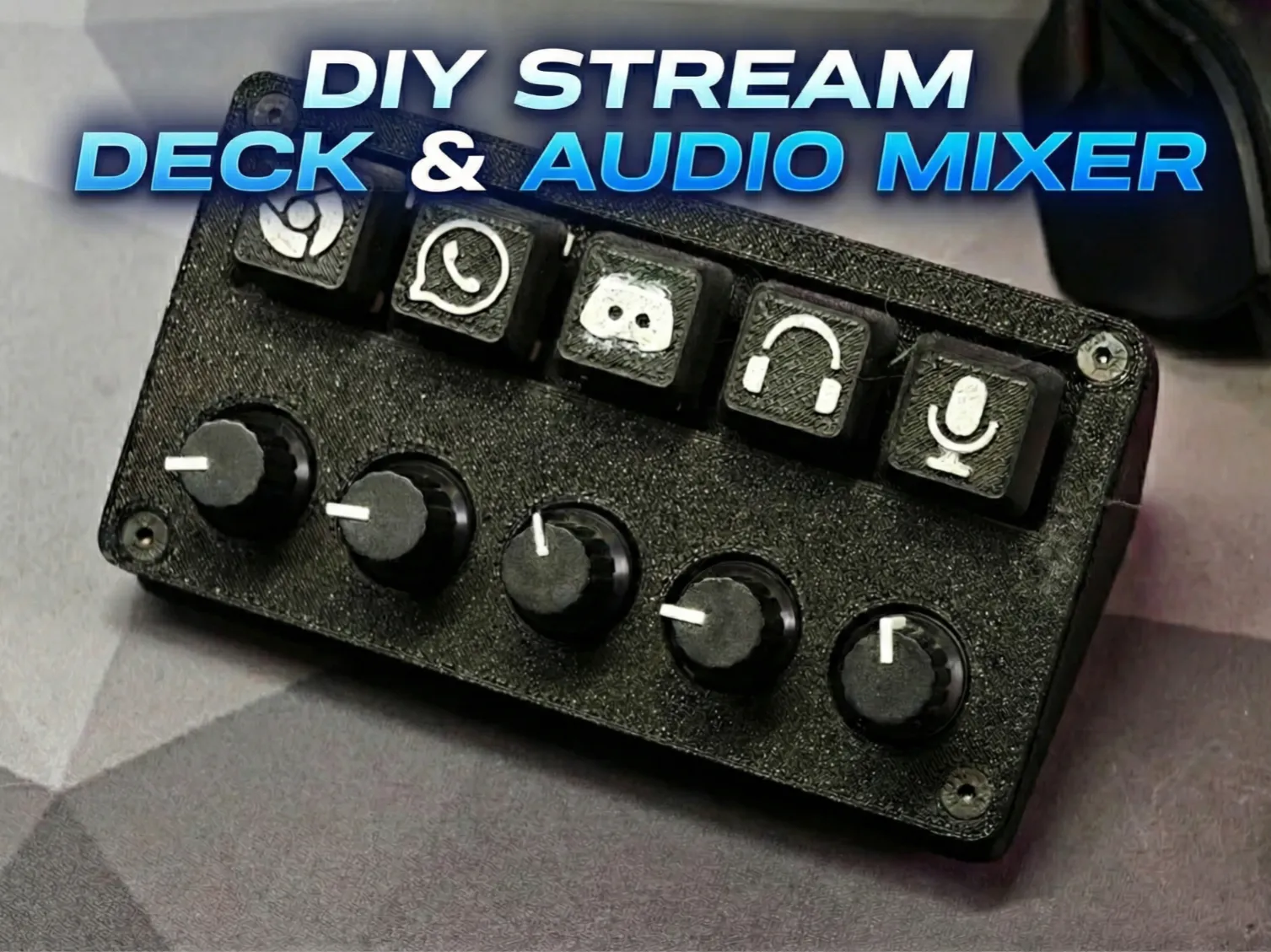

I want to say a huge thank you to Ritolino, the original creator of this project. He kindly gave me permission to upload and share this expanded 10-button edition with all of you.
🔗 Original Project by Ritolino:https://makerworld.com/en/models/2324834-diy-stream-deck-volume-mixer-10eu-aliexpress#profileId-2556601
