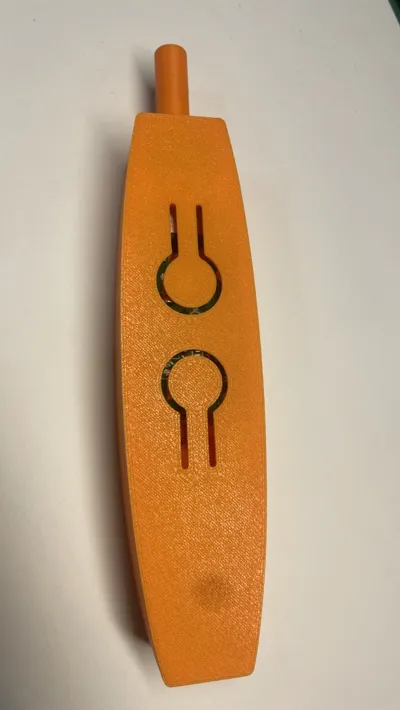

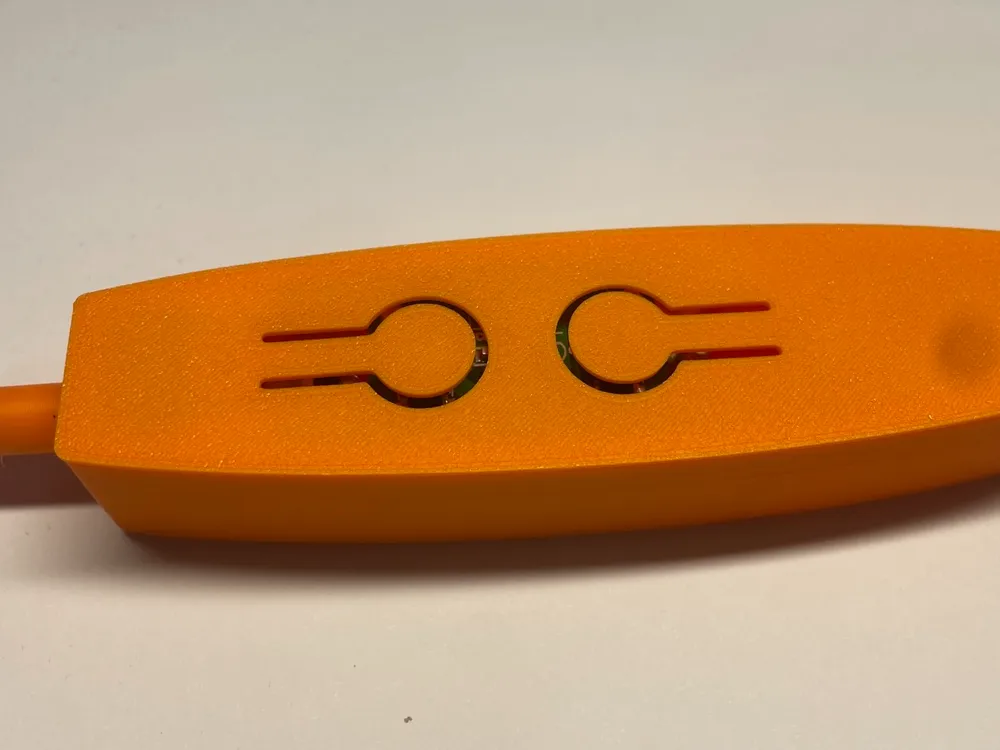

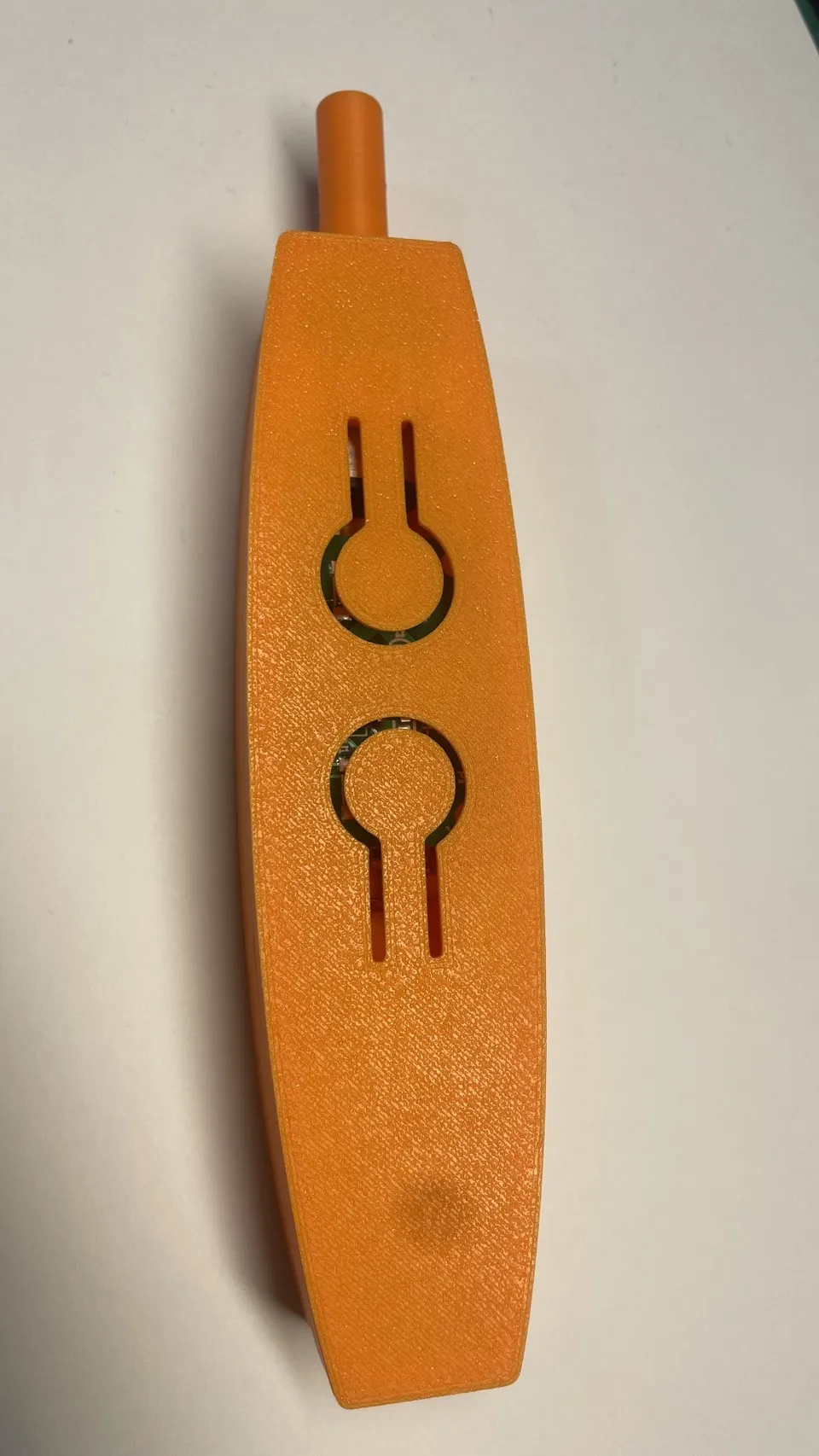

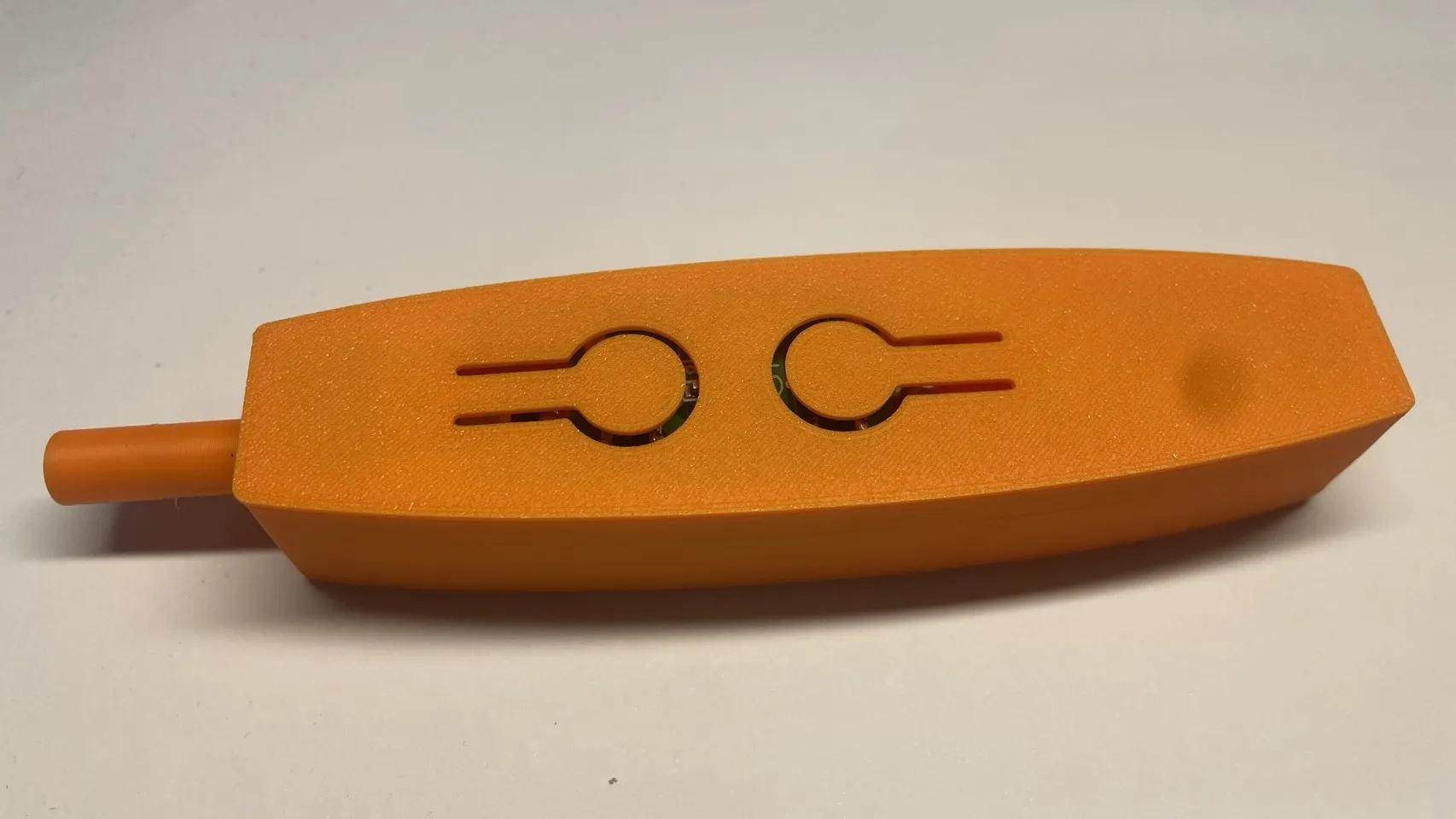

- N20 motor: 1 pc.
- 5×4 mm round magnet: 1 pc.
- 18350 battery: 1 pc.

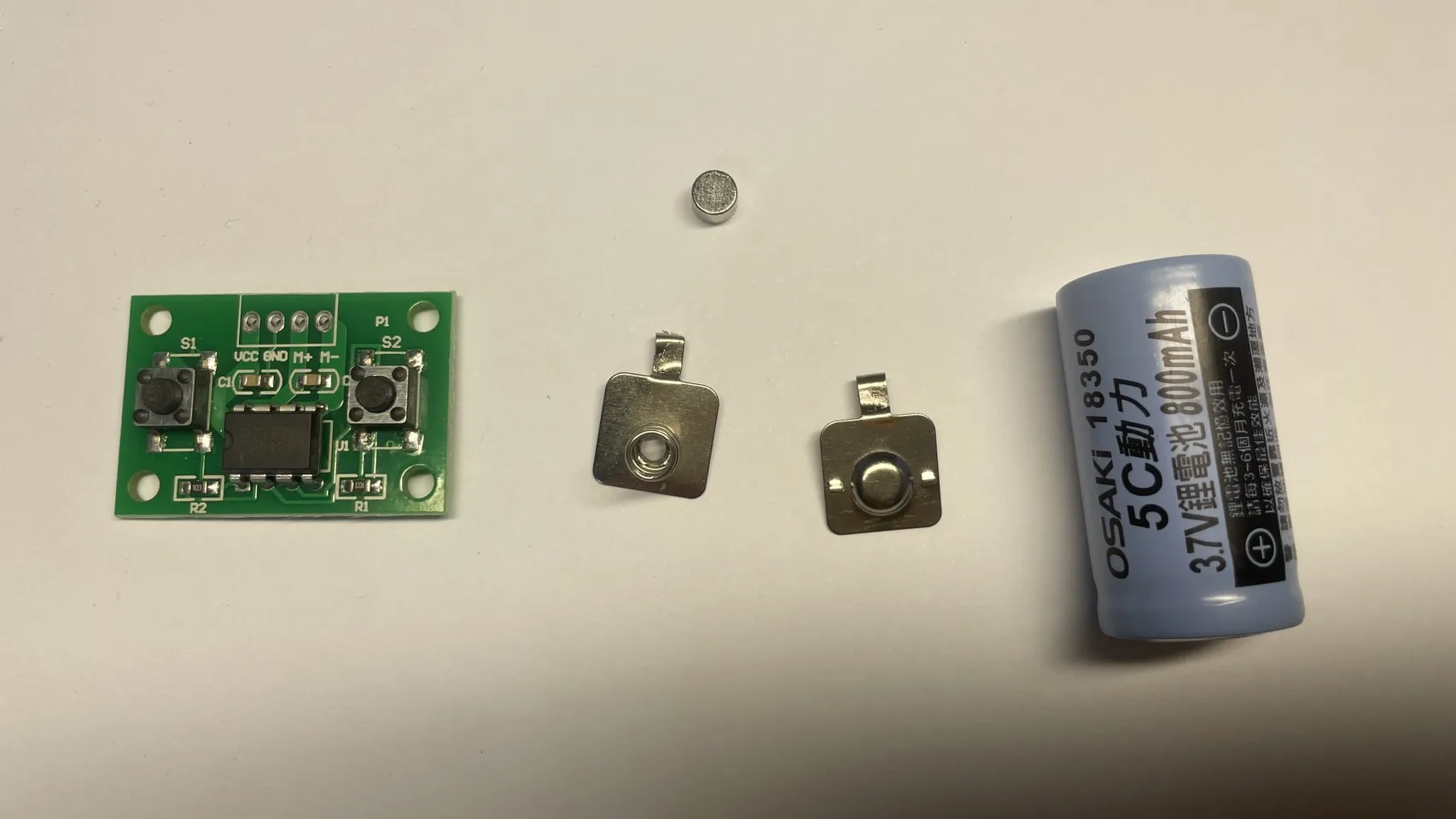

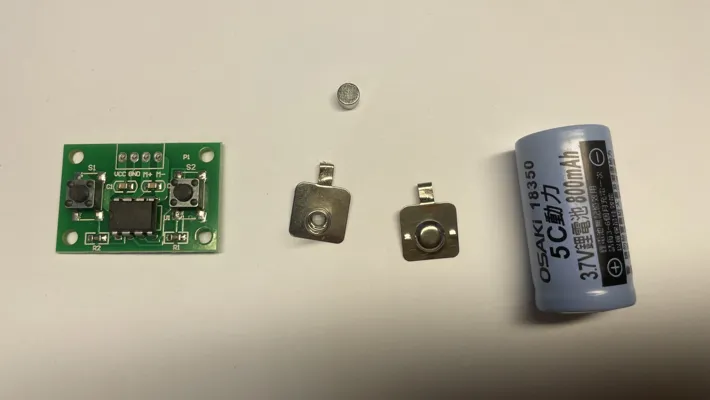

- Motor forward/reverse control switch (3-12V) (34mm X 24mm): 1 pc.
- Battery spring contacts: 1 set.
Notes
- When printing the 1/4 adapter with a magnet, you need to pause the print at layer 60 to insert the magnet.
- There is also a motor forward/reverse control switch with a vertical integrated circuit in the middle, which differs in size from this horizontal type.
Wiring Method

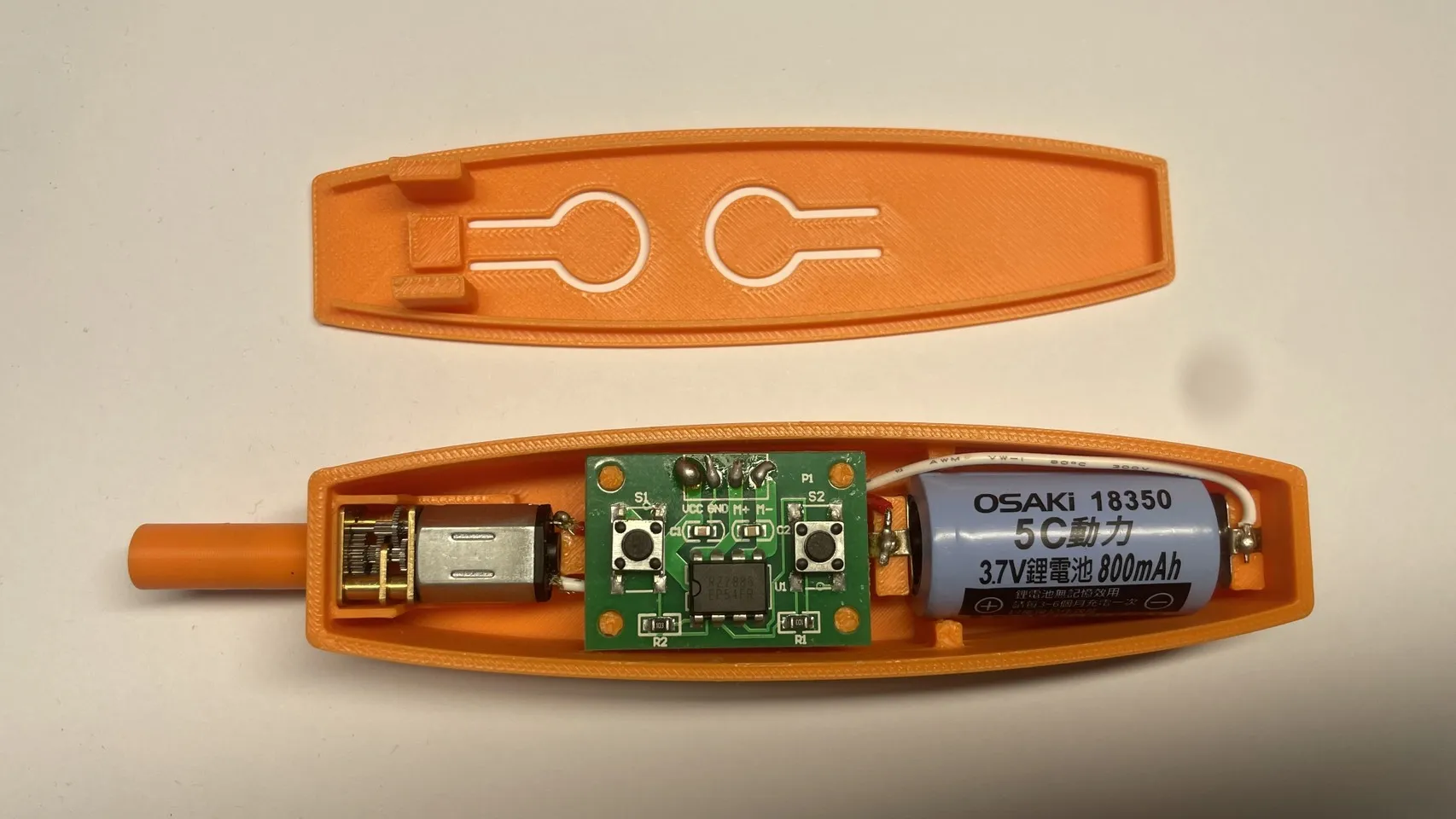

Connect the VCC of the motor forward/reverse control switch to the positive terminal of the battery spring contact
Connect the GND of the motor forward/reverse control switch to the negative terminal of the battery spring contact
Connect the M+ terminal of the motor forward/reverse control switch to the + terminal of the motor.
Connect the M- terminal of the motor forward/reverse control switch to the - terminal of the motor
