Smooth and beautiful filament outlet for one-touch connector (for 34mm hole mounting)
IP Report
Print Profile(1)
0.2mm layer, 3 walls, 15% infill, tree support
Designer
55 min
1 plate
Open in Bambu Studio
Boost
32
75
2
0
34
20
Released
Bill of Materials
List other parts
- ワンタッチ継手 PC-04-01(R1/8) x 1: チューブごと入る、テーパーねじのものを購入してください。中華のPC4-M10は、実際にはテーパーねじのR1/8であることが多いです。非常に標準的なものです。
- PFTEチューブ(OD4mm、ID2.5～3mm) x 1:
Description
Content has been automatically translated.
This is a filament outlet for one-touch connectors that can be attached to custom-made dehumidifying cases or filament storage boxes.
By connecting a PTFE tube, filament can be fed smoothly from inside the case.
Features

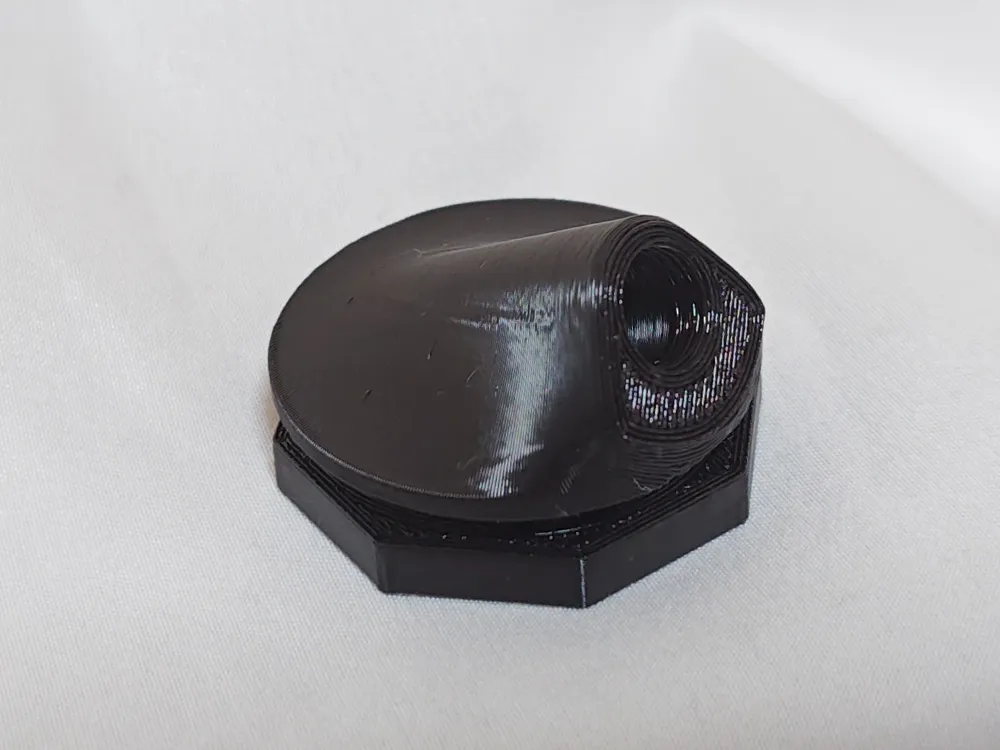

・Designed with careful consideration of model orientation for a smooth and beautiful appearance
・One-touch connector specification (common PC4 type)

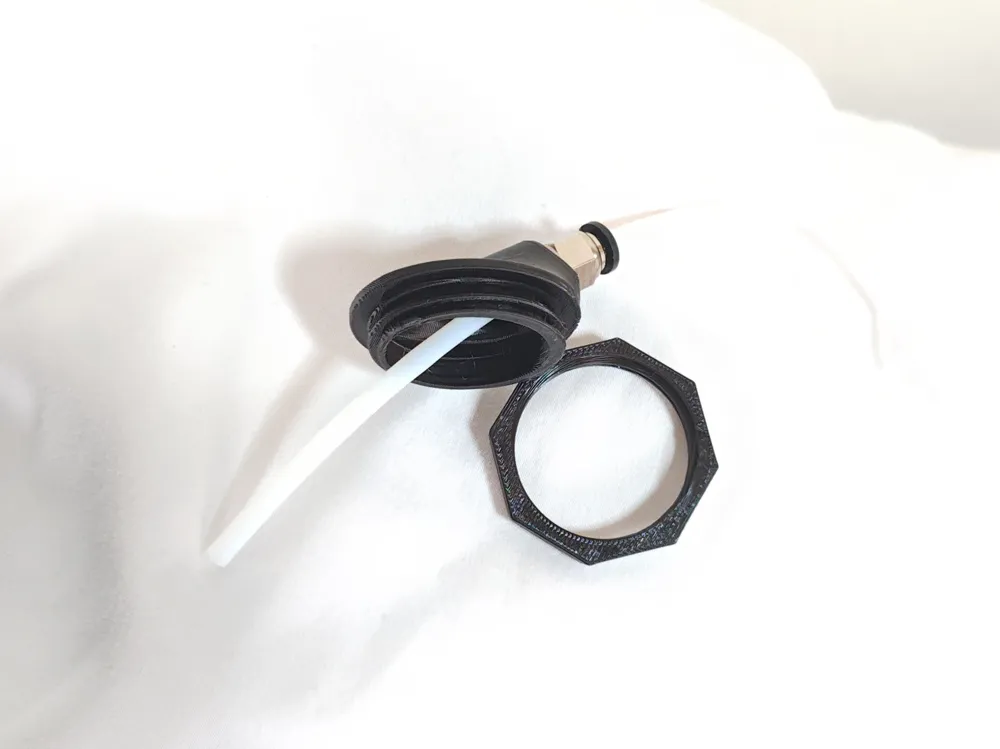

・Both main body and nut are printable
・No adhesive required
Installation method
・Simply drill a hole of approximately φ34mm in the case and insert it
・Secure from the inside with the included nut (printed part)
Usage example

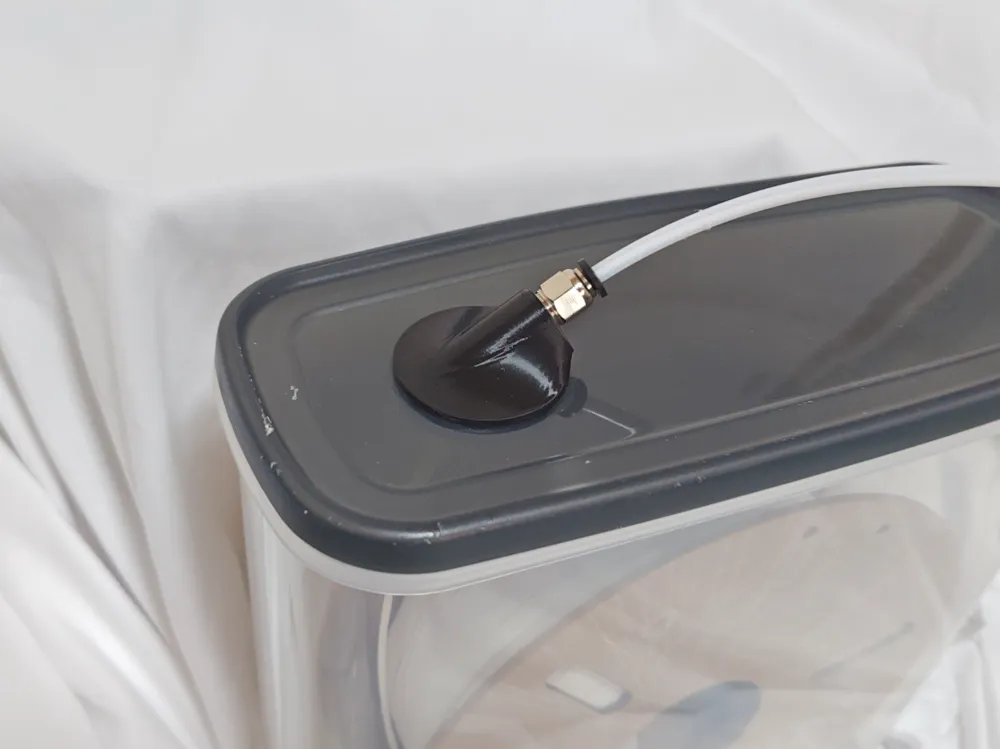

In the photo, it is installed by drilling a hole in the lid of Inomata's "Dry Food Stocker 6.0" with a circle cutter.
License
This user content is licensed under a
Creative Commons Attribution-Noncommercial-Share Alike
