skidoo/BRP E-TEC exhaust RAVE valve seal guide
IP Report
Print Profile(1)
0.2mm nozzle, 0.08mm layer, 6 walls, 15% infill
Designer
1.4 h
1 plate
Open in Bambu Studio
Boost
4
3
0
0
2
2
Released
Description
Boost Me (for free)
a Boost is appreciated if this tool helped you out !!

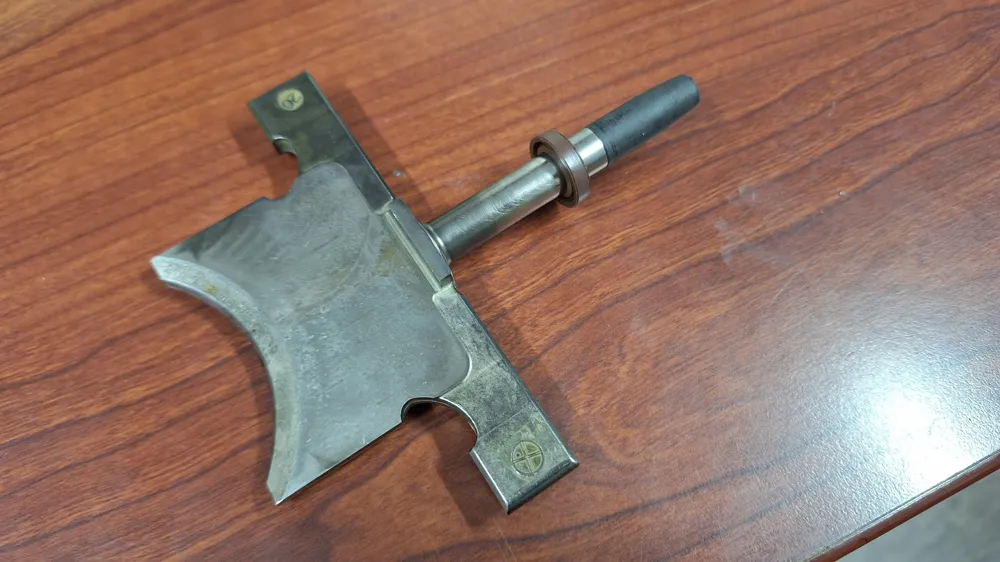

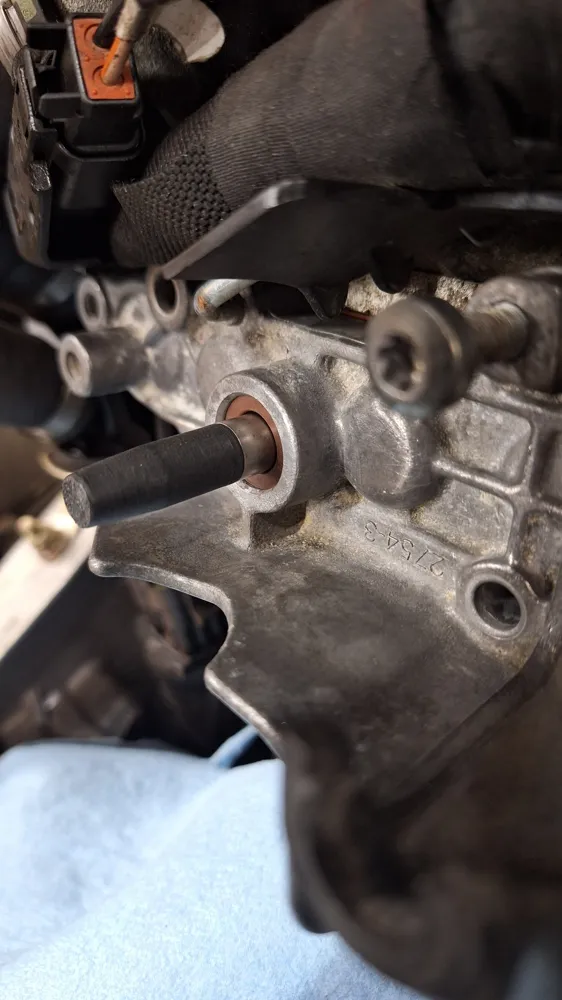

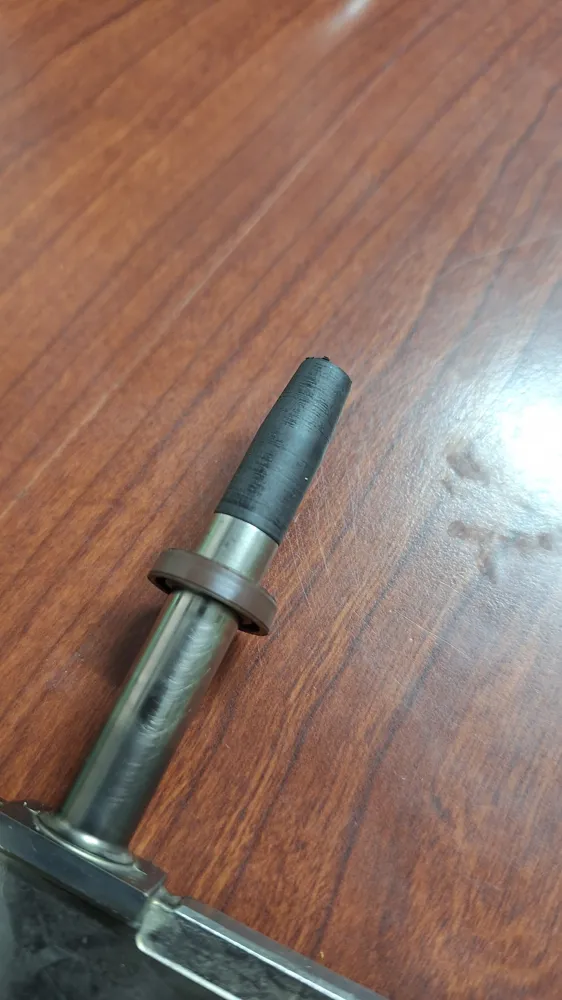

This is a tool to help you when you are Cleaning or Rebuilding your Skidoo E-TEC RAVE Power Exhaust Valves. It helps to guide the seal over the threads of the valve onto the shaft so you don't damage or roll your seal when reassembling. it works great.
the threads are pretty fine so i printed with 0.2mm nozzle for better quality. but you can try with .4mm nozzle.

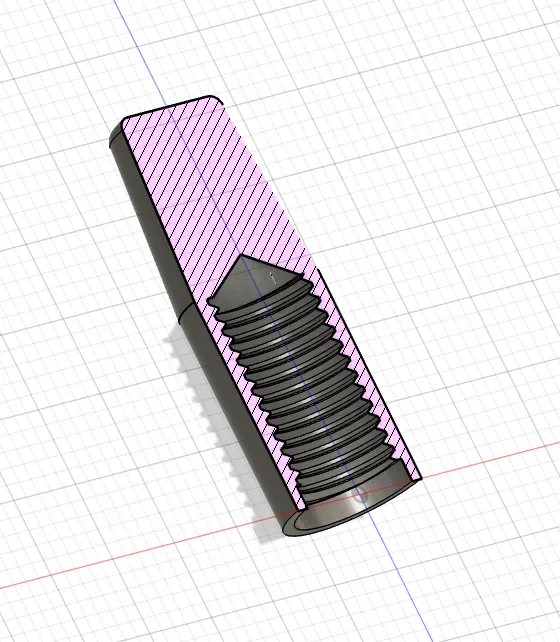

internal threads are 8mm x 1.0mm outside dimension of guide is 10mm.
