Description
If you like this design, please consider giving me a follow for more — or help support future projects with a coffee ☕ @ FCDS. Thank You.

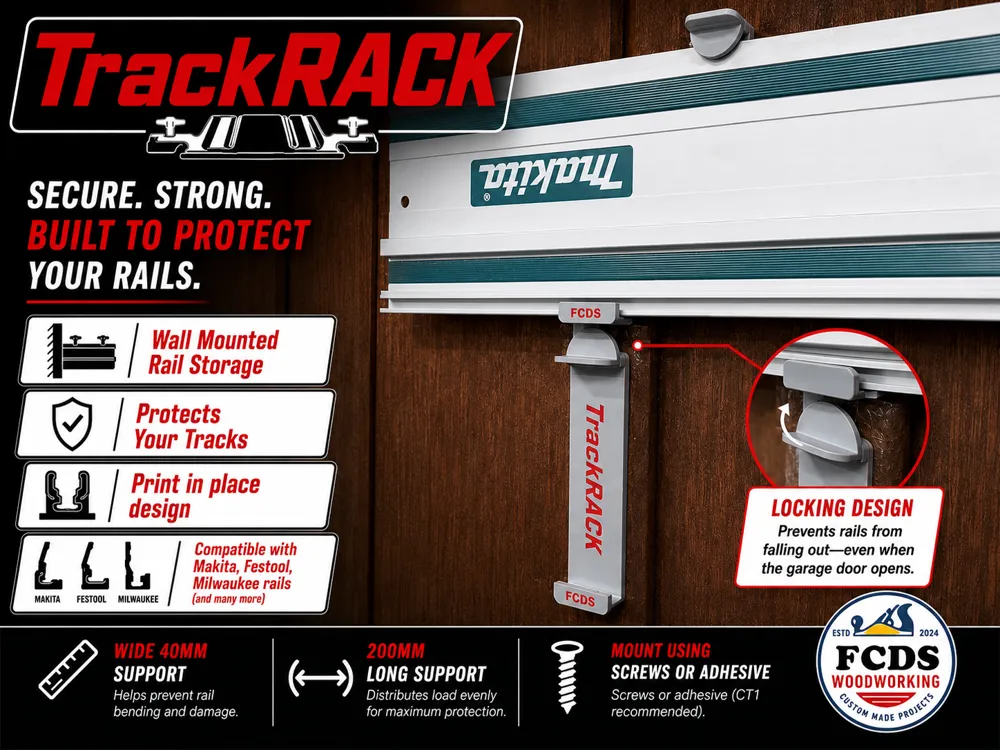

TrackRACK – Secure Wall & Garage Door Rail Storage
TrackRACK is a strong, print-in-place mounting system designed to safely store your track saw rails horizontally while protecting them from bending, damage, and accidental falls.
Unlike many compact rail holders, TrackRACK uses a wide 40mm support surface across a 200mm long bracket to properly support the rail profile and reduce stress points that can lead to rail distortion over time.

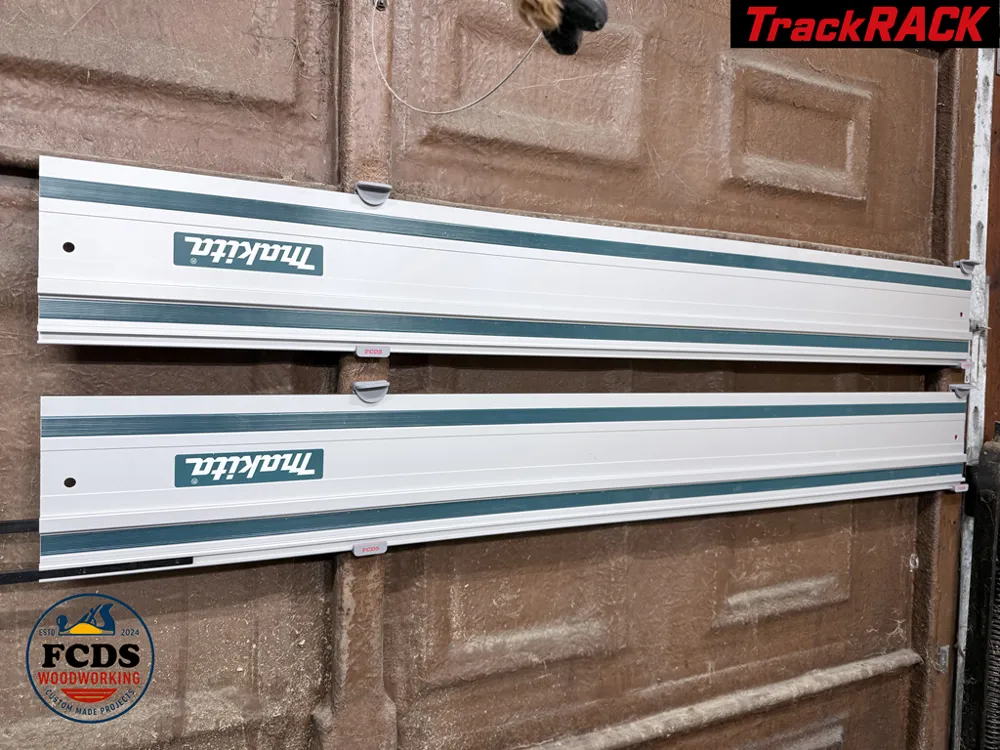

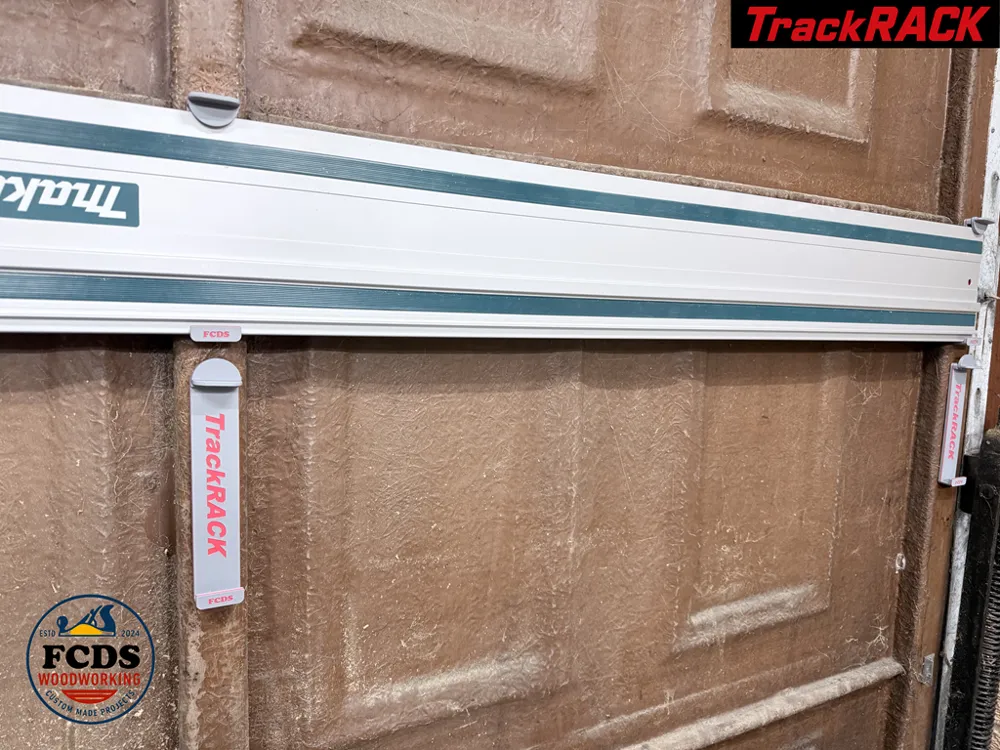

Each set includes two brackets and securely holds one rail horizontally. The integrated locking design keeps the rail safely retained, making TrackRACK ideal not only for workshop walls, but also for garage door mounting where movement and vibration could otherwise cause rails to fall out.
The brackets are fully print-in-place with no assembly required and can be mounted using either screws or adhesive such as CT1.
Features
- Secure horizontal rail storage
- Ideal for workshop walls and garage doors
- Integrated locking system prevents rails falling out
- Print-in-place design
- No assembly required
- Mount using screws or adhesive (CT1 recommended)
- Wide 40mm support surface helps prevent rail bending
- 200mm long support design for improved rail protection
- Clean, compact workshop organisation
- Strong and durable design
Compatible Rail Systems
TrackRACK is compatible with a wide range of guide rail systems, including:
- Makita
- Festool
- Milwaukee
- Powertec
- WEN
- Excel
- Triton
- Erbauer
- Evolution
- Enjoywood
- Bosch
Why I Designed TrackRACK
I wanted a rail storage system that securely retained rails even when mounted to moving garage doors, while also properly supporting the rail to avoid long-term bending or damage.
Most compact holders only support a very small section of the rail profile. TrackRACK was designed with a longer and wider support area to distribute the load more evenly and better protect expensive guide rails.
Always mount your track with the splinter guard at the top for added protection.
If you have any suggestions for potential improvements please let me know.
