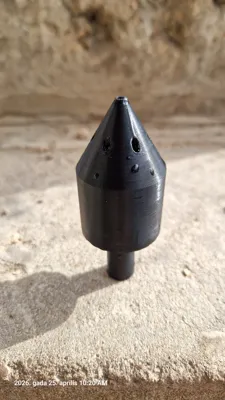

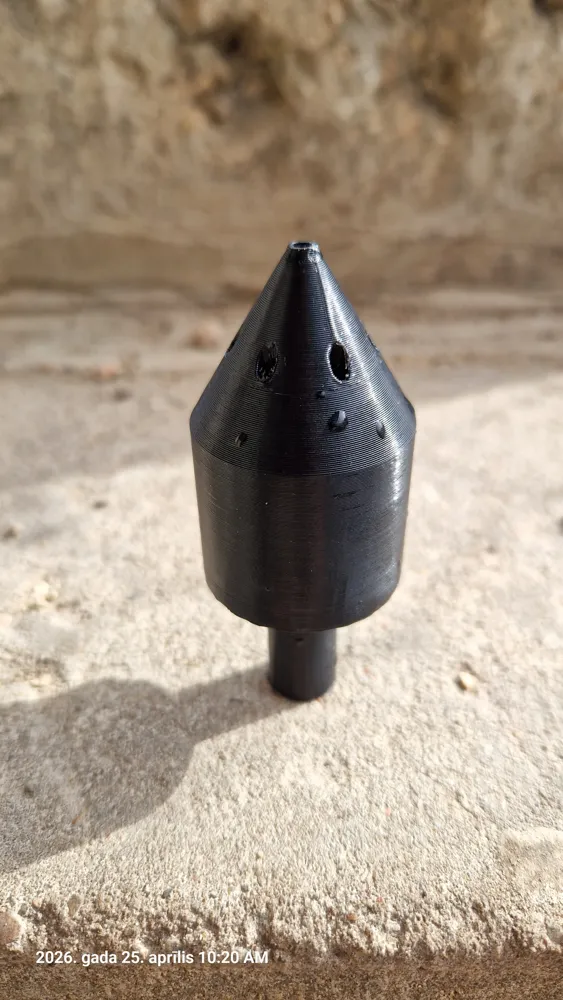

DN32 Pipe Driving Flushing Aid Garden Hose Adapter

This is a DN32 pipe driving and flushing aid designed to help install a DN32 pipe using water flow from a standard 1/2 inch garden hose.

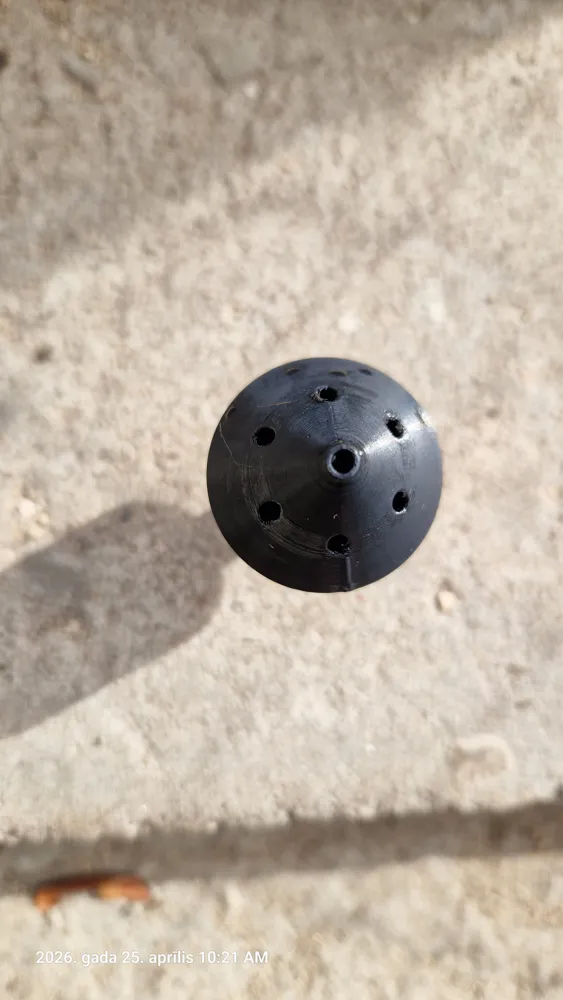

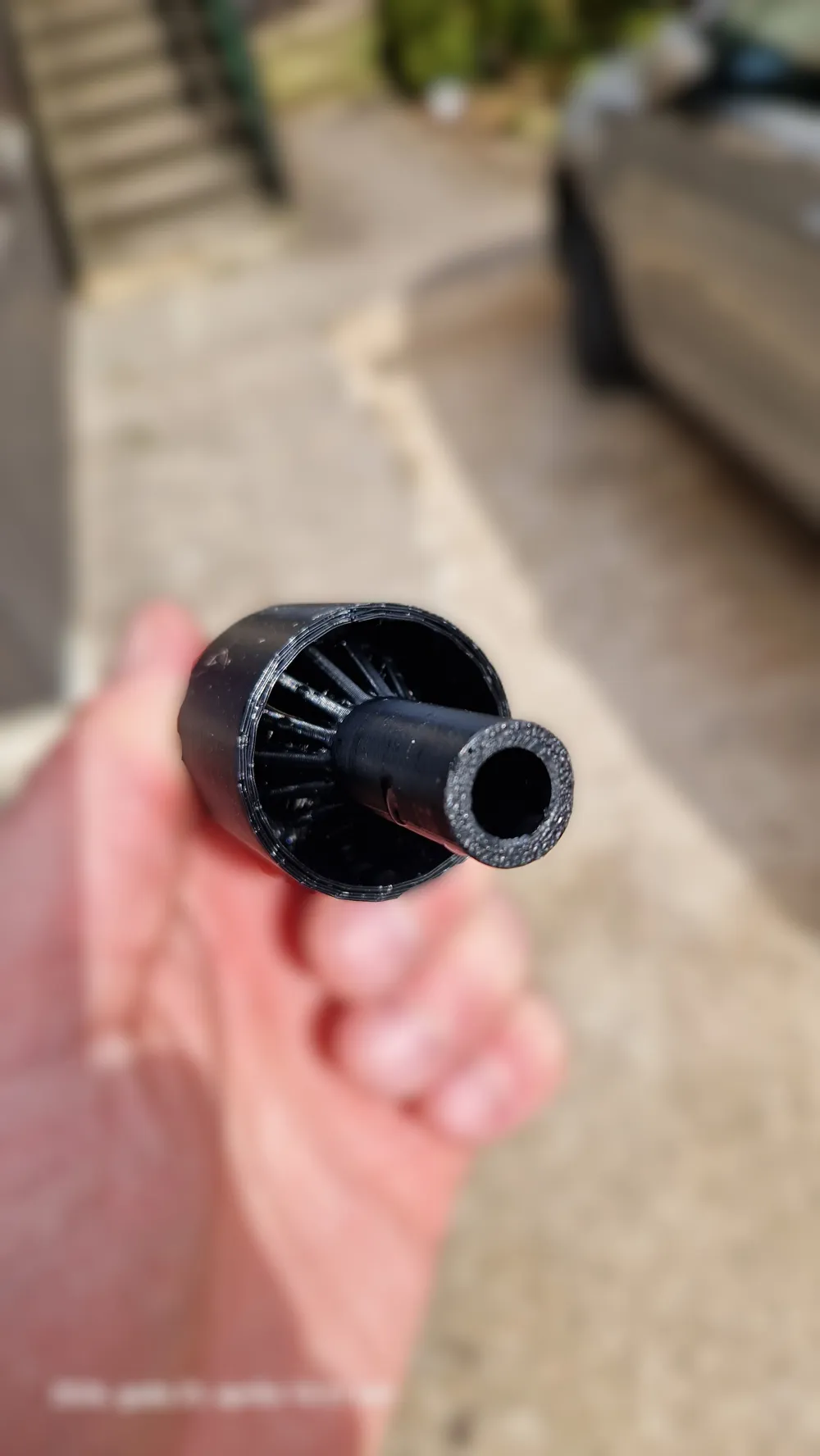

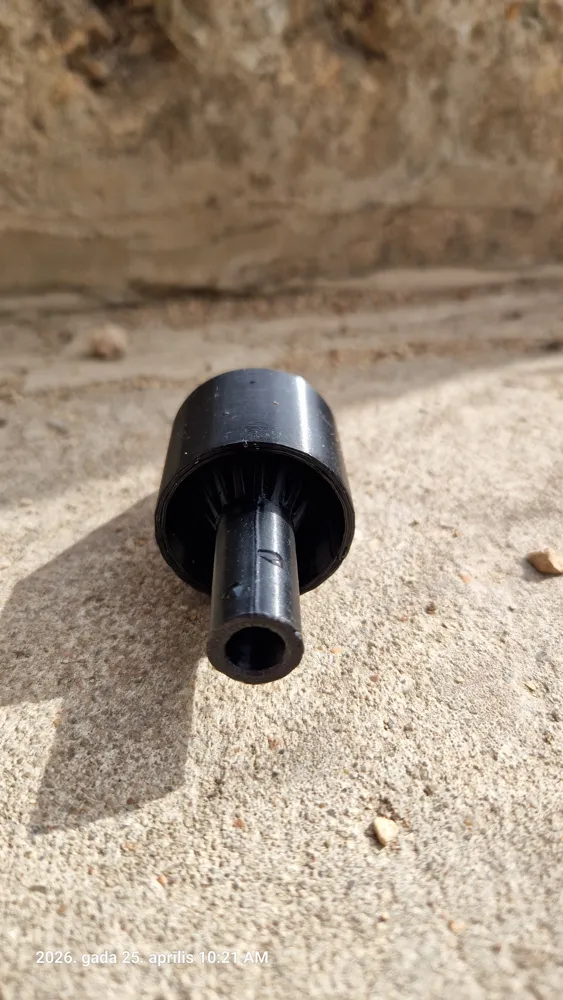

The adapter slides onto the narrow end of a DN32 pipe, while the rear connector is made for a 1/2 inch garden hose. Water is pushed through the hose and exits near the front of the nozzle, helping to loosen the soil around the pipe tip while the pipe is being pushed, twisted or driven into place.

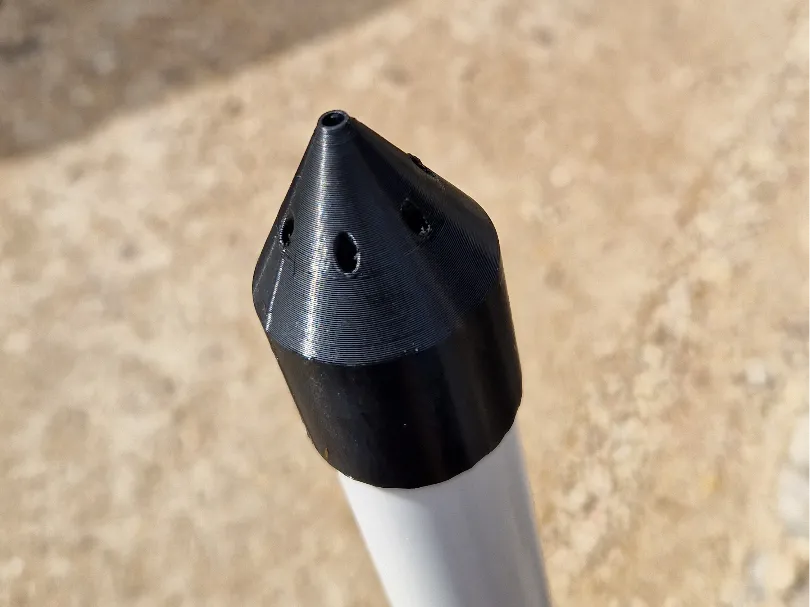

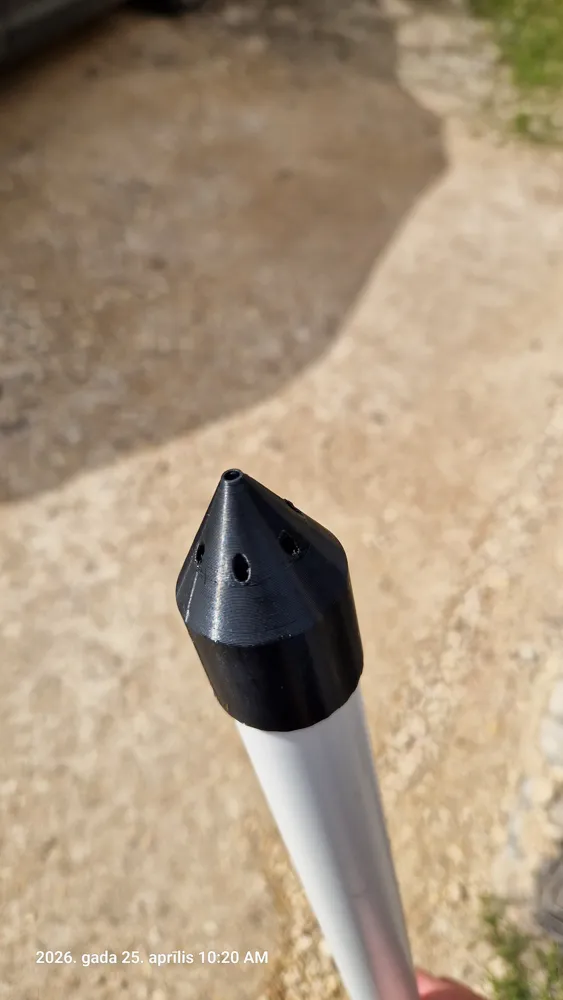

I tested this design with a 2 meter long DN32 drainage pipe. The nozzle fits nicely onto the end of the DN32 pipe, and the hose connection fits a standard 1/2 inch garden hose.

This tool can be useful for small DIY well, garden, irrigation or pipe installation projects where water-assisted pipe driving is needed.

How to Use

1. Feed the garden hose through the DN32 pipe from the wider end toward the narrow end.
2. Once the garden hose is passed through the pipe, attach the hose end to the connector on the flushing aid.
3. Push the flushing aid together with the garden hose onto the narrow end of the DN32 pipe.
4. Turn on the water.
5. While the water is running, push, twist or drive the DN32 pipe into the ground. The water helps loosen the material around the pipe tip and makes installation easier.

Compatibility

Designed for:

• DN32 pipe
• Standard 1/2 inch garden hose
• Water-assisted pipe driving / flushing
• DIY garden, irrigation or small well-related projects

Fit may vary slightly depending on the exact pipe and hose manufacturer.

Recommended Material

PETG is recommended for better durability, water resistance and outdoor use.

PLA may work for testing or light use, but PETG is the better option if the part will be used outside or under repeated water exposure.

Important Note

This is a DIY helper tool and not a certified pressure fitting. Use only with normal garden hose pressure. Do not use it as a permanent plumbing part or in high-pressure systems.
