Security Camera Housing for Pi Zero 2W & Camera 3

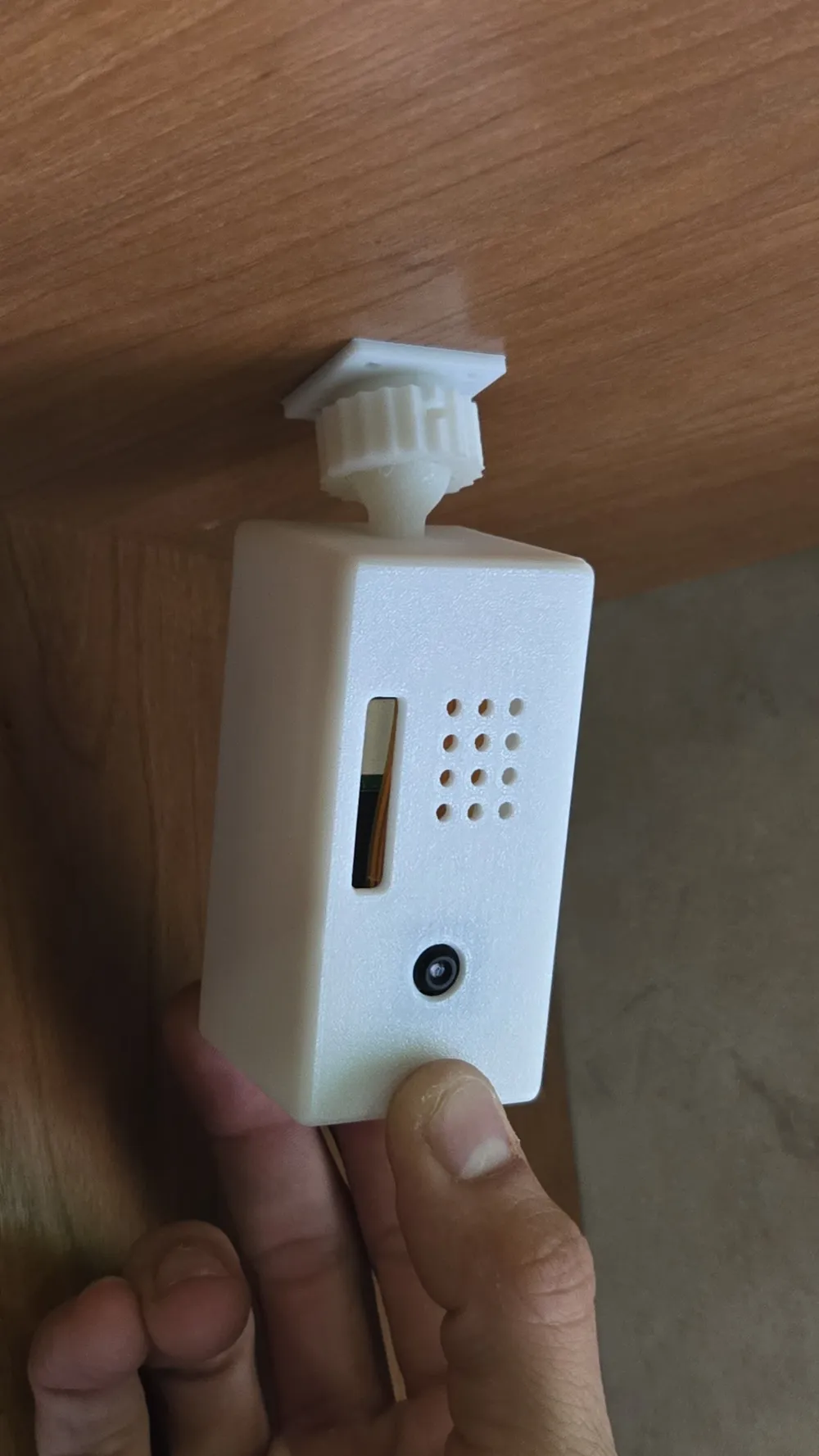

Custom Raspberry Pi Camera Housing with integrated adjustable ball joint mount.

Features:

• Clean fit design

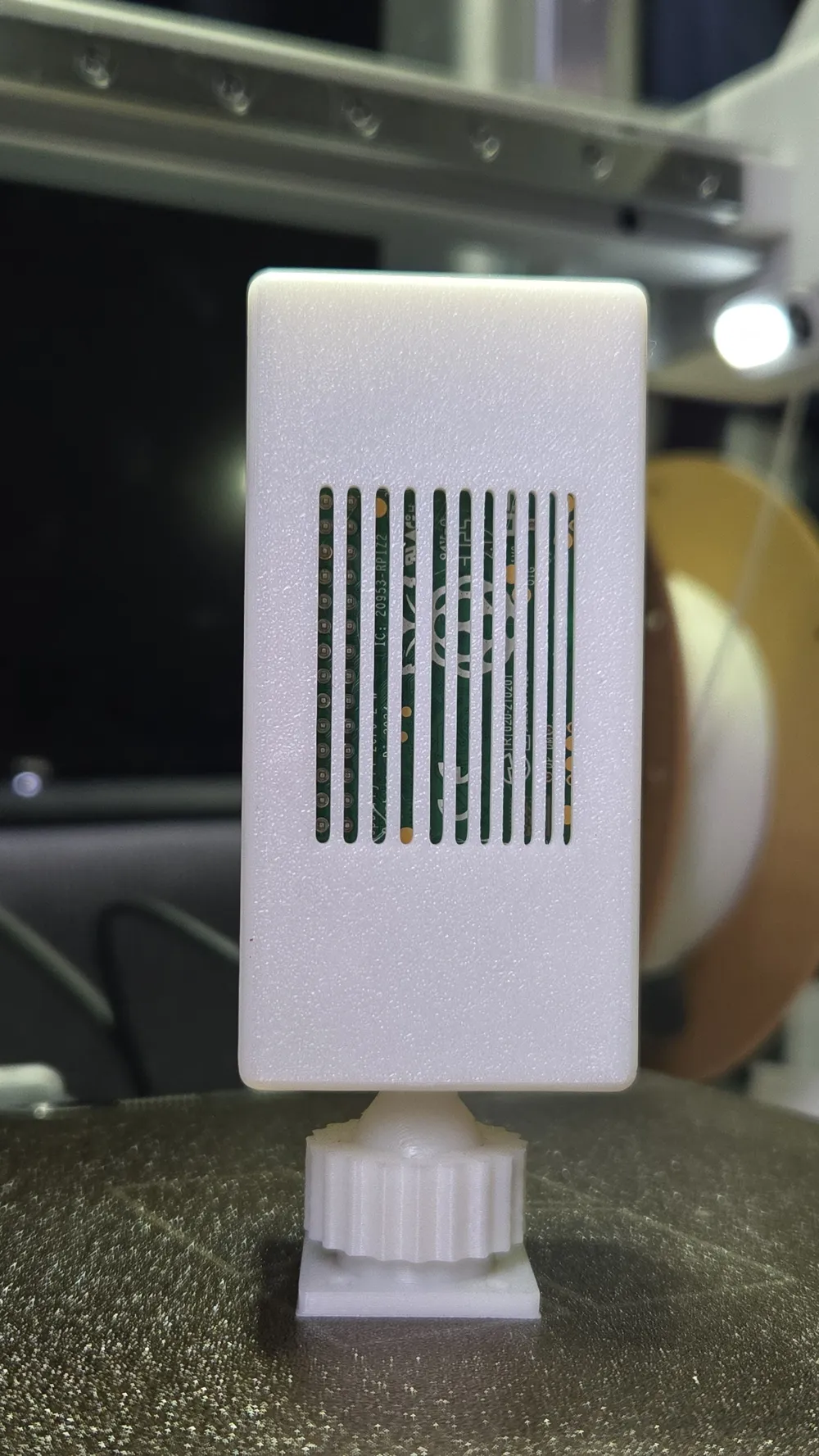

• Ventilated for airflow

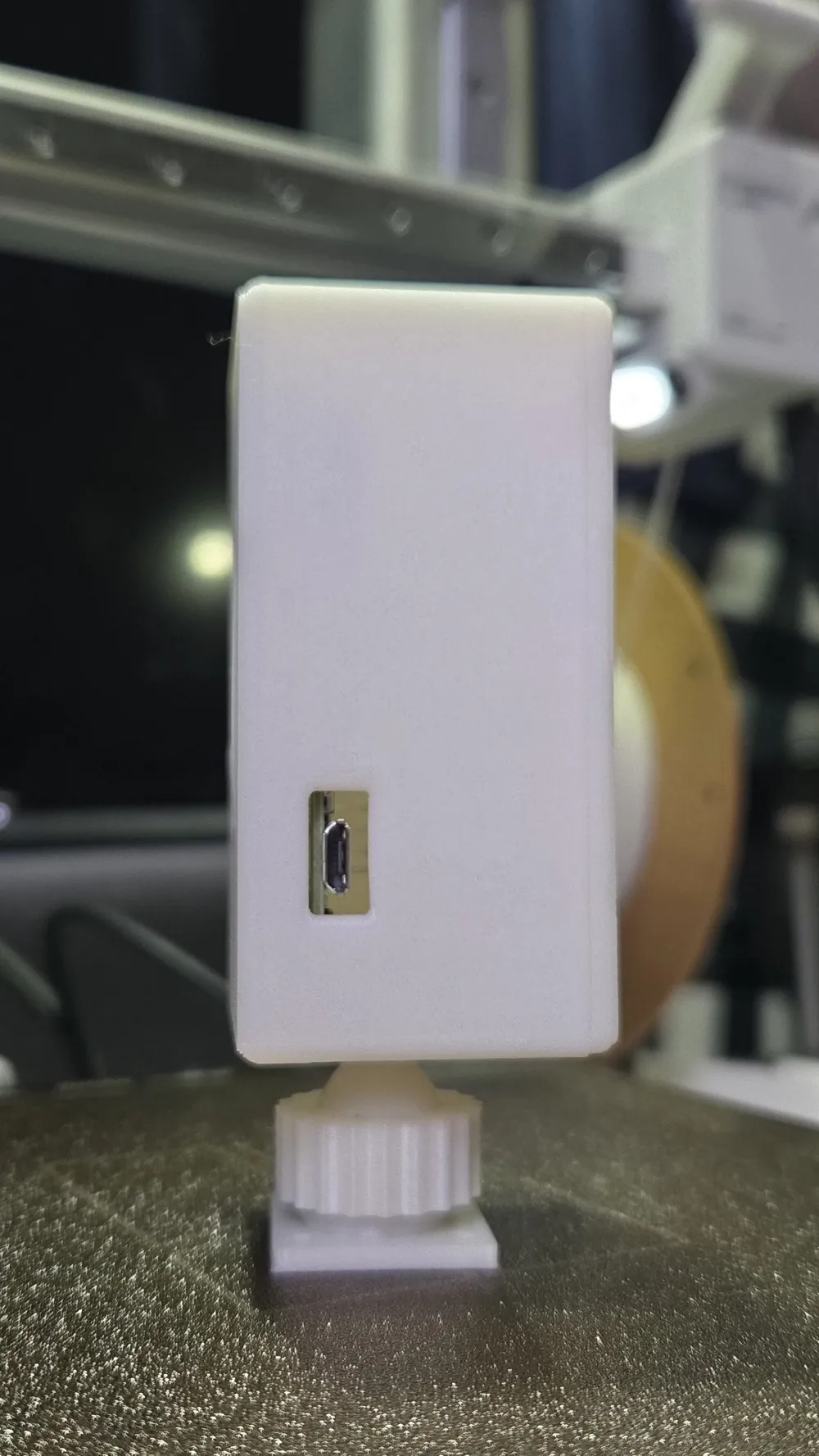

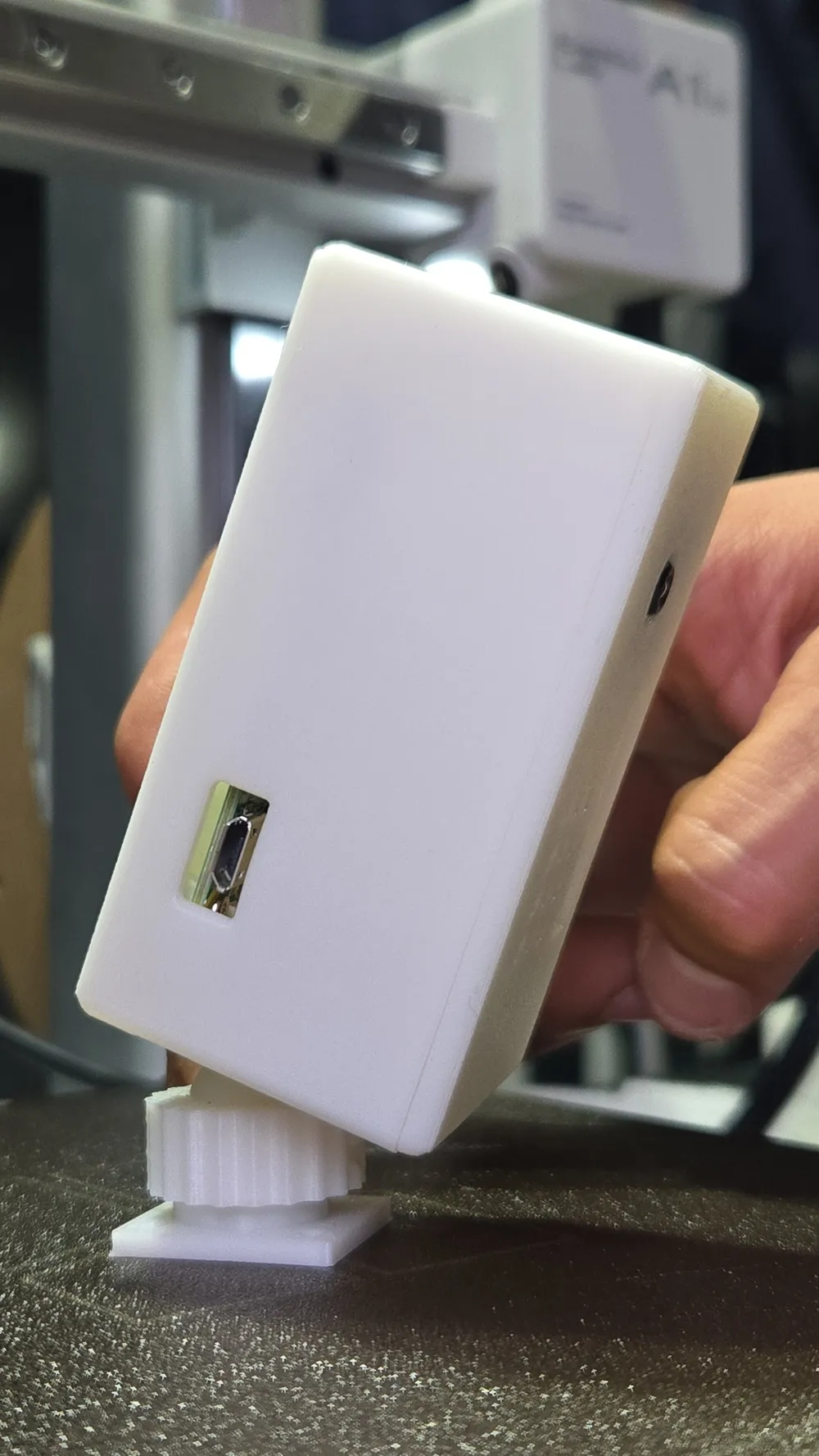

• Port cutouts slightly oversized to compensate for bulky power cords

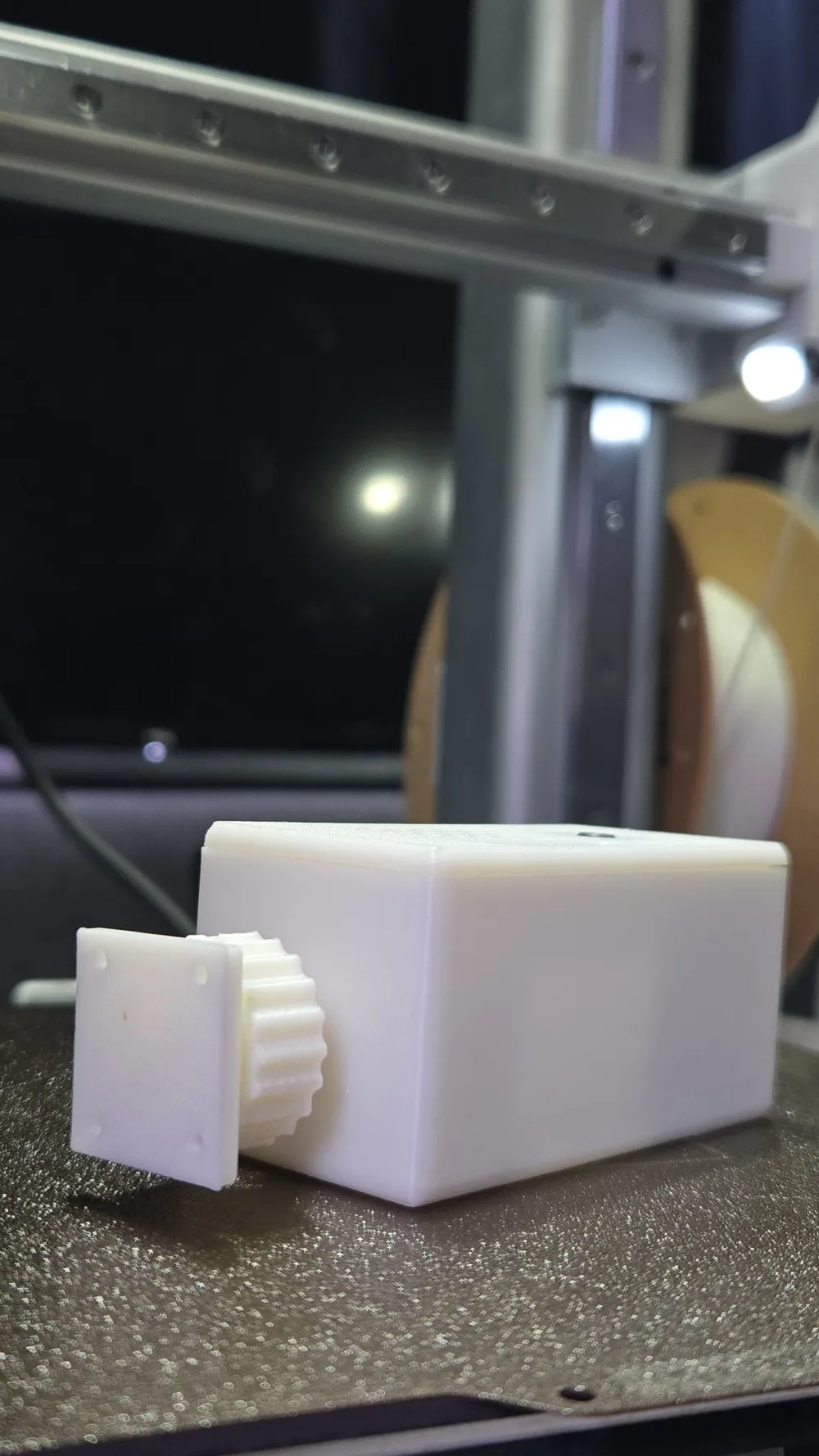

• Adjustable viewing angle with locking collar (Used @CP_US file, go download his seperate file if youre looking for the mount only!)

Multiple versions include:

• With Mount
• No Mount

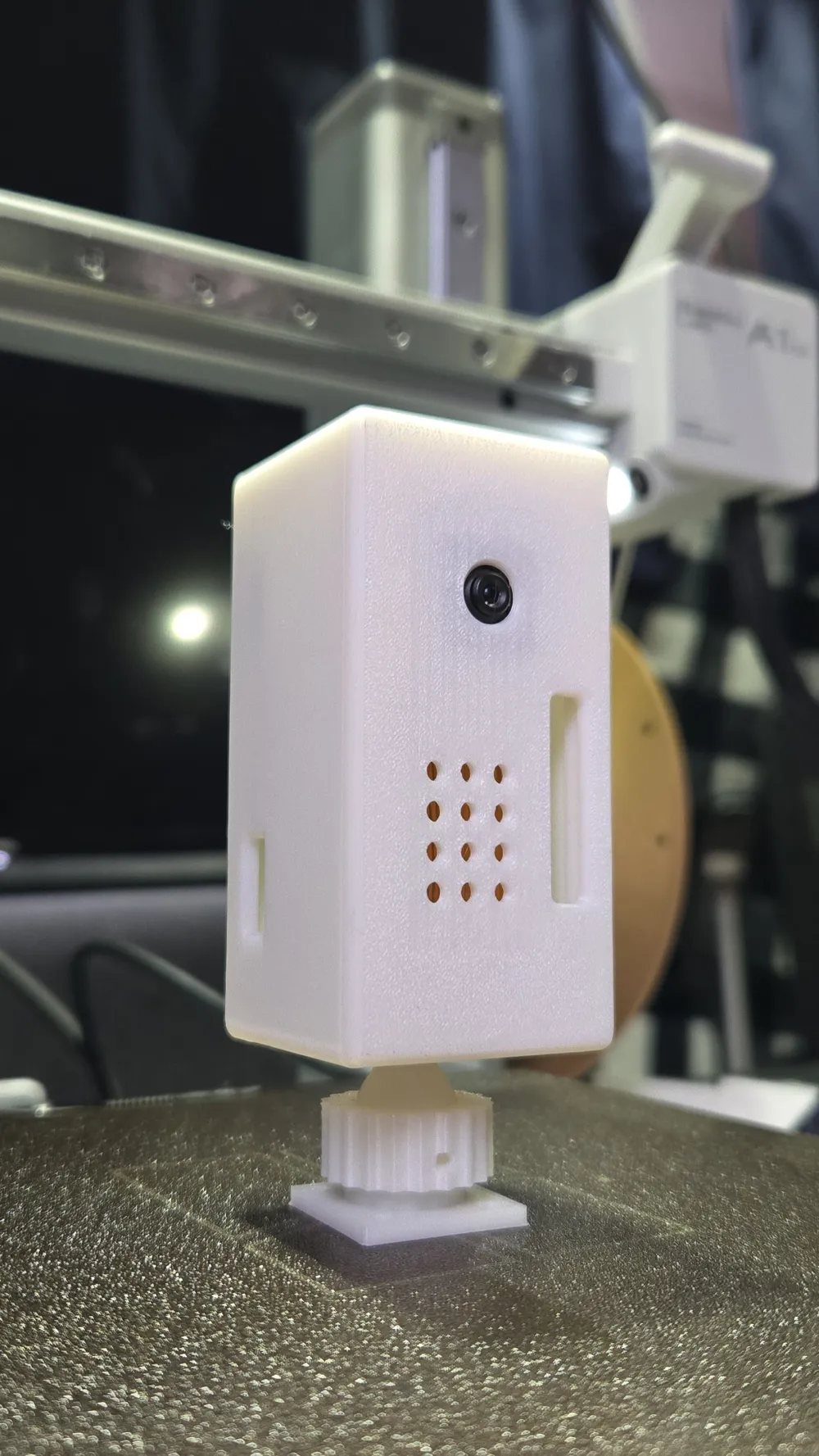

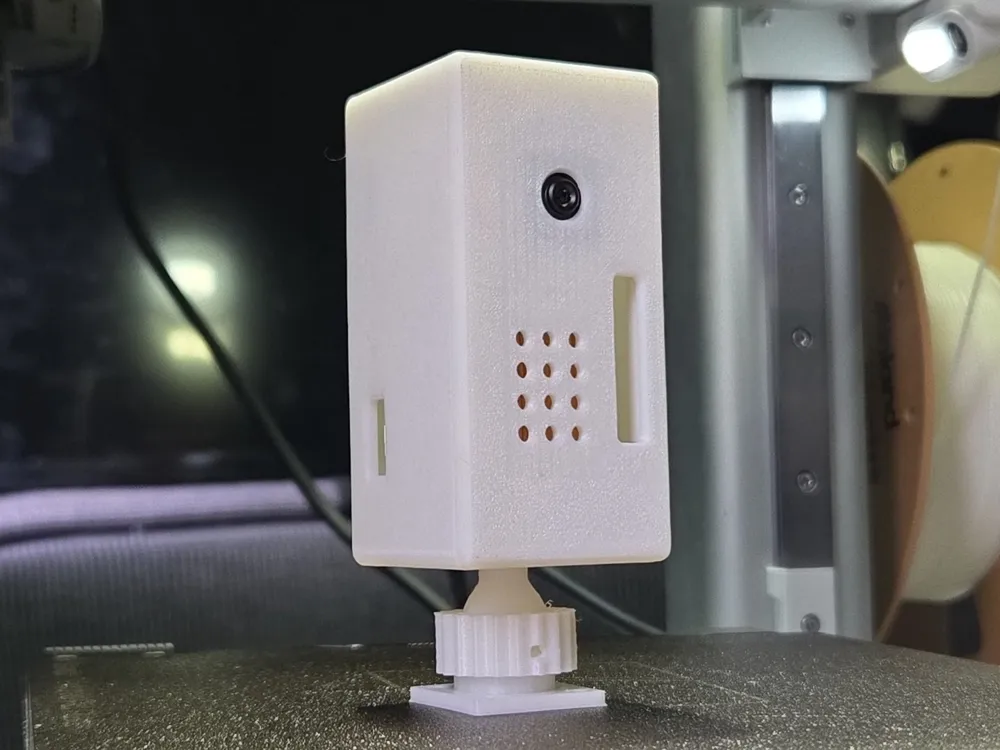

• With GPIO slot
• Without GPIO slot

Designed for easy printing and assembly, all snap fit.

GPIO slots are intended to add a Temperature/Humidity sensor. I added a SHT3X-DIS to mine.

Comment/Message me for any questions/requests as I will be working on Version 2!

Instructions:

1. Insert camera moudle 3 into lid, push tight
2. Place ribbon cable (I used 75mm with 22 to 15 adapter) into camera module and Zero 2W
3. Carefully insert Zero 2W into housing, using M2.5 screws to secure it in place
4. Snap fit Lid into Housing
5. Snap/Push threaded ring over ball (extremely tight fit, I'm working on perfect fitment)
6. Place Socket over ball and thread in tight to desired angle

Parts Needed:

1. Raspberry Pi Zero 2W
2. Raspberry Pi Camera Module 3
3. 75mm-100mm Ribbon Cable (22-15 stepdown for Zero 2W)
4. M2.5 Screws
5. Zero 2W Power Cord
