this is a remix of the raspberry pi 5 cyberdeck. Main changes are

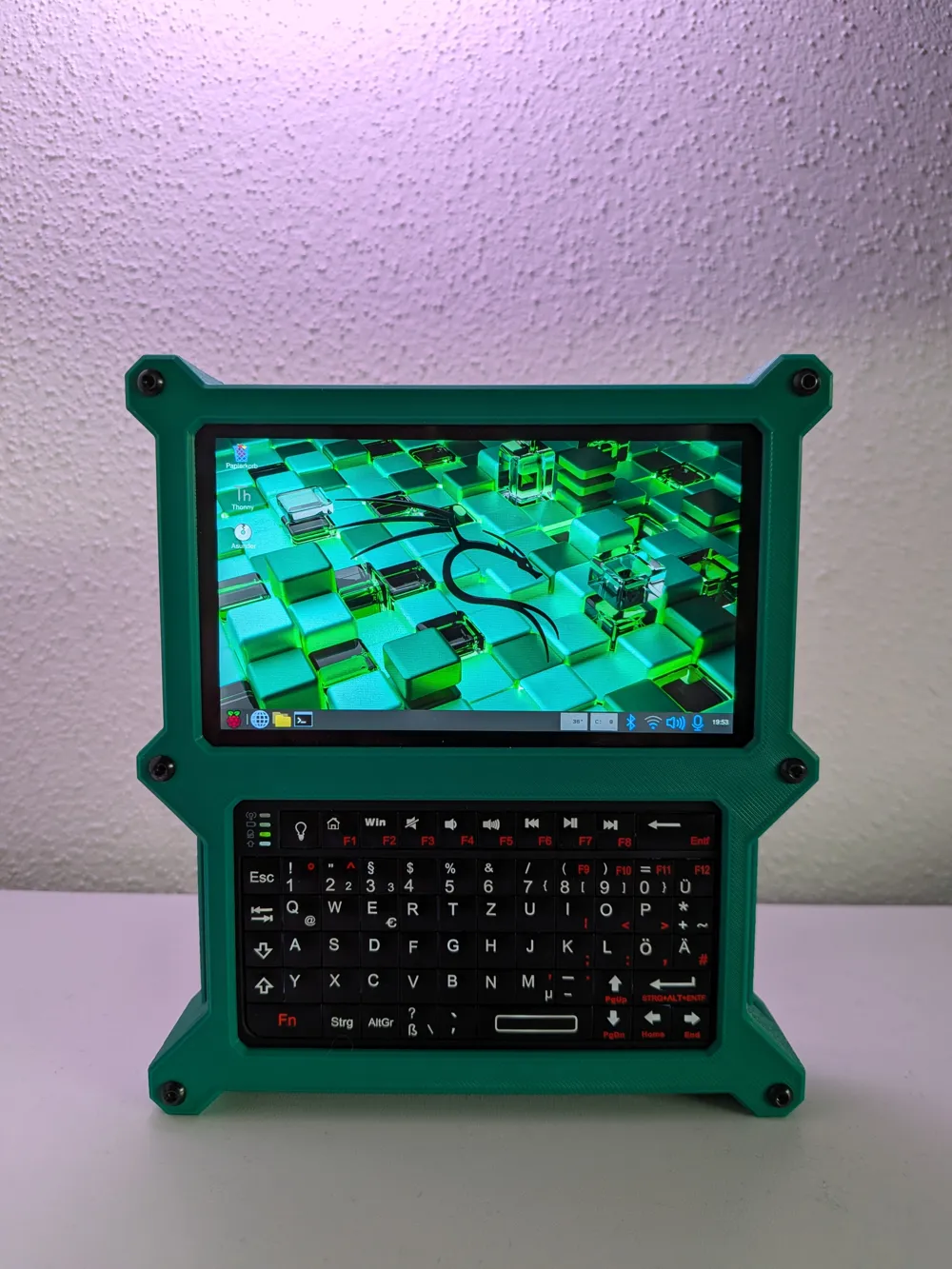

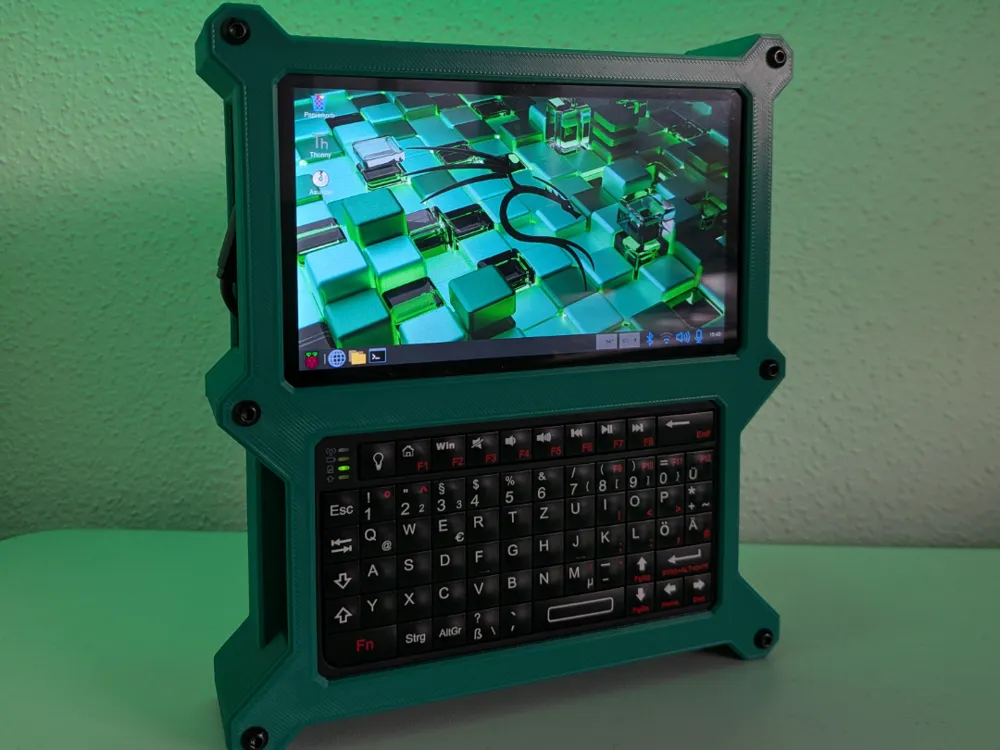

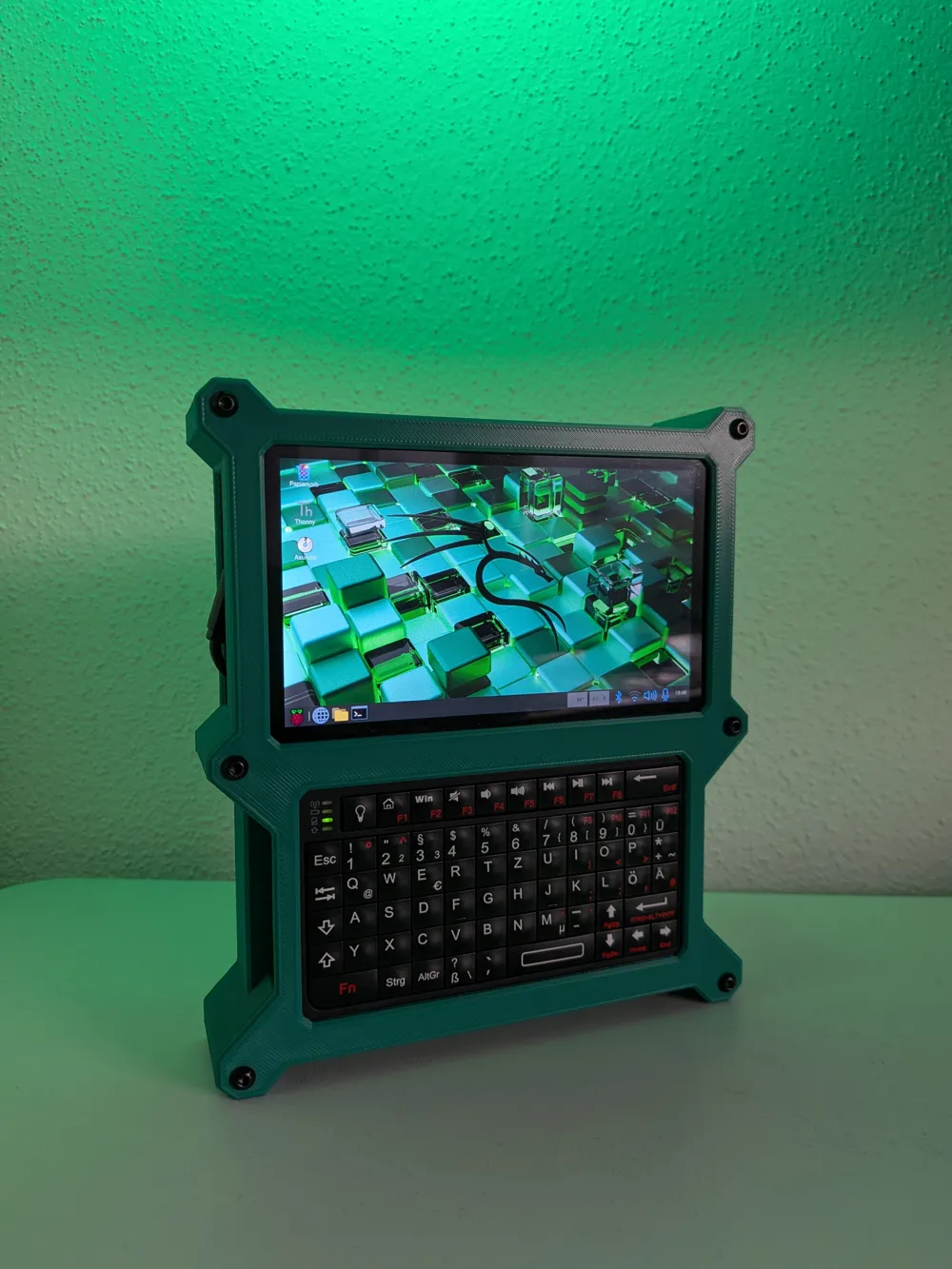

centered keyboard (completly different design of the lower part of the cyberdeck)

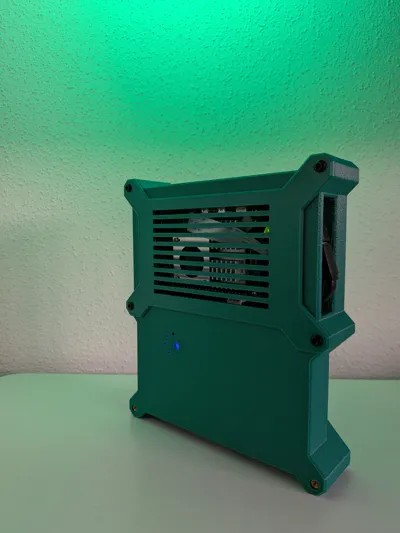

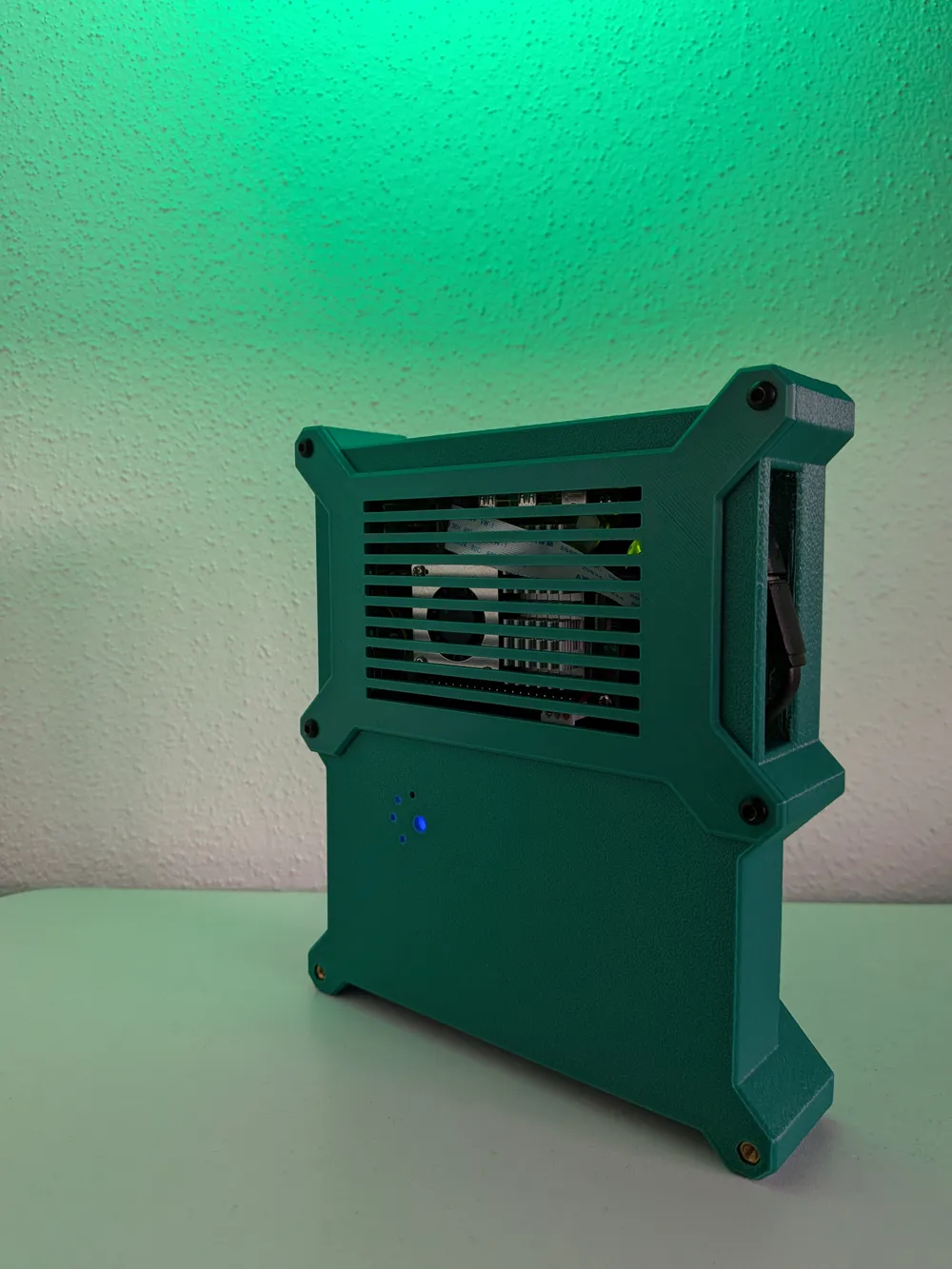

additional backplate with screws which can be adapted (this allows to also mount the pi ai hat or the ssd shield)

Comment & Rating (21)

@andy_malar

like the idea but maybe I am not following what you had on mind. you said you wish to have access to the two micro hdmi. but that slot which I guess is there for them is just off. too far to the right. see my photo unless I missed something. and the network and usb port imo you missed a trick and could have push those back in closer. I wish I had your cad files, so I could tweak the design. fusion is my poison of choice:). maybe I will have ago at redoing the base plate :). but I do like the idea :)

The designer has replied

@MadHias

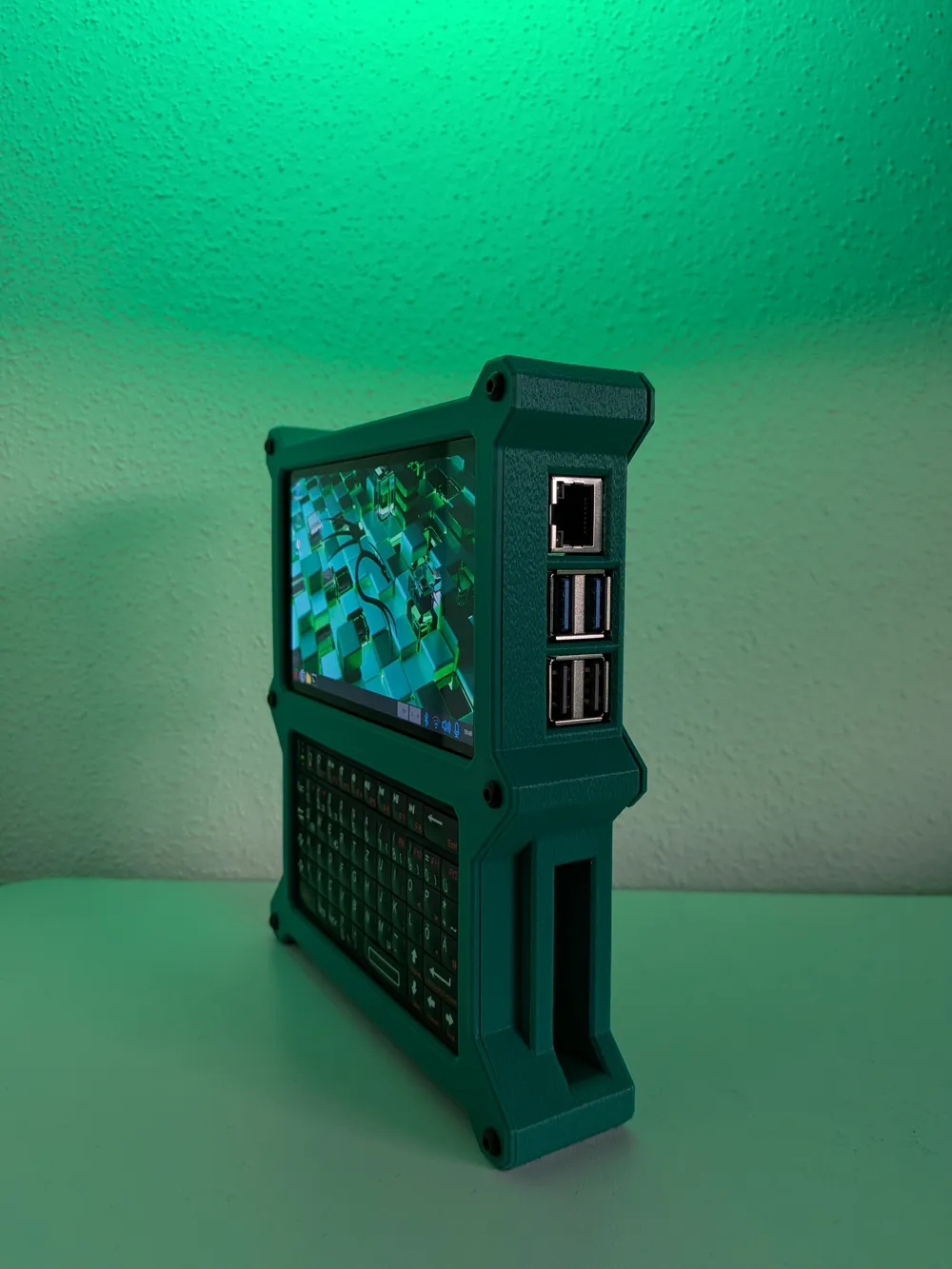

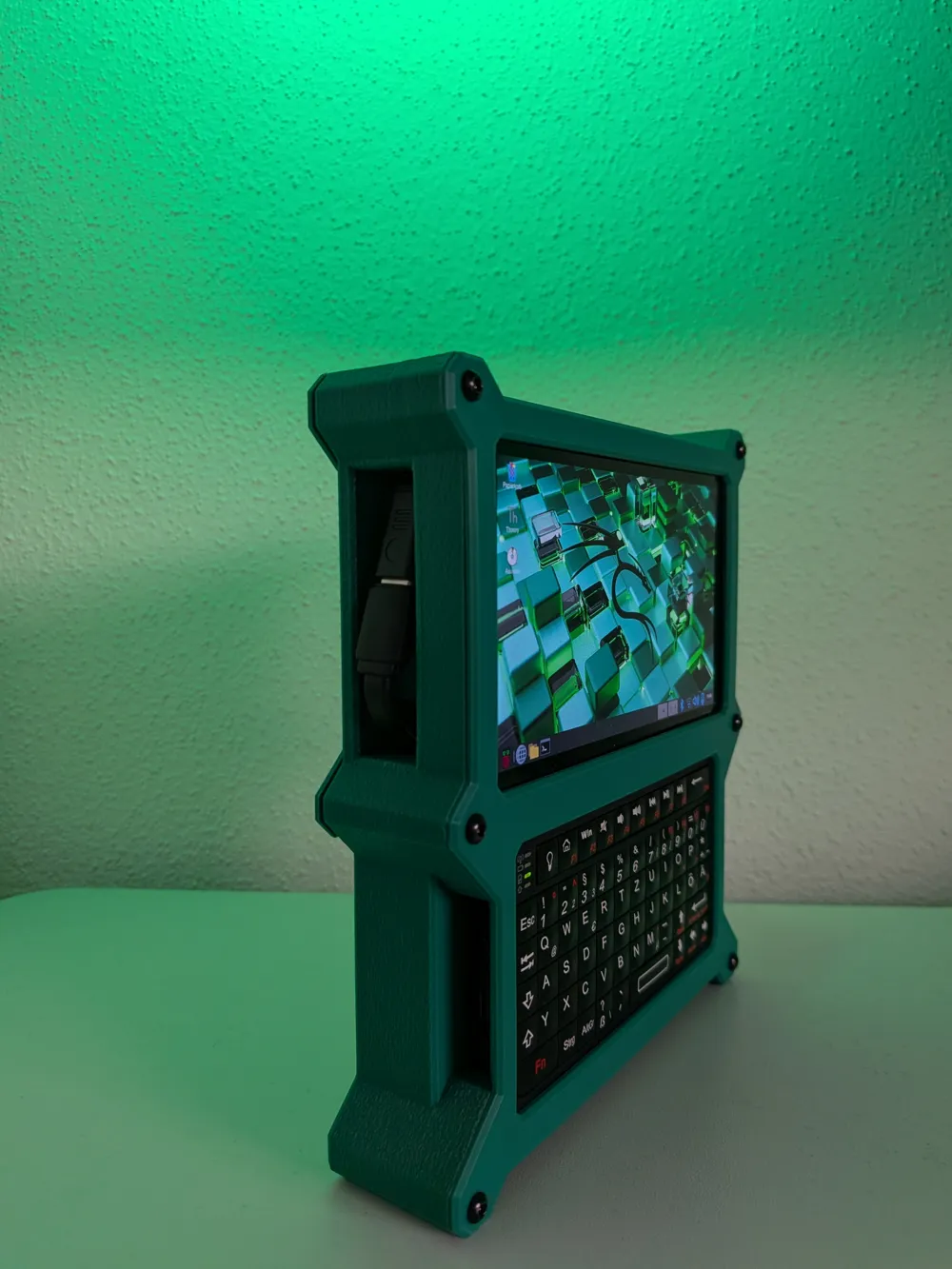

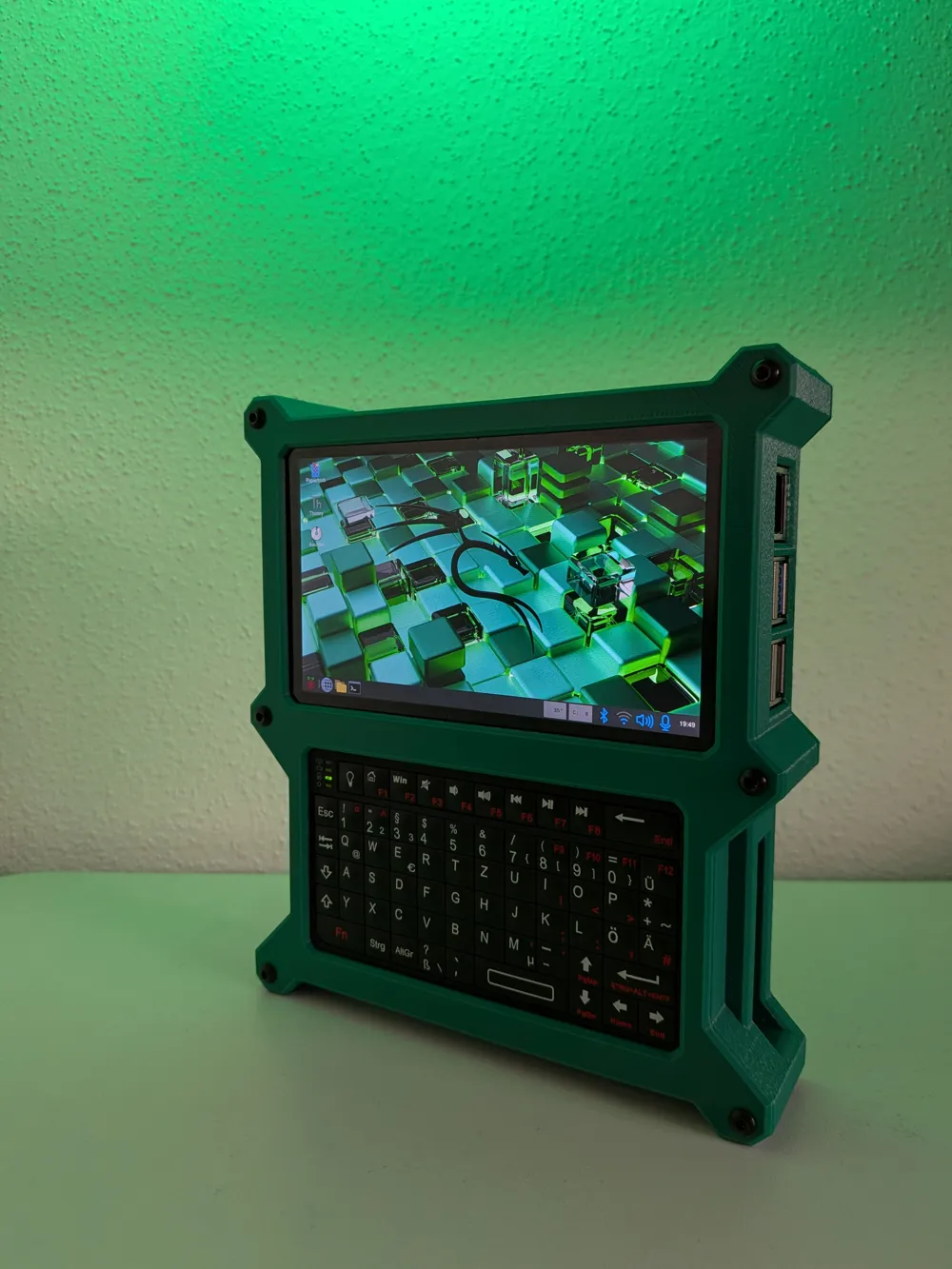

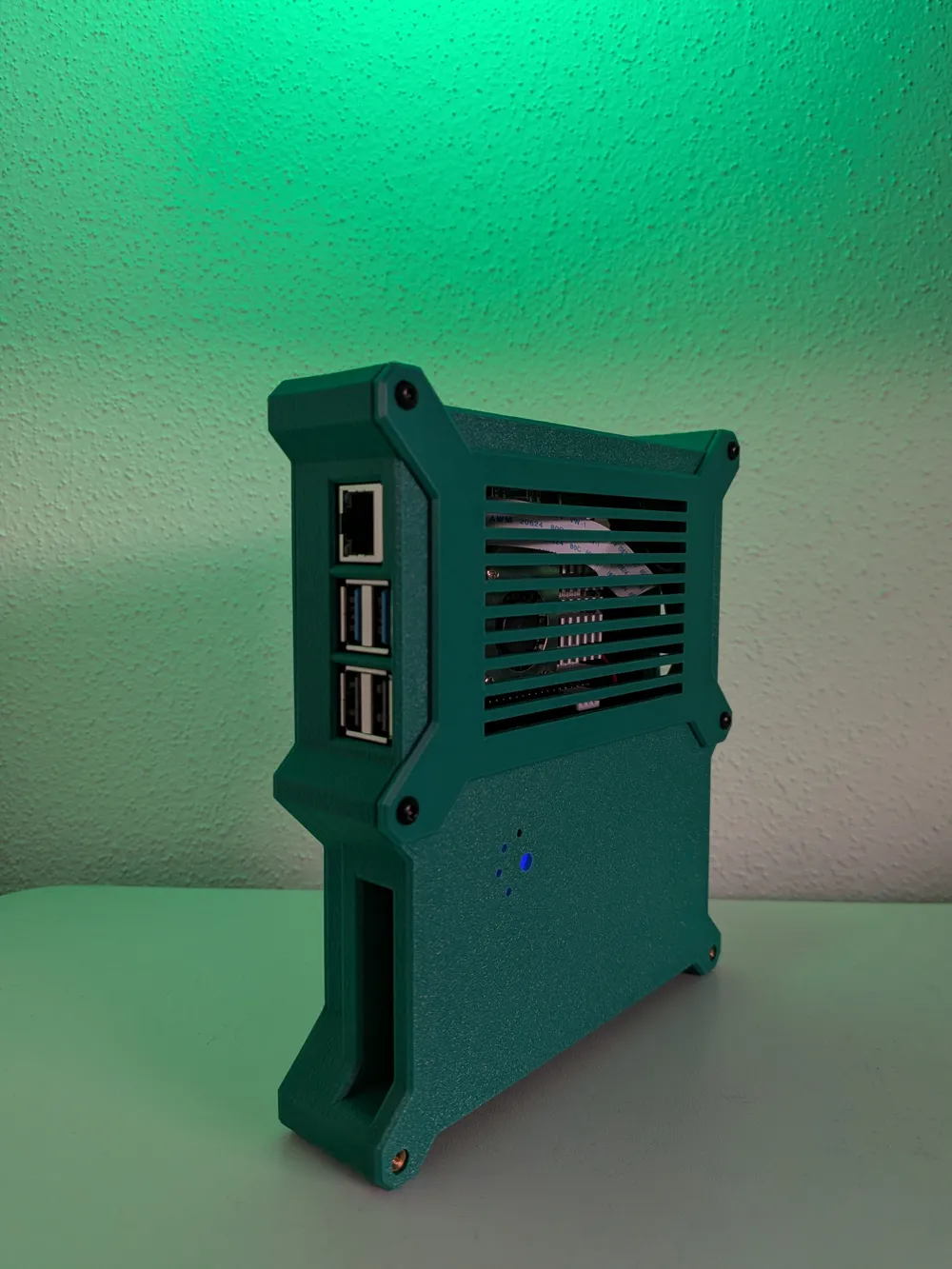

Here are some pictures how the mounted pi on the display should look like and how the access to USB and Micro HDMI looks like

@andy_malar

I see what your saying but I think I going to rework yours so I can add this and get full size hdmi and nvme without needing extra deepness.

@andy_malar

Replying to @andy_malar :

it will only be 25mm taller

@Kadeolsen

wait so now the battery pack doesn’t fit… 😬did I do something wrong?

The designer has replied

@MadHias

This is the wrong Powerbank. The one i used has an integrated cable.

@Kadeolsen

Replying to @MadHias :

gotcha, thanks! Is this the right one? https://www.amazon.com/dp/B0DCHWWBNS

@Kadeolsen

what about the USB 90 degree extension? i cant seem to find one that fits right

@jAenngsele

@MadHias Super Design! ***** I was looking for a nice, functional case for my Cyberdeck for a long time. Your model appealed to me the most out of all the available creations! However, I installed a Raspi4. As can be seen in the photos, I had to mill an additional cutout for the jack socket. I also had to remove some material from the case on the strut between the USB3.0 and the USB2.0. But your design is based on the Raspi5. Now in operation, I am still missing the audio output (;-) ). It would also be nice to have quick access to the SD card in order to quickly flash a different image.

The designer has replied

Show original

@MadHias

It looks great in black 😁 Regarding SD card access, I was already looking for an SD card extender, but unfortunately, I haven't found anything good and affordable that's easy to install. But I feel the same way as you, and it would be practical if you could access the SD card more easily. Regarding audio output: in another project, I soldered the Pimoroni Amp Shim as an amplifier to the GPIO strip and connected a 3W mono speaker. There are also relatively small speakers that can be integrated into the housing with some adjustments, but this makes it a bit larger. I myself am currently using a Bluetooth speaker for audio output ;)
