feather board for Felder table saw and bandsaw

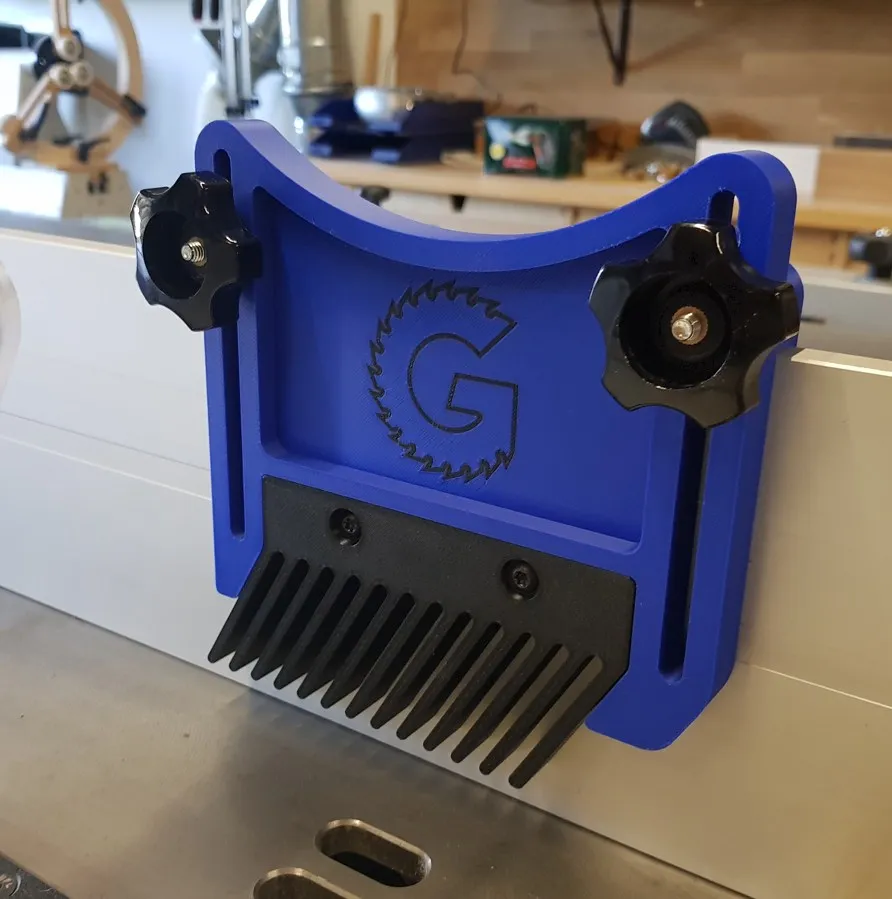

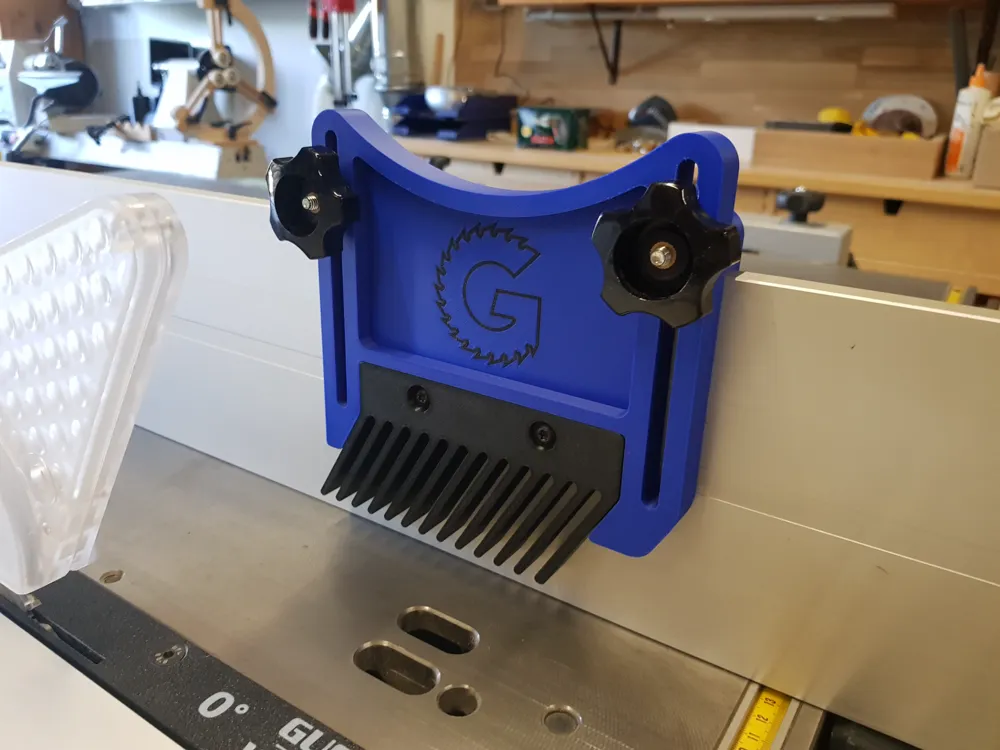

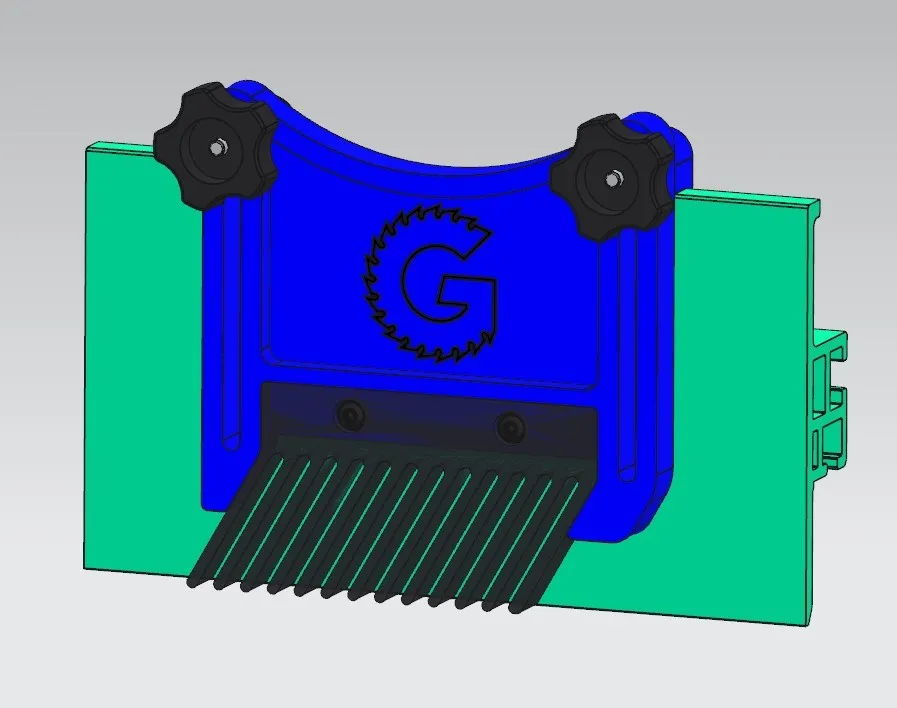

Feather  board for the Felder table saw CF531 and the bandsaw FB510. But I am pretty sure it will also fit to other Felder or Hammer saws.

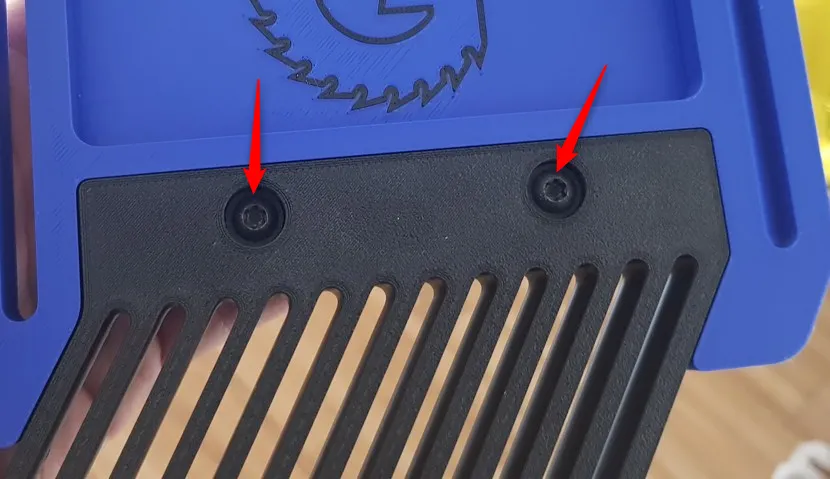

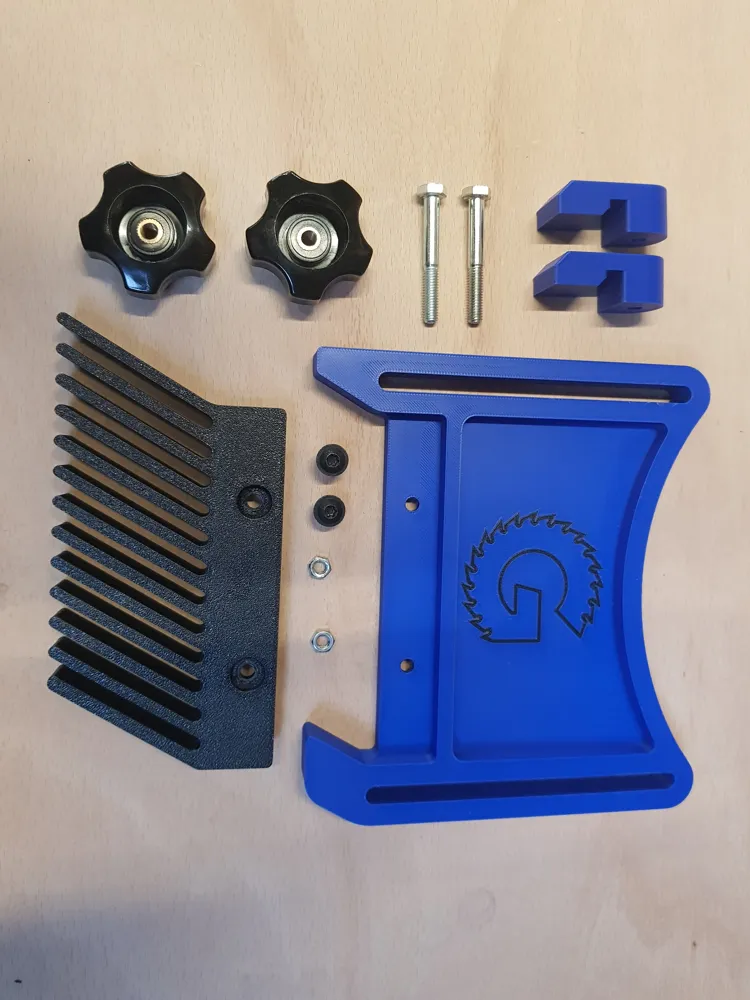

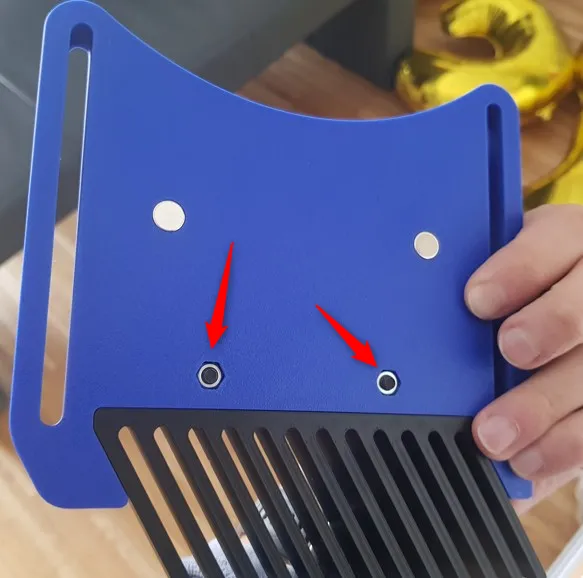

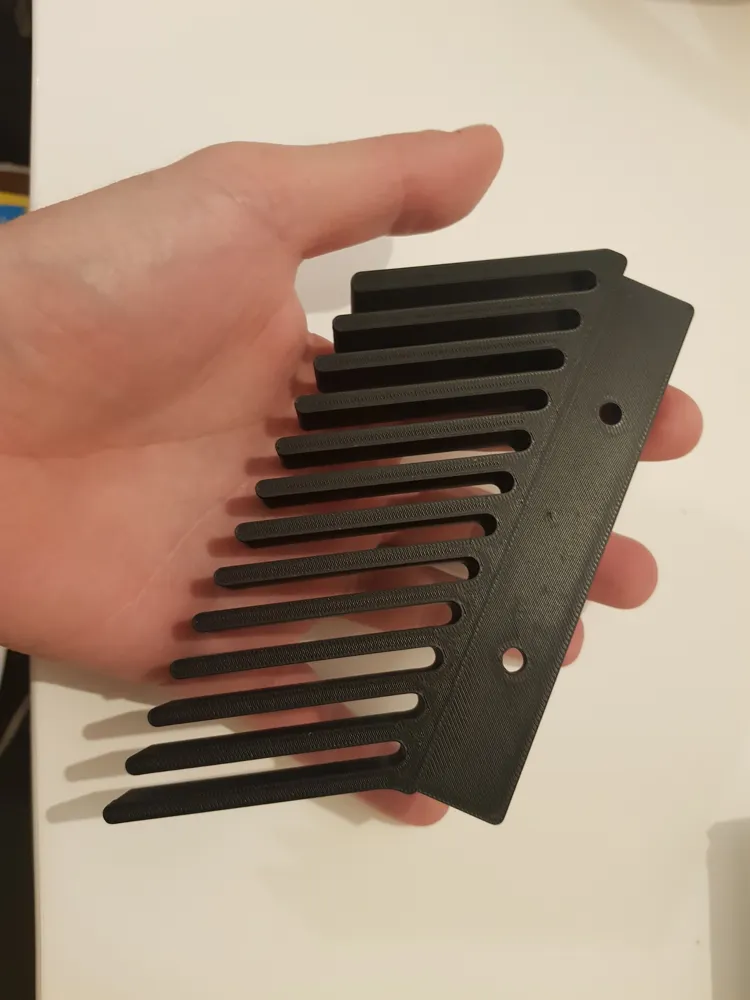

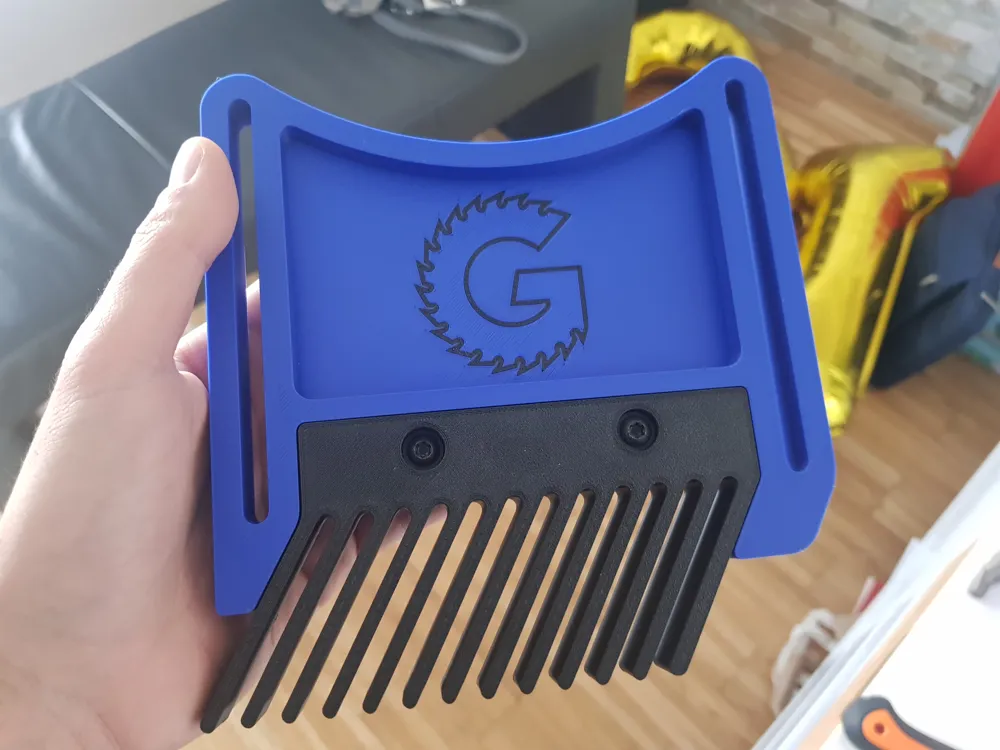

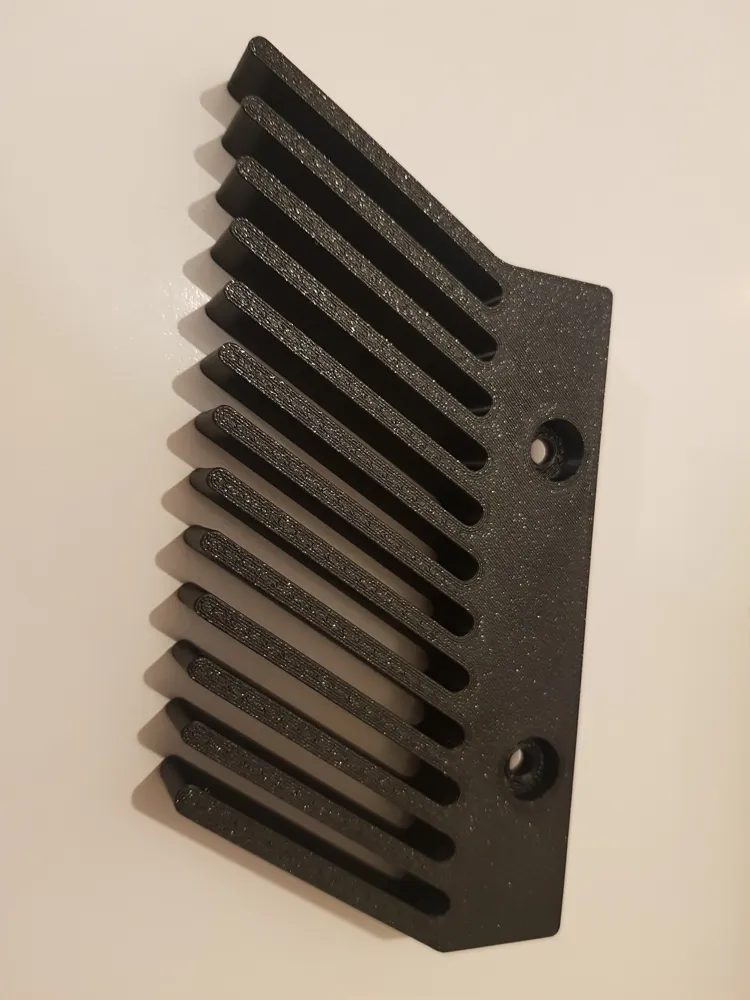

The feather will be fixed with 2 M5x12mm screws to the main body. For the back side of the main body 2 M5 nuts M5 are needed.

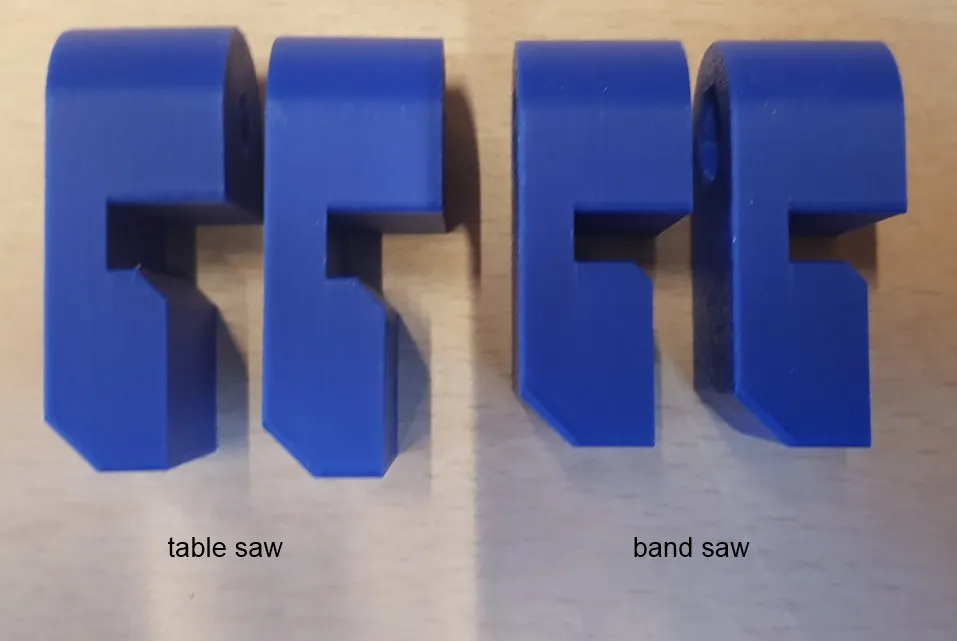

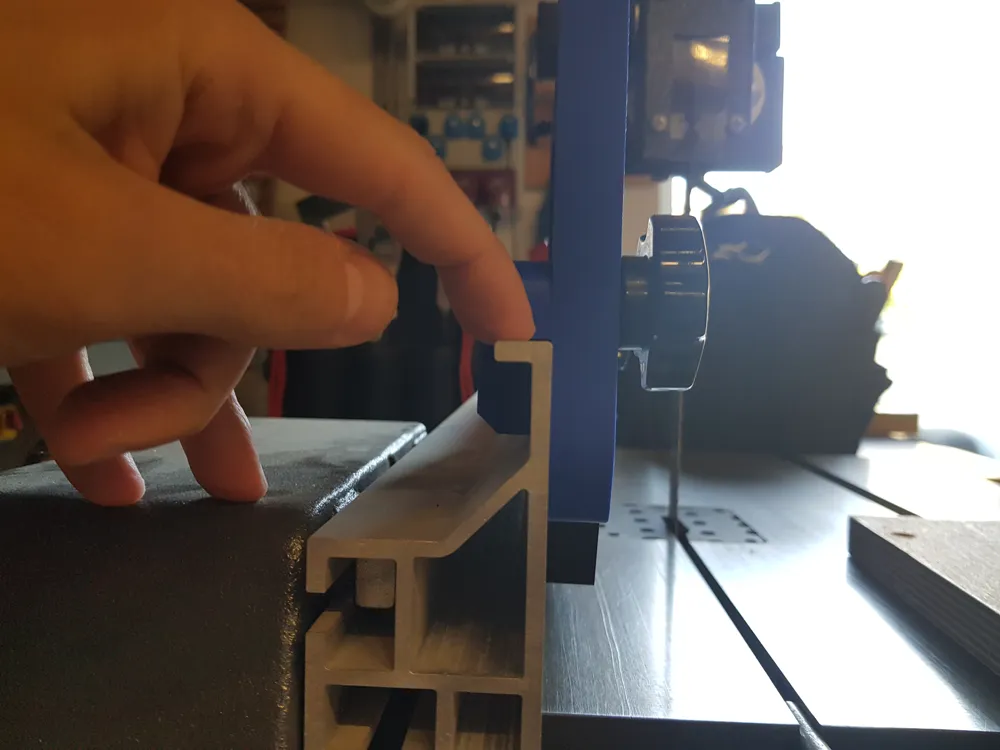

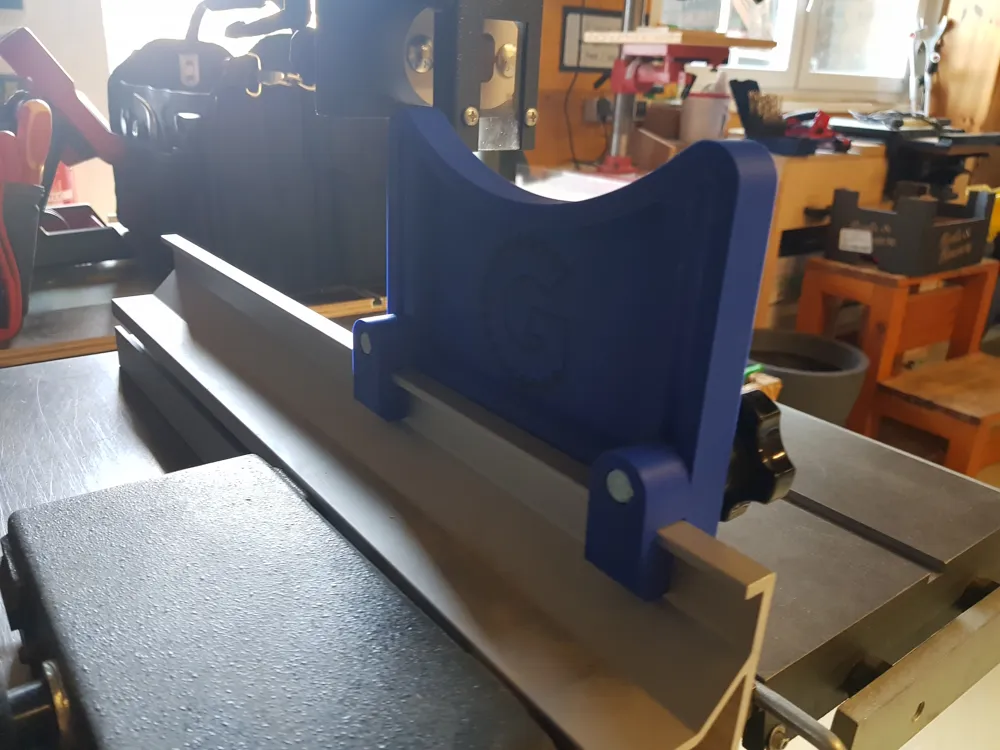

I created 2 clamp designs. Therefor you need screws M6x45 (or longer) + a knob. I have a small and a big know design in my files.

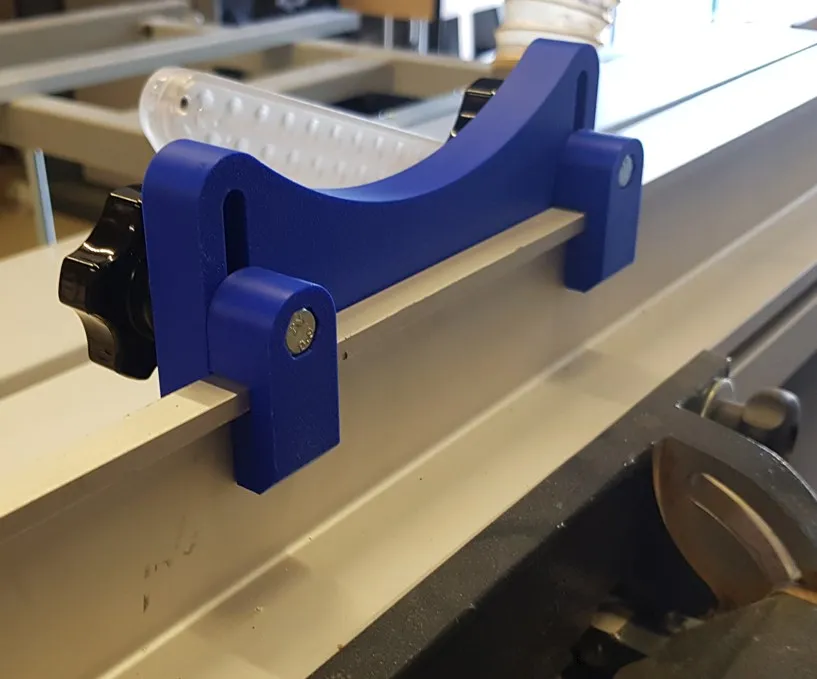

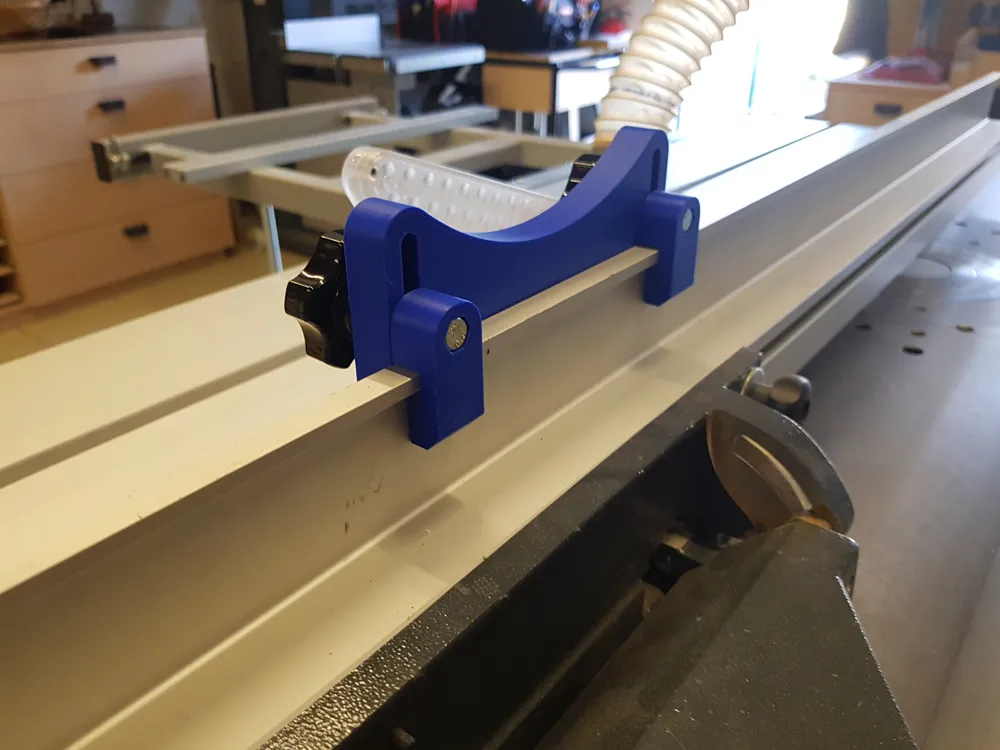

• 1x for the sled of the table saw

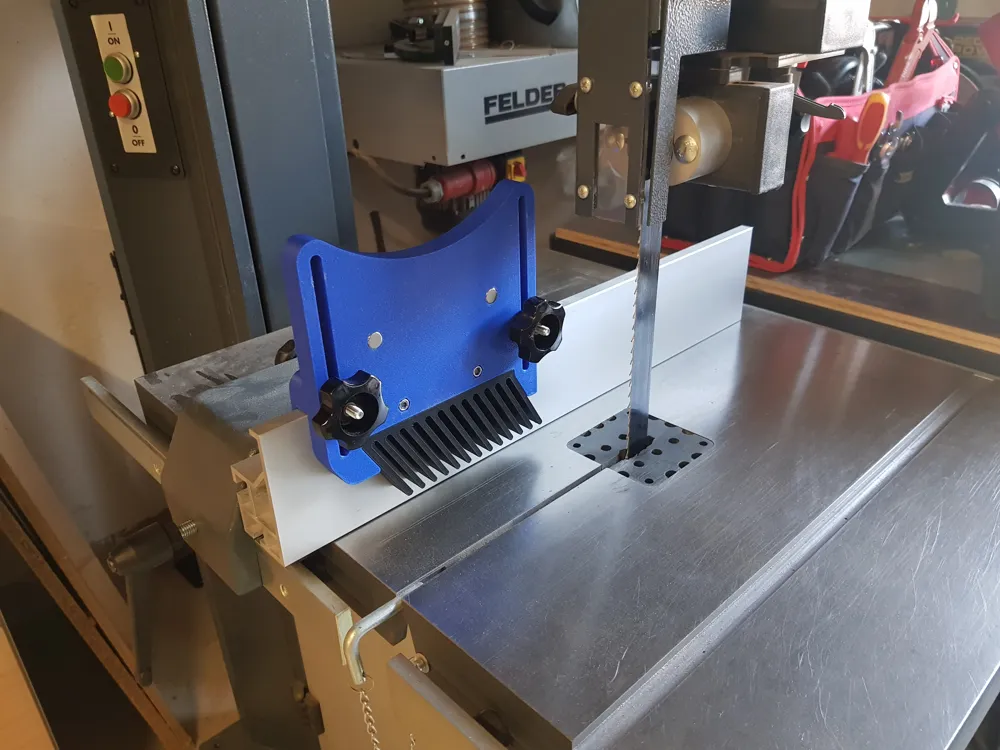

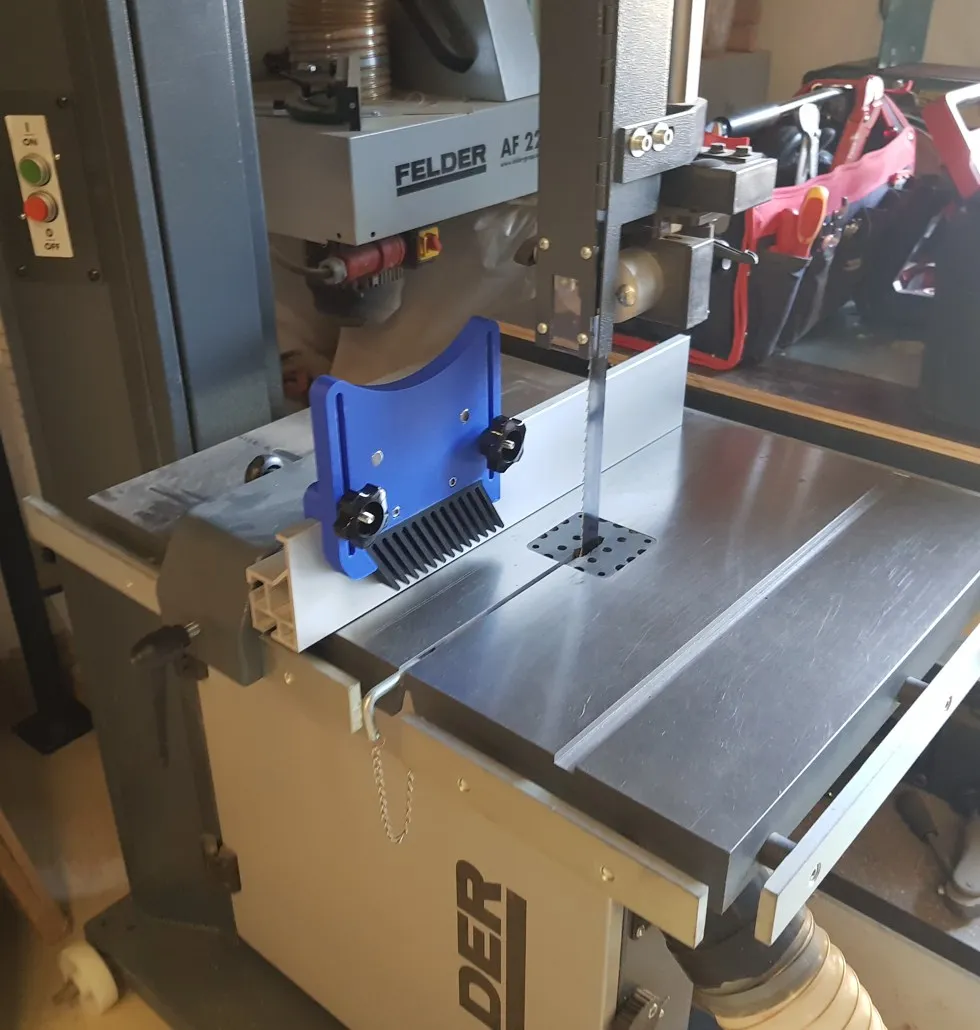

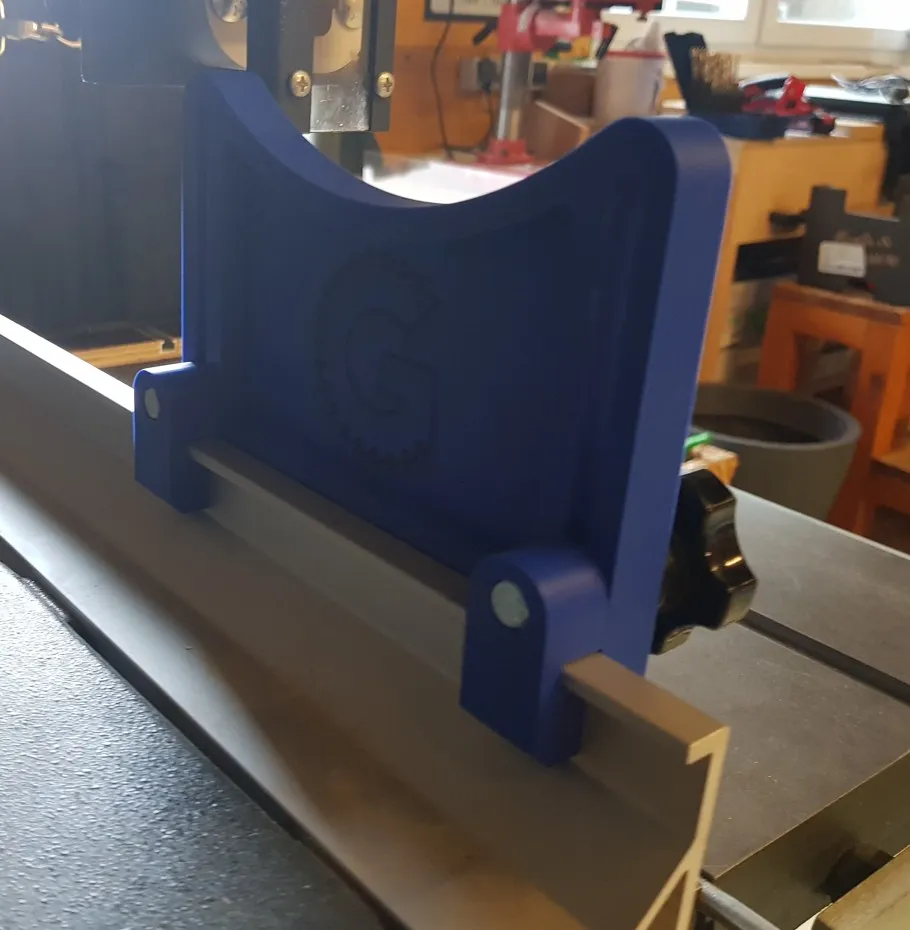

• 1x for the sled of the band saw

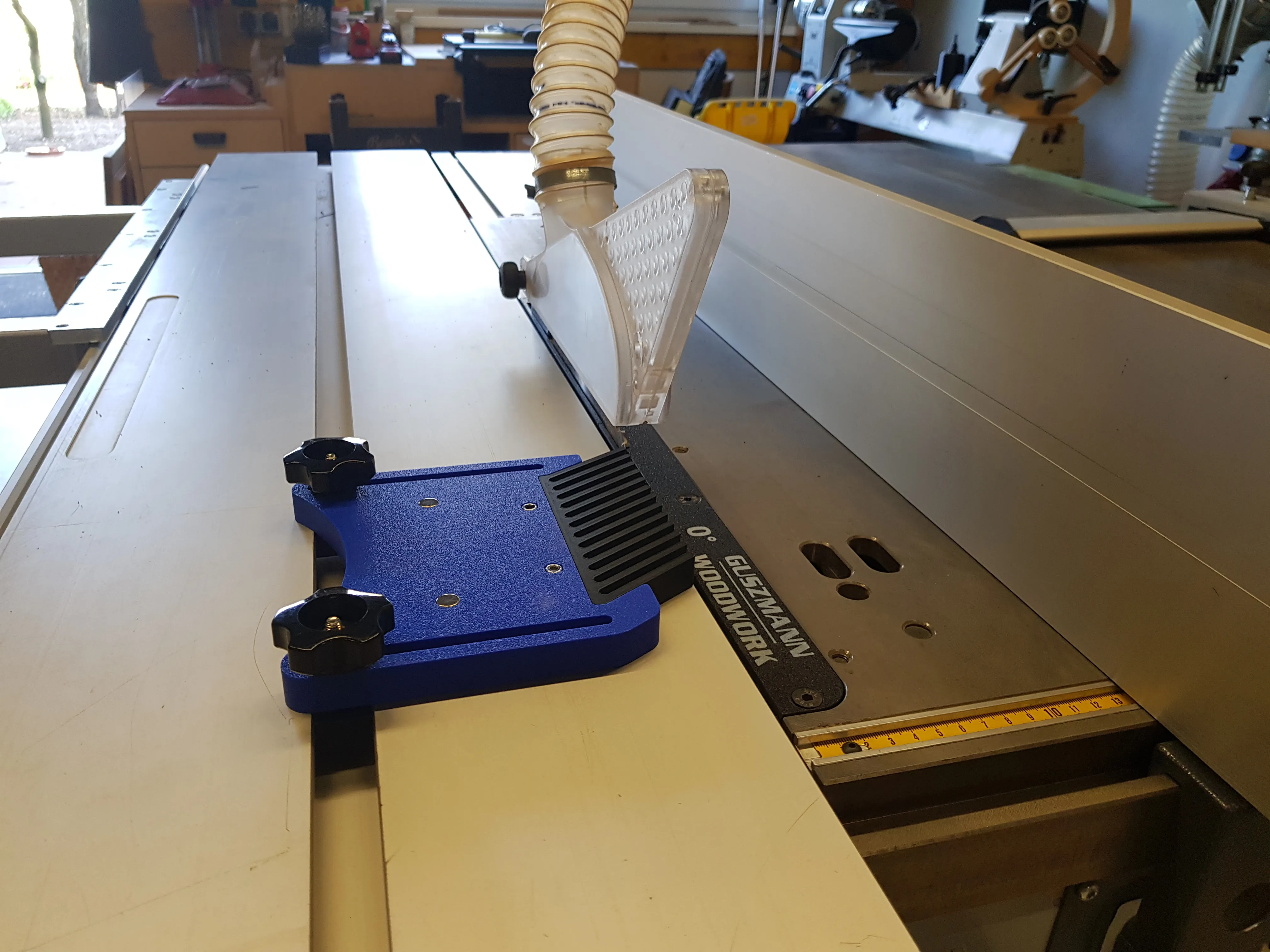

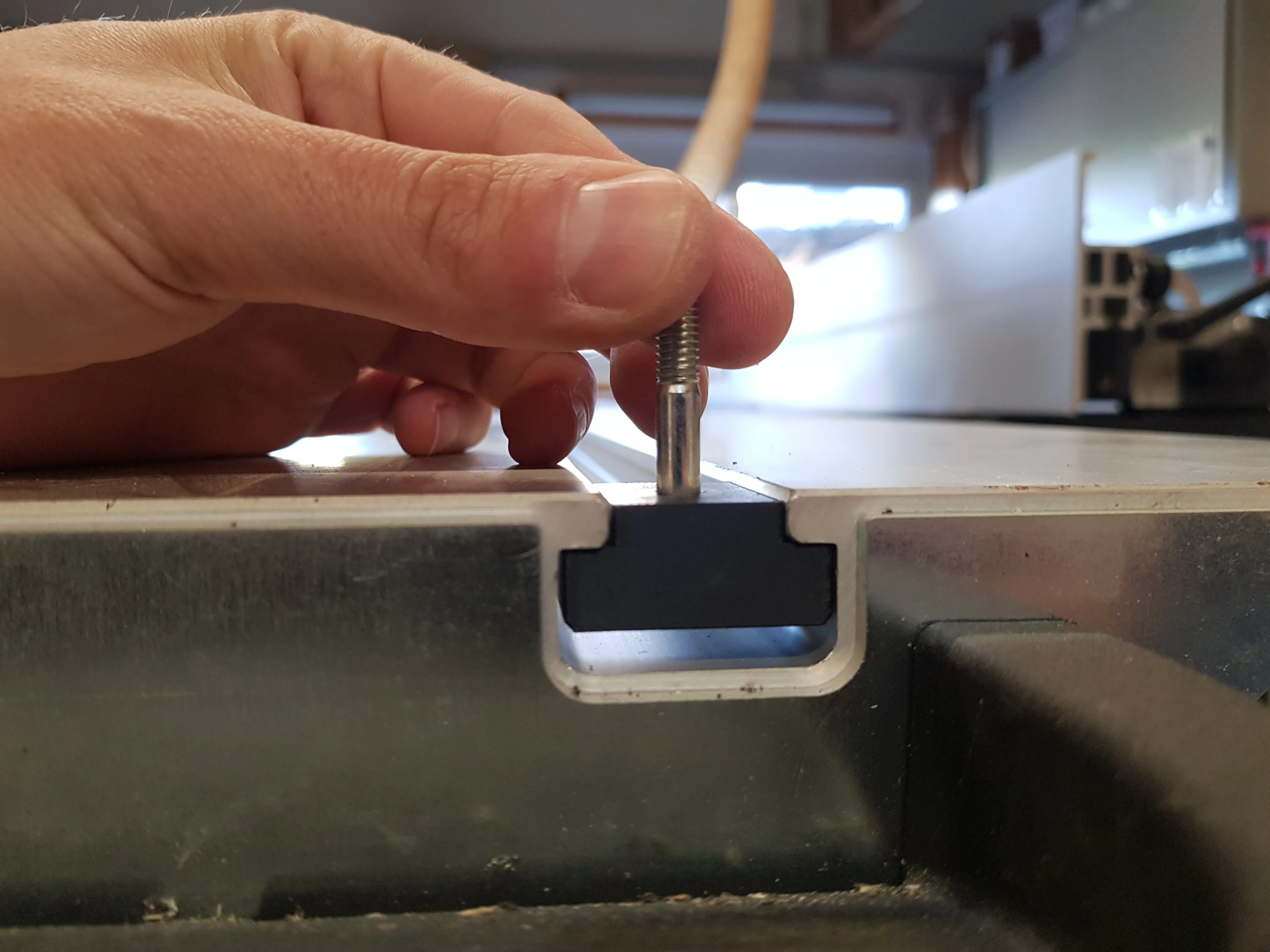

With my designed T-slot nut ==> https://makerworld.com/en/models/2625394-t-slot-nut-m6-for-felder-cf531-table-saw#profileId-2898356 you can mount the feather board easily on the sliding table.

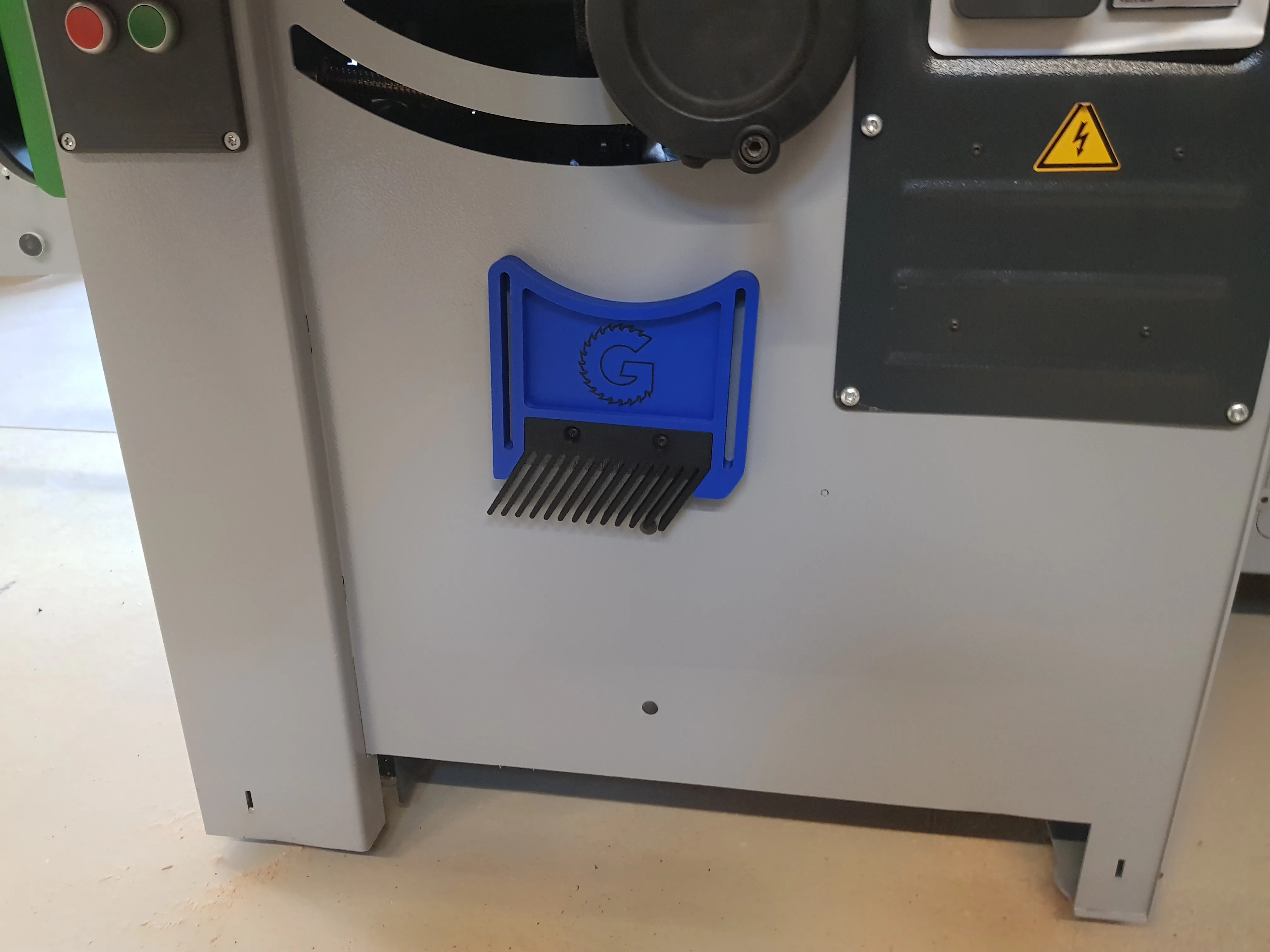

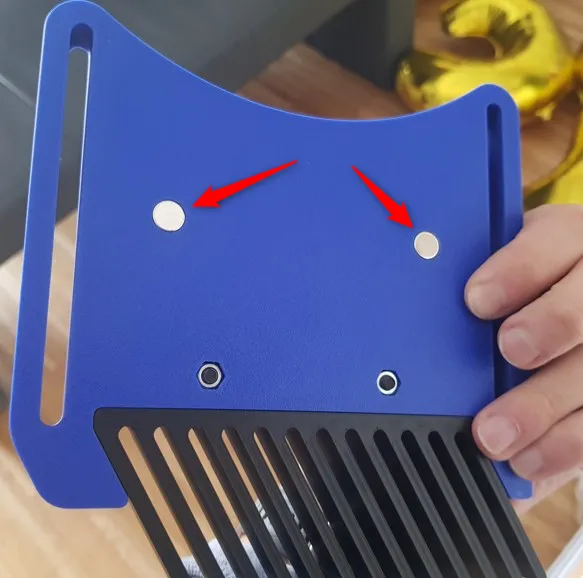

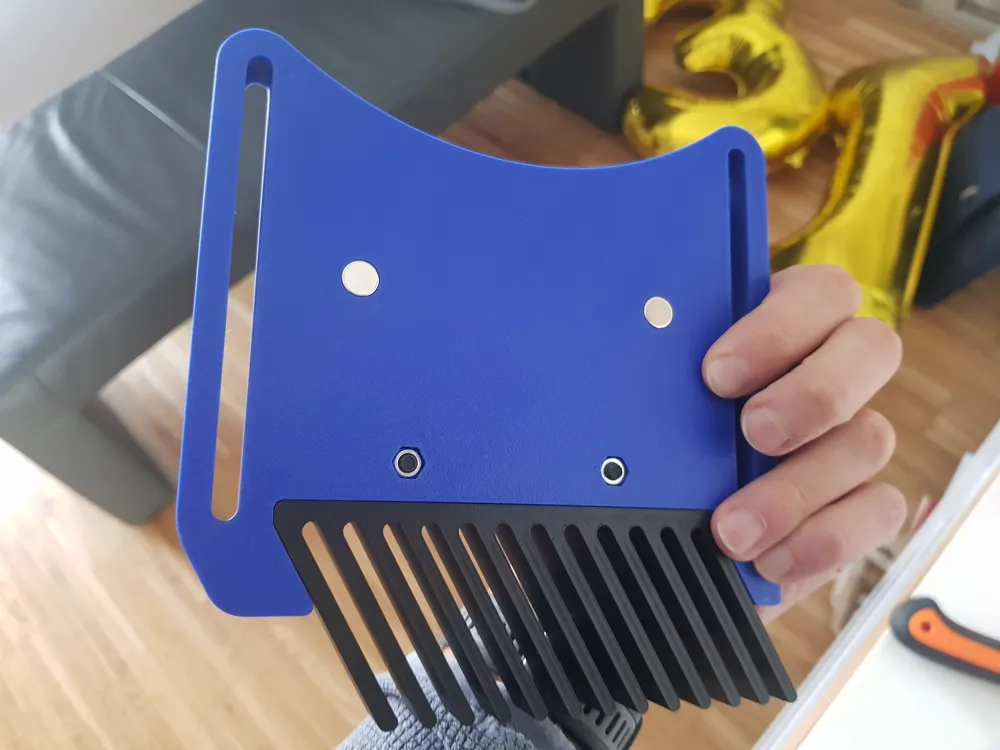

On the back side of the board I added 2 magnets (d=10x3mm), so that I can fix the part directly on the saw.
