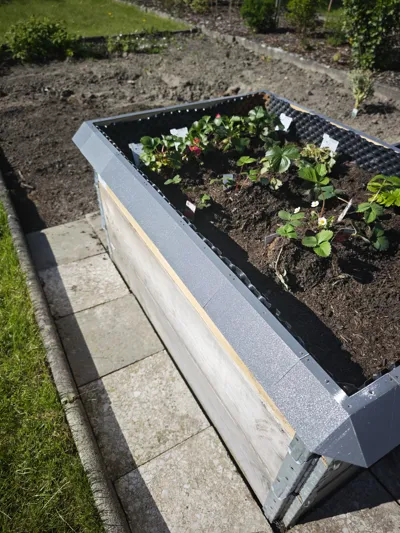

I was looking for snail protection for an inexpensive 120cm x 80cm plug-in raised bed with a board thickness of 2cm from the hardware store.
However, the commercially available versions from the hardware store or internet require installing the snail protection into the ground. But I wanted one that could be attached directly to the raised bed.

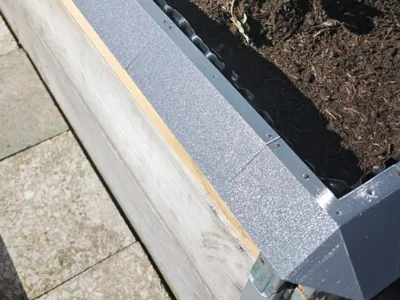

So, I created, printed, and attached the object provided here in FreeCad using nails.
It was printed in PETG, as it is outdoors and therefore should be a bit more robust.
The 3mf optionally includes some shorter straight sections, in case the printer didn't print precisely.
Technical Data:

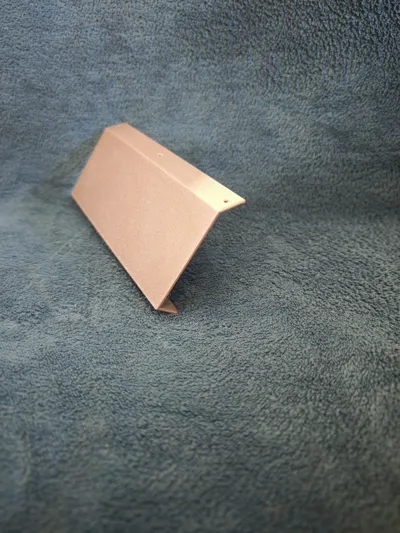

2 straight sections, each 20cm long

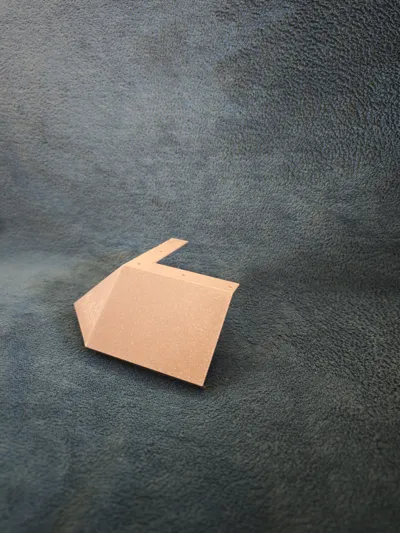

2 corner elements, each 10cm long on each side
The upper element, which rests on the raised bed, is 2cm wide and has holes for the nails in the middle.
Then there is a 7.5cm long surface at a 45-degree angle, and the end is formed at 90 degrees with a length of almost 21.21mm.

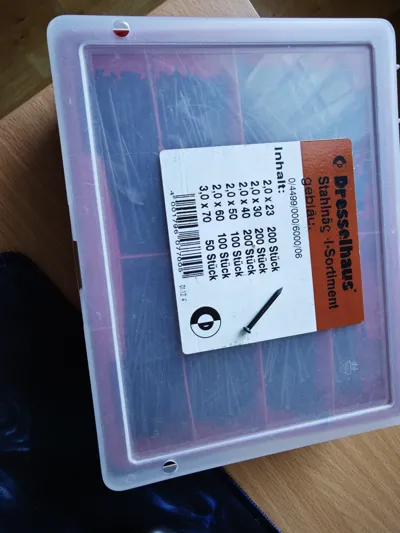

Only nails are needed for assembly. I used 2.0 x 23 and 2.0 x 30.
I attached the straight sections with only 2 nails each, and the corners with 4 nails each.
