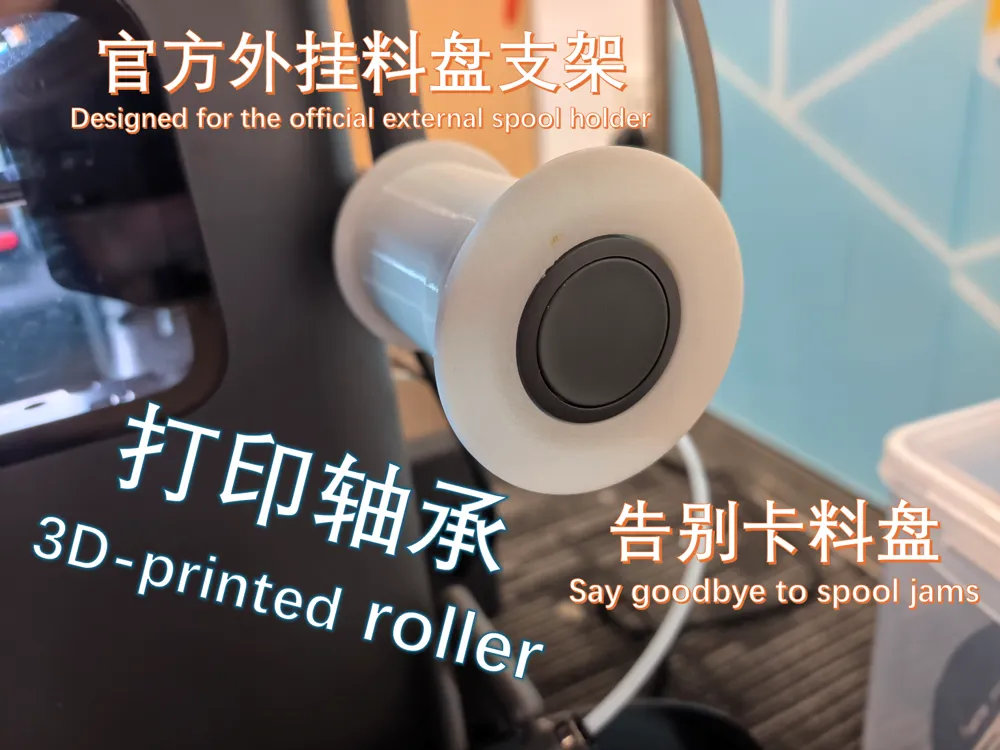

Official Filament Spool Holder All 3D Printed Bearing Roller

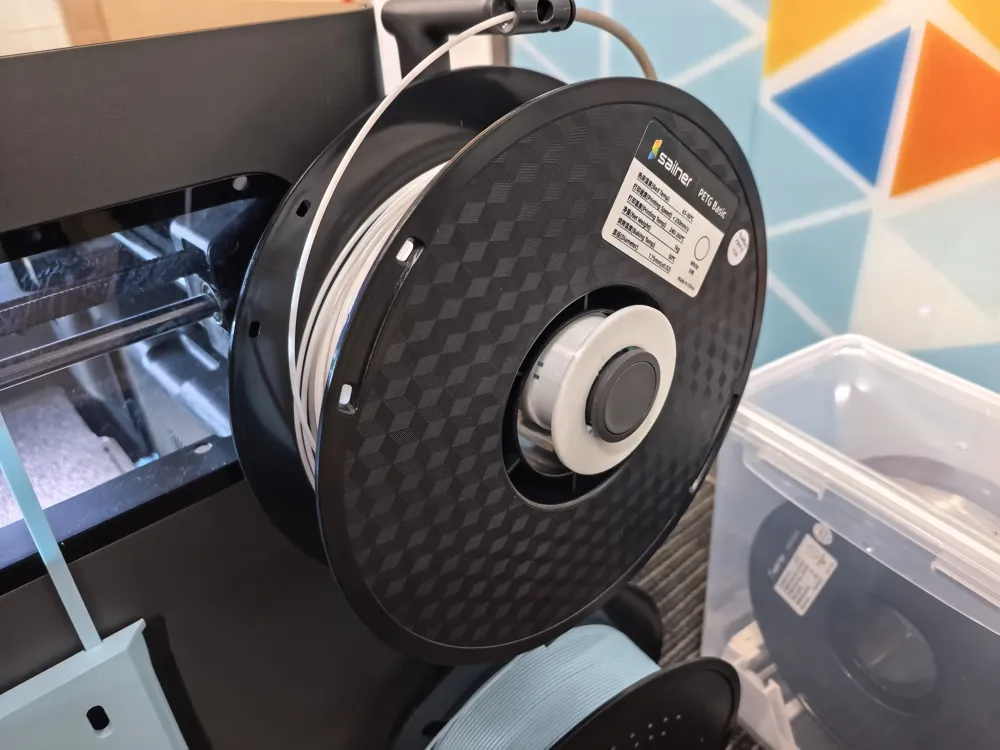

The X2D features a dual-nozzle design, where the Teflon feeder tube of the left main nozzle has a noticeable bend, creating significant resistance. When an externally mounted filament spool feeds through the buffer into the main nozzle, it is highly likely to cause the error "Left nozzle feed resistance too high, please check if the spool is jammed". This phenomenon is particularly common when the spool is new and its own weight is substantial. Therefore, this bearing was designed to reduce the friction between the spool itself and the spool holder, preventing printing failures that affect print progress

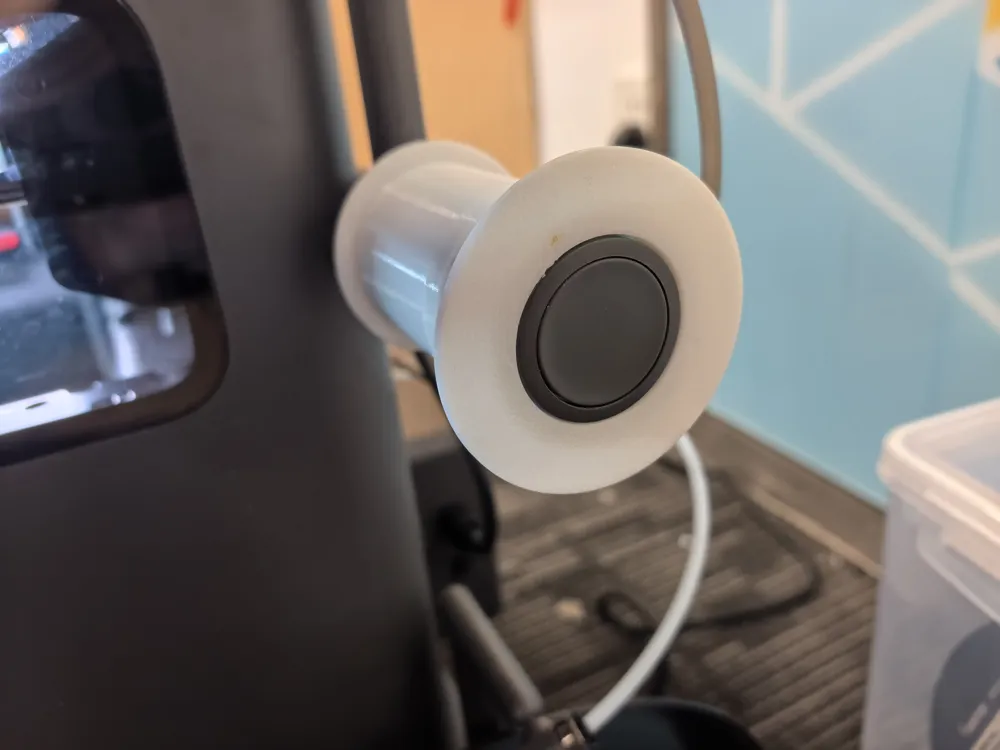

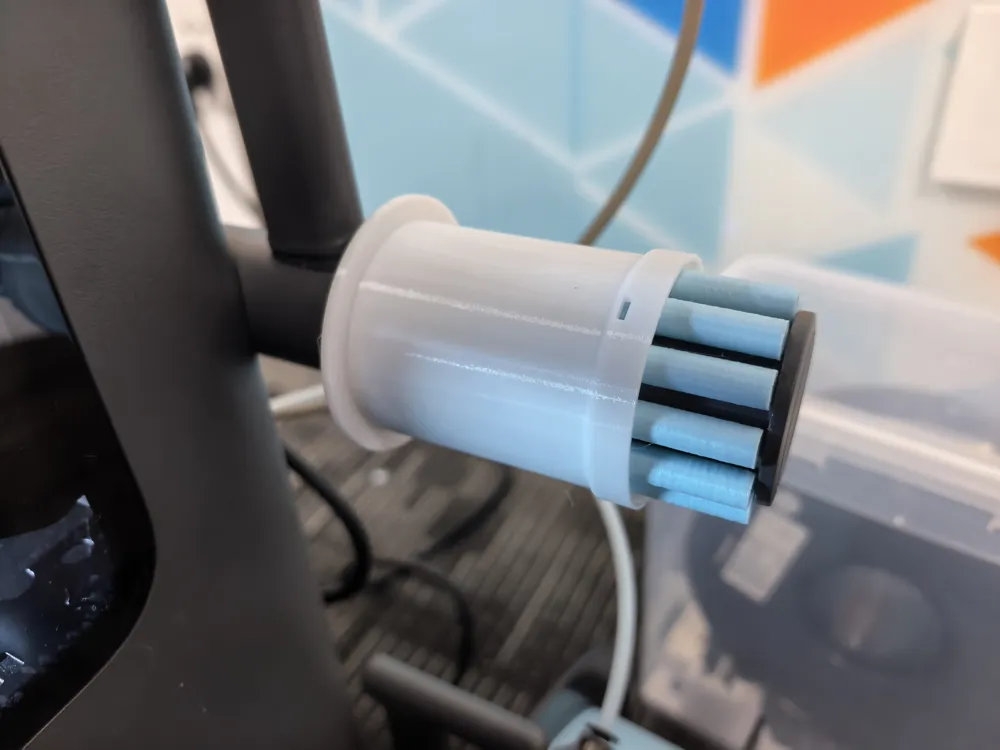

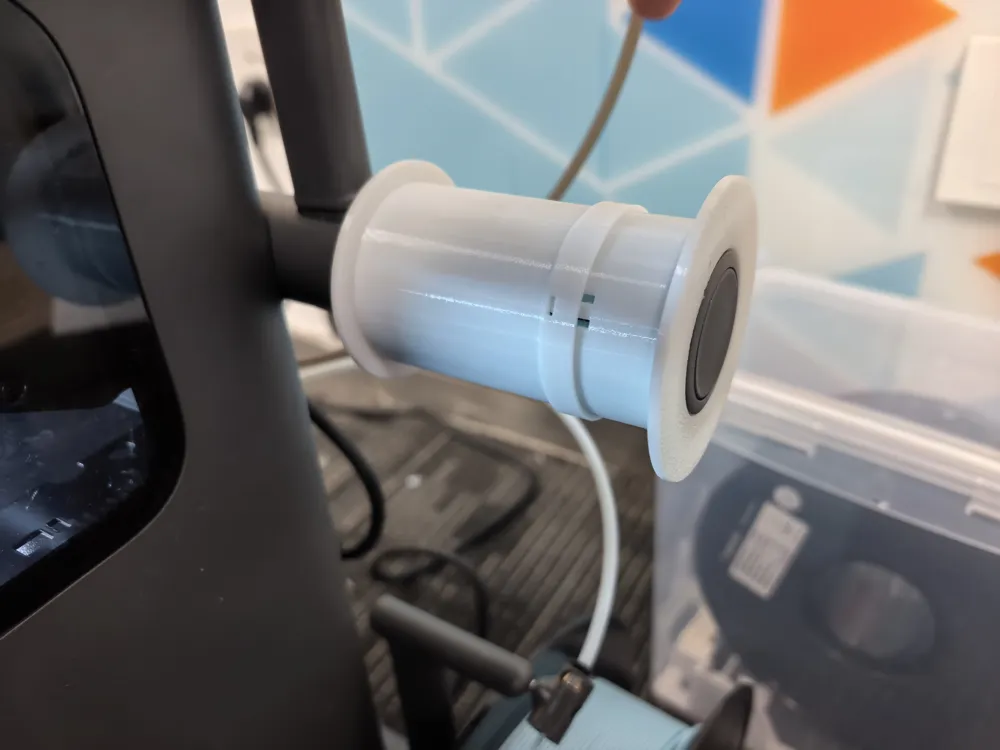

When installing, first insert the inner guard plate, then sequentially insert the 12 needle rollers. You can rotate the inner guard plate during insertion to ensure they are evenly distributed. Finally, install the outer guard plate and secure it with the buckle. I hope this is useful to everyone

————————

2026.05.10 Update

The diameter of the outer guard plate has been reduced, allowing most filament spools to be loaded directly without needing to remove the outer guard plate. A retaining clip has been added to prevent the outer guard plate from accidentally falling out

My other projects:

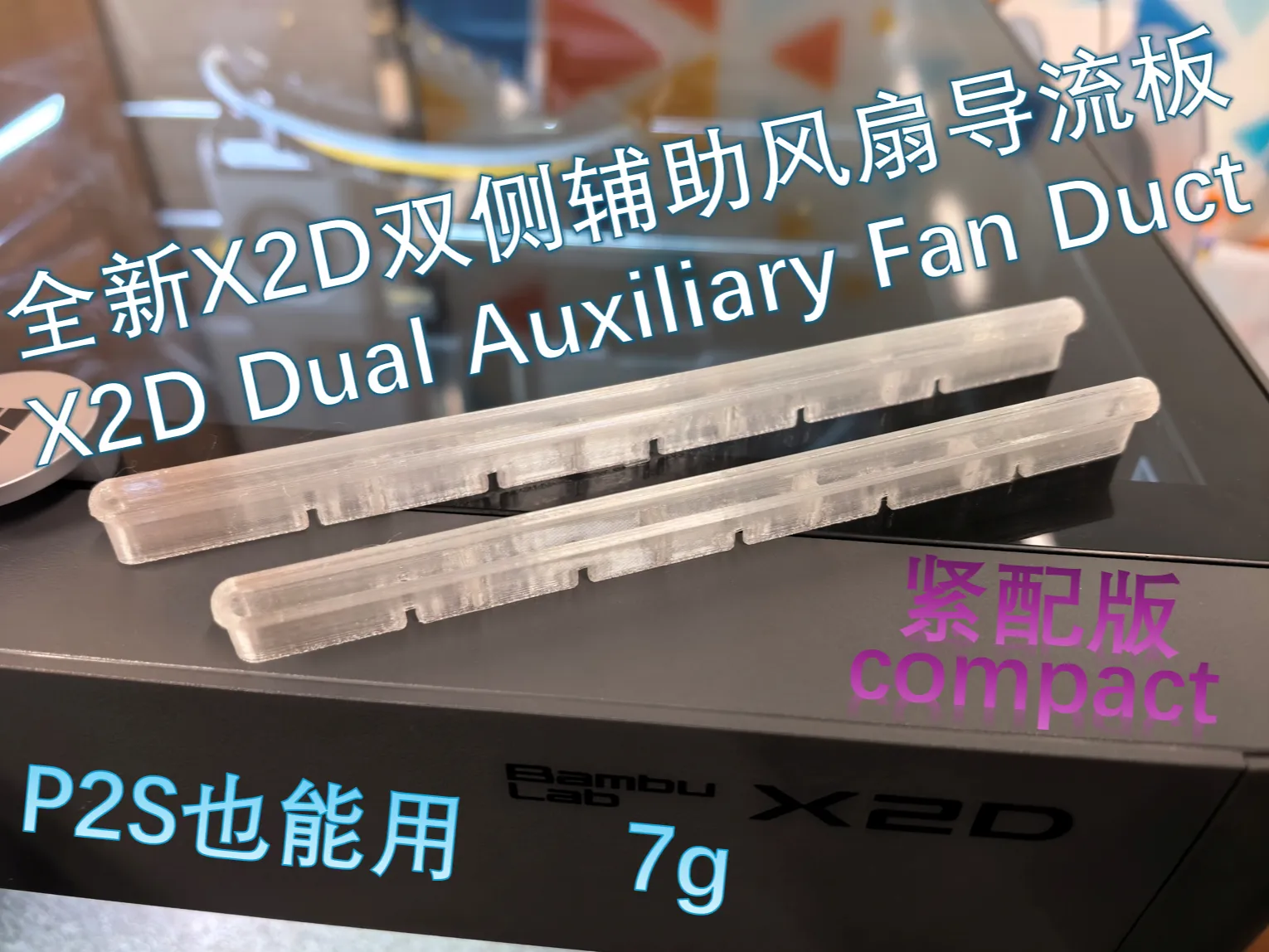

X2D Dual-Side/P2S Right-Side Auxiliary Fan Duct—Tight fit and stable, prevents warping

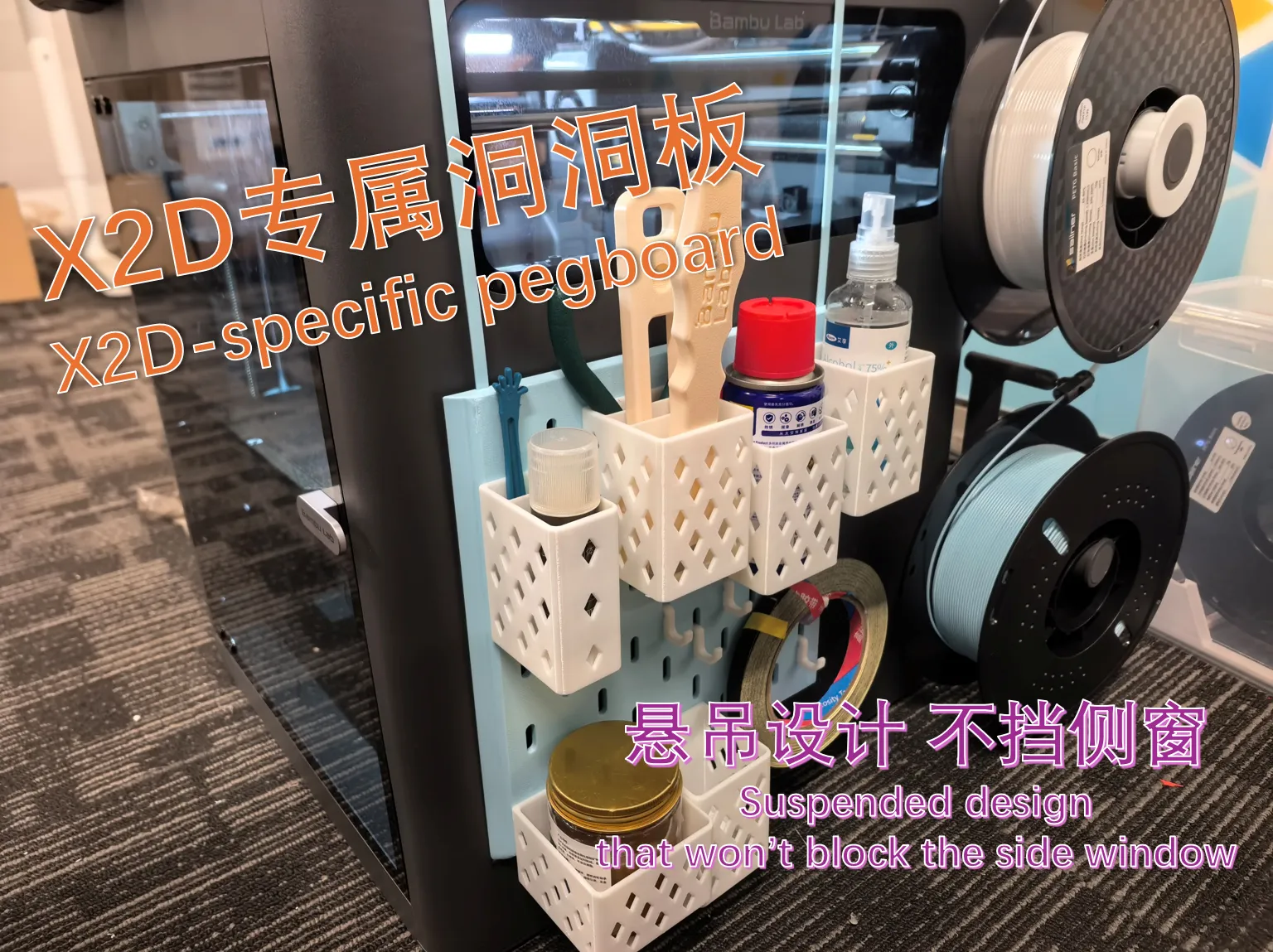

X2D Dedicated Pegboard—Hanging design, does not block side window

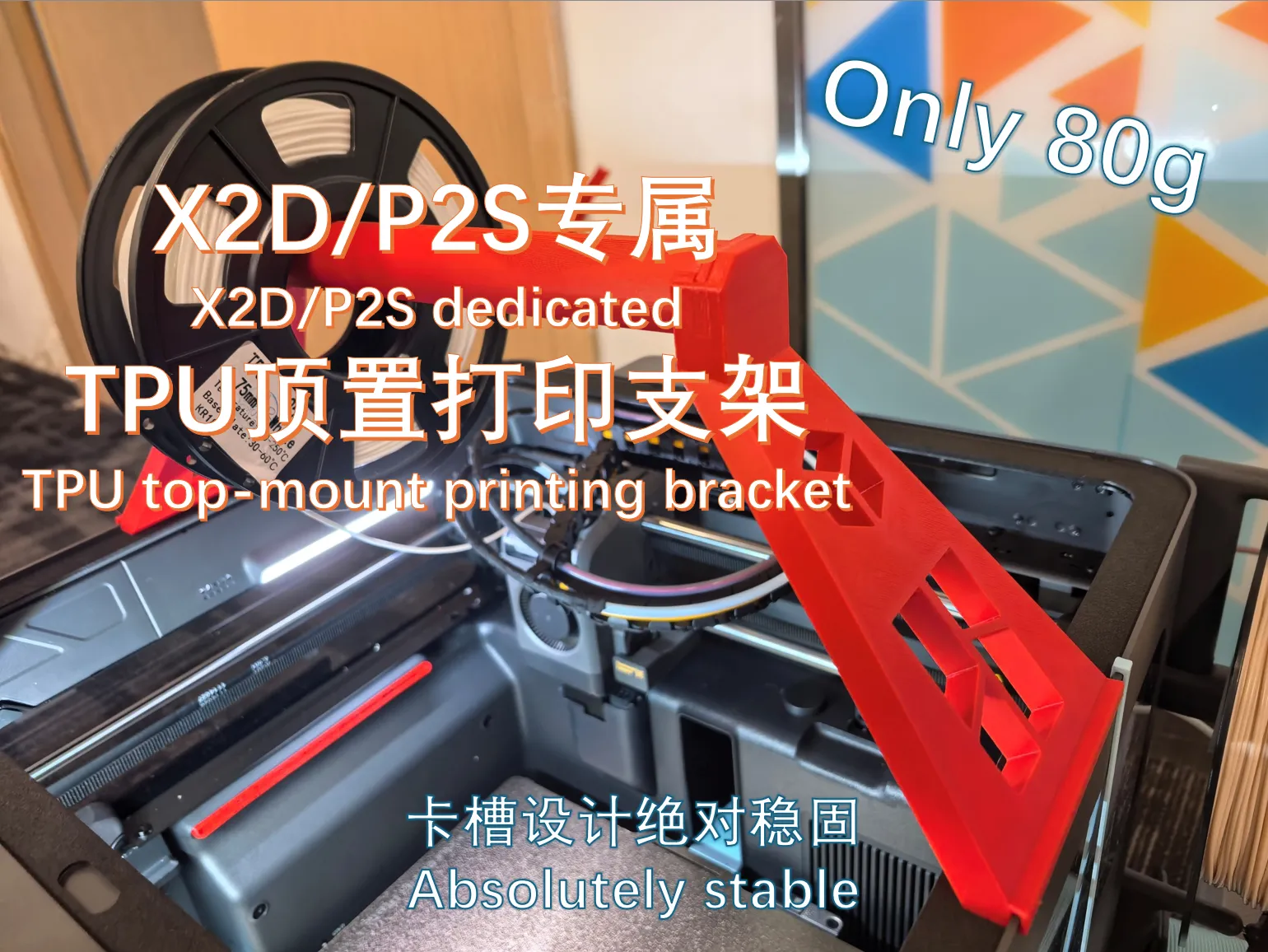

X2D/P2S Dedicated TPU top mount—Slot design, absolutely stable

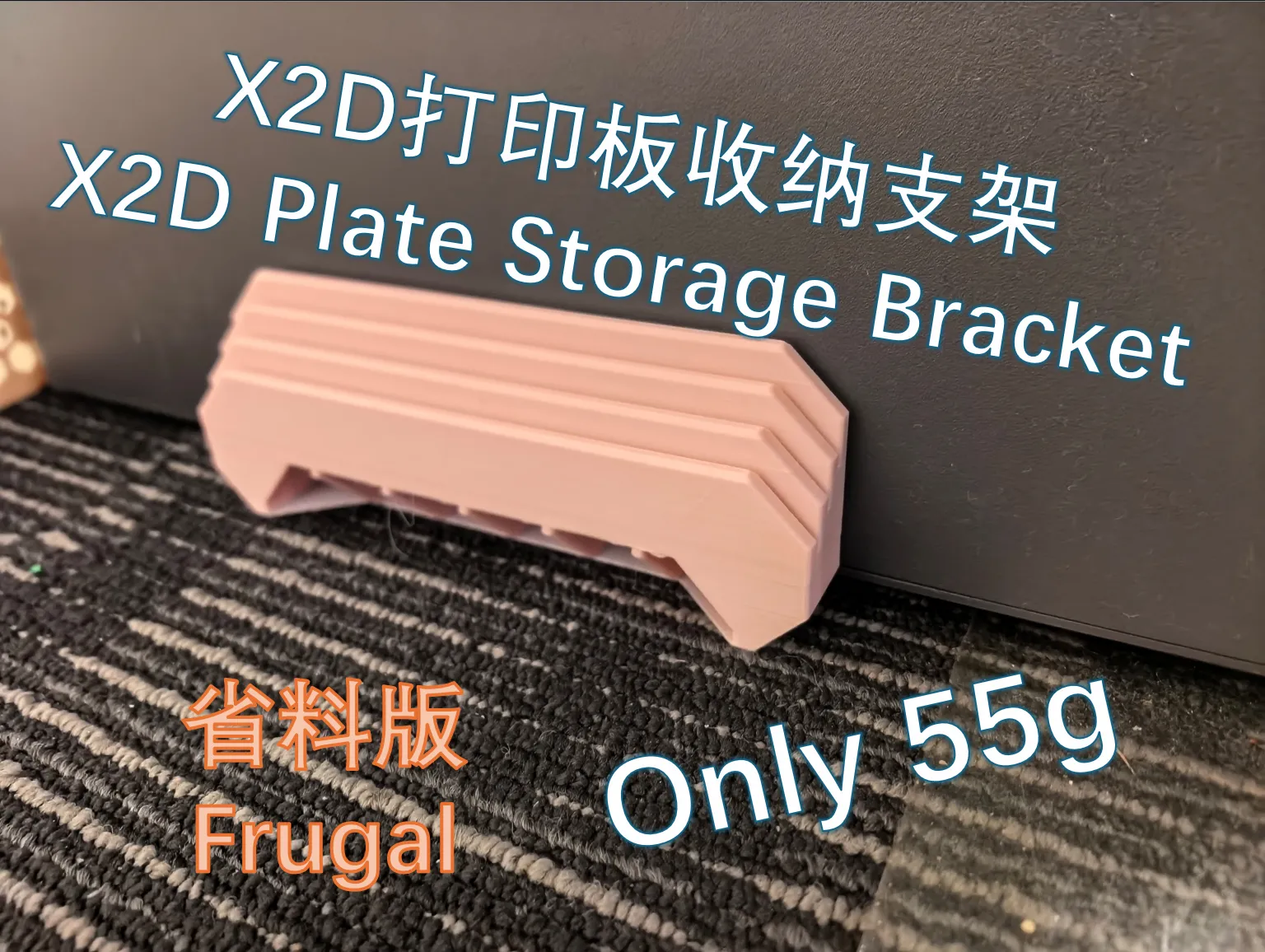

X2D/P2S Dedicated Build Plate Storage Holder—Extremely material efficient

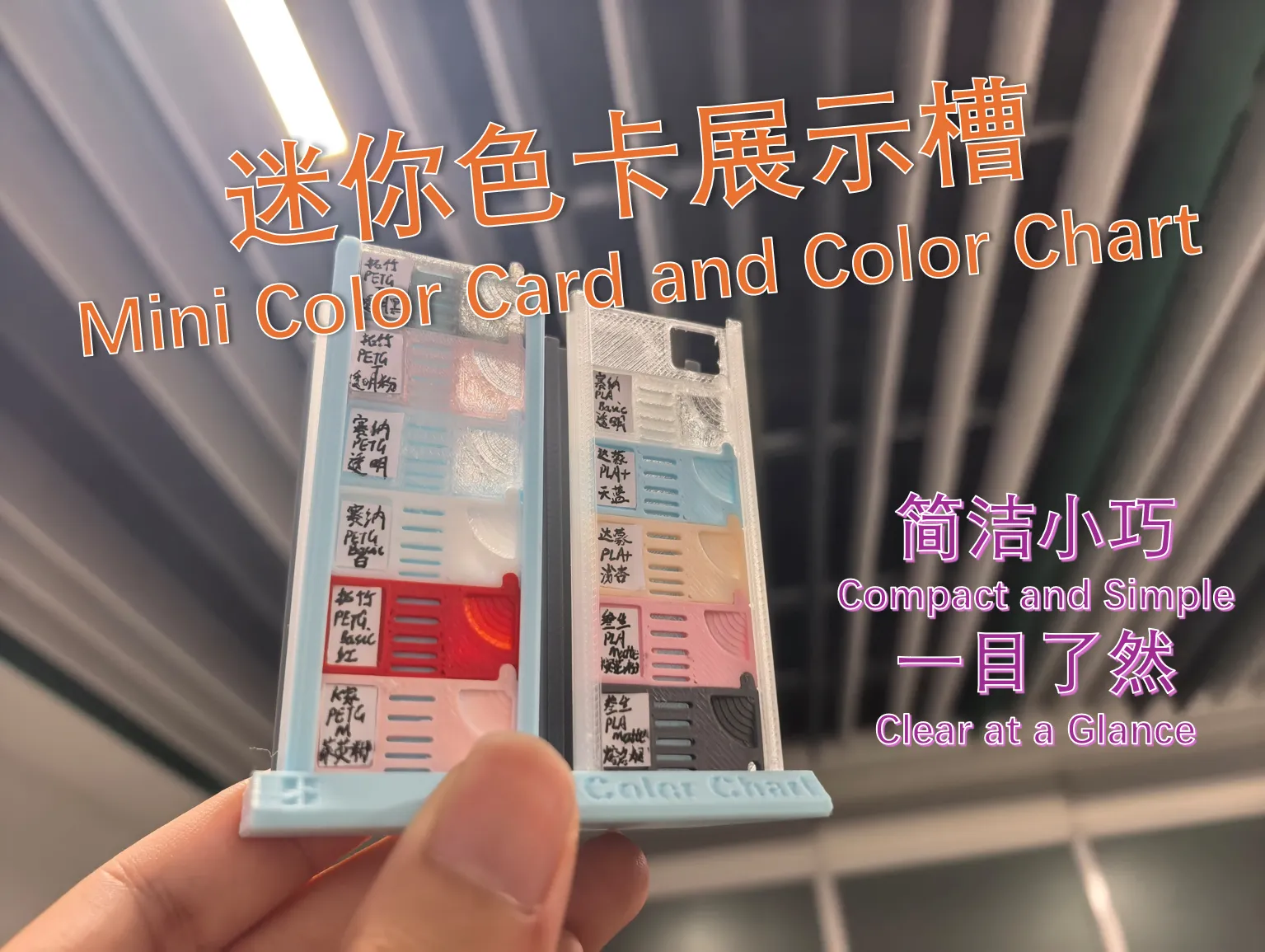

Mini Filament Swatches and Swatch Storage Display Slot—Compact and clear at a glance
