Description

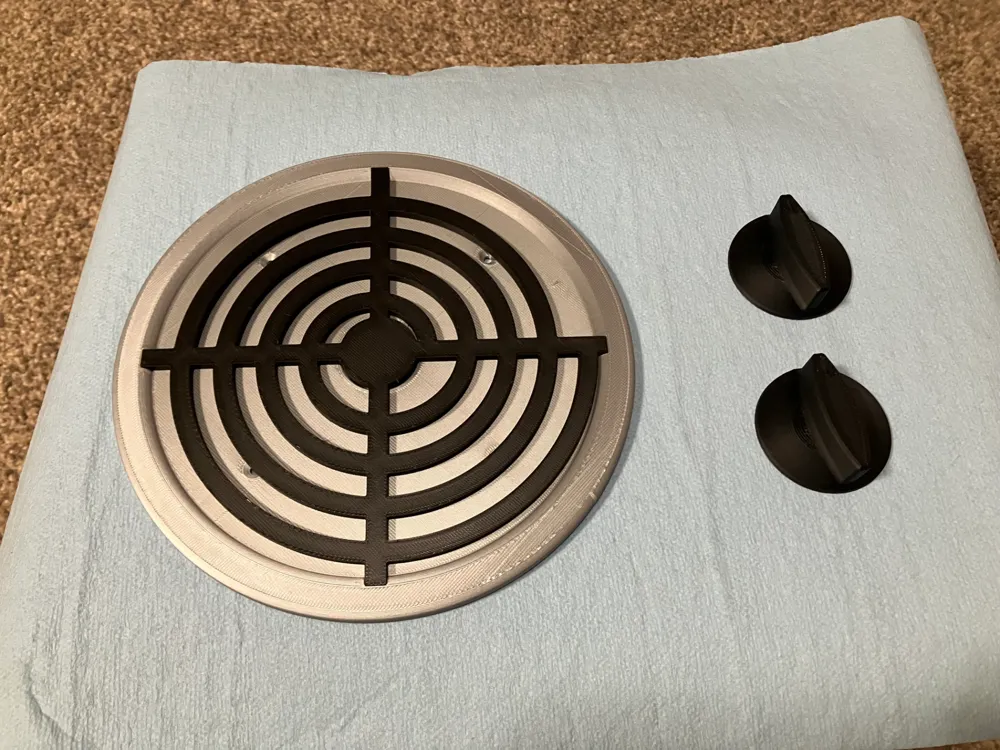

This is a set of a 6" (152.4mm) and 8" (203.2mm) pretend playhouse electric burners (hobs) and reflector/catch pans with clicking knobs. These parts are intended to be mounted on a panel such as a piece of plywood or a thin board (½" or 10mm).
The reflector pans have screw holes for mounting and the burners snap into the reflector pans tightly but can be removed if needed for cleaning or to remove items dropped into the pans.

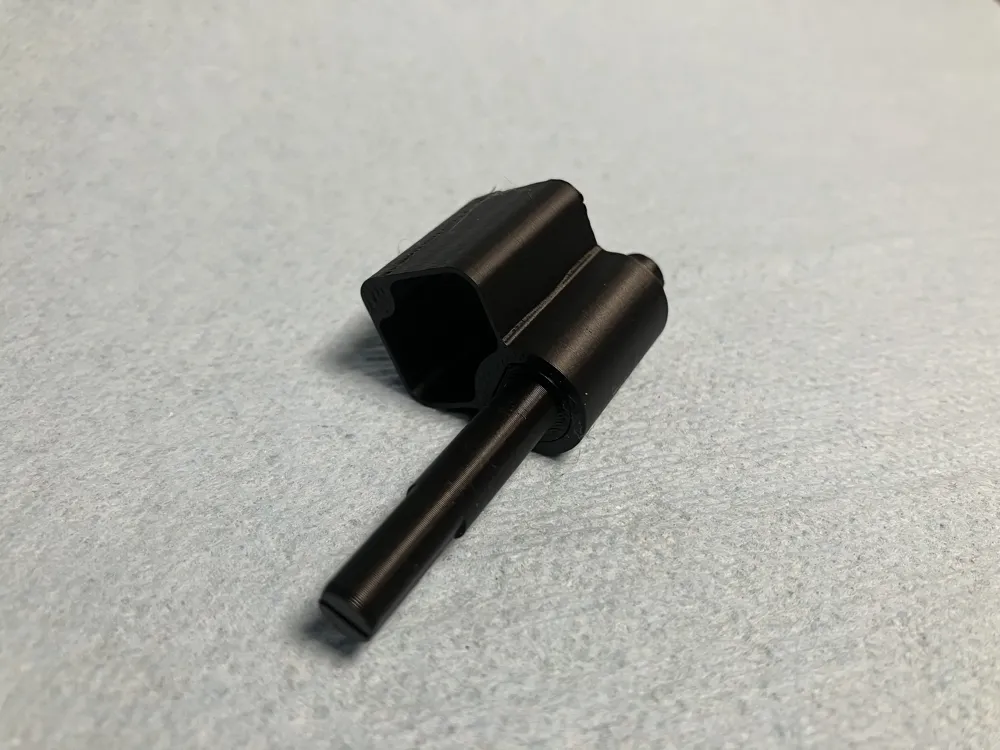

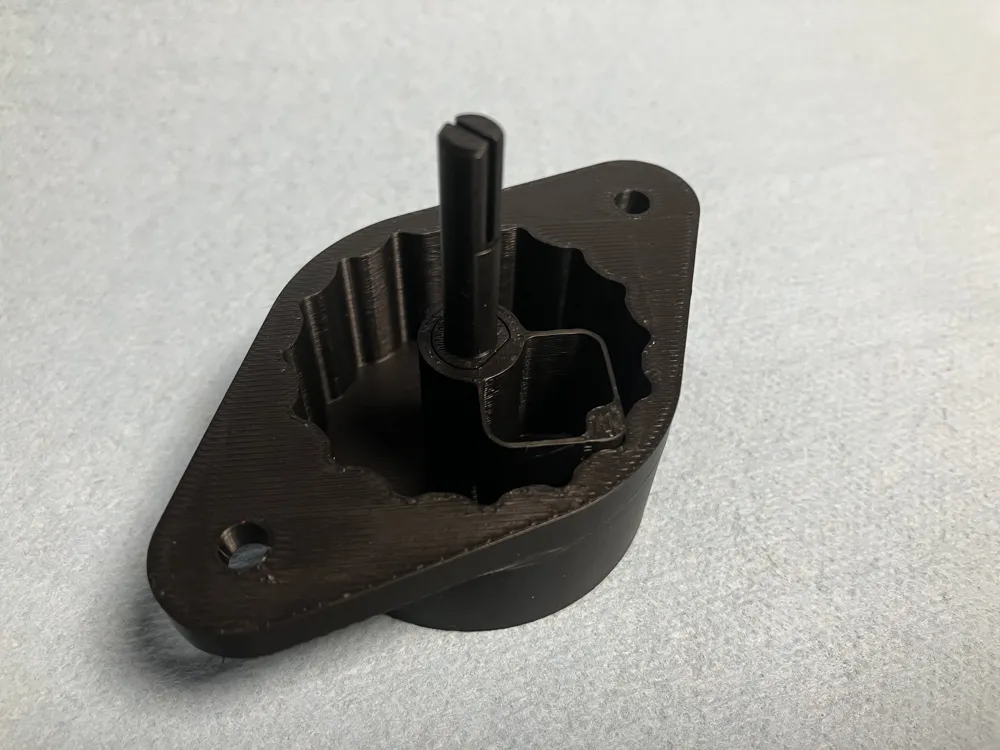

The knobs will need some assembly (very simple, see the images). When mounted, they create a very satisfying click when turned. Your little ones will love them!

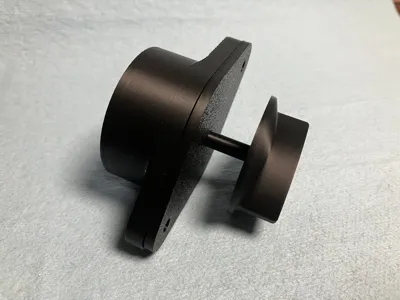

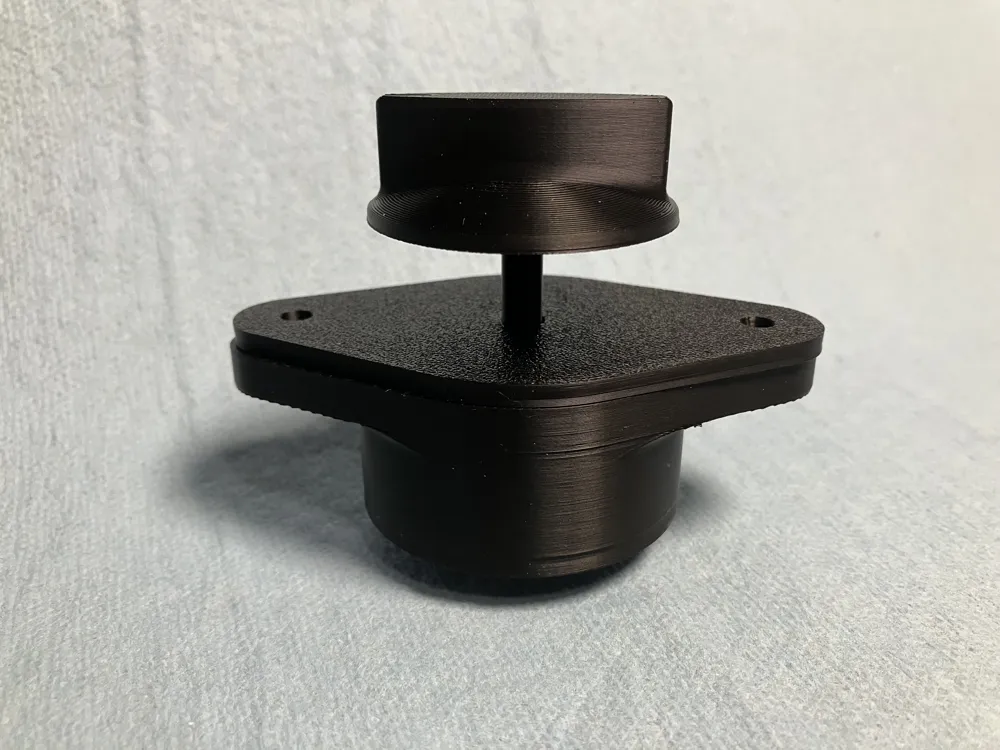

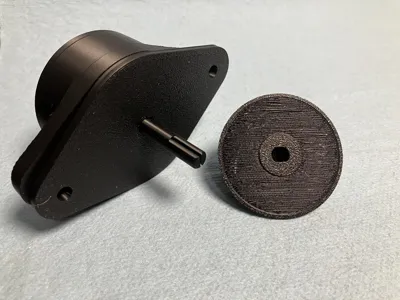

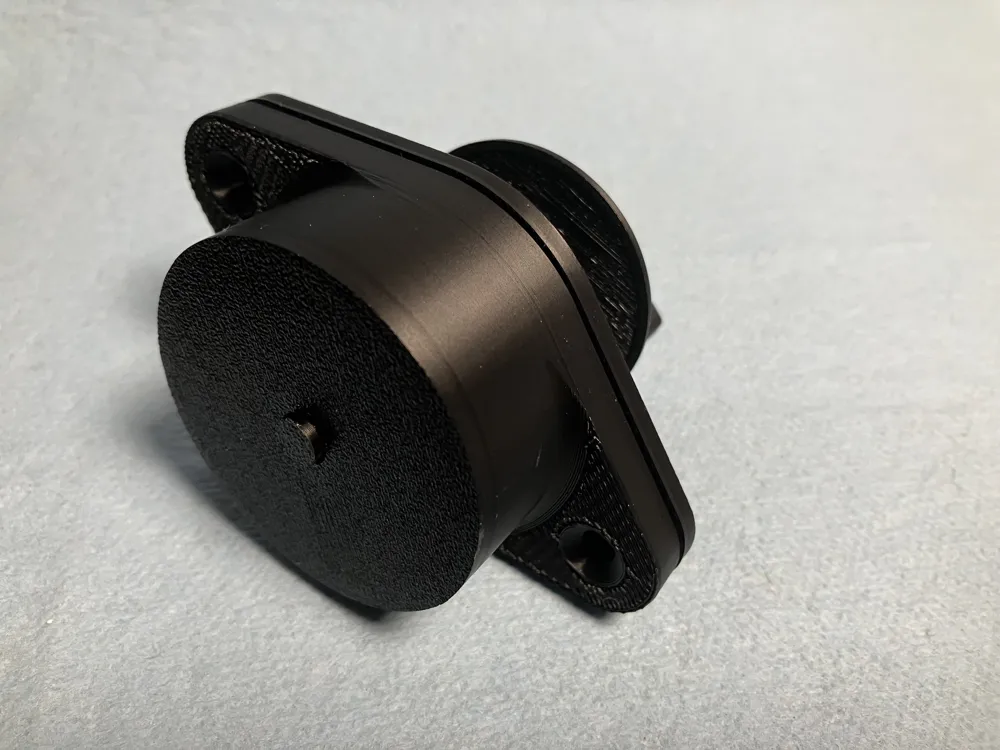

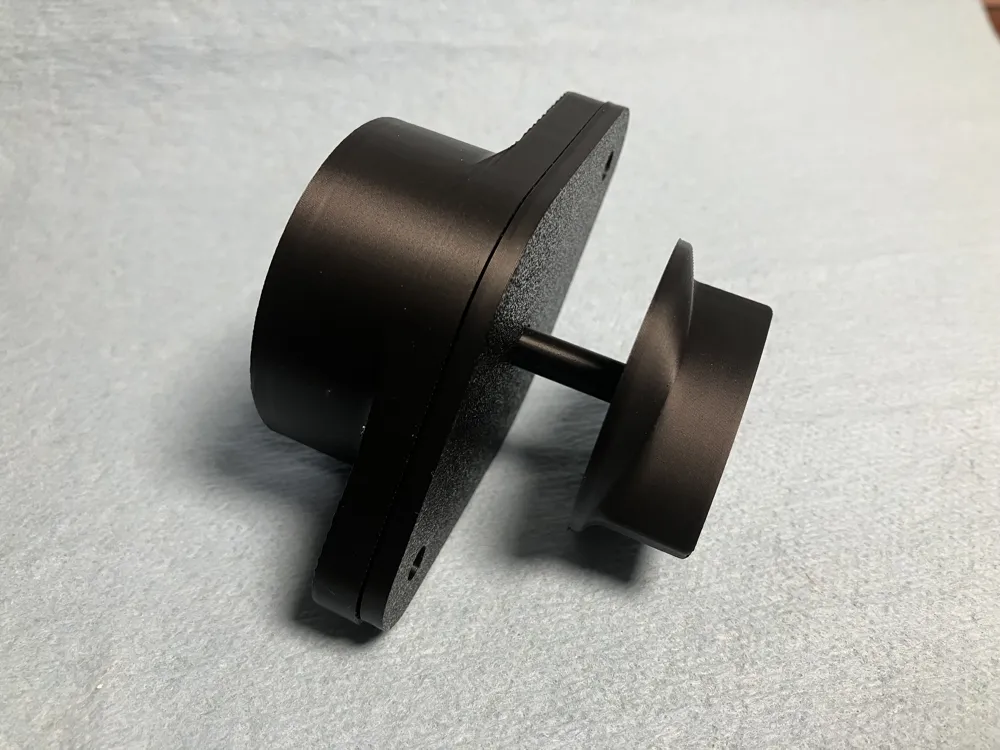

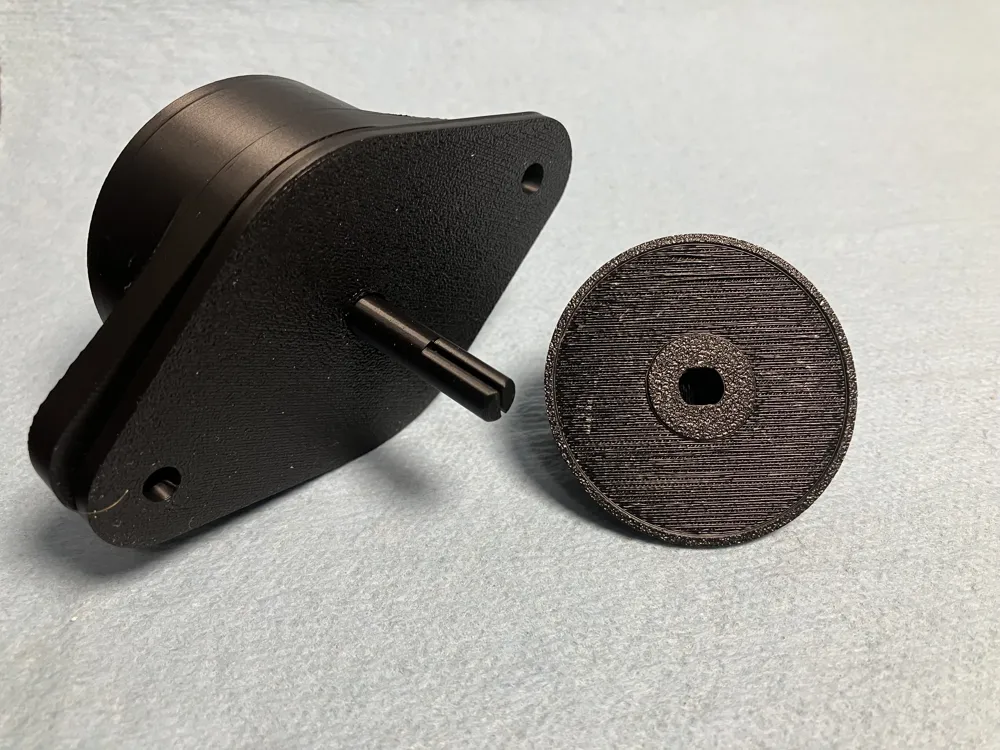

Drill a small hole in the board to put the knob shaft through and mount the knob assembly behind it and push the shaft through. Once assembled, screw them into the back of the board using some small screws (the parts will self-align) while putting the knob shaft through the hole. Once mounted, align the flat spots in hole in the knob with the shaft and gently press it into place.

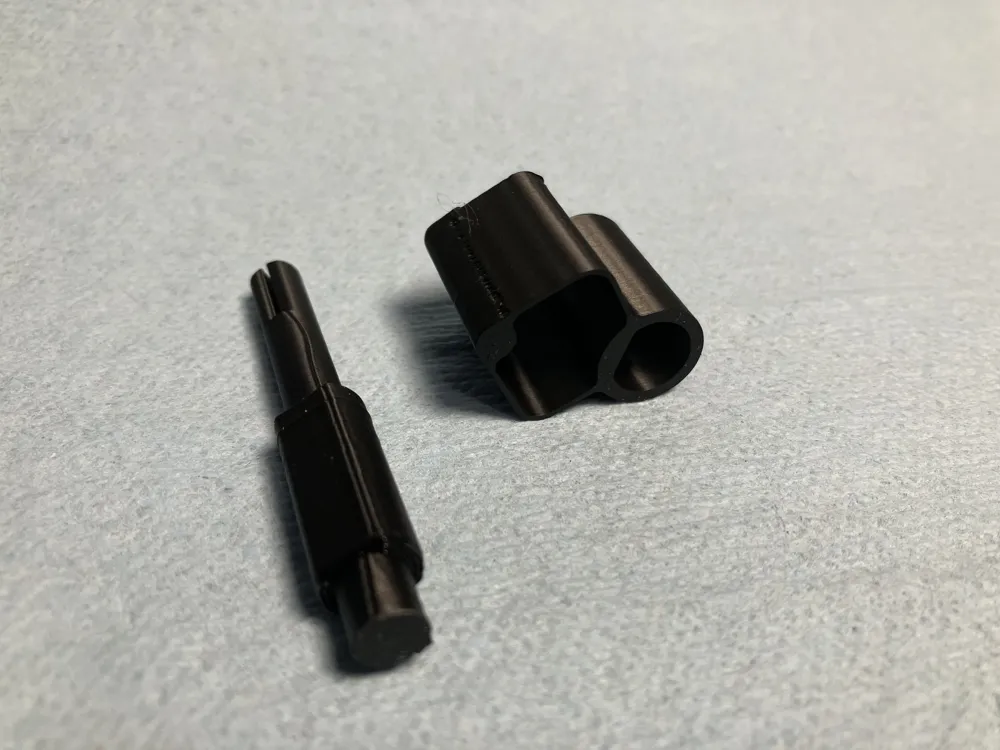

I recommend making the knob shaft and clicker out of a stronger material than PLA as they will see some stress during use. PLA will work, it just may not last as long. Replacing the parts is simple.
