Modular Aquarium Side Filter System - Quadruple Filtration & Top Hydroponic Seedling Box (260x100x300mm)

IP Report
GIF

Print Profile(1)

All
A1
H2D Pro
P2S
H2D
H2C
H2S
X2D
A2L

0.2mm layer, 2 walls, 15% infill
0.2mm layer, 2 walls, 15% infill
Designer
17.8 h
3 plates

Open in Bambu Studio
Boost
27
73
1
0
15
1
Released

Description

Content has been automatically translated.
Show original

📝 Product Description (Description)

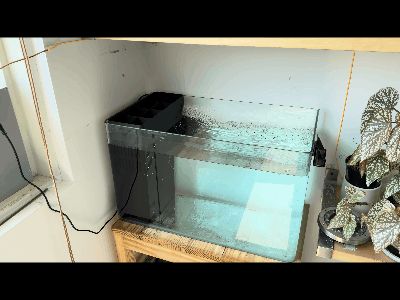

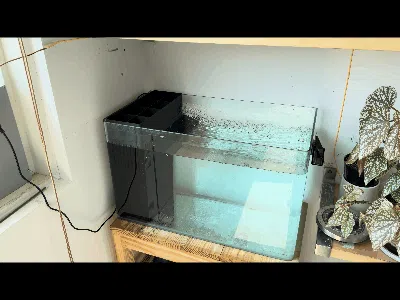

This aquarium side filter is a versatile ecological accessory designed specifically for aquarium enthusiasts. It's not just a filter box; it's a comprehensive ecosystem combining physical filtration, biological filtration, and hydroponic plant cultivation.

It features a split design with three independent filter compartments inside, effectively removing impurities and cultivating nitrifying bacteria. The top's 8-grid seedling slot design allows you to grow plants like Pothos and Pennywort while filtering, which is both aesthetically pleasing and helps absorb nitrates from the water.

✨ Design Highlights (Features)

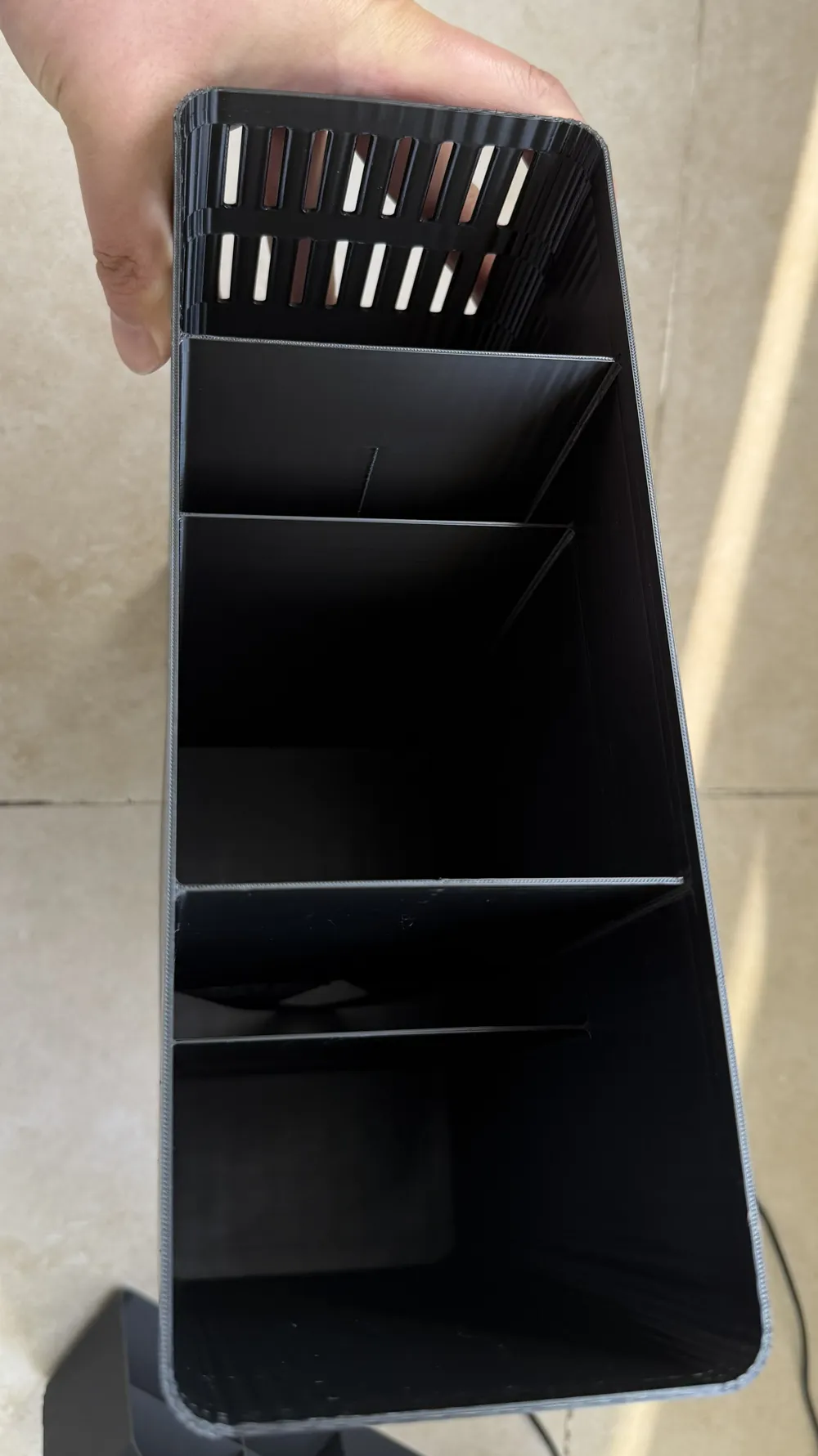

  • Quadruple Filtration System: Internal dividers section the space into five independent areas, allowing you to sequentially place filter floss (physical interception), bio-balls/ceramic rings (biological decomposition), and activated carbon (chemical adsorption) to purify water layer by layer.

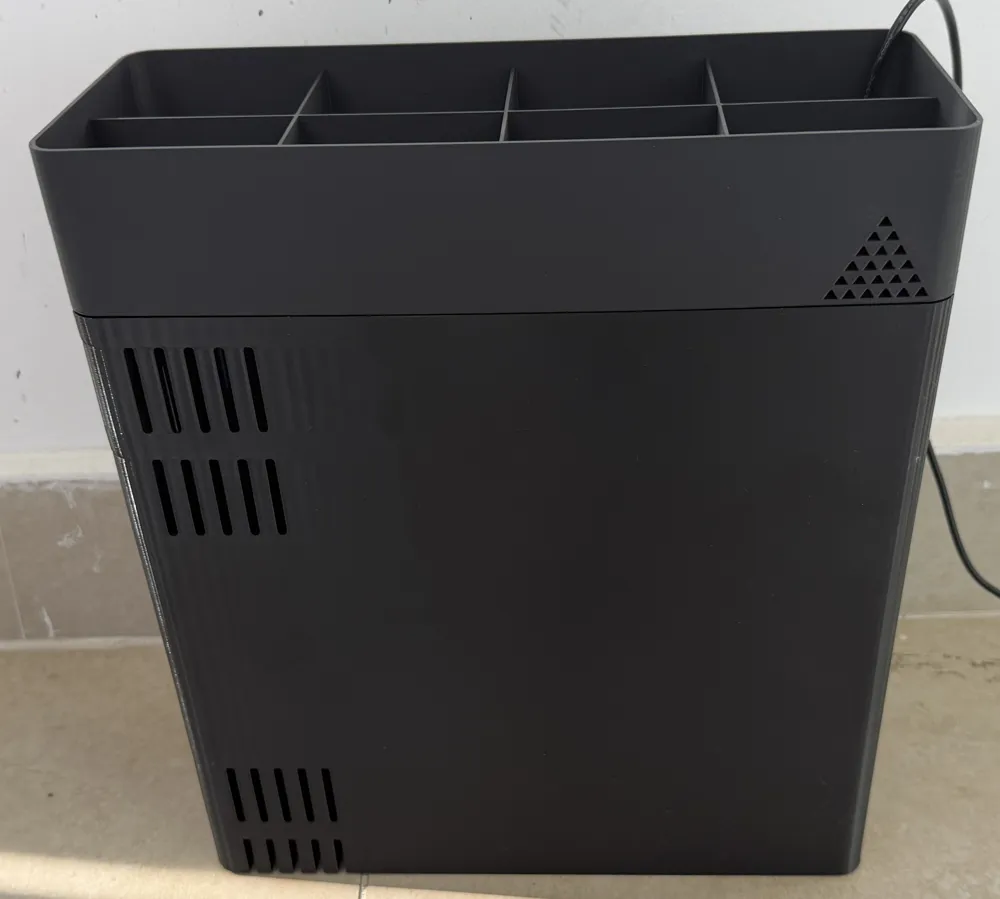

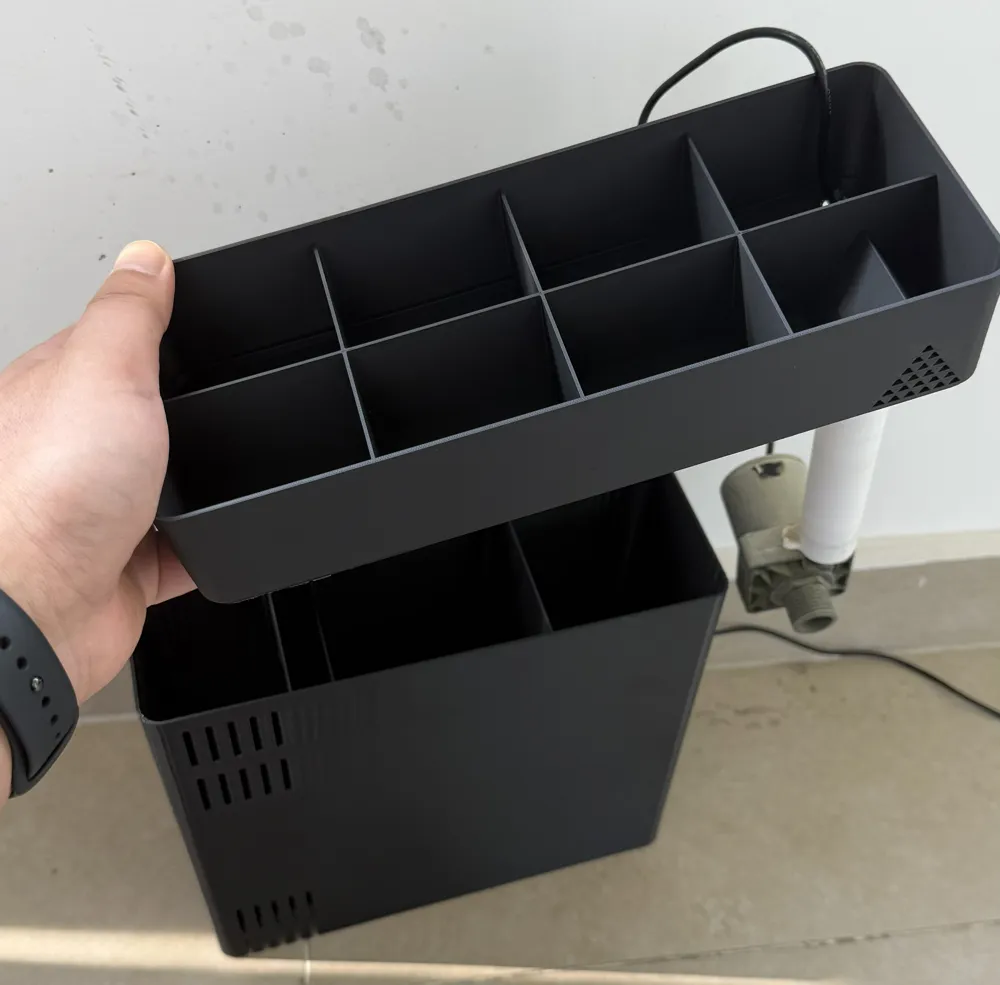

  • Top 8-Grid Seedling Slots: The unique top design reserves 8 planting positions, ideal for hydroponic plants. Plant roots can extend into the water to absorb nutrients, creating a miniature "aquaponics" system.
  • Convenient Water Pump Connection: The side has a reserved standard 1/2-inch pipe interface position, allowing direct connection to a water pump hose to return purified water to the aquarium, ensuring easy installation and smooth water flow.
  • Side Flow Channel Design: The side wall features a flow guide grille, ensuring water flows evenly through each filter media layer, preventing short circuits and improving filtration efficiency.

📏 Model Specifications (Specifications)

  • Overall Dimensions: 260mm (Length) × 100mm (Width) × 300mm (Height)
  • Interface Specification: Compatible with 1/2-inch water pipe interface (external thread)
  • Planting Positions: Top 8 independent seedling compartments
  • Applicable Scene: Home aquarium side filtration
