150mm hose adapter + h2 series Exhaust adapter

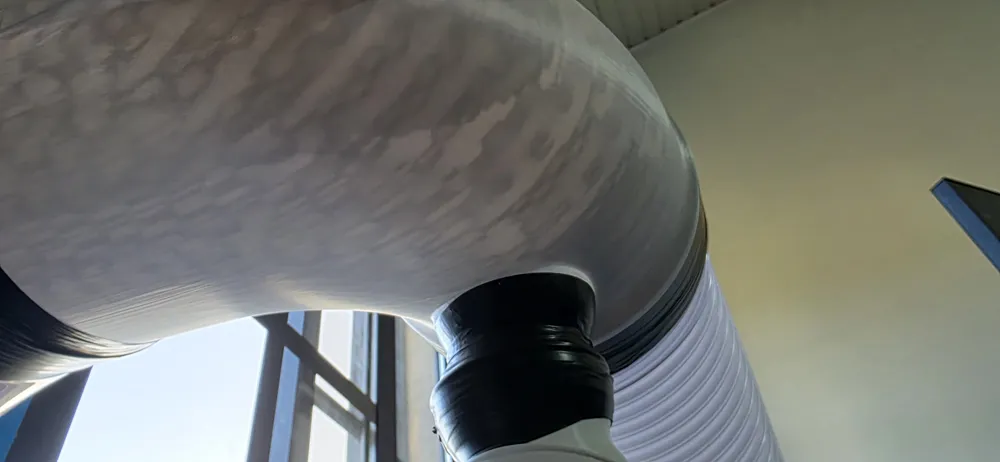

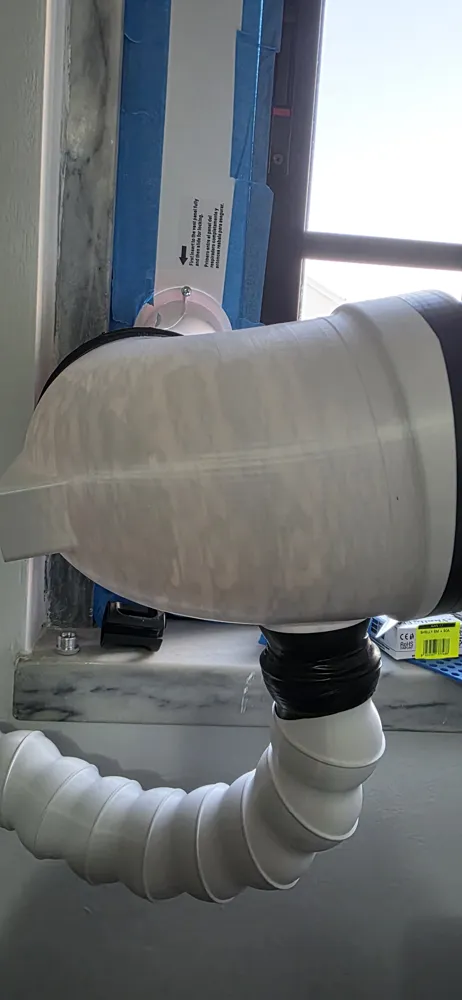

This adapter was specifically designed to bridge the gap between the Bambu Lab H-Series exhaust system and a standard 150mm air conditioning hose.

It is the perfect solution for users who need to vent fumes and particles directly outside, ensuring a cleaner and safer workspace, especially when printing technical materials like ABS or ASA.

Key Features:

• Seamless Compatibility: Connects the printer's exhaust outlet (H2 Series) to large-format 150mm tubing, commonly found in HVAC and AC systems.
• Internal Deflector ("Moon" Piece): The model includes a small, crescent-shaped part. This component is crucial as it directs the air coming out of the printer, ensuring it is efficiently funneled into the 150mm hose to be expelled outdoors without creating unnecessary turbulence.

Assembly & Installation:

• Glue Required: For optimal performance and to prevent air leaks (which would compromise odor extraction), it is necessary to use glue on the joints between the printed parts and at the contact points with the hose.

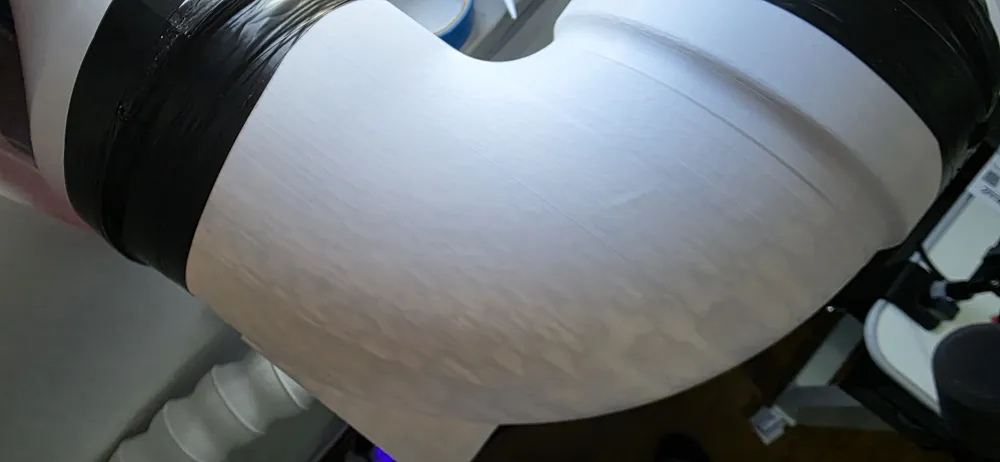

• Airtight Seal: For the best results, we recommend using duct tape or aluminum foil tape at the connection points to ensure a long-term, hermetic seal.

Get the Full System:

If you haven't printed the printer-side port yet, you can find the base exhaust system that integrates with this adapter here: H2 Series Exhaust Port Tube (MakerWorld)
