Bike U-Lock Holder (V1)

Bike U-Lock Holder (V1)

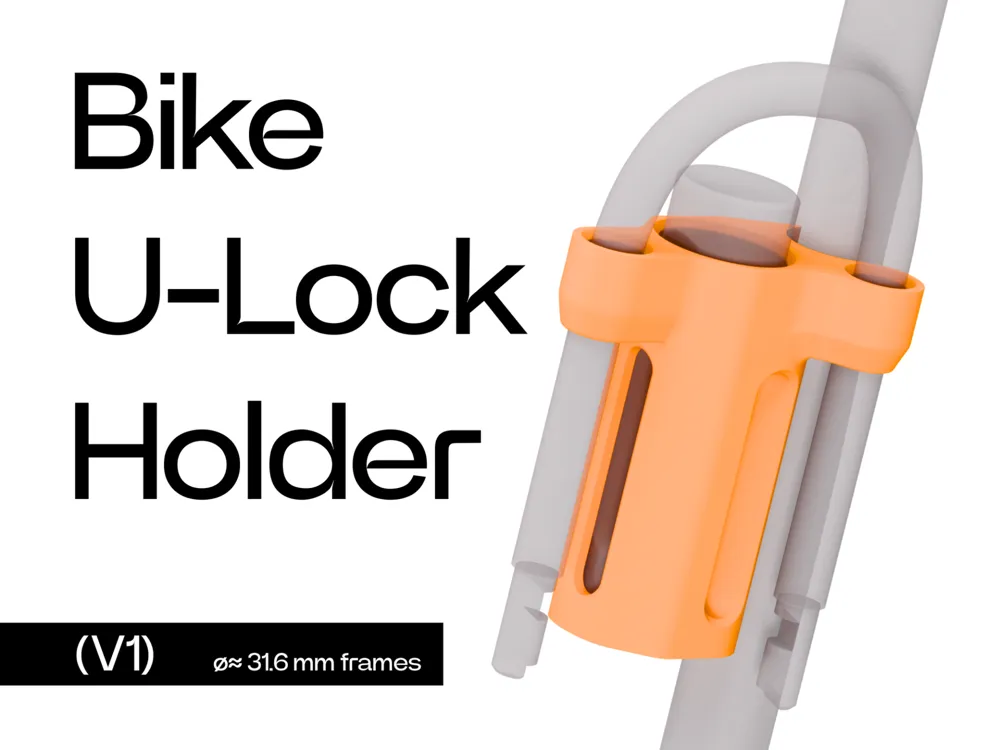

This U-lock holder is designed to make use of the standard bottle cage mounting points on your bike frame, allowing you to securely carry your lock without additional brackets or adapters, while also reducing the typical rattling noise between the shackle and lock body common in standard mounts.

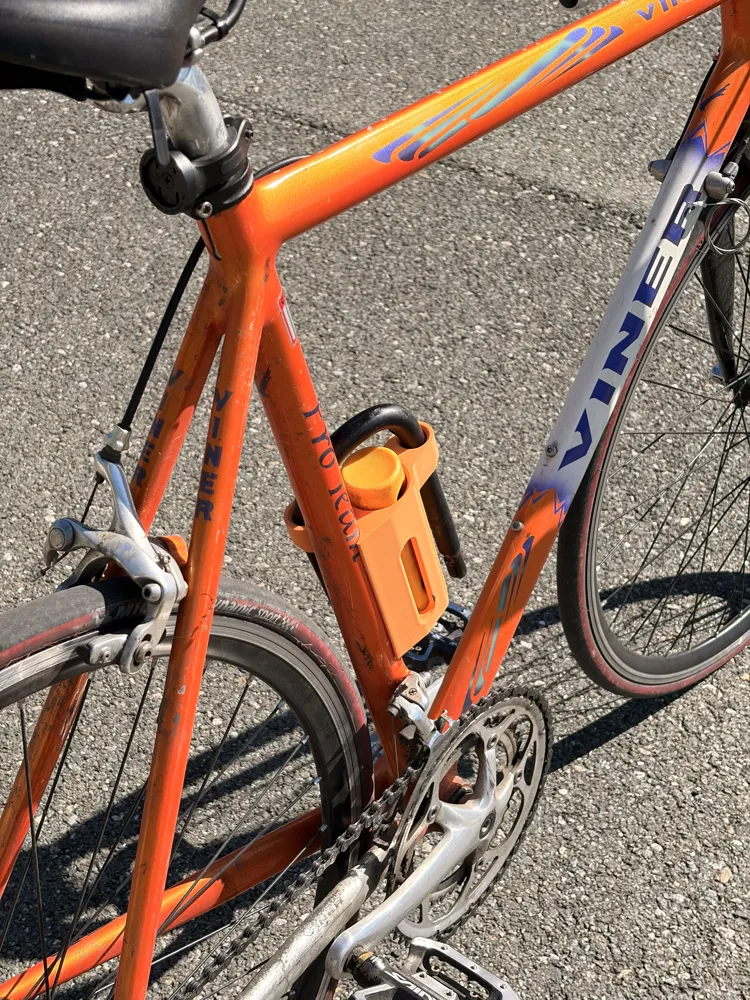

The design is intended for installation on the seat tube area (around 31.6 mm diameter) and is optimized for Decathlon U-locks.

The mounting interface follows common bicycle standards:

• M5 screws (standard bottle cage bolts)
• ~64 mm mounting distance, with ±6 mm vertical adjustment thanks to slotted holes


Instructions

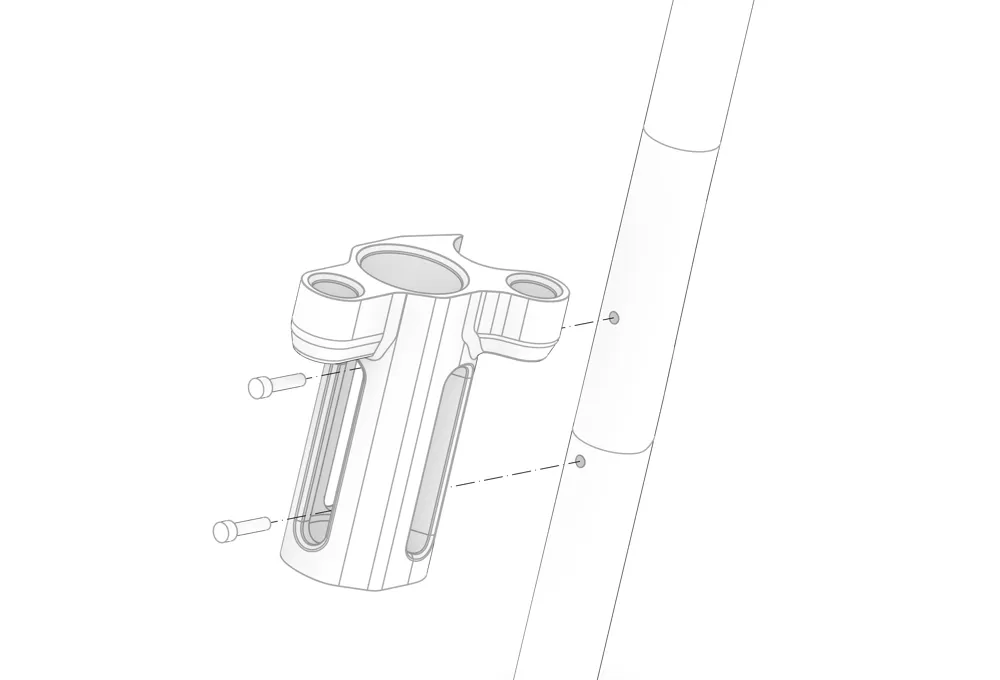

Mounting

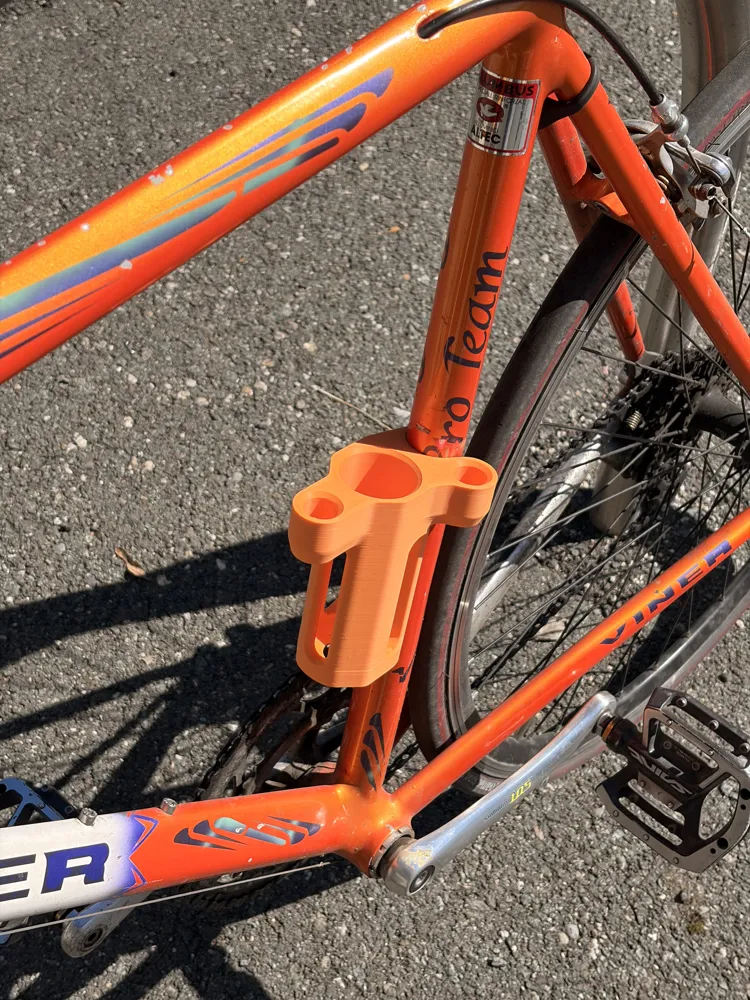

• Position the holder on the bottle cage mounting points (seat tube area)
• Align the slotted holes with the frame inserts
• Use x 2 standard M5x~20 bottle cage screws to fix the holder
• Tighten securely, but avoid overtightening

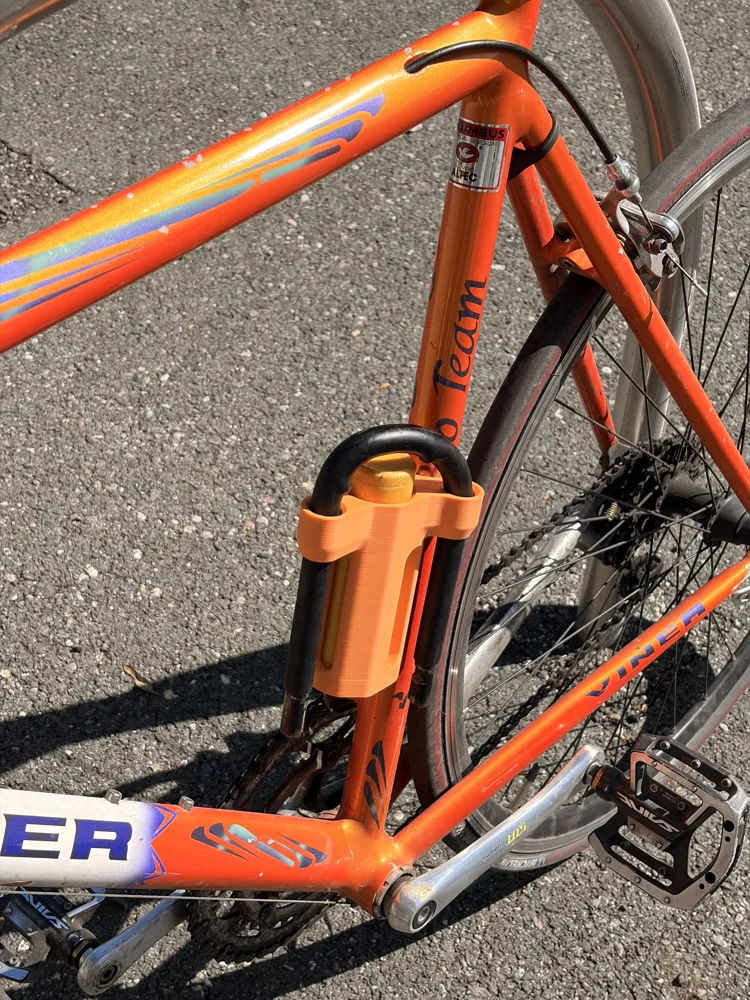

Usage

• Insert the lock body first into the holder
• Then insert the U-shackle to complete the lock


Print Notes

• Material: PLA (tested with Bambu Lab PLA Matte)
• The model prints well without major issues
• A small amount of stringing may occur in the upper closure of the lower conical section (due to a short unsupported span), but it does not affect functionality


Open Design

I have included the original .stp file to keep this project open and accessible.

• Want to modify it? If you adapt the geometry for different frame diameters or other lock models, please upload your variant as a Remix here on Makerworld so the whole community can benefit.

• Optimized print settings? If you tweak the slicing parameters or test different materials (like PETG or TPU), feel free to share your custom Print Profile.



About this project

This is my first project shared here, and this is just a V1.

I’m already planning future versions compatible with a wider range of locks and frame types. If you have suggestions, improvements, or specific U-locks you’d like this to support, feel free to share your feedback, it’s very welcome and helps guide future iterations.
