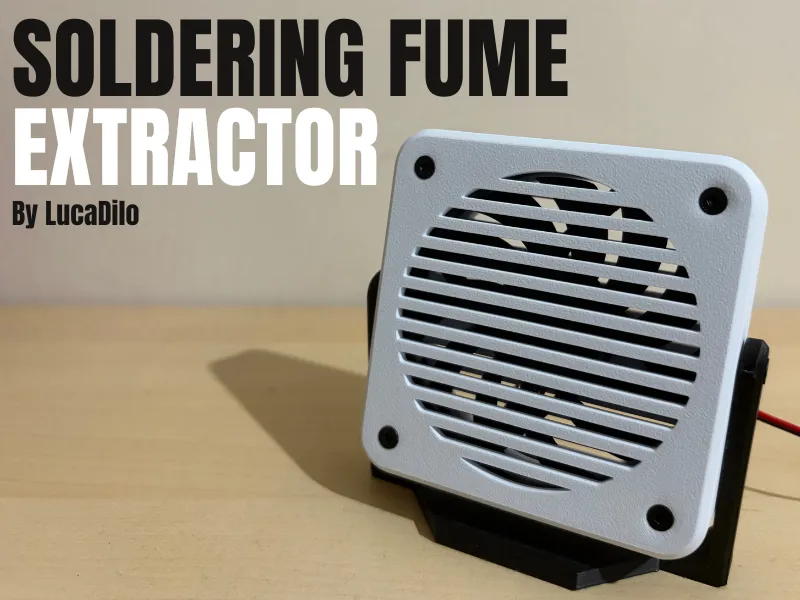

Soldering Fume Extractor – 80mm PC Fan Case
A compact enclosure designed to hold a standard 80mm PC fan for use as a soldering fume extractor. Simply mount your fan inside, connect it to a 12V/5V power supply (or USB step-up module), and point it away from your face while soldering — keeping tin flux fumes safely away from you.

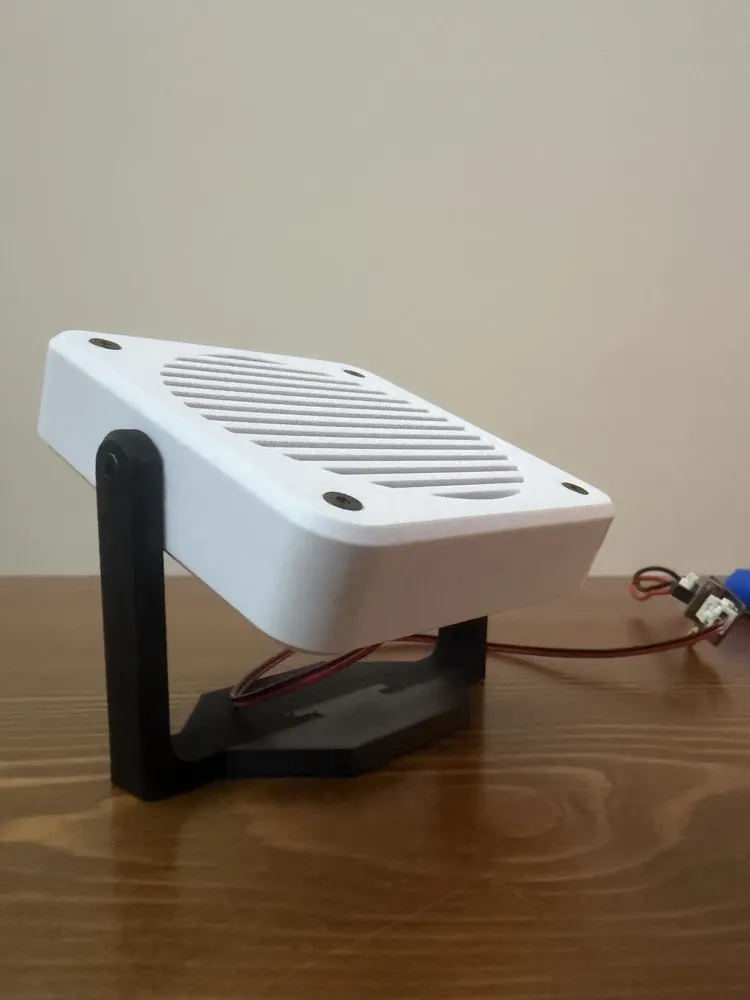

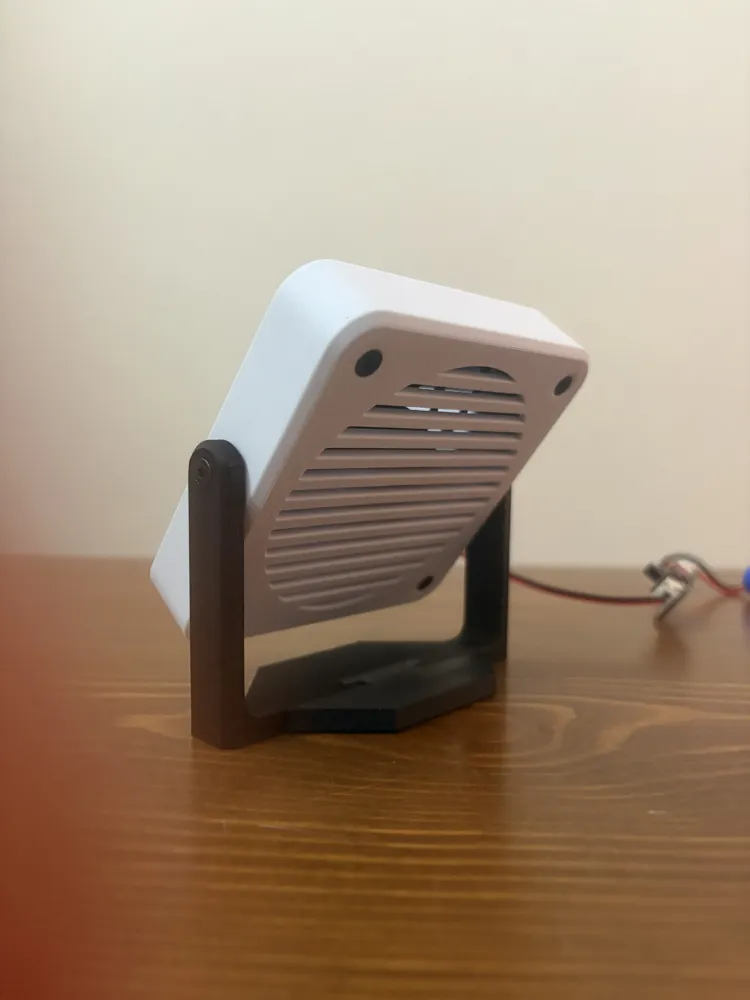

The case features a front grille, four corner screw holes (M3), and a small rear bracket/stand that angles the unit for comfortable desktop use. Designed to be printed without supports on most FDM printers.
WHAT DO YOU NEED (BOM)
- 1× 80mm PC fan (12V/5V) → Link 1 or Link 2
- 4× M3 screws (20mm/25mm) and 2x M3 screws (10mm) → M3 Screws Kit Link

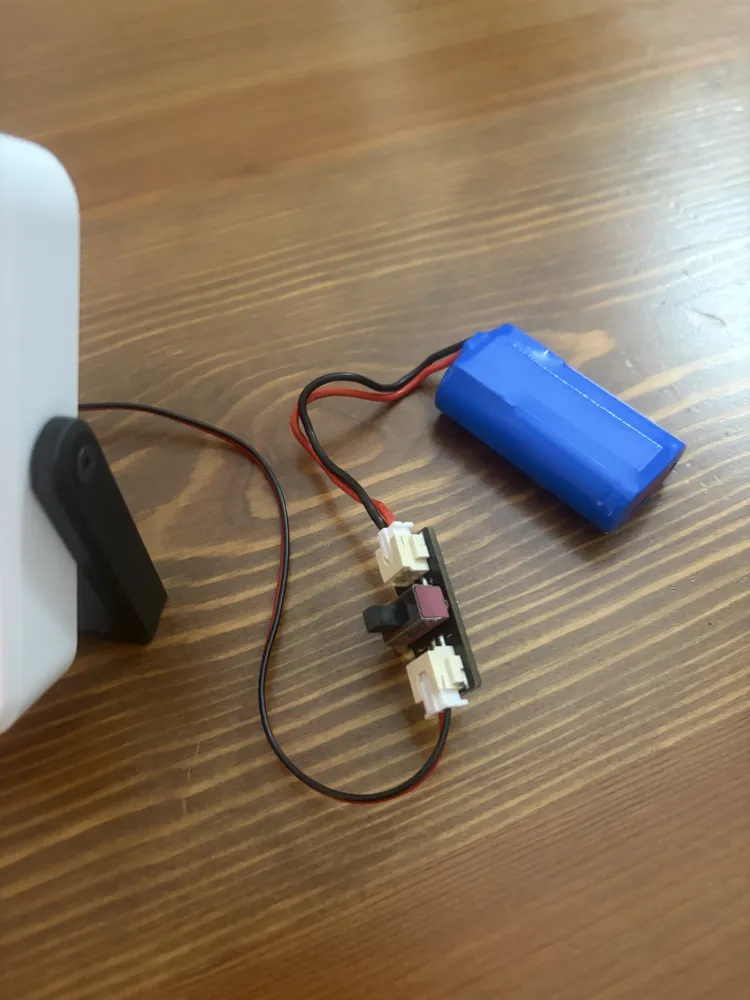

- 1x 12V/5V power supply → I have used the bambu battery with power switch Link and Link but you can use what you want.
Boost Me (for free)
Support me by leave a boost 🚀
BUILD TUTORIAL
Below you'll find the step by step guide to assemble the project.

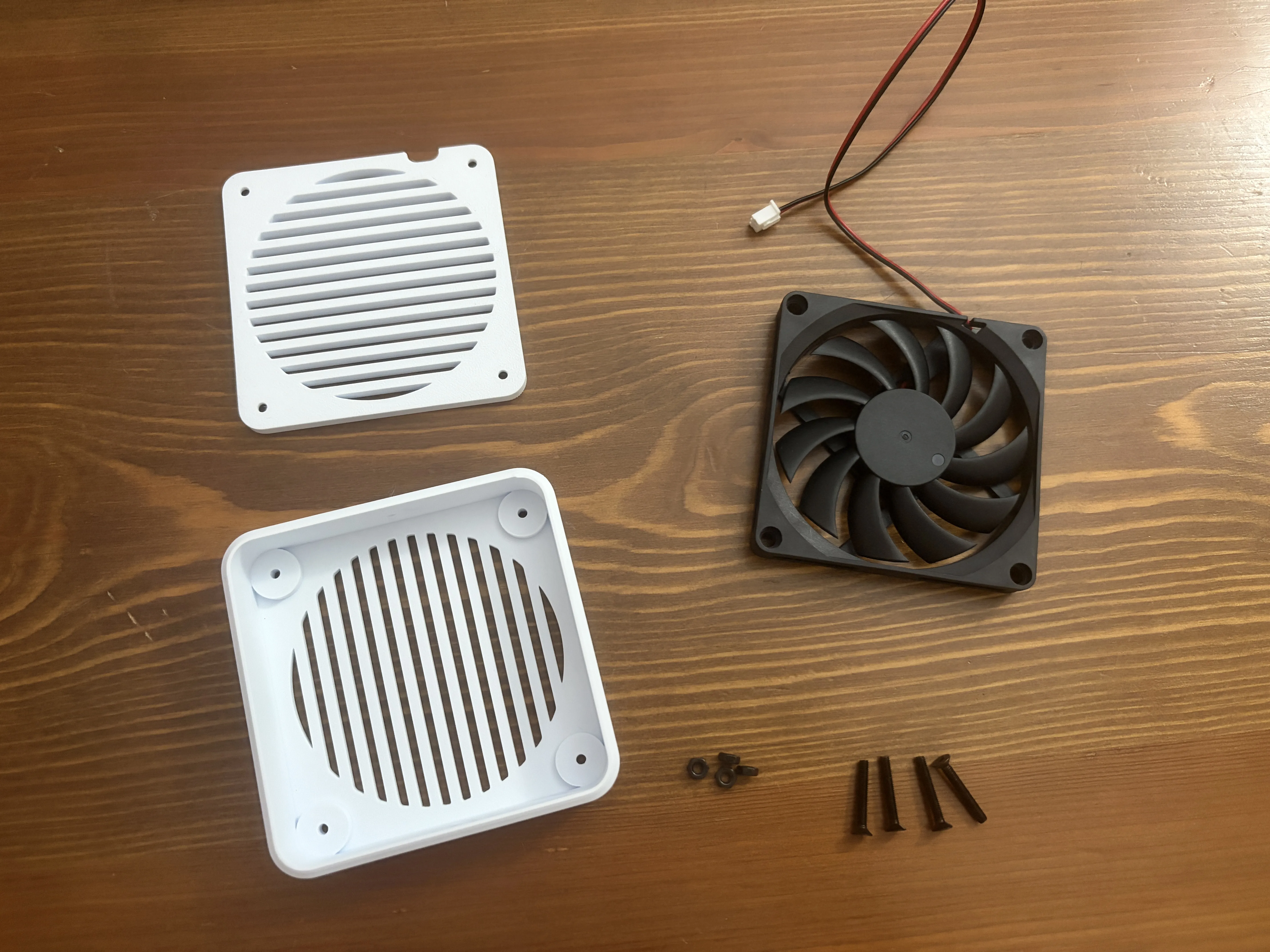

prepare the fan, 3d printed bodies for the fan and the long screws and nuts |  |

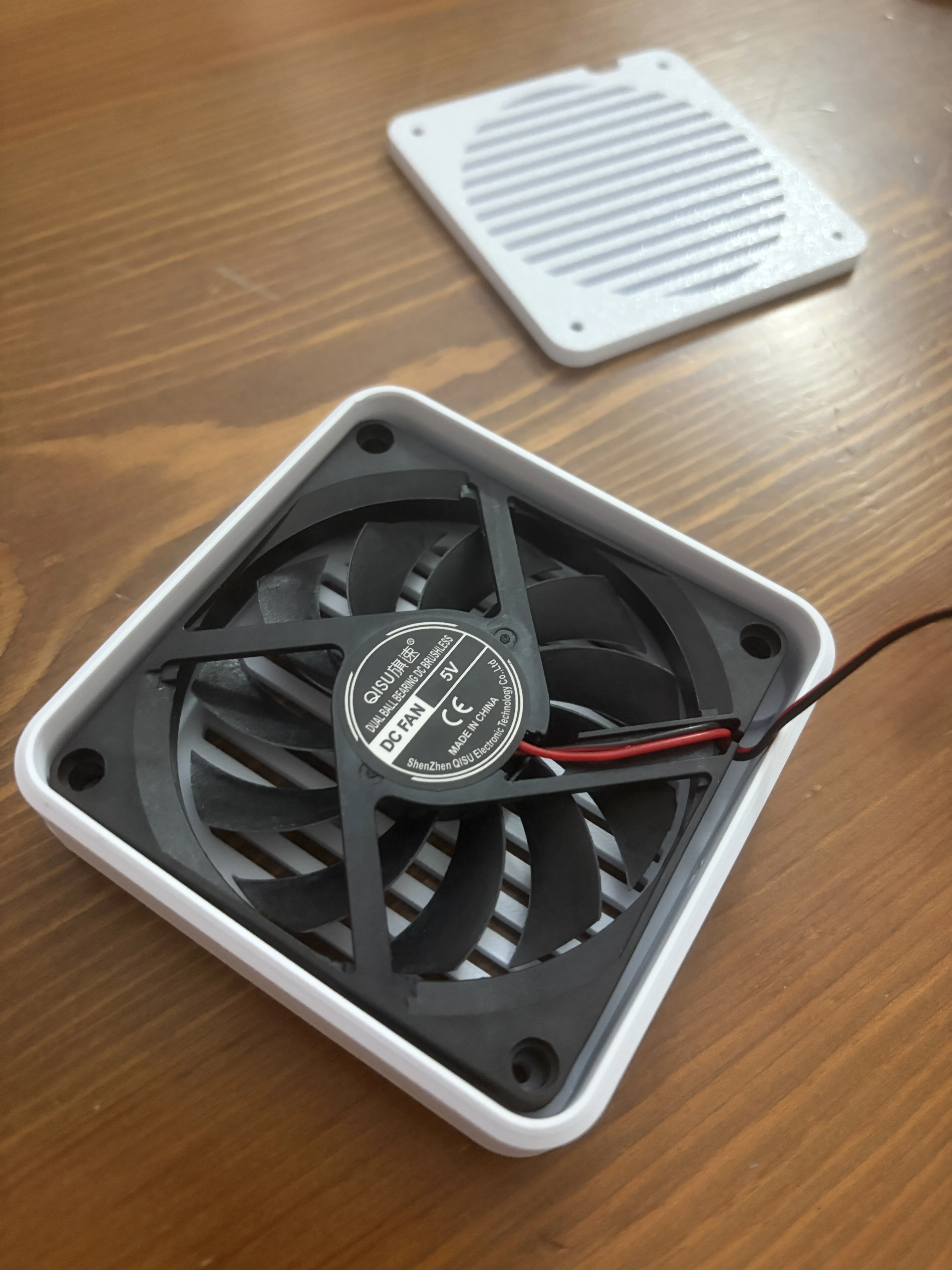

place the fan inside the main case with the sticker side up |  |
place the back cover on top of the fan. let fan cables pass inside the hole of the back cover. |  |

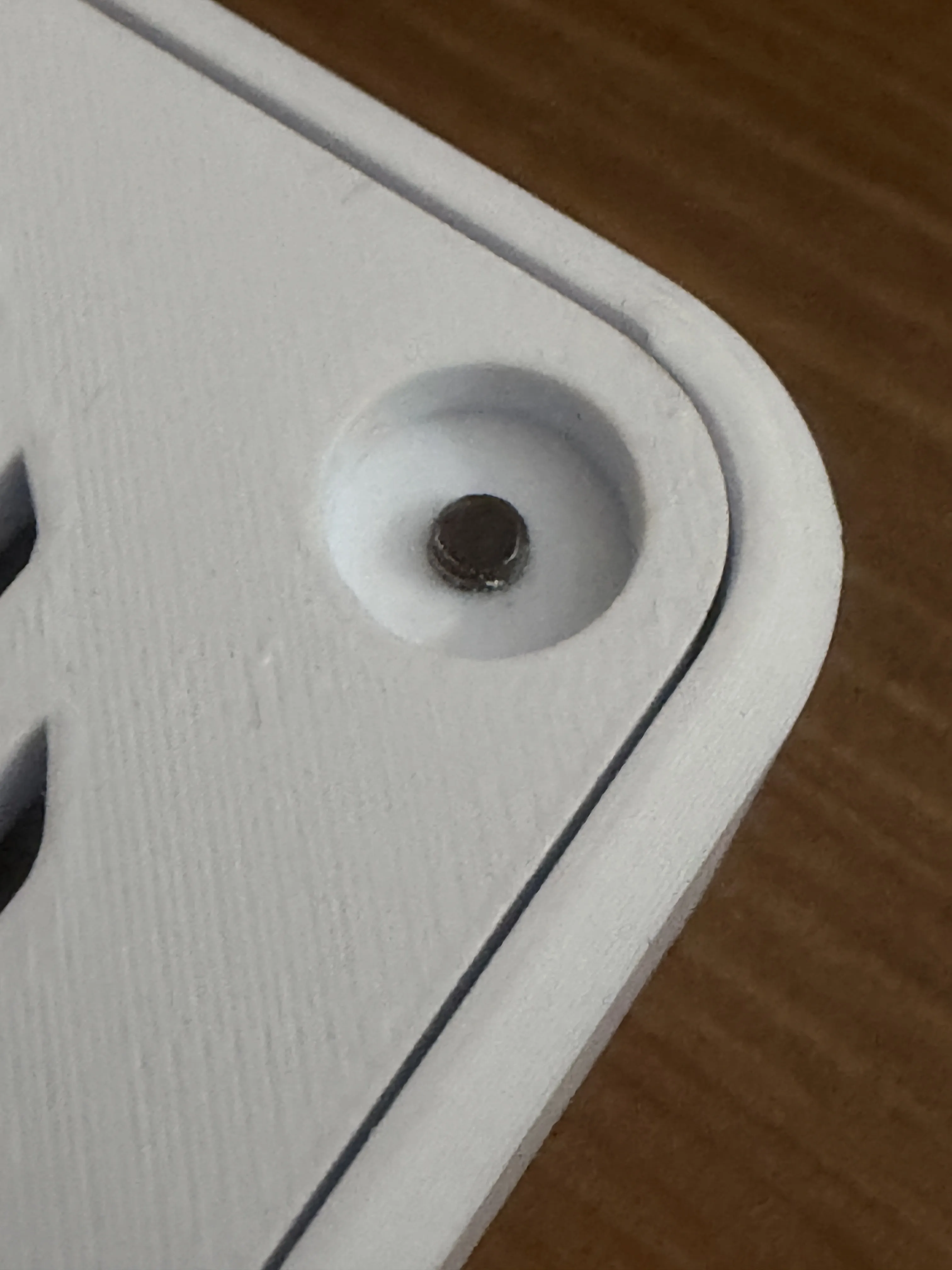

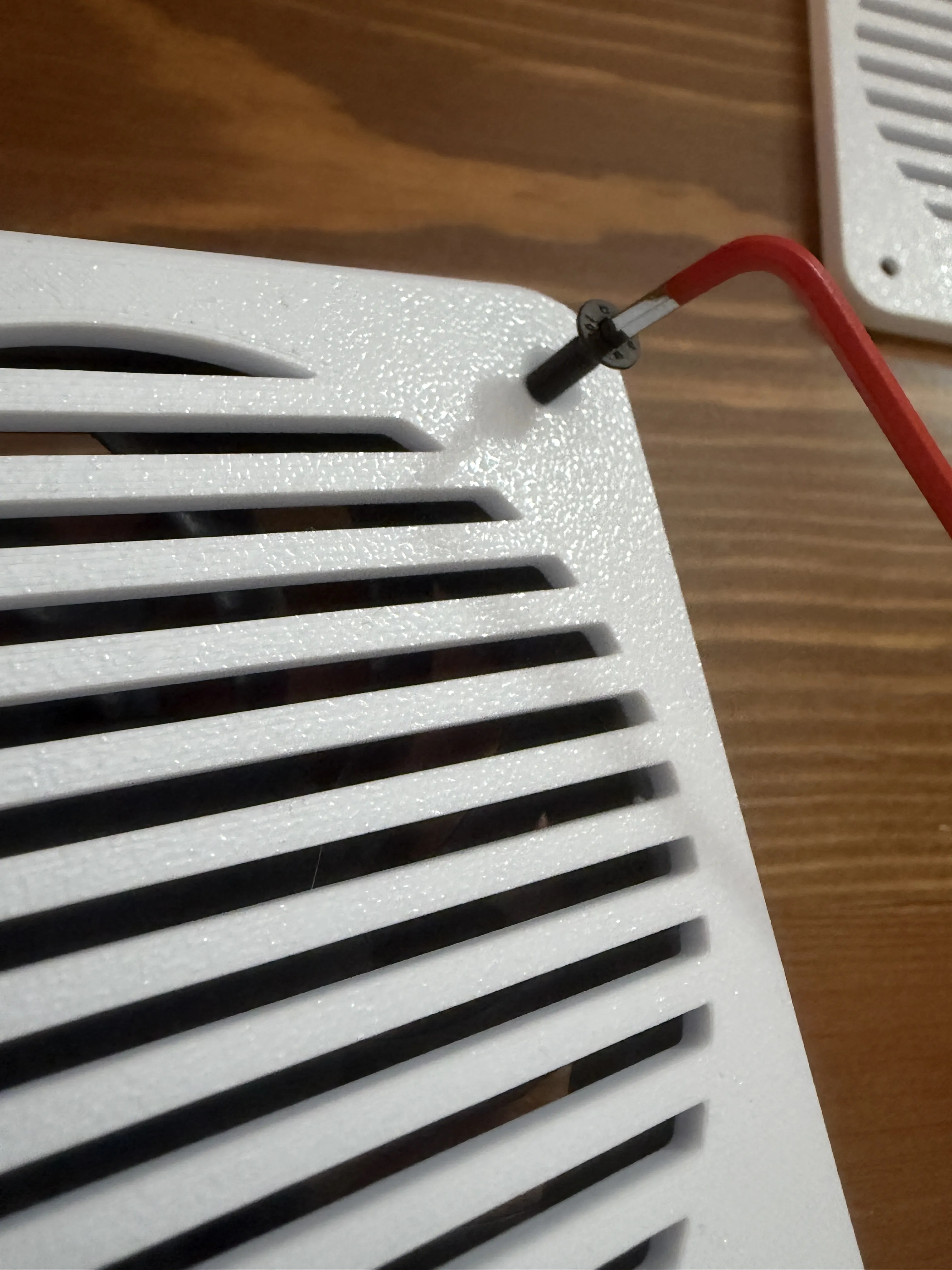

use the M3 long screw to block the fan inside the main body (from the main body side) |  |

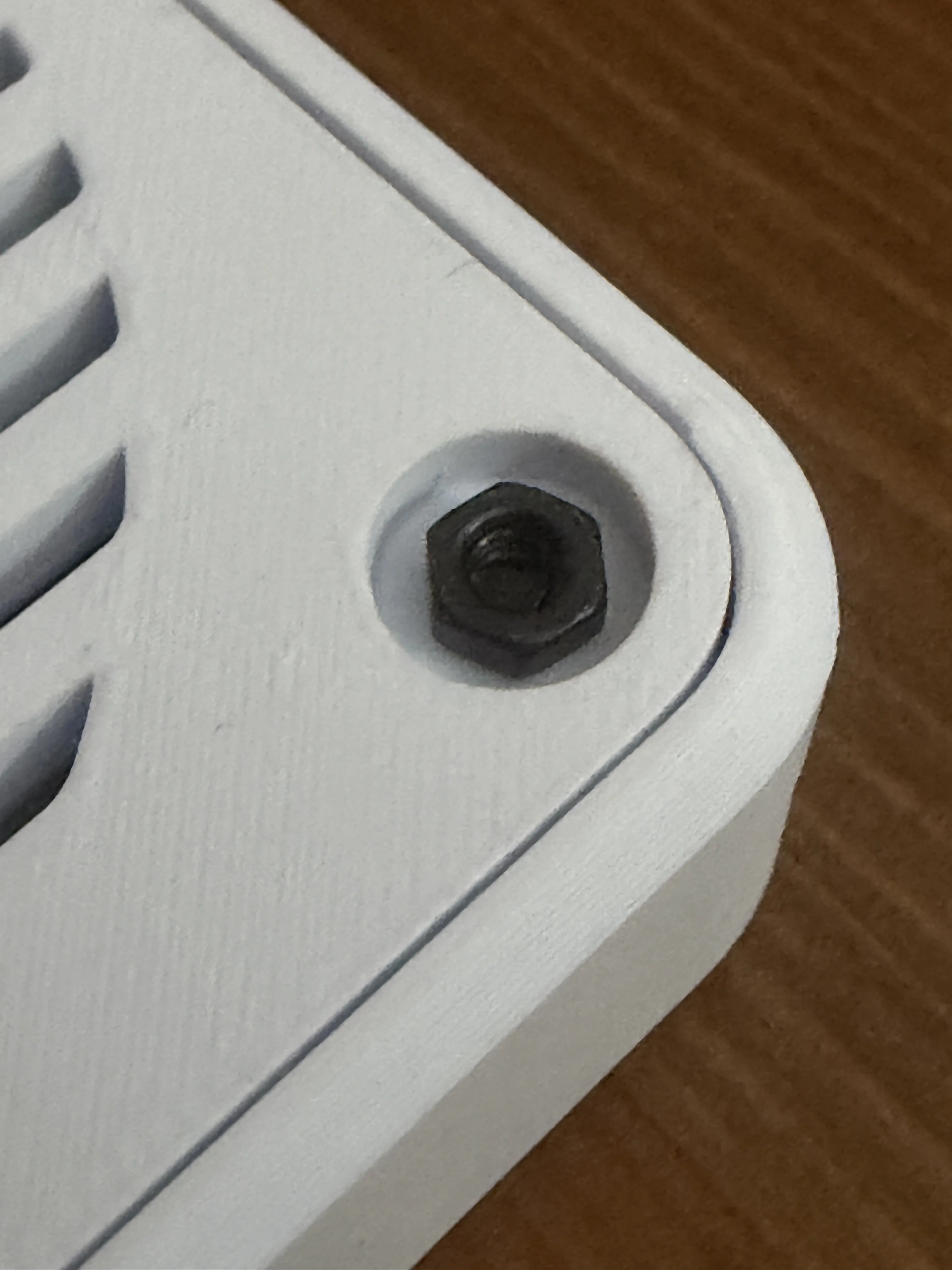

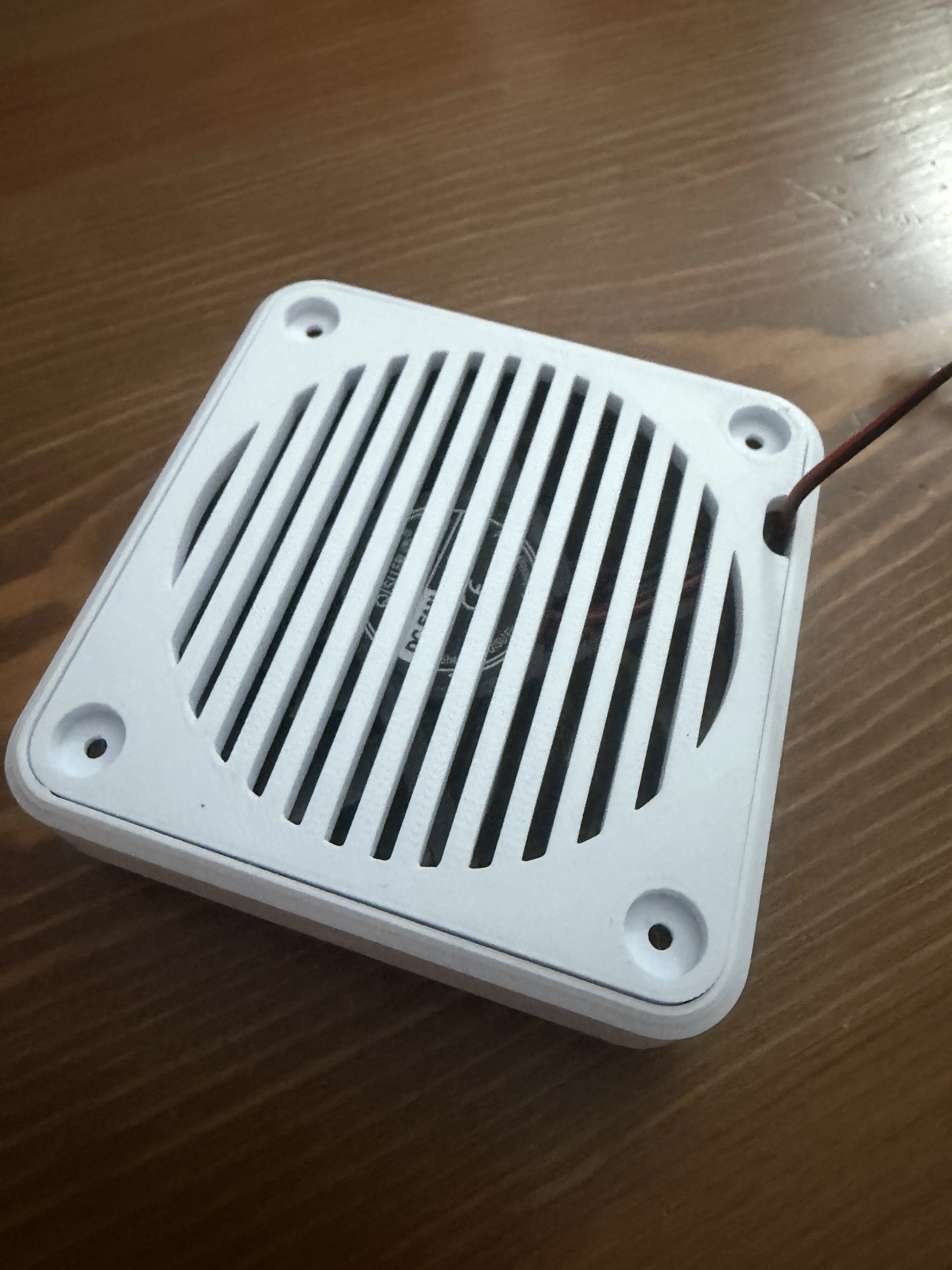

use nuts to secure the back cover |   |

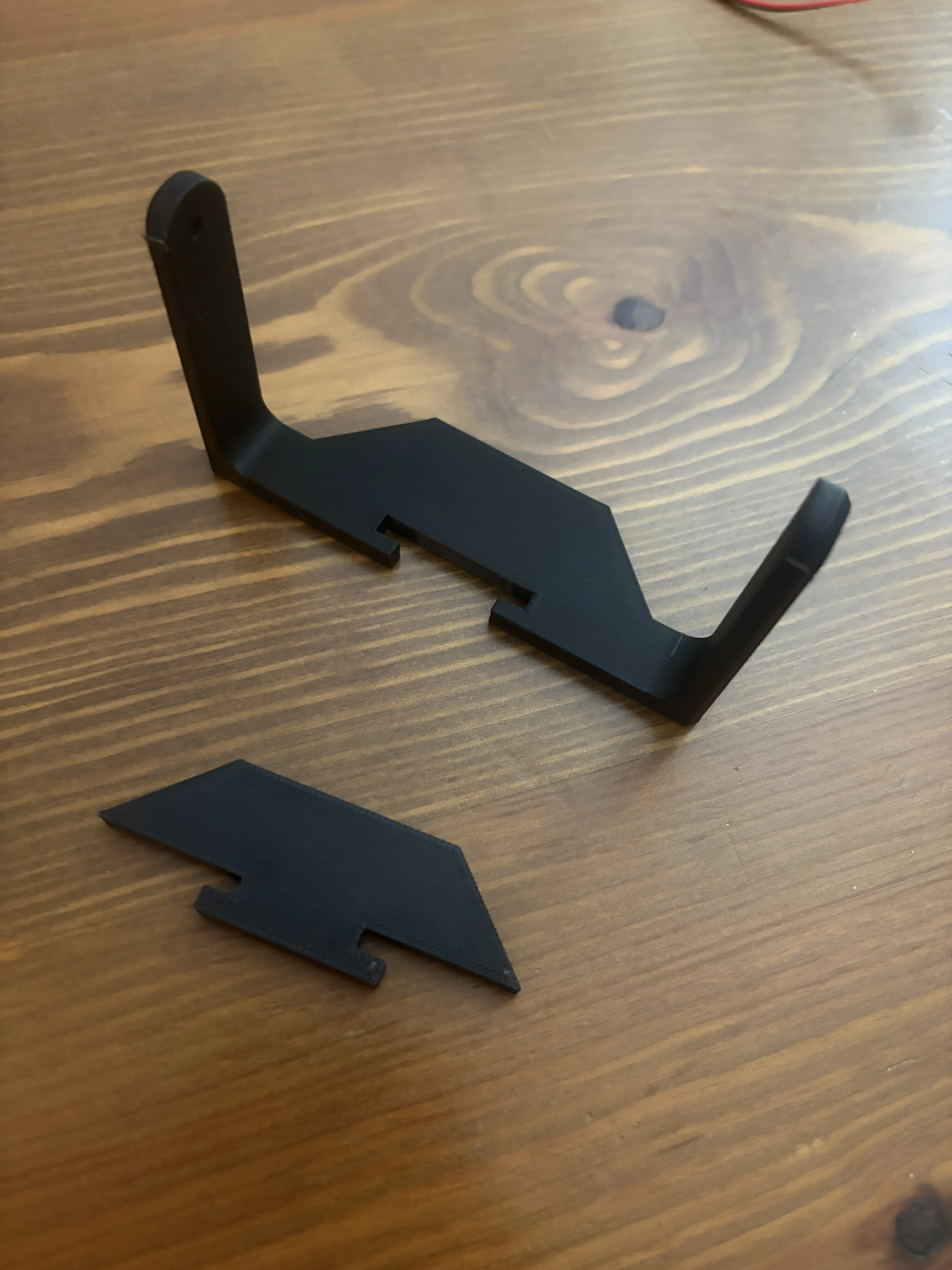

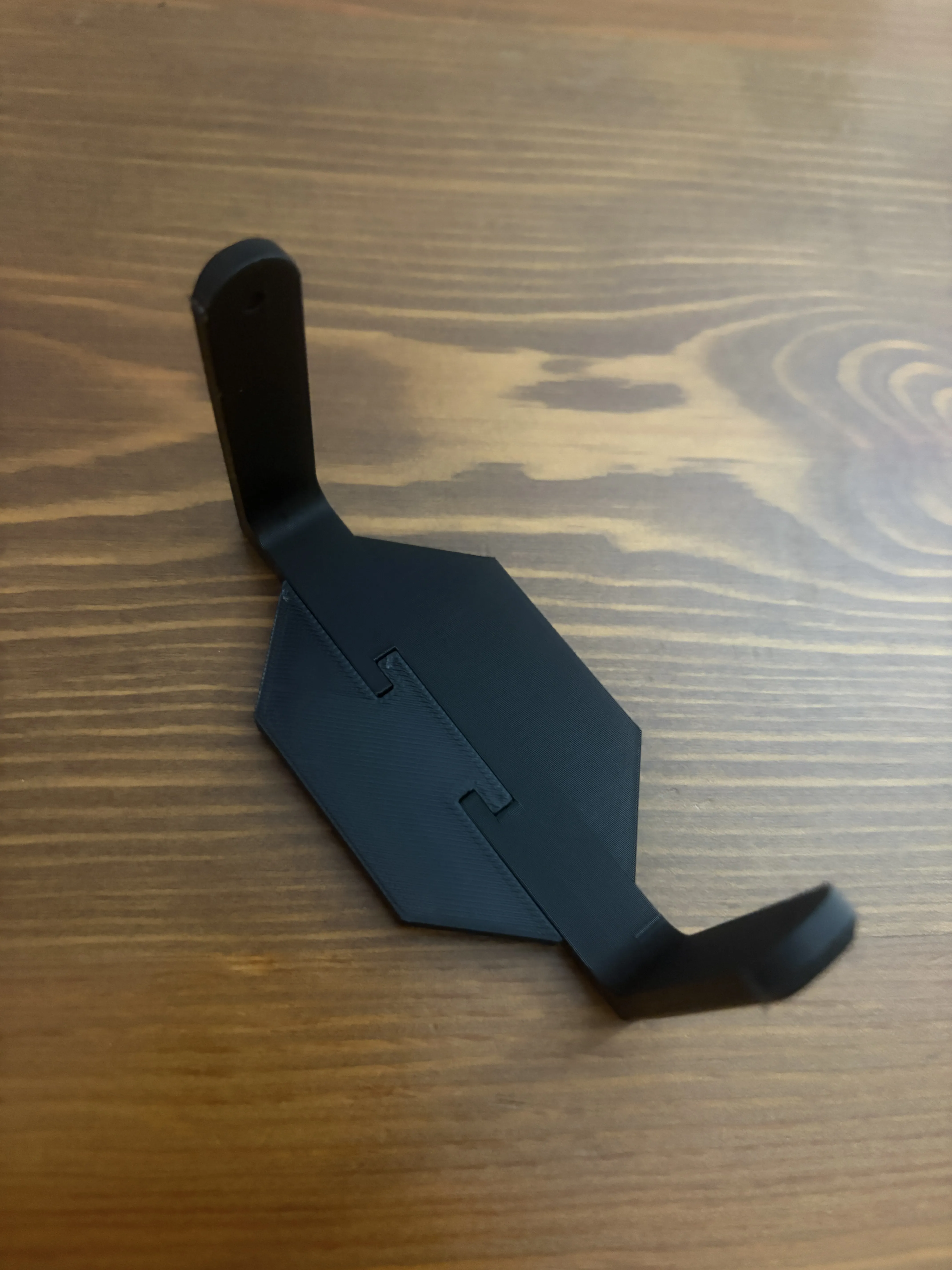

insert the small leg into his slot into the base |   |
place the base and the fan body |  |

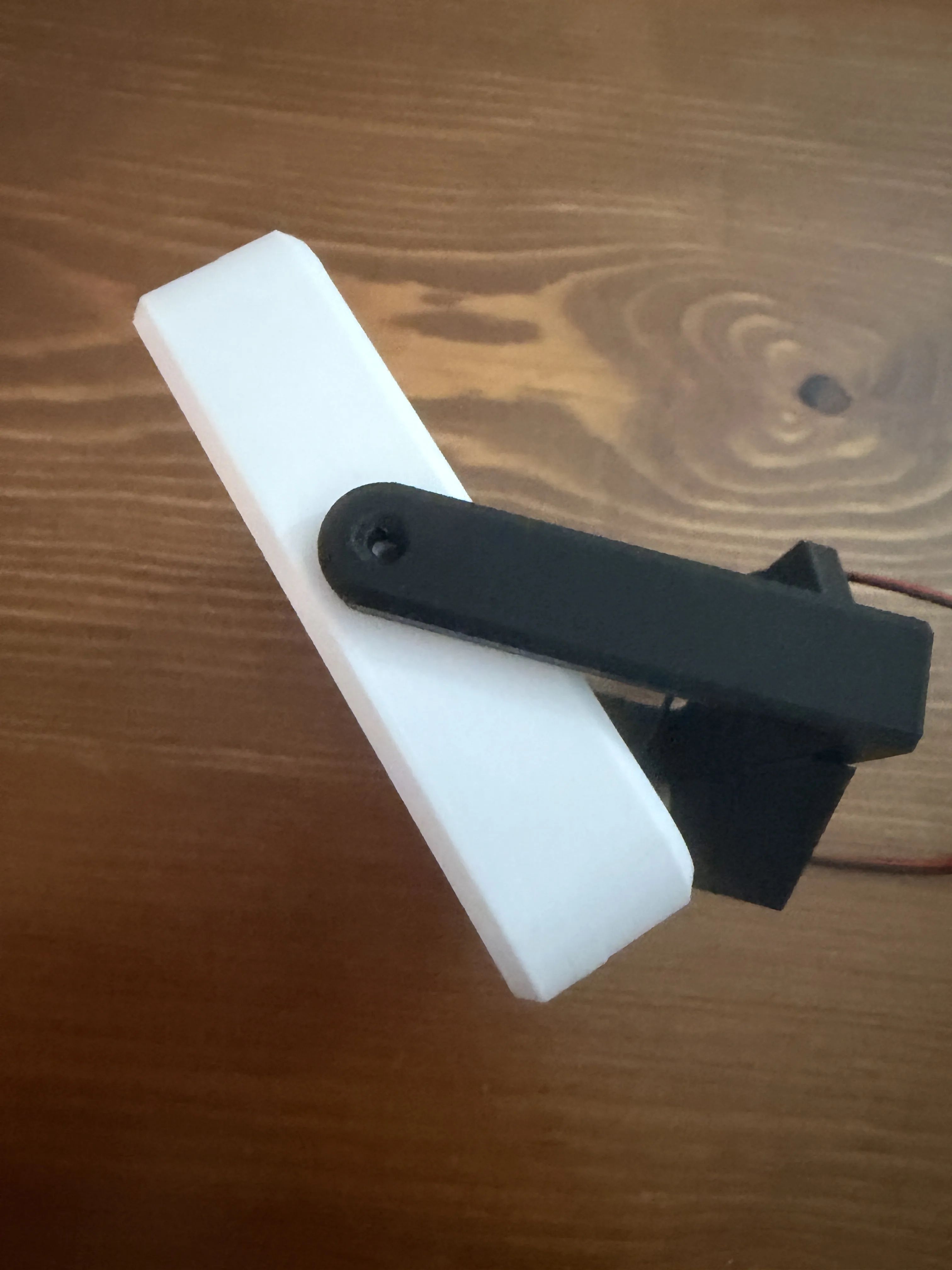

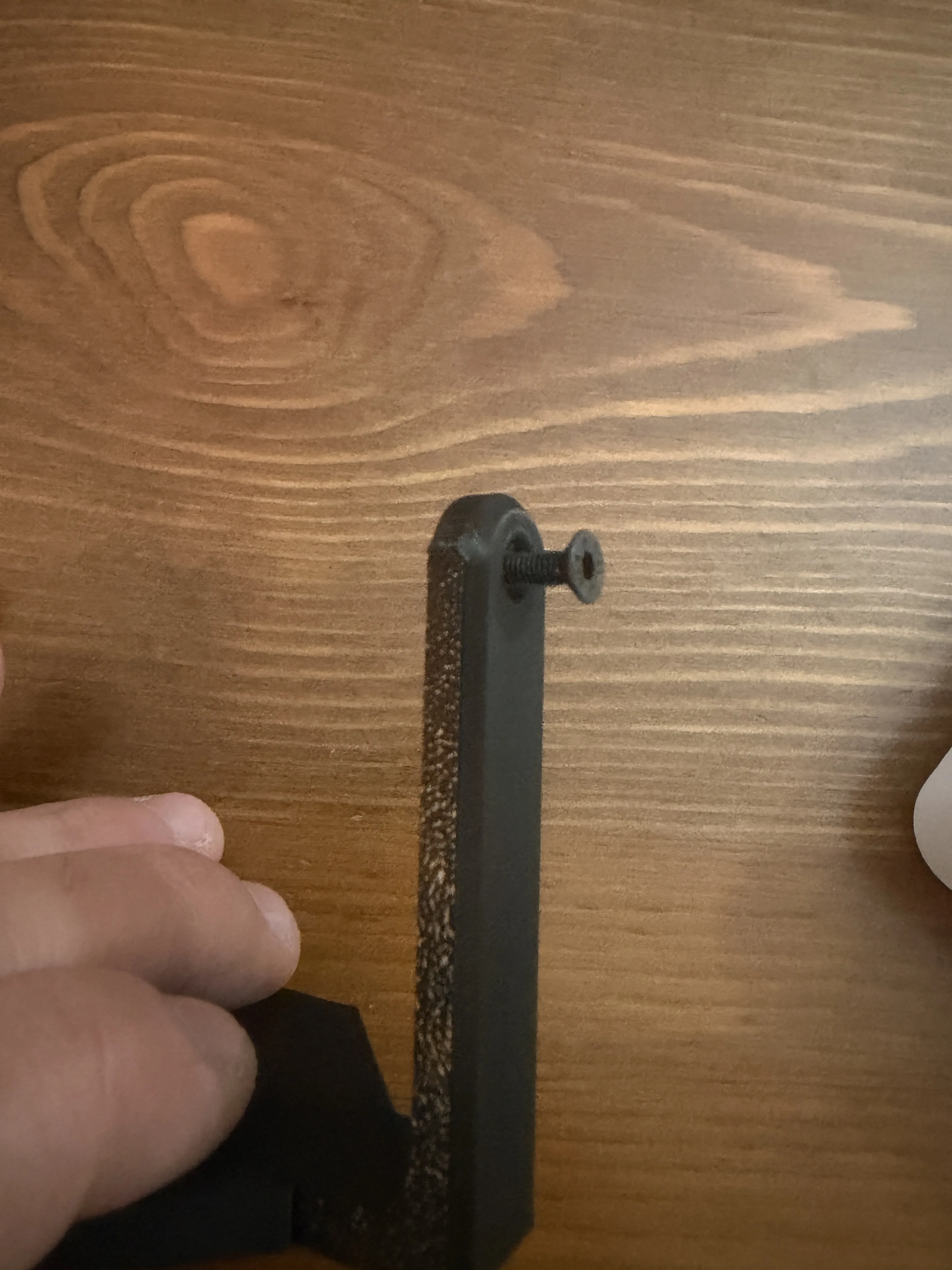

place the screws from the holes in both sides |  |

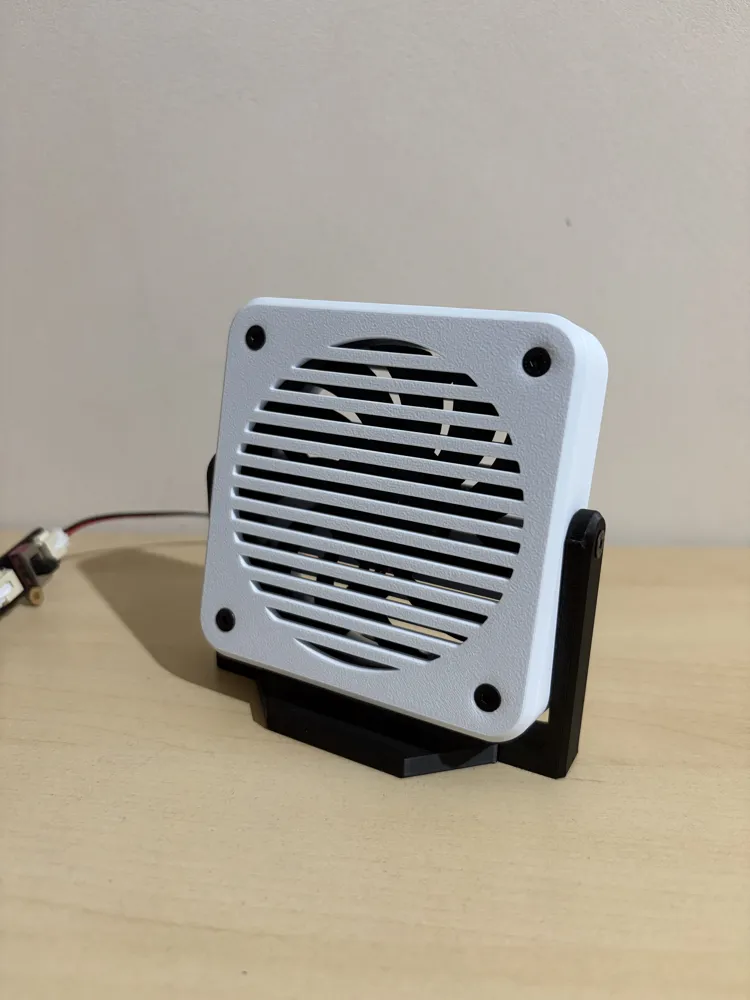

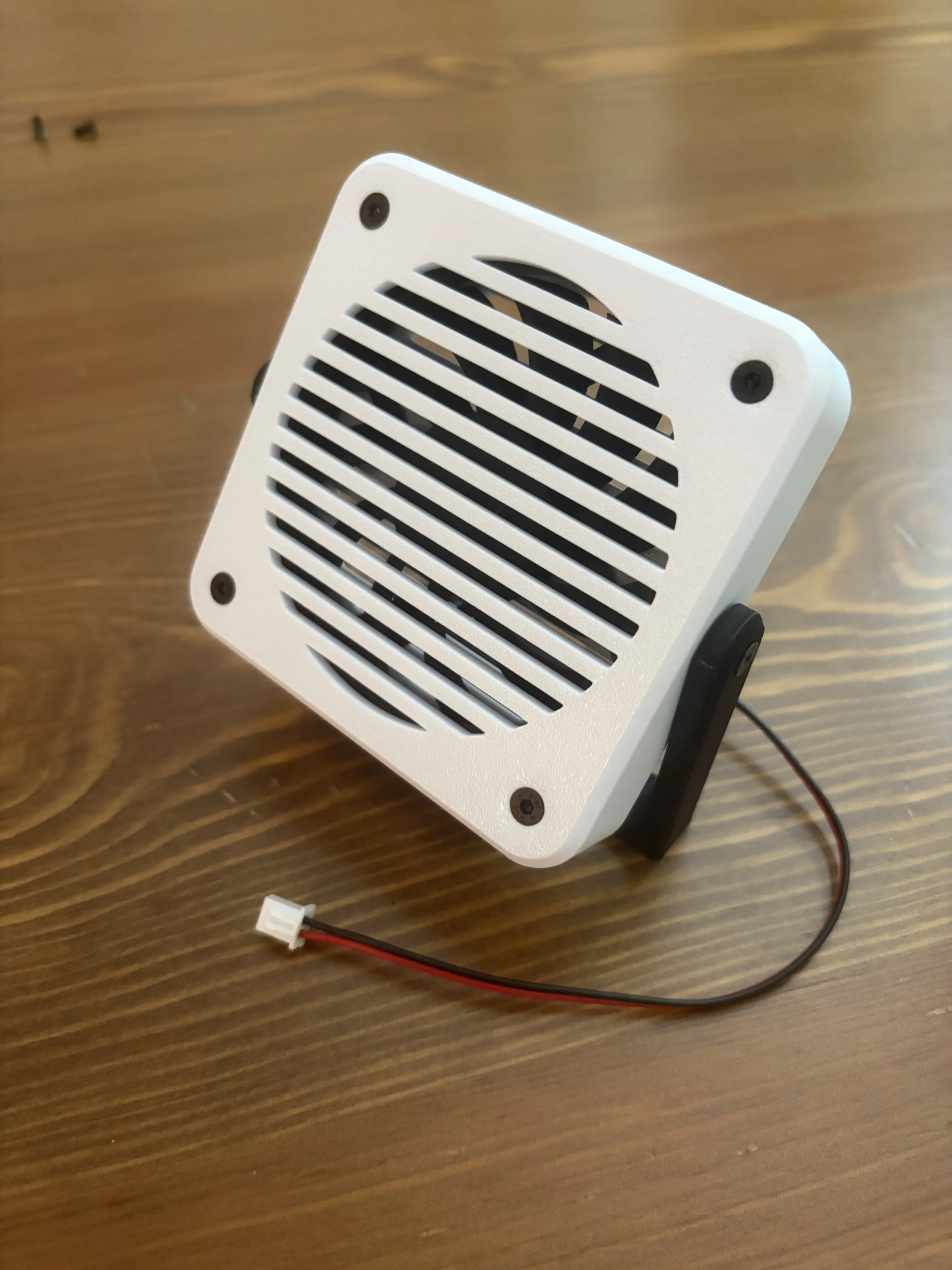

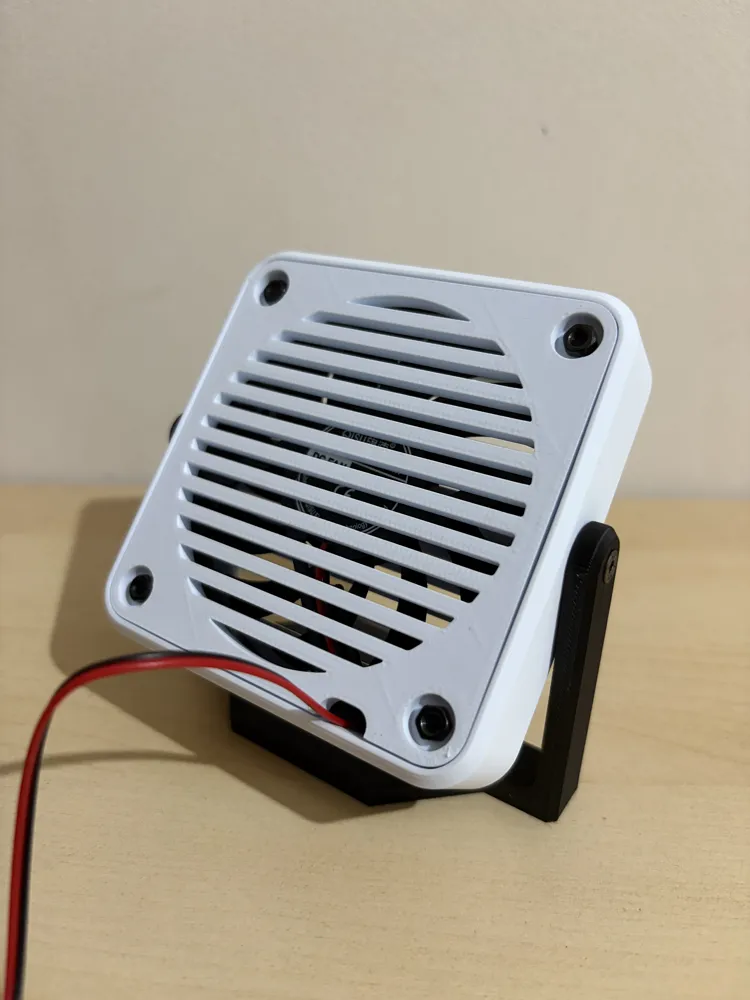

you're done 🚀😁 |  |
CONCLUSION
I can’t wait to hear what you think and whether you find it useful; if you have any suggestions, please do let me know in the comments.
