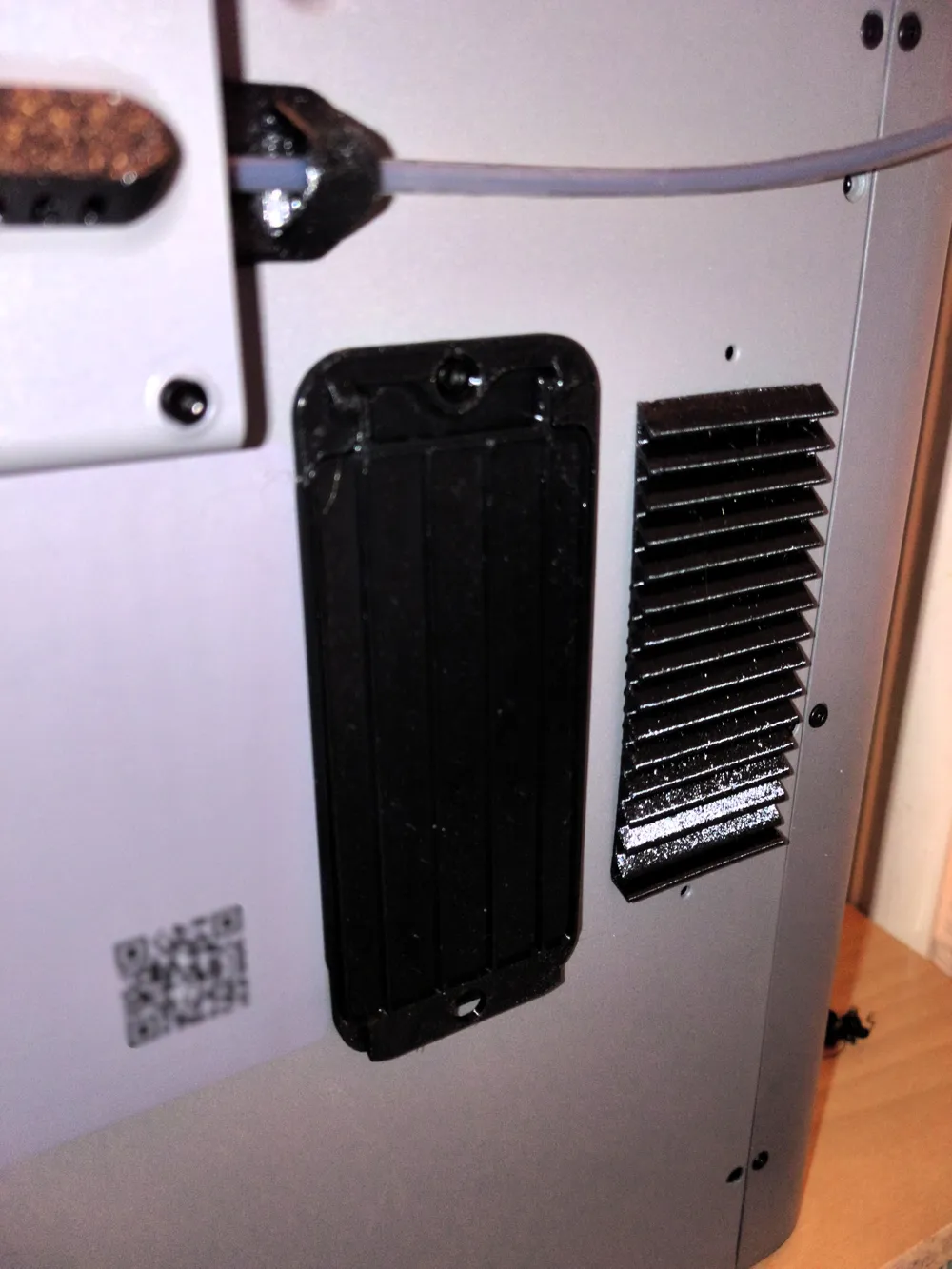

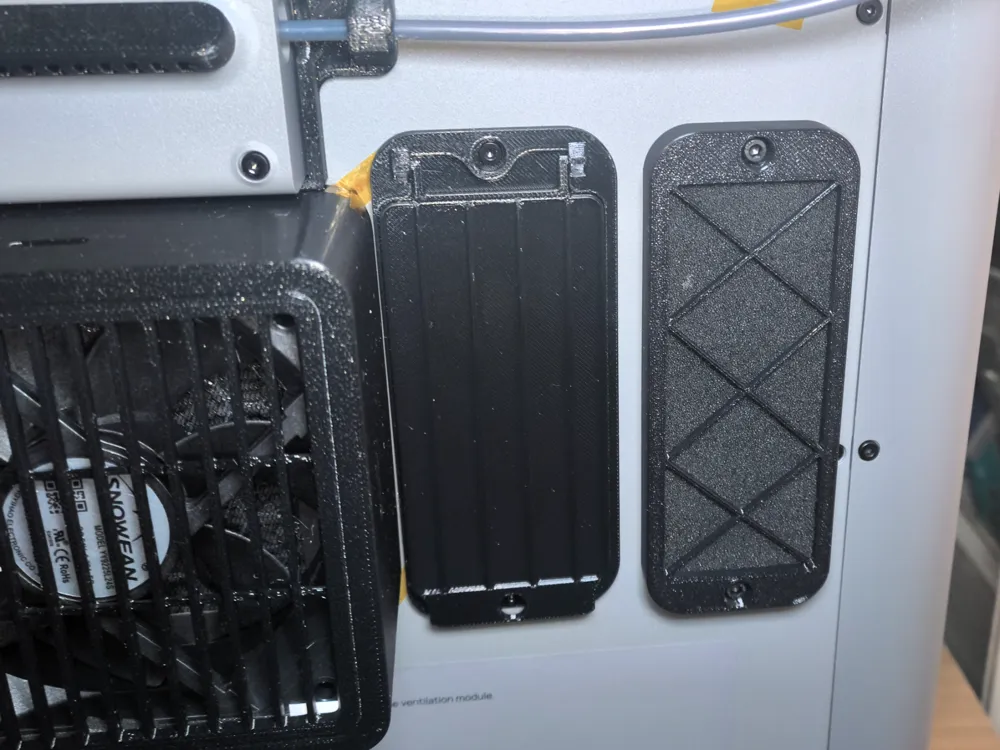

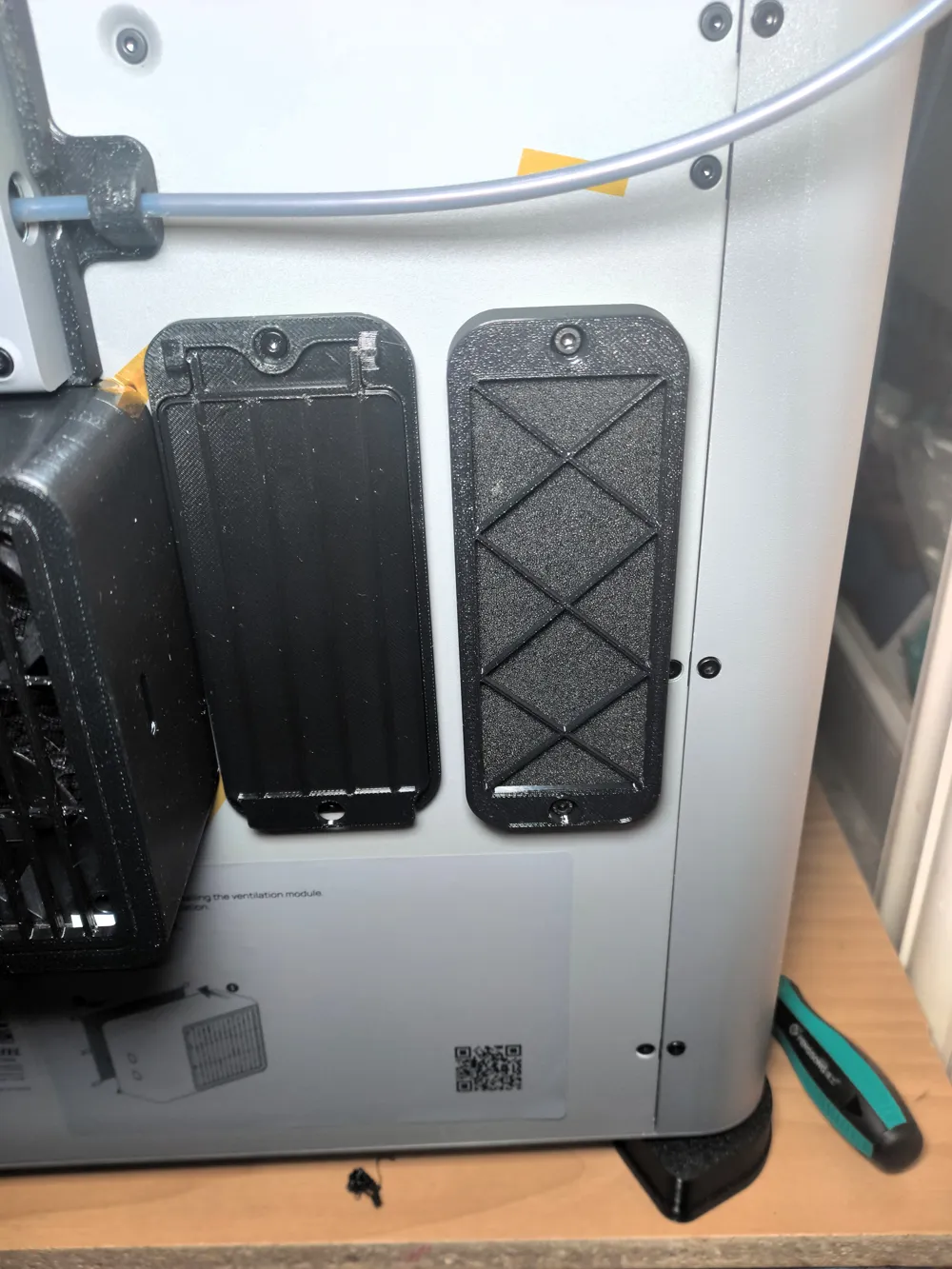

P2S Passive Filter + Tilting Waste Outlet

P2S Passive Filter + Tilting Waste Outlet

If you have a P2S and want to print with technical materials, you will have odors when printing. It is true that there is already a modification that extracts air from the printing area, and that is the problem because that air intake is too large, absorbing air from the outside environment and preventing efficient filtering.

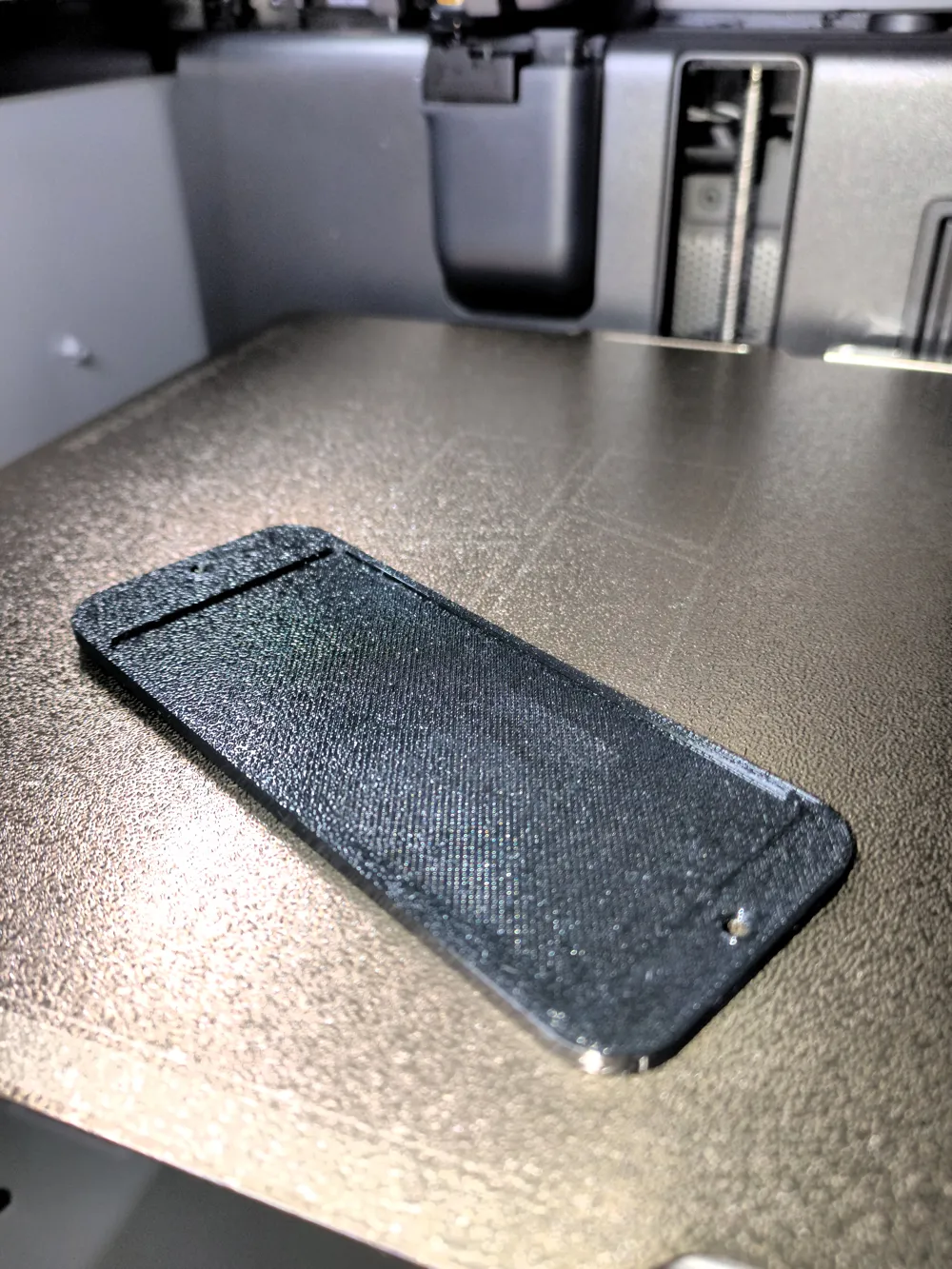

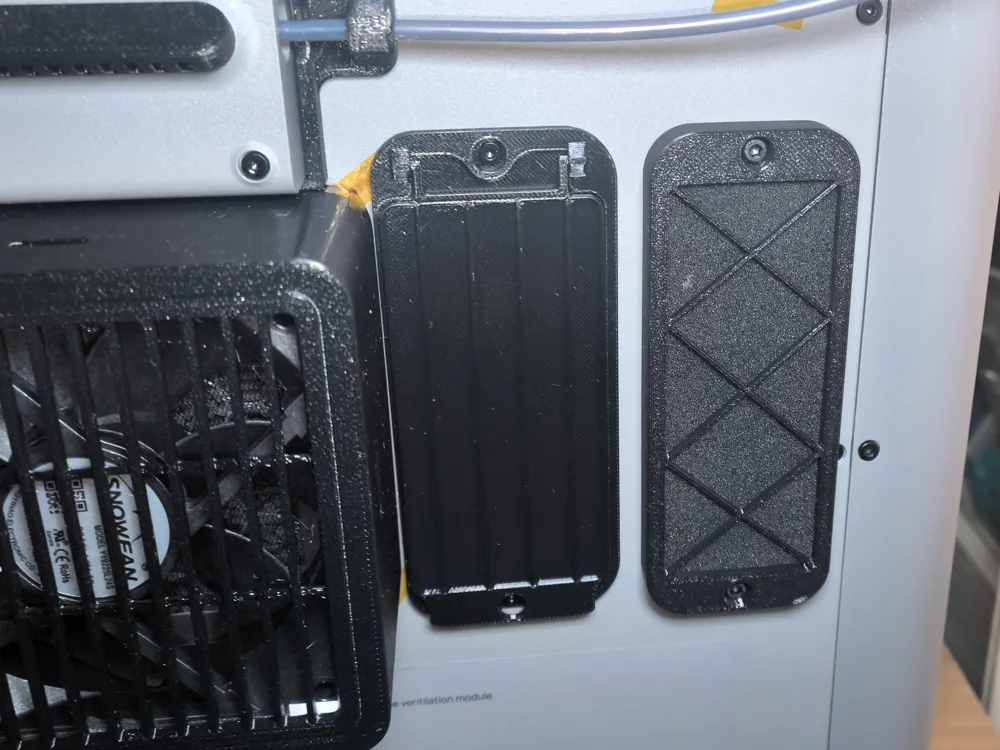

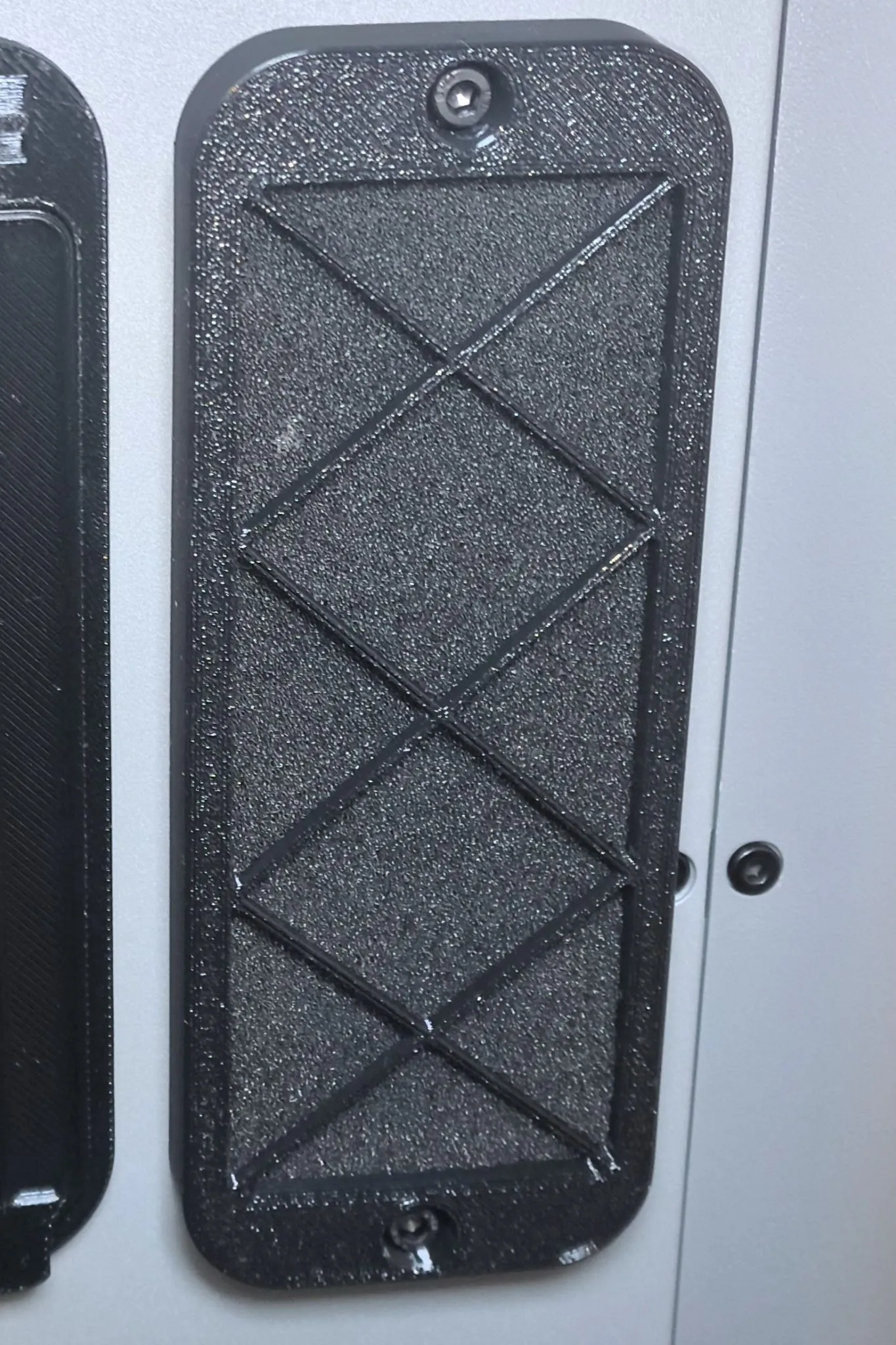

Passive Filter Features:

• Main function.- Prevent printing odors from escaping easily and prevent the exhaust fan mod from taking in too much air from outside.
• Filter type.- Activated carbon foam or a conventional HEPA filter can be used. The important thing is to prevent air from naturally escaping to the outside.
• Filter thickness.- The thickness must be 8mm. The filter can be stacked if the thickness does not reach the ideal.
• Screws.- M4 8mm screws are recommended to avoid touching any internal components.

Waste Outlet Features:

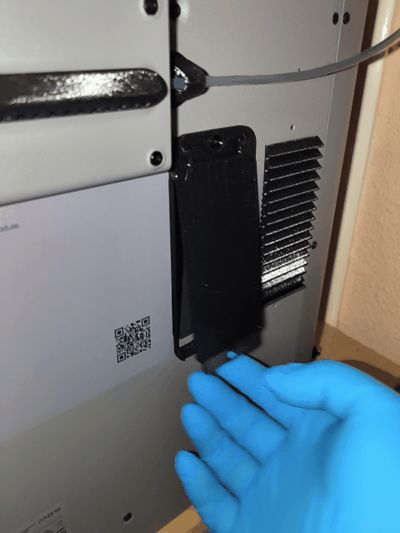

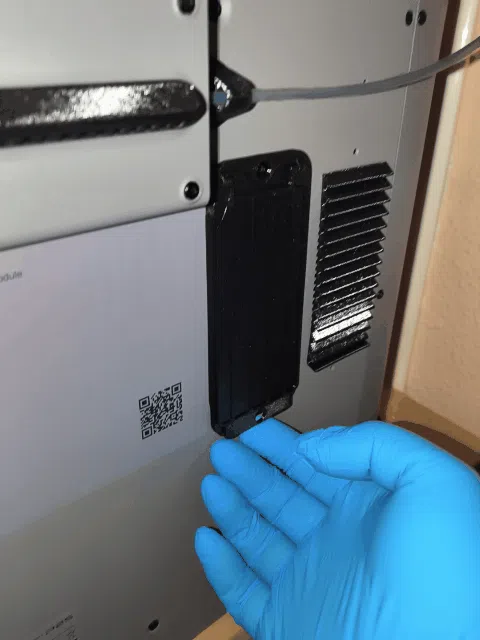

• Main function.- Adds a layer of security to prevent odors from escaping to the outside. With its tilting lid, it closes and opens when the machine purges the filament.

• Screws.- Uses M3 8mm plastic screws.

  Note: The original screws are not suitable for holding

Printing features:

Recommended Filament: PETG or ASA.

Tolerance: 0.2mm.

Walls 3.

Infill 10%.

Supports: No

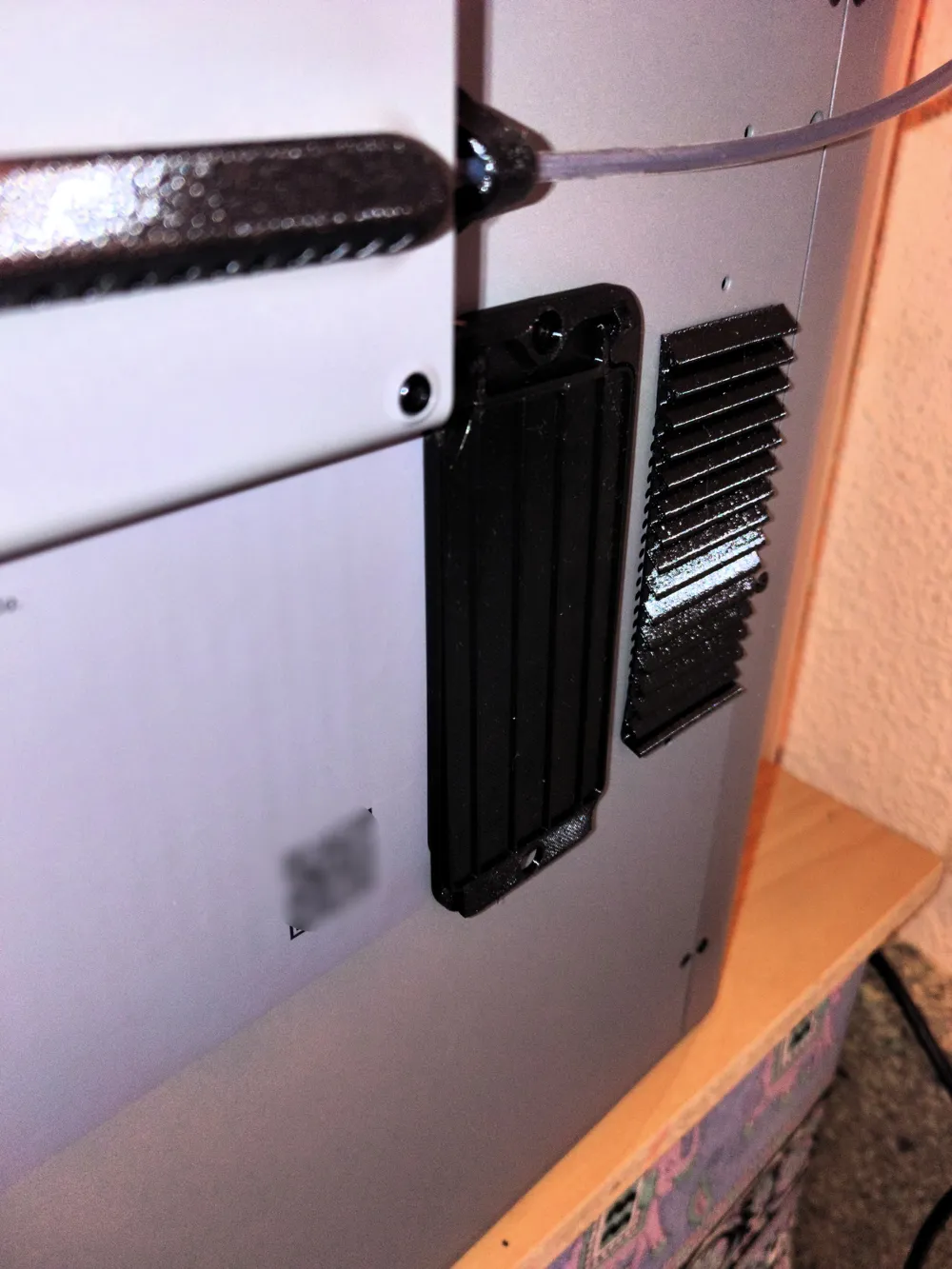

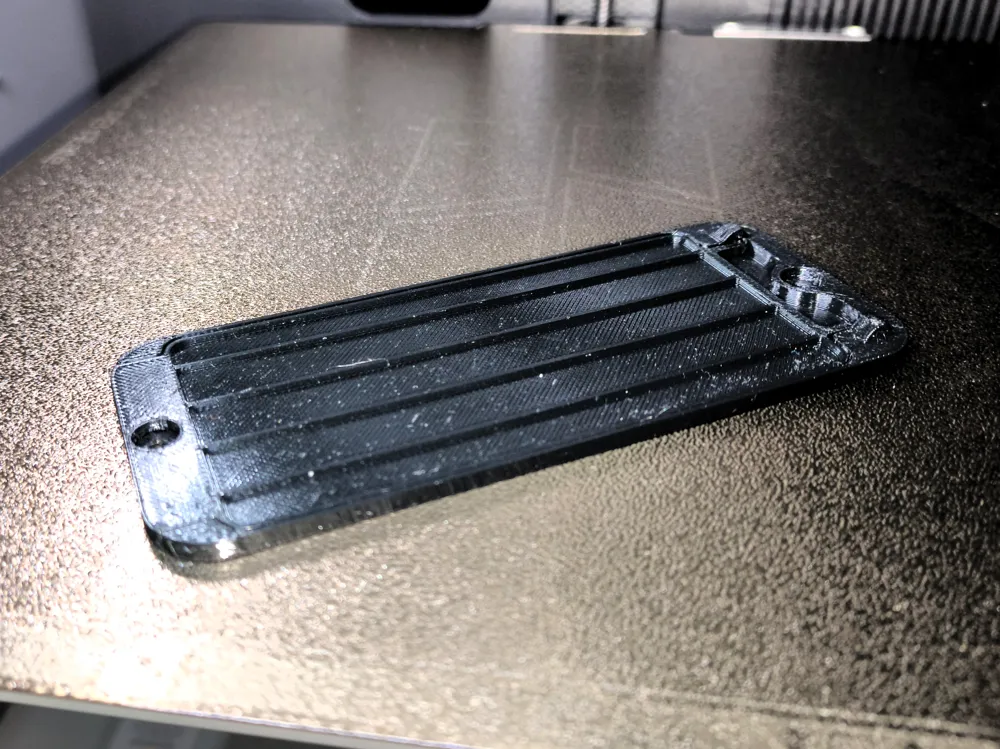

Waste Outlet Assembly

Insert the lid tabs into the holes of the body.

Note: The original screws are not suitable for holding

ç

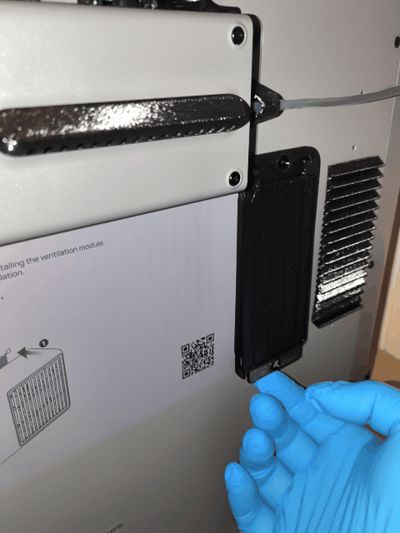

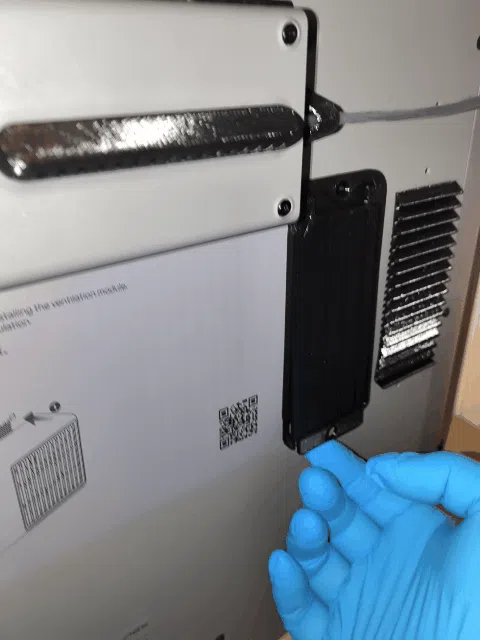

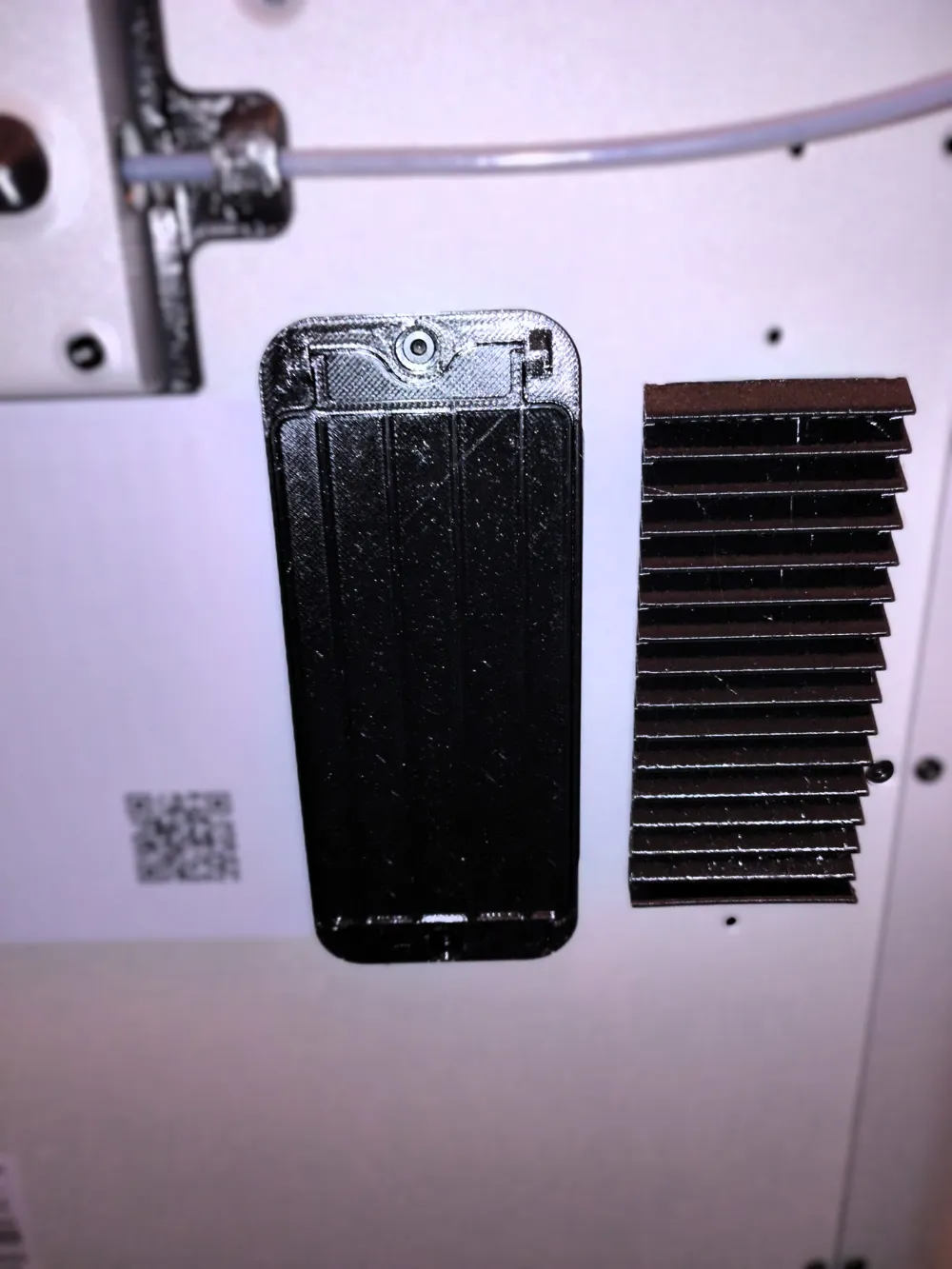

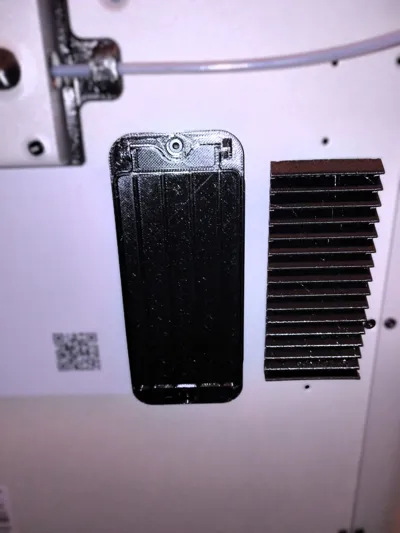

Tilting Waste Outlet Assembly

Use 10mm M4 screws to hold the filter.
