Sabo - Gentleman Rebel - One Piece HF 157x235

Check and follow my One Piece collection : (Click on image)

More models soon !

Models available : 20

_____________________________________________________________________________

Check and follow my Dragon Ball collection : (Click on image)

More models soon !

Models available : 5

_____________________________________________________________________________

Print Instruction :

Print at 100% infill with a layer height of 0.08mm with a base layer of 0.16mm

The Model is 157x235mm in size

You may print at higher layer heights below the Base Thickness of 0.48mm
The Max allowed Thickness is 3.76mm and the Actual Thickness is 3.6mm

Filaments Used:

    PLA BambuLab Basic Black  Transmission Distance: 0.1
    PLA BambuLab Basic Blue Gray  Transmission Distance: 2.4
    PLA BambuLab Basic Jade White  Transmission Distance: 5.9
    PLA BambuLab Basic Blue  Transmission Distance: 2.9
    PLA BambuLab Matte Marine Blue  Transmission Distance: 0.5
    PLA BambuLab Basic Red  Transmission Distance: 3.9
    PLA BambuLab Basic Yellow  Transmission Distance: 6

This print uses 7 unique filaments

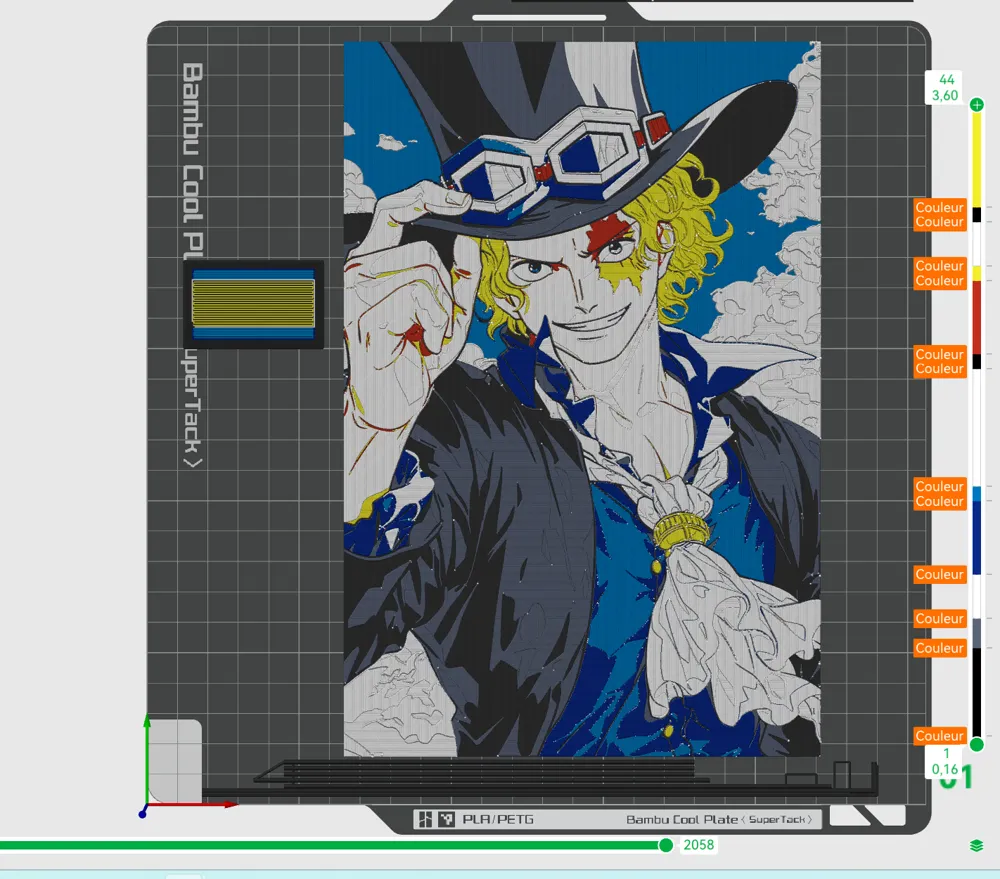

Swap Instructions:

    Start with Black
    At layer #7 (0.64mm) swap to Blue Gray
    At layer #9 (0.8mm) swap to Jade White
    At layer #12 (1.04mm) swap to Blue
    At layer #17 (1.44mm) swap to Marine Blue
    At layer #18 (1.52mm) swap to Jade White
    At layer #26 (2.16mm) swap to Black
    At layer #27 (2.24mm) swap to Red
    At layer #32 (2.64mm) swap to Yellow
    At layer #33 (2.72mm) swap to Jade White
    At layer #36 (2.96mm) swap to Black
    At layer #37 (3.04mm) swap to Yellow for the rest.

For only One AMS :

2 break are necessary

- Put the 1st break at layer 10 (during Jade White)

Change Blue Gray with Marine Blue

- Put the 2nd break at layer 19 (during Jade White)

Change Marine Blue  with Red

Change Blue  with Yellow

When you start printing, configure the AMS slots like this:

- Starts with the first 4 colors : Black, Blue Gray,  Jade White and Blue

- Put the Marine Blue on the Blue Gray slot,

- Put the Red on the Blue Gray slot,

- And the Yellow on the Blue slot

_____________________________________________________________________________

Check and follow my Funny and adorable animals Collection : (Click on image)

Models available : 17

(Please note that all photos of my models are actual, physical prints. If you want the same result, use the same filament colors and brands. For the Hueforge's models, you can get closer by using other brands, but choose filaments with TD (Transmission Distance) as close as possible to the filaments used.)

_____________________________________________________________________________

HAPPY PRINTING !!
