QRL Clamp 36mm leg upward opening
Print Profile(1)
Bill of Materials
Description

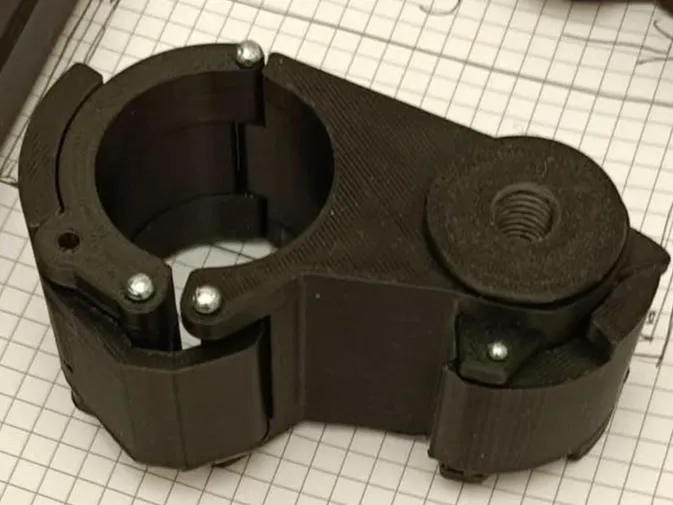

Accessory holder clamp for fishing boxes with 36mm legs.
An evolution of the previous version, where a screw knob was required to tighten it onto the fishing box leg, this one features a quick-release system, making it much more practical to use and print.
Simple to assemble, it requires 4.8mm pins for the clamp body and 3mm for the lock lever of the accessory nut with 3/8 BSF Standard thread for fishing accessories. (not included in the file but you can always find it on my profile).
I have uploaded both 3mf and stl files.
Also included is a material list directly purchasable from Maker's Supply
IF THE CLAMP ROTATES SLIGHTLY ON THE LEG, IT IS ADVISABLE TO INSERT A PIECE OF ADHESIVE SANDPAPER INSIDE THE CLAMP BODY. THIS ALLOWS FOR A THICKNESS INCREASE OF 0.2 MM AND BETTER GRIP ON THE LEG ITSELF. ESPECIALLY ON POLYGONAL LEGS WHERE THE CONTACT SURFACE BETWEEN THE CLAMP AND THE LEG IS REDUCED COMPARED TO CIRCULAR LEGS.
