X2D Interference-Free Straight Exhaust (Multi-Diameter Support)

Recommended for use with my interference-free poop binhttps://makerworld.com.cn/zh/models/2422853-x2dwu-gan-she-fei-liao-tong

Please read the following carefully before printing:

• It may be difficult to remove after printing with the profile for heterogeneous support turned off. You can try spraying alcohol on the build plate and carefully and slowly removing it
• The profile with heterogeneous support enabled should theoretically be easy to remove, but this has not been print-verified. If you succeed, please provide feedback in the comments section
• It is recommended to remove the filter elements from the internal and external exhaust fans during installation

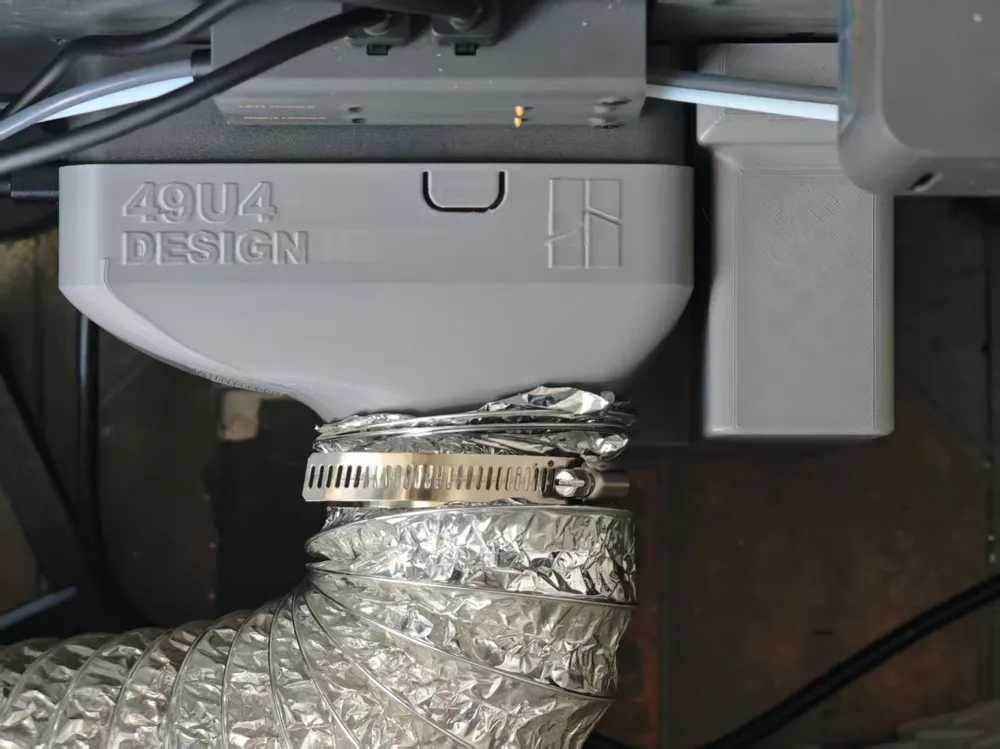

• Install using a 75mm duct. If you need to use ducts of other sizes, please let me know, and I will upload new profiles when I have time

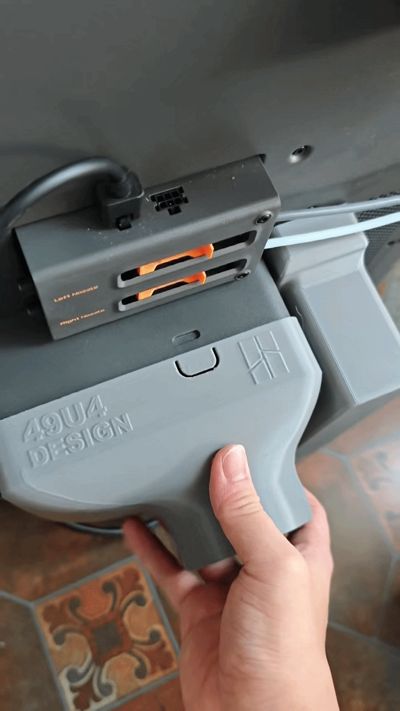

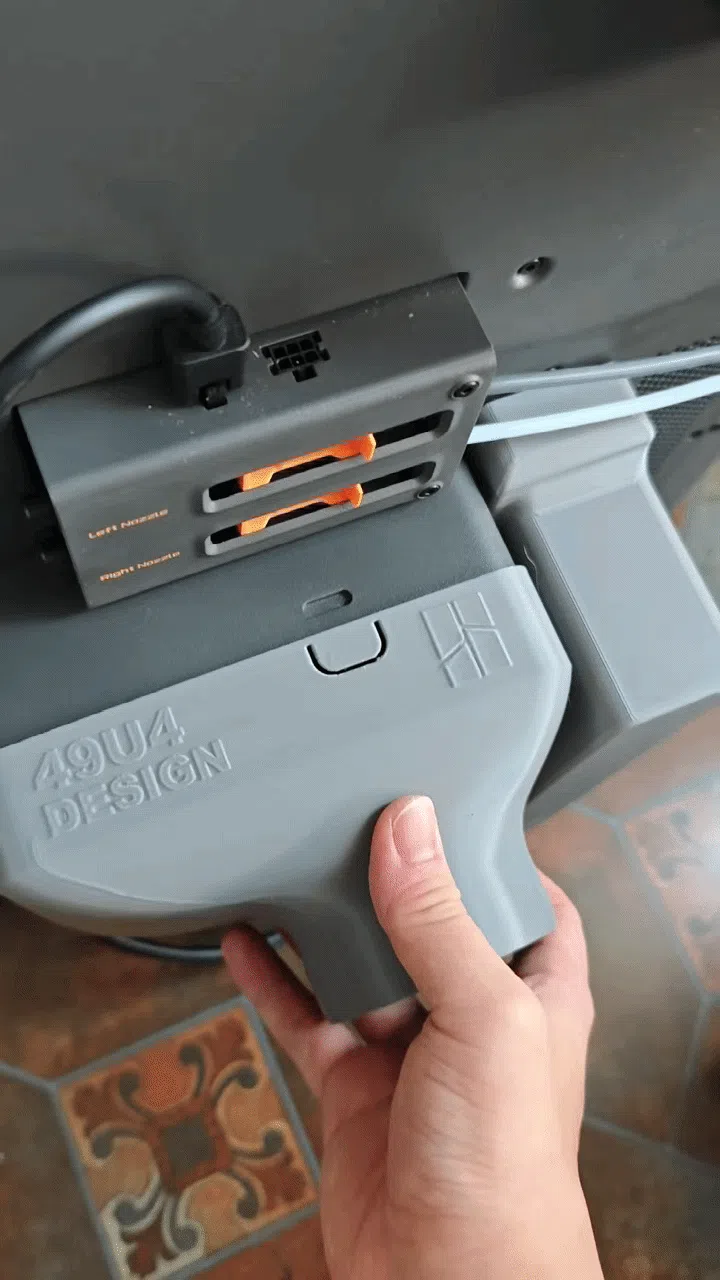

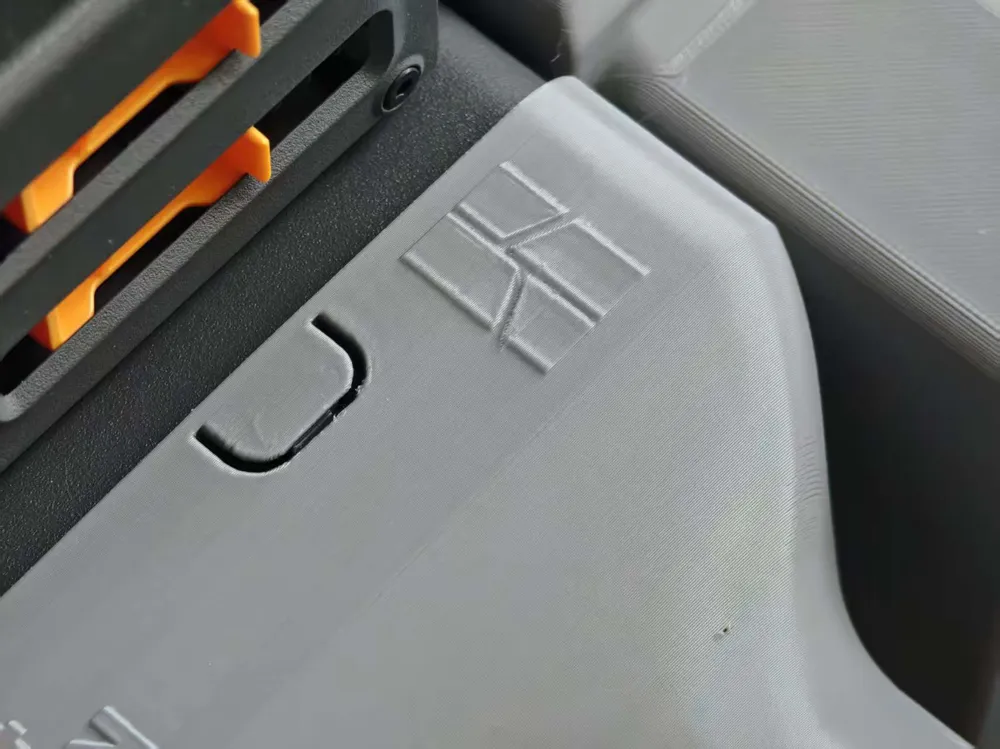

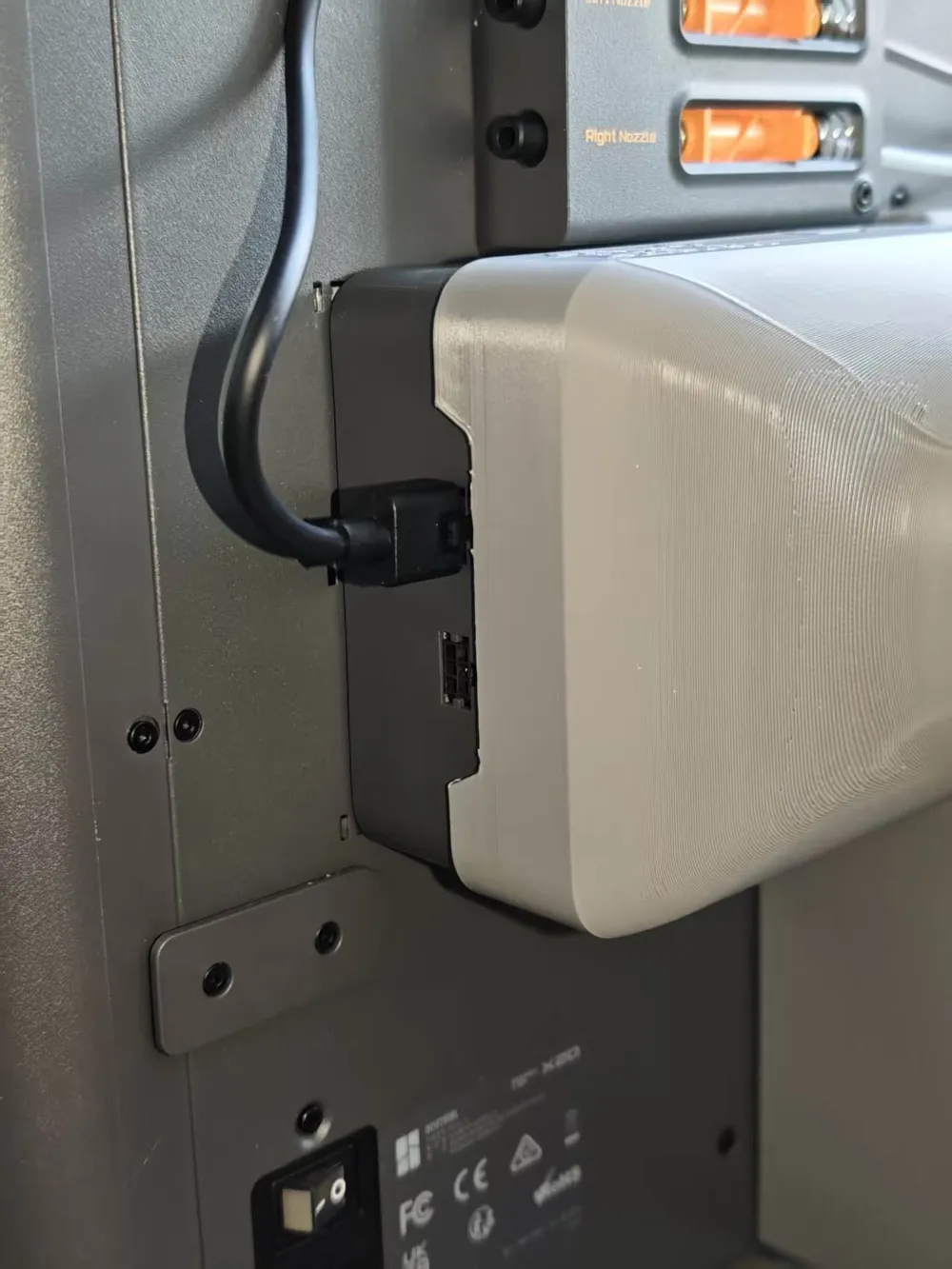

• After the exhaust is installed, you need to pry up the buckles to remove it, which can be a bit troublesome. In fact, the model can fit snugly against the external exhaust fan without buckles. I will upload a buckle-free profile later

The creation of this model was inspired by the ultra-thin exhaust of @疯景CrazyJN . Special thanks here; without the inspiration from this creator's exhaust model, the interference-free exhaust and poop bin would not have been born

When looking for an X2D exhaust and waste box on MakerWorld, I couldn't find a satisfactory combination for a long time

Regarding the exhaust,

Fully enclosed and airtight

Straight exhaust design

Fully 3D printed

And... most importantly—Does not affect the installation of the poop bin!!!

I could easily find exhaust models with one or more of these features on MakerWorld, but none met all the requirements

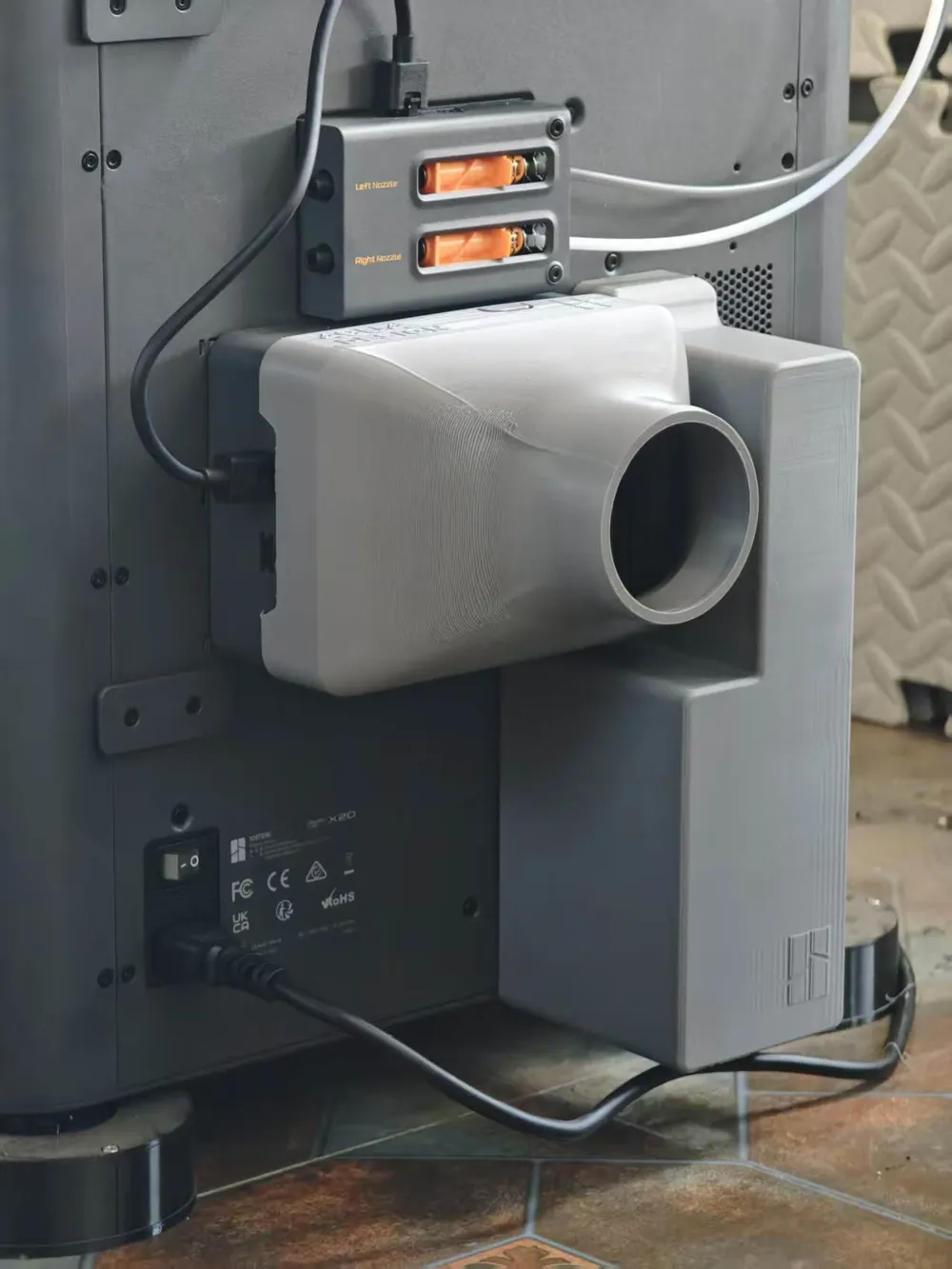

So I made this model, and when it works with my interference-free poop bin, everything goes smoothly

If you also have similar concerns, you can try printing and installing this model with my poop bin

Looking forward to your feedback, hope you all have fun :)
