Mandalorian & Grogu Trick Coin Bank đŞ

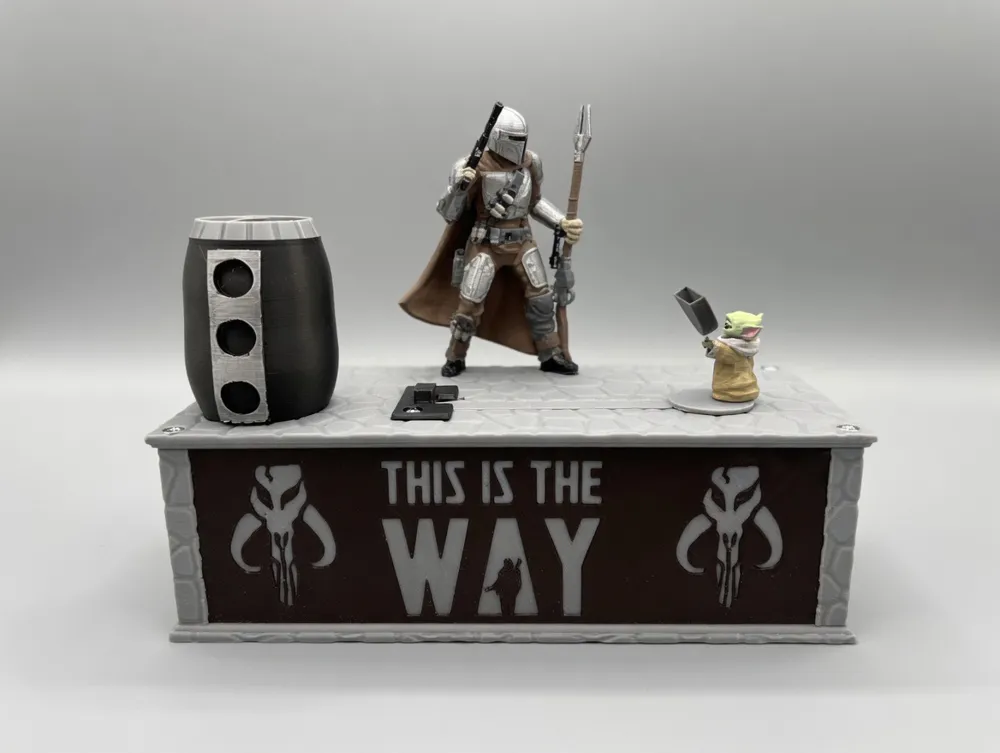

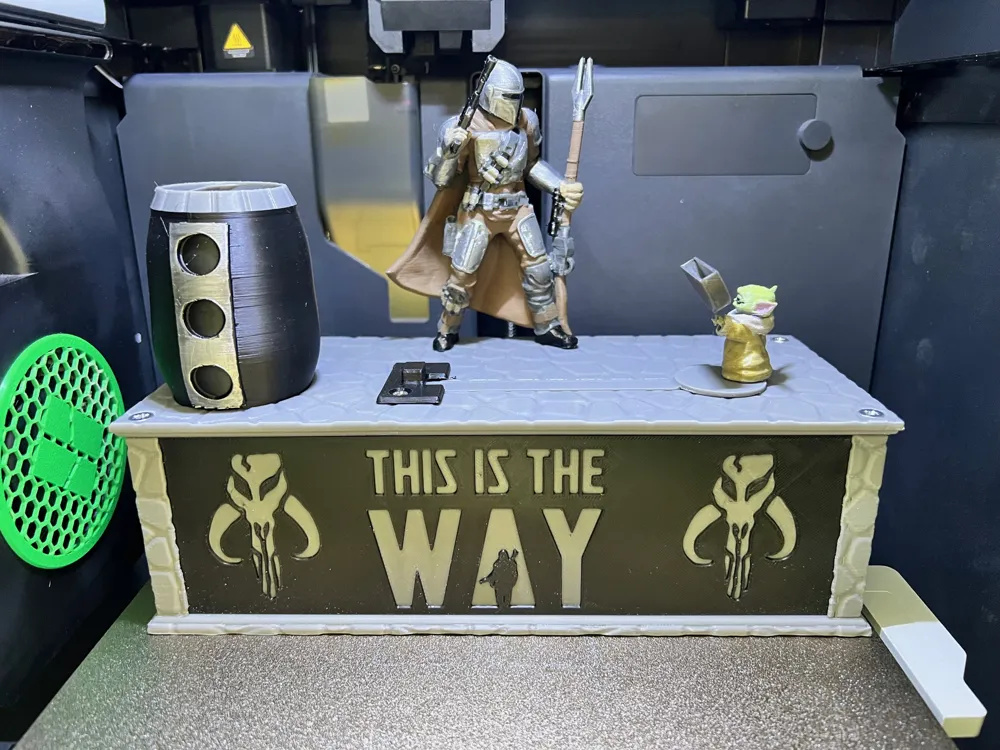

A fully 3D printed piggy bank inspired by the classic cast iron âtrick dogâ banks â reimagined with the Mandalorian standing guard while Grogu does the work.

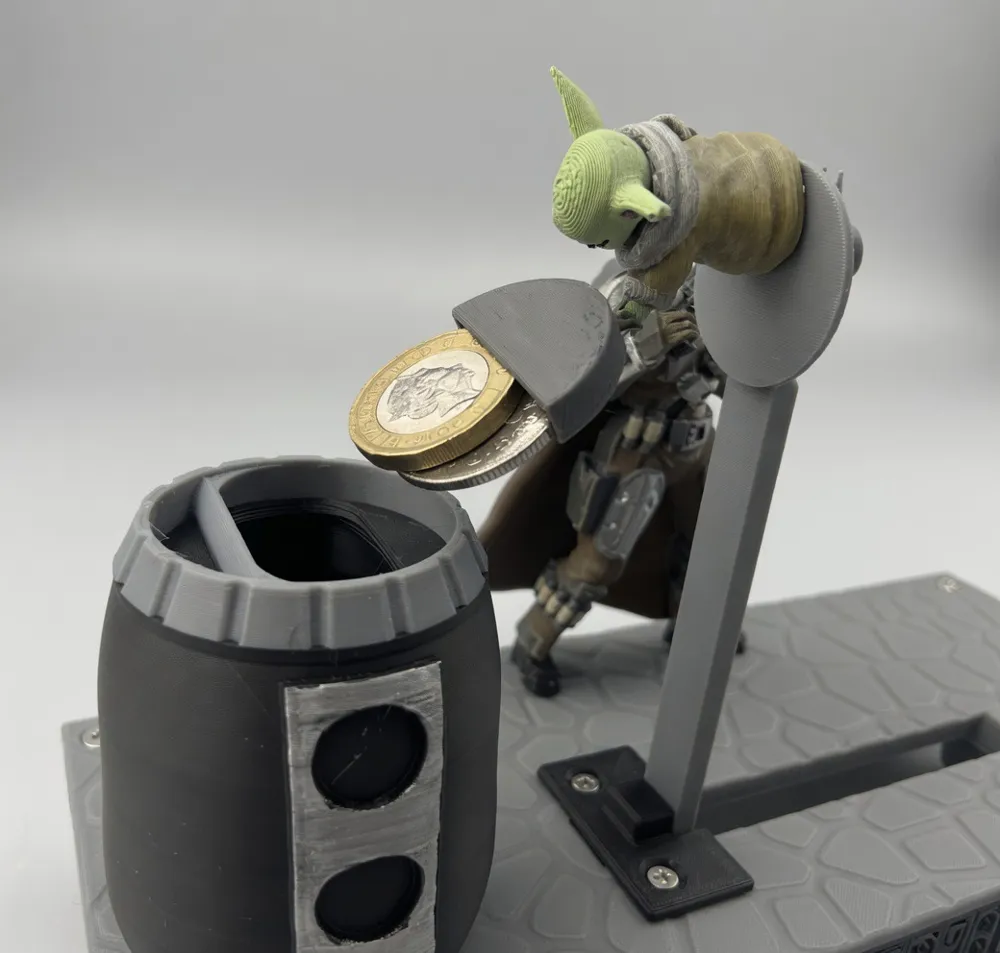

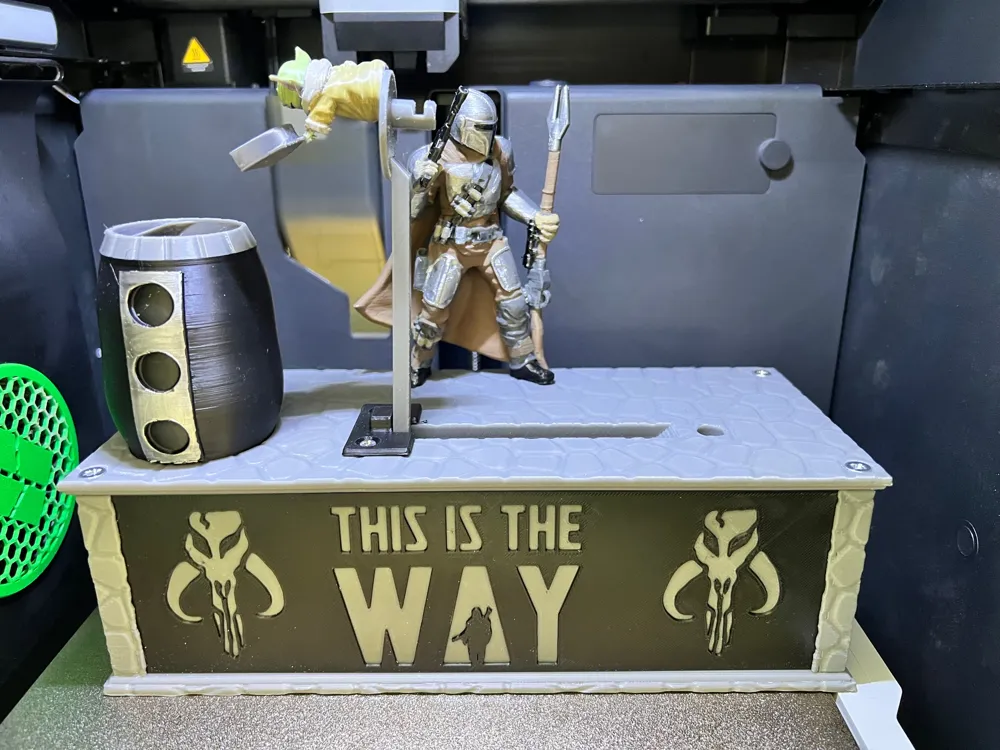

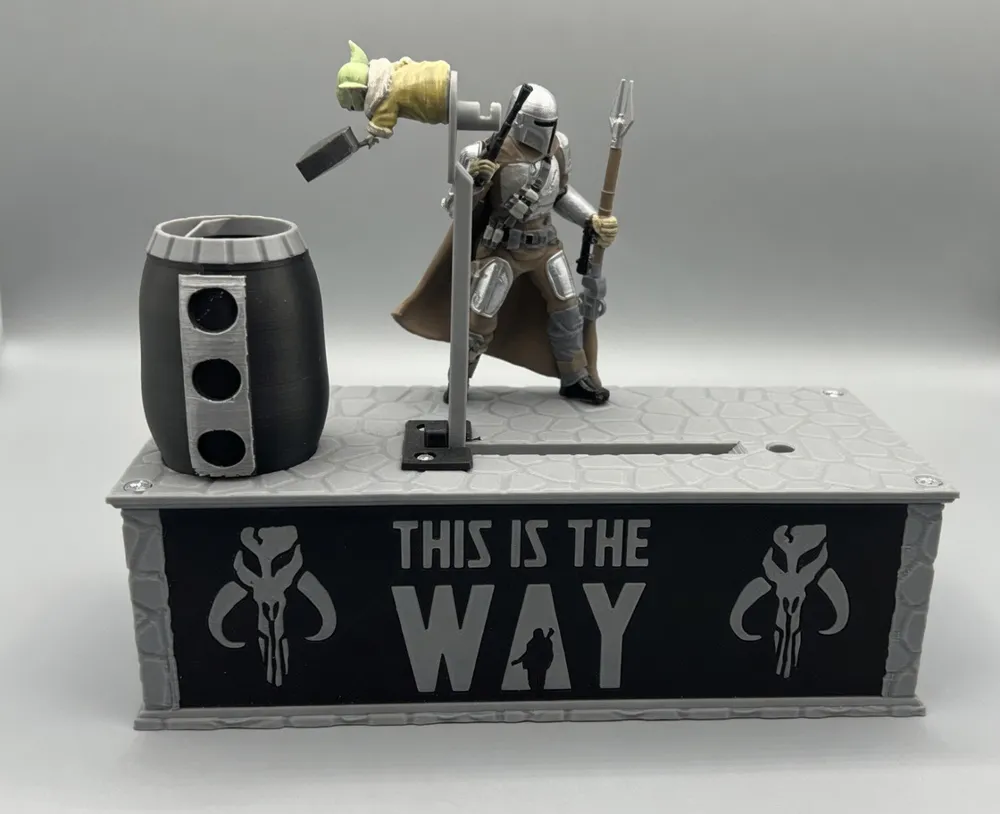

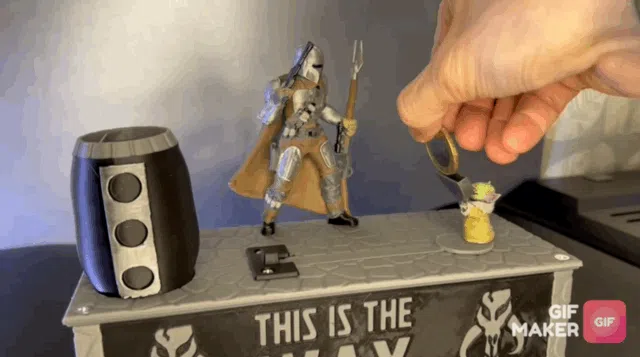

Grogu holds the coin in his hand. When the latch is pressed, the internal mechanism releases and the pivot arm swings, guiding the coin cleanly into the barrel.
đ§ Assembly
- 4 Ă M4 screws (10â25mm) â secure top to base

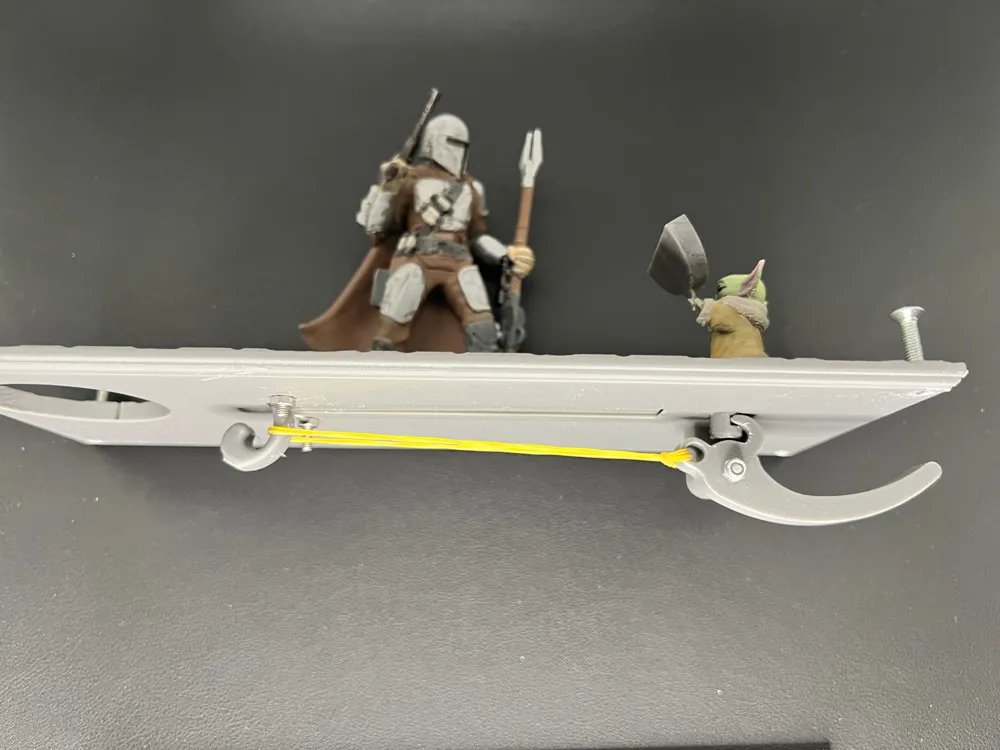

- 1 Ă M3 x 30mm bolt + washer + nut â pivot/latch arm

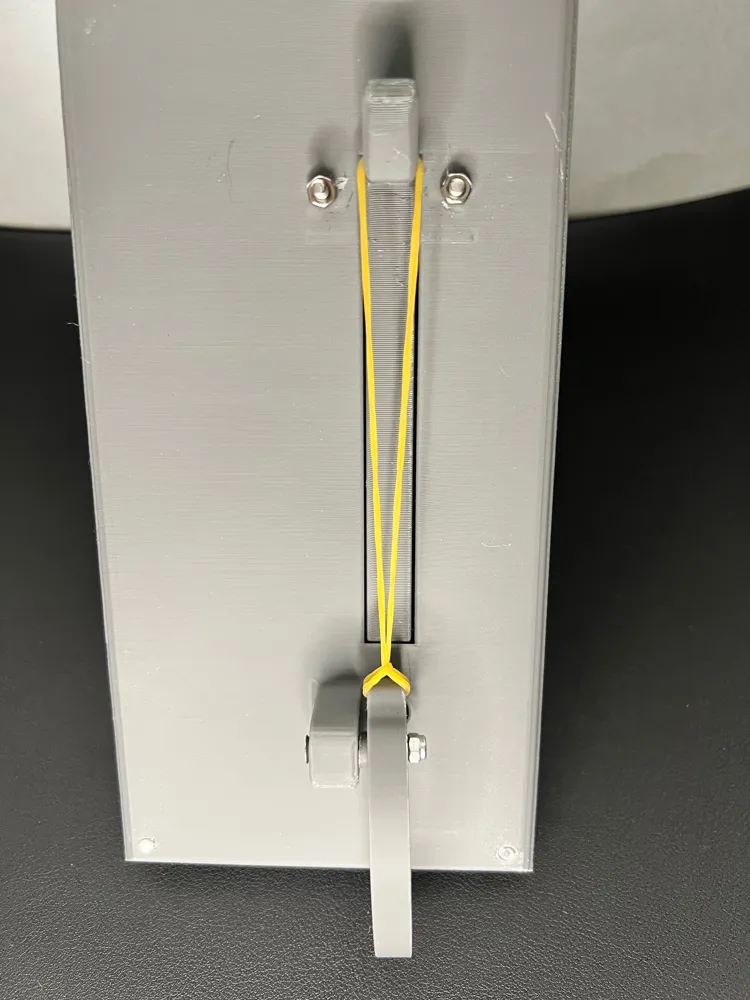

- 2 Ă M3 bolts + washers + nuts â pivot arm stopper

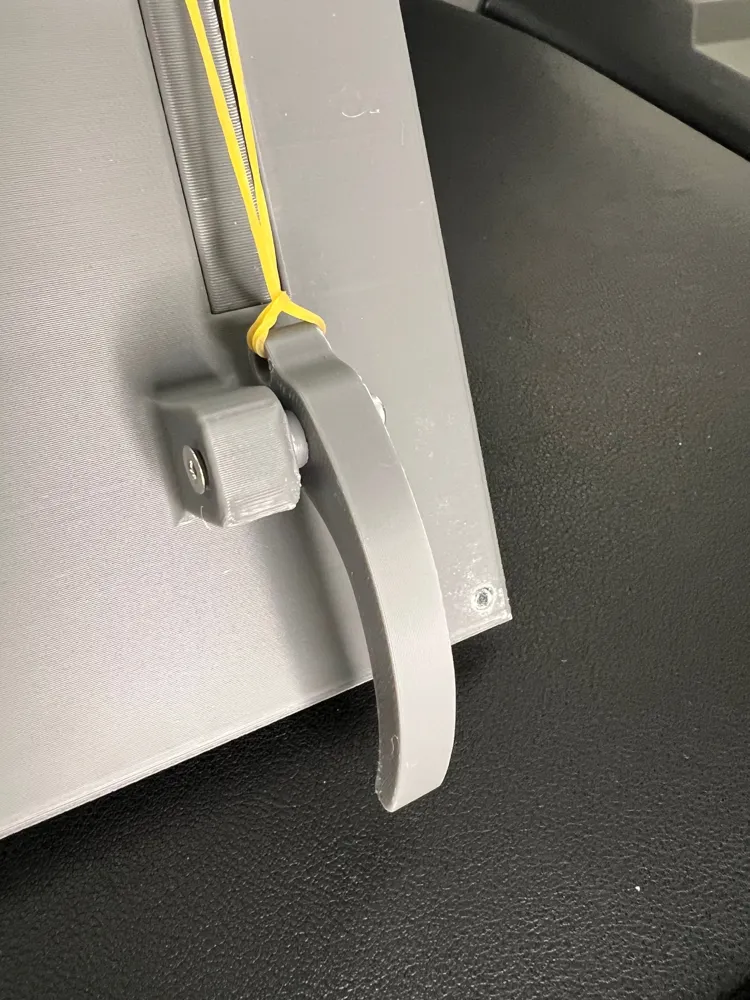

- Elastic band â connects pivot arm to latch

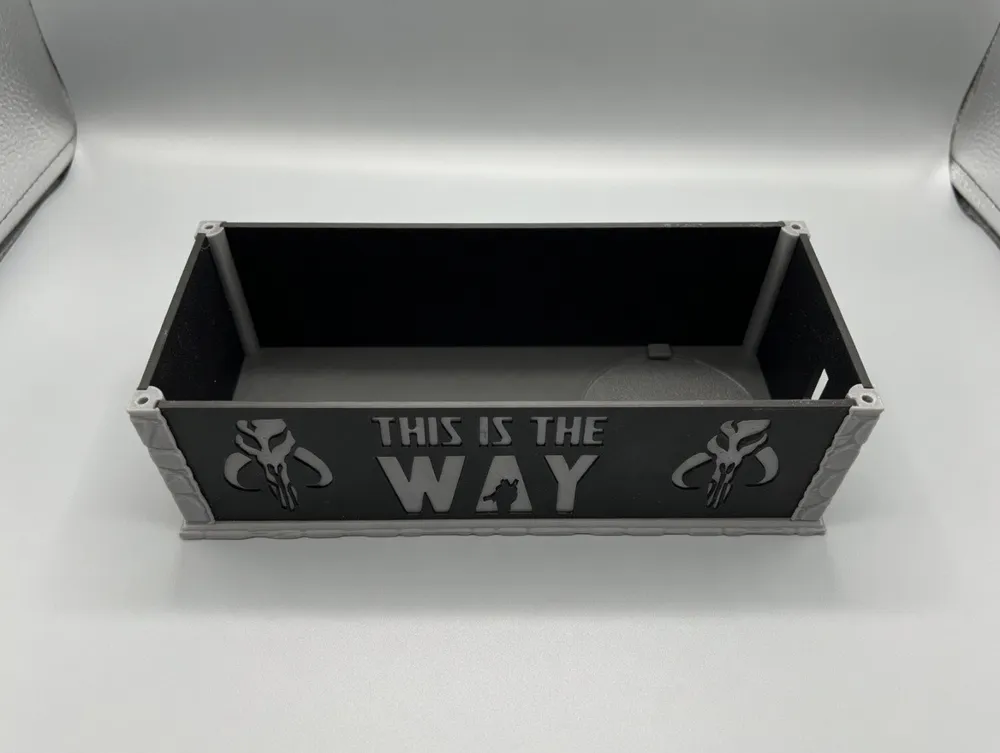

Front, back, and side panels slide into the base slots.
𧊠Details

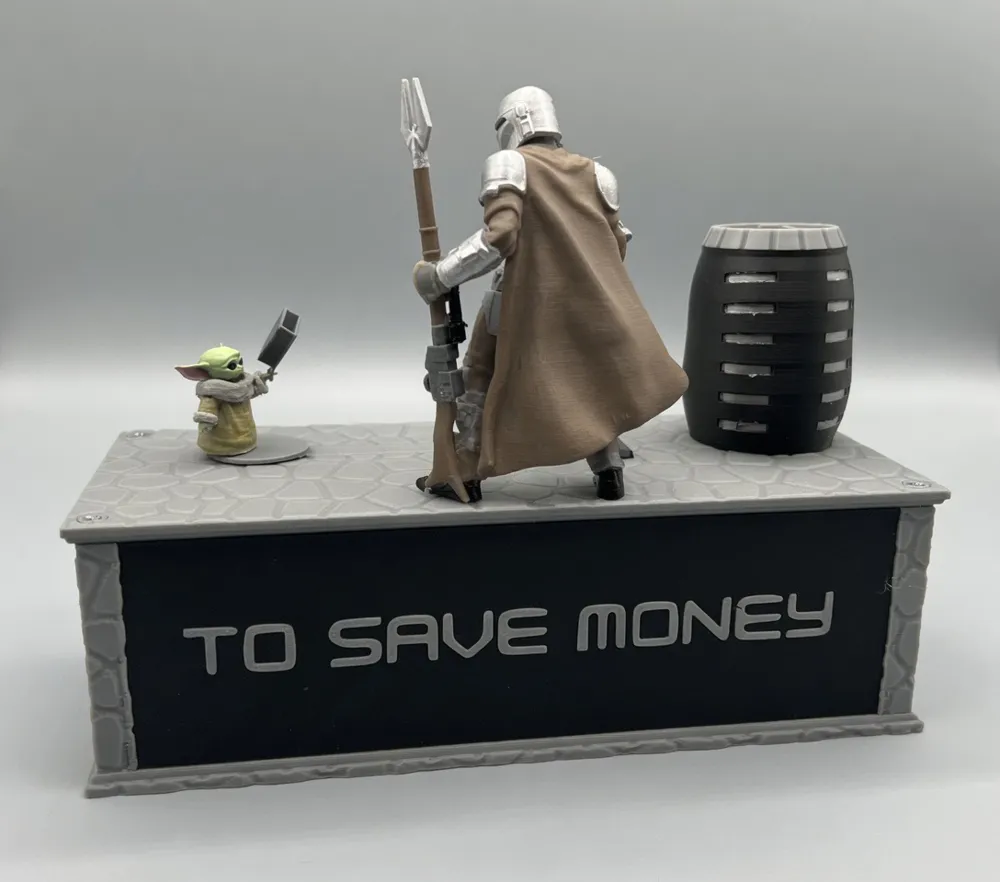

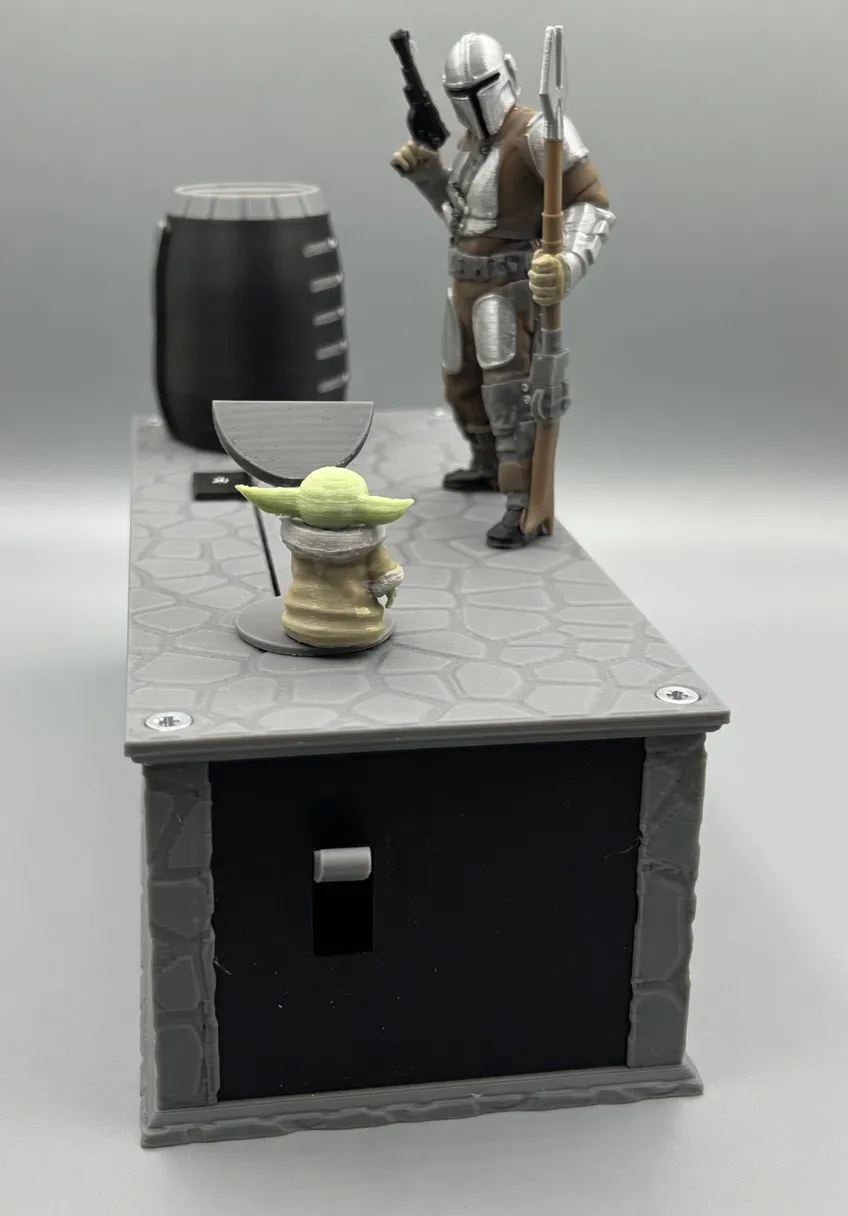

- Mandalorian, Grogu, and barrel are fixed parts of the top design
- Press-fit or glue if required
- Textured top and base using mesh bump

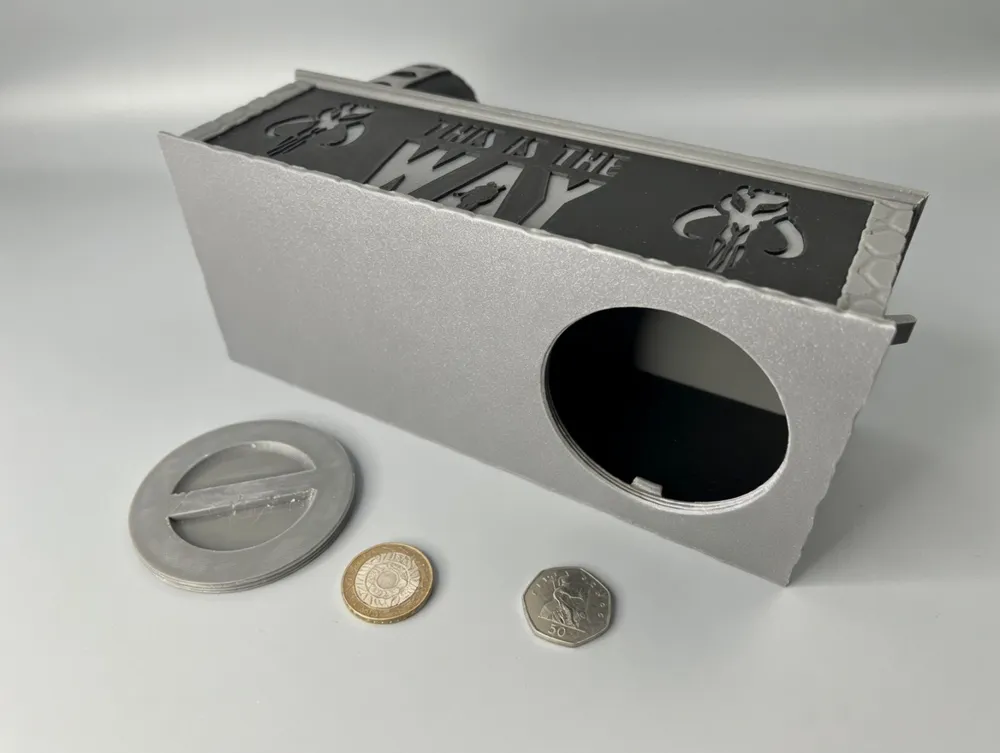

- Threaded plug underneath for emptying coins
đŞ Capacity
- Fits coins up to 28mm diameter and 5mm thick
đ¨ Print Settings
- 3 walls
- 15% infill
- Tree supports where needed
- Brim recommended for larger parts
Figures can be printed in colour or painted after printing. I painted Mine to save a lot of wasted filament.
