X2D+P2S TPU Feed Assist Module Mount+Spool Holder
Print Profile(2)
Bill of Materials
Description
Boost Me (for free)
Hi,
if you like my model and the print has been useful to you, I would appreciate a small recognition.
Thanks
Update V3: 2026-06_02
Based on user feedback, I have made the following changes:
- The print profile is now designed for PETG. The temperature when using the chamber heater can be critical if PLA is used for the holder!
- reinforced holder mount
Support through the option of screwing it to the printer. A screw from the TPU Feed Assist Module's scope of delivery can be used (ST3x12)
Thanks to the users who provided feedback.
------------------------------------------------
Update V2: 2026-05-02
I have optimized the version. Thanks at this point for the user feedback.

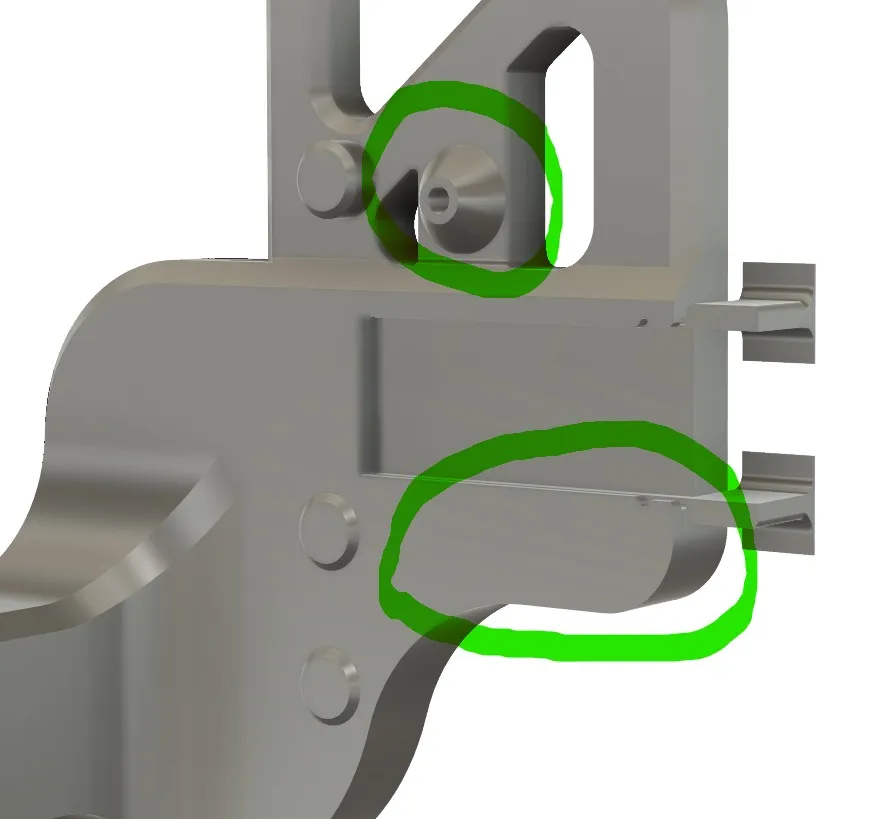

- better fixation of the holder to the printer's mounting bracket (no more wobbling)
- Longer spool arm for better filament guidance to the TPU Feed Assist Module

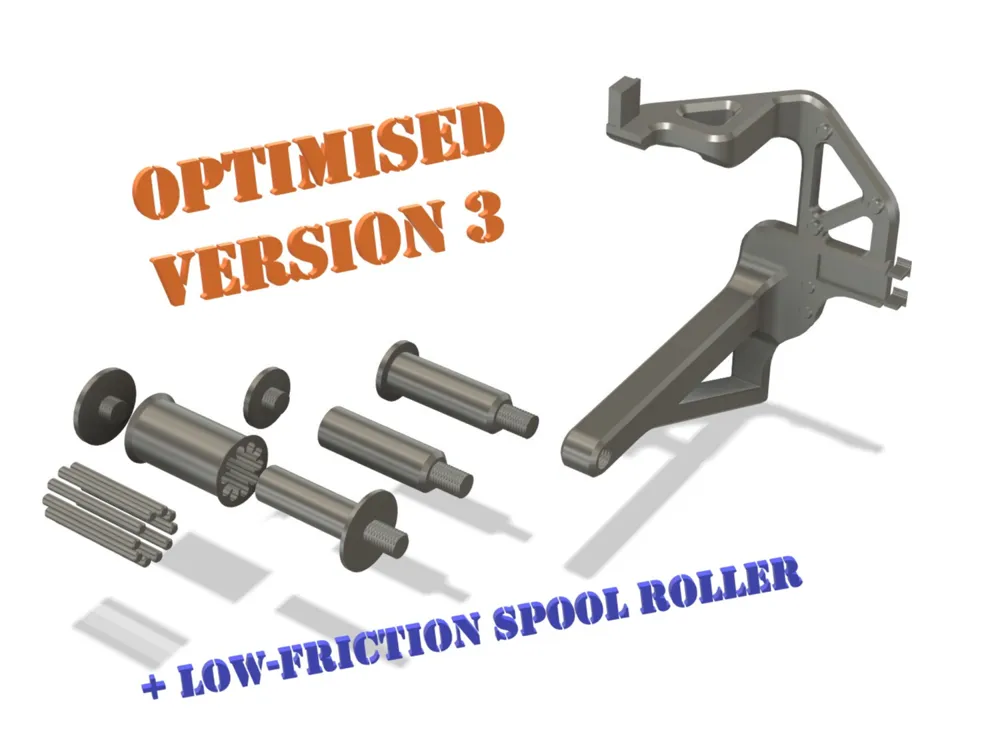

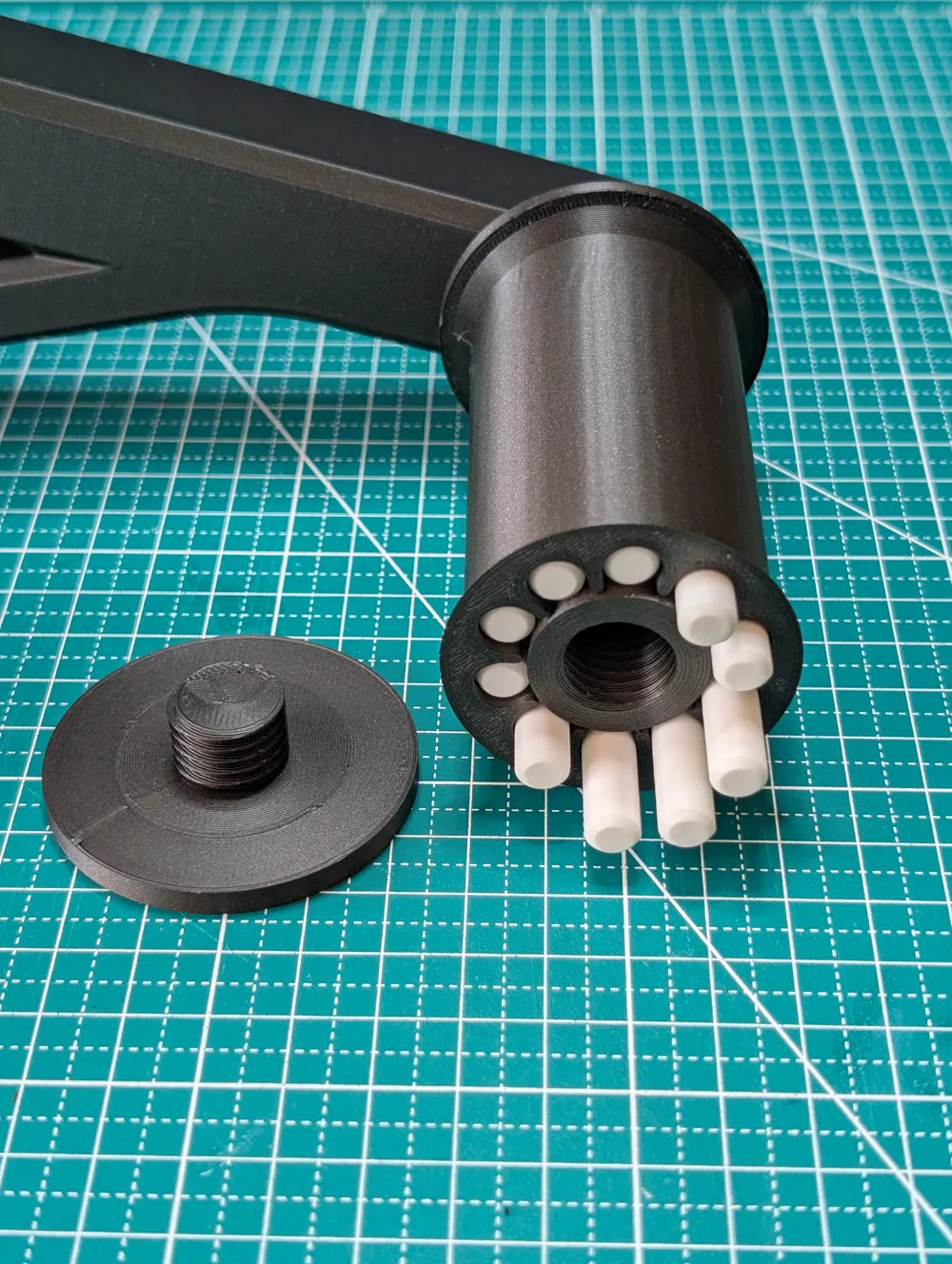

- New option for a low-friction spool roller
-------------------------------------------------

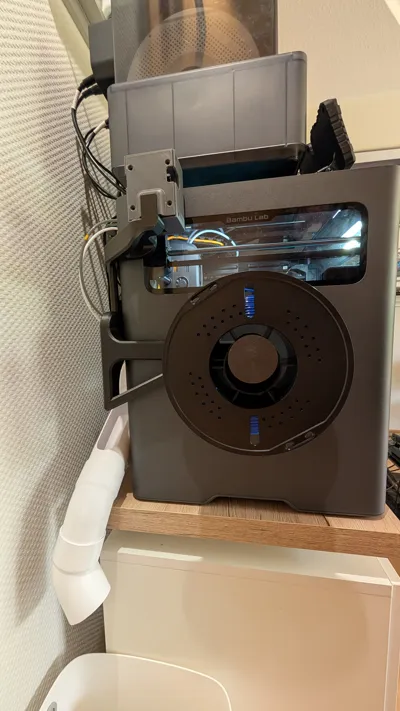

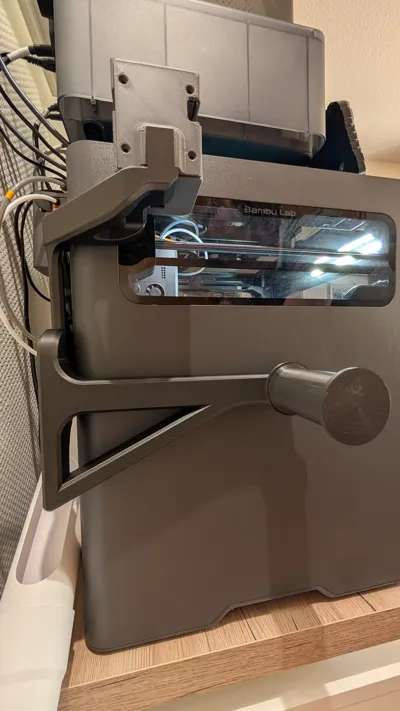

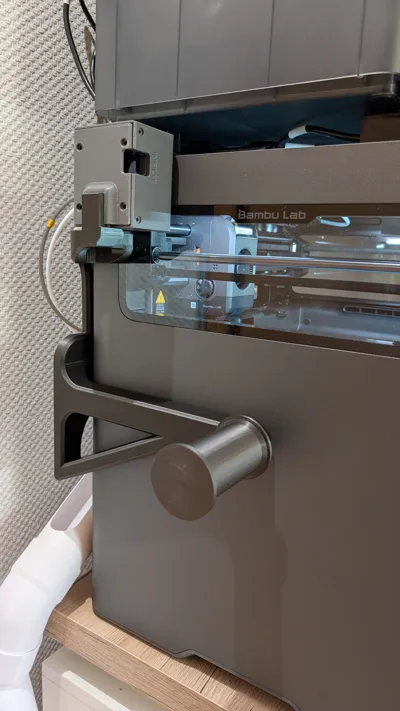

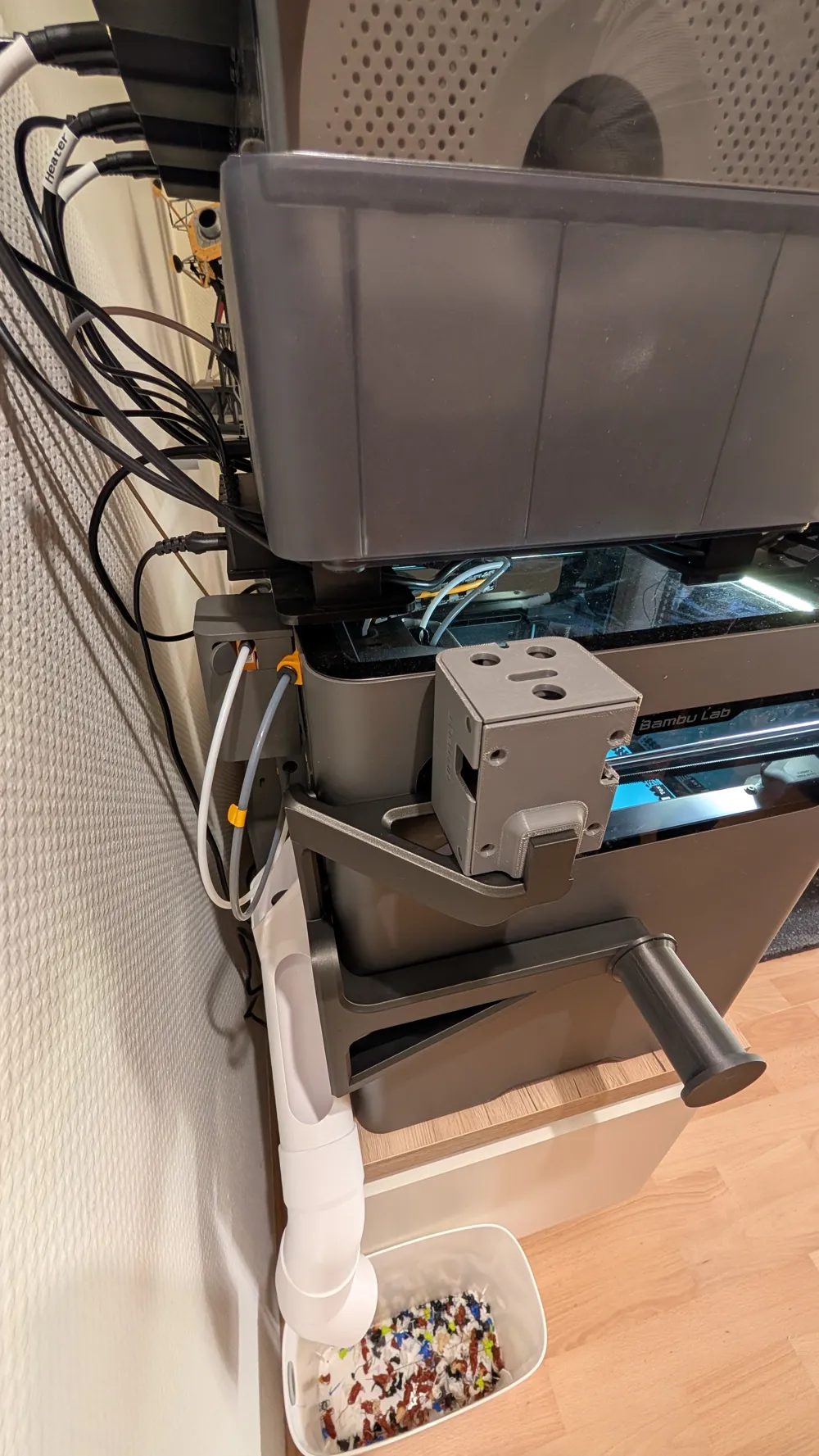

This is my TPU Feed Assist Module holder for the X2D and P2S combined with a side spool holder.
I have created 2 versions for the spool holder. One version requires no support. The spool holder should only be tightened lightly here to avoid damaging the thread.
If a more stable variant that can withstand more forces is needed, I have created a flat version with support.
For the spool holder support, I recommend printing the support interface with special support filament.
This remix is based on
