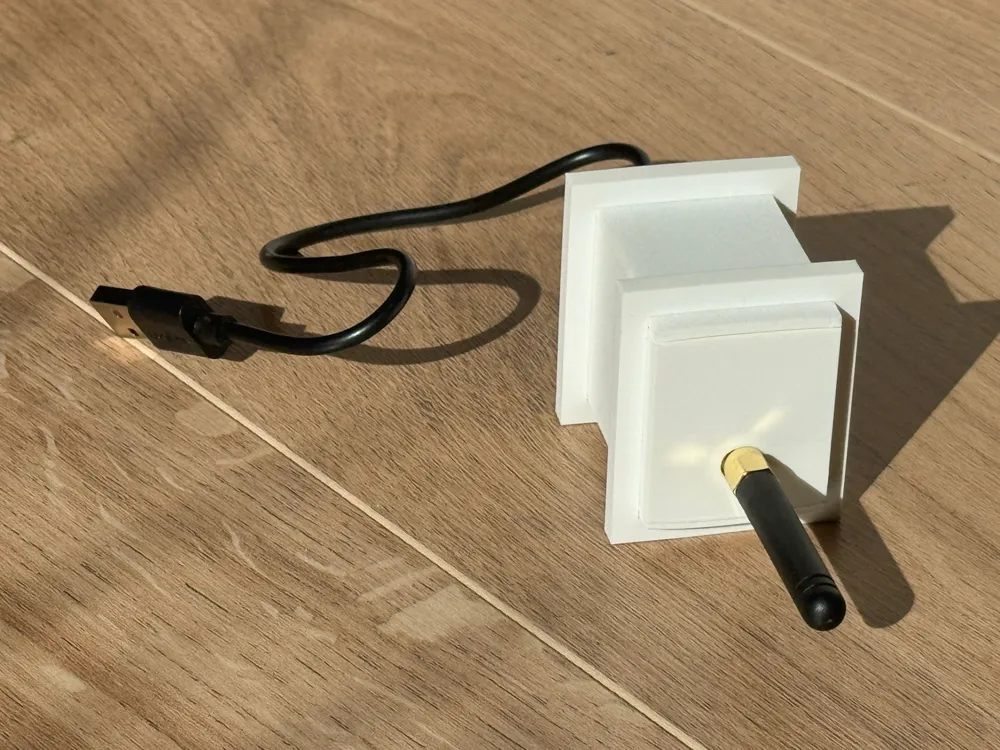

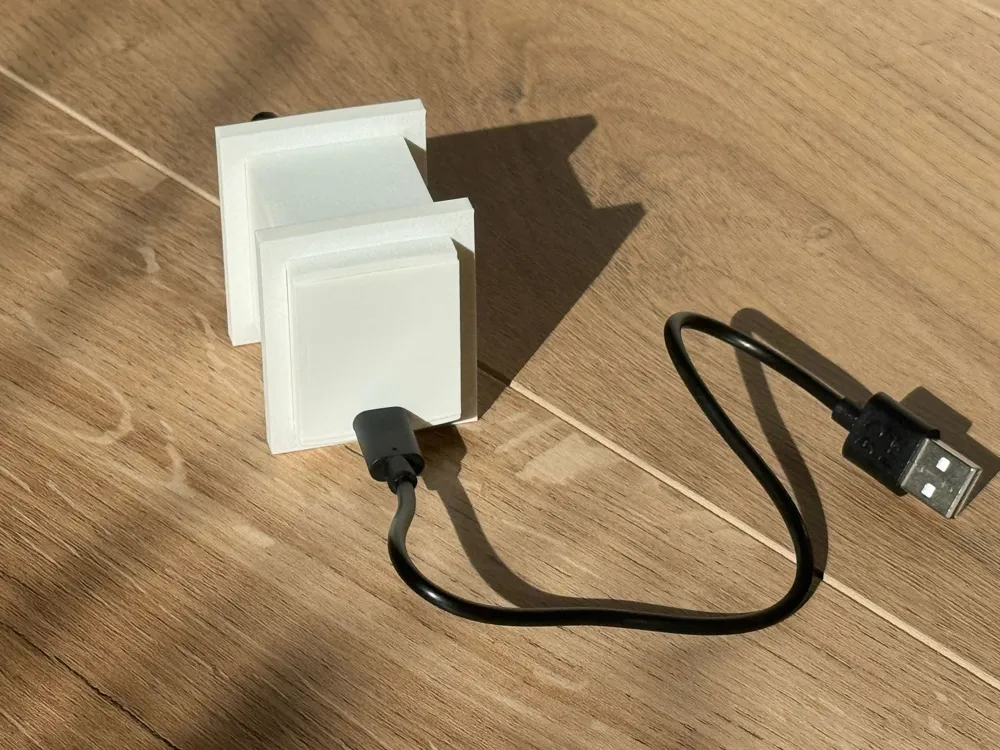

ESP32 & CC1101 Case Ventilated Design
Print Profile(1)
Description
This is a case for the ESP32 and CC1101. It is designed to be functional, easy to print, and simple to assemble. No supports are needed, and it works perfectly with standard print settings.
Print Settings (Tested):
- Printer: Bambulab P1S
- Supports: None
- Material: PLA
- Layer Height: 0.2mm (Standard)
- Infill: 15% - 20%
- Wall Loops: 2
Assembly Instructions:

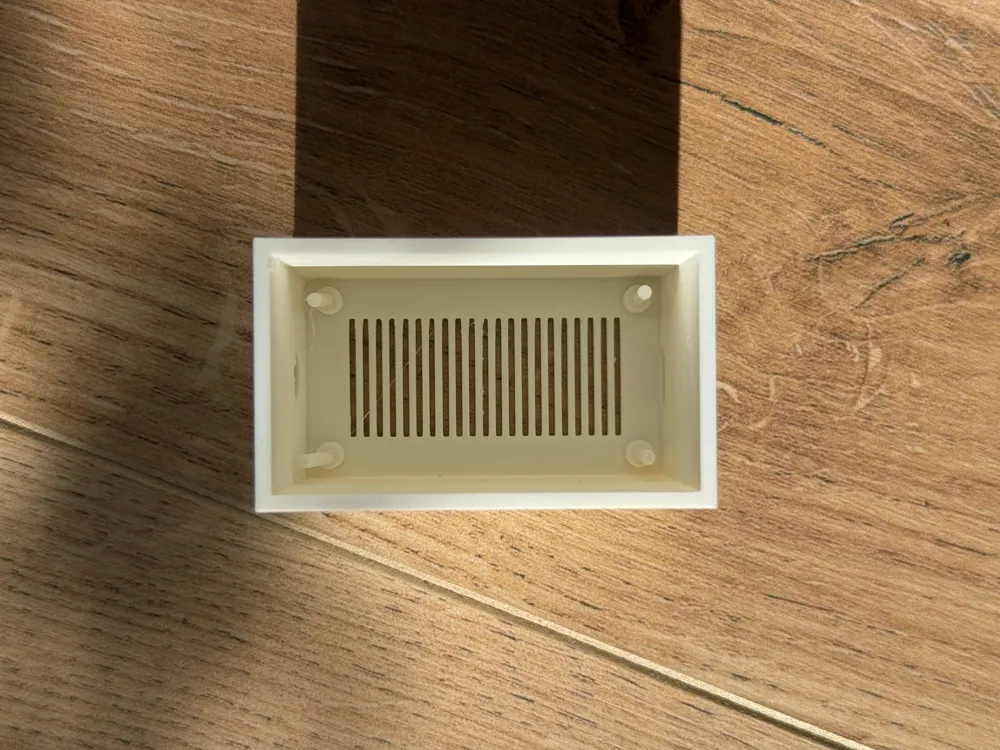

- Place the ESP32: Insert the ESP32 board into the dedicated slots at the bottom of the Main Housing.

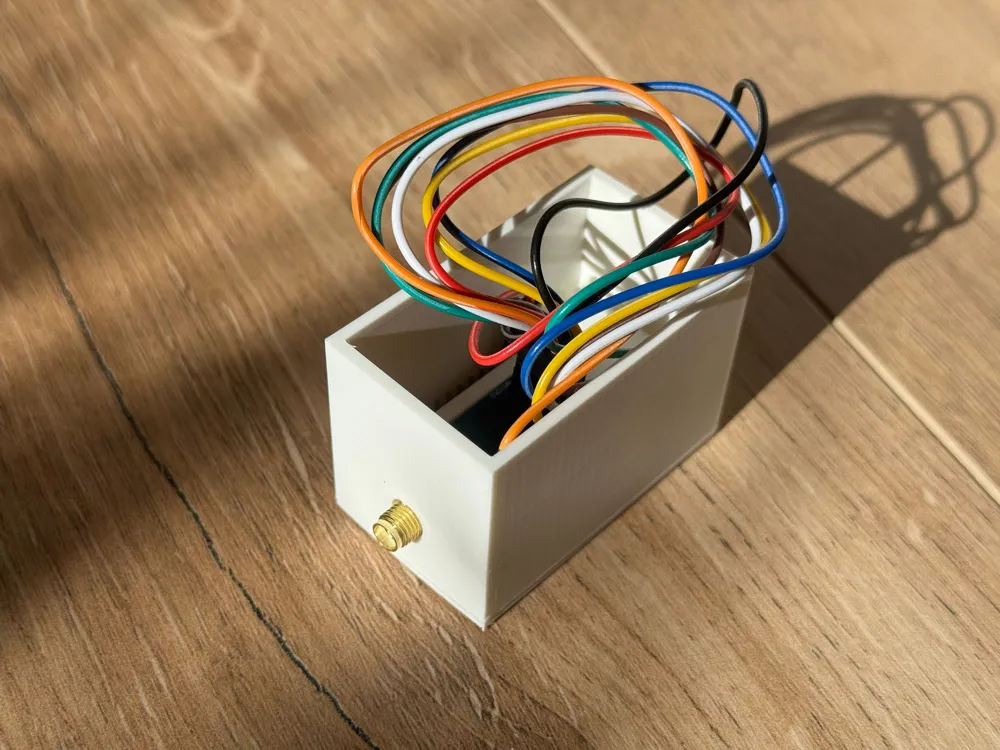

- Wire it up: Connect your jumper cables to the ESP32 pins.
- Insert the Sled: Slide the CC1101 Holder (Sled) into the housing above the ESP32.
- Connect the Radio: Plug the jumper cables into your CC1101 module and secure it in the holder.
- Close it up: Place the Lid on top of the housing.

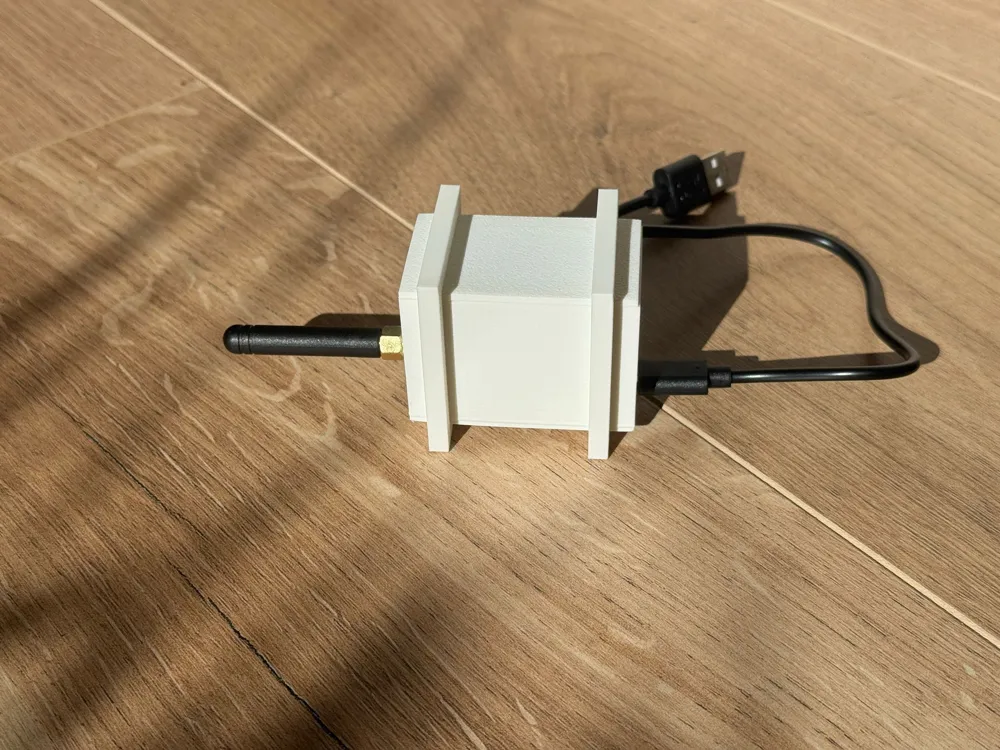

- Locking Rings: Slide the two Locking Rings over the housing from both sides. They act as a clamp to keep the assembly tight and secure.
compatibility:
Board: Elegoo ESP32 DevKit (30-pin) or similar footprints.
Radio: CC1101 433MHz Module.
