NIZ 宁芝 Micro 84&82 Electrostatic Capacitive Keyboard Upper Case Shell

The case model is shared by Mr. A.

I modified the side buckle grooves of the original model to make it easier to install.

Feel free to suggest better color schemes.

Note: NIZ electrostatic capacitive keyboards are indeed very good to use

Model Description

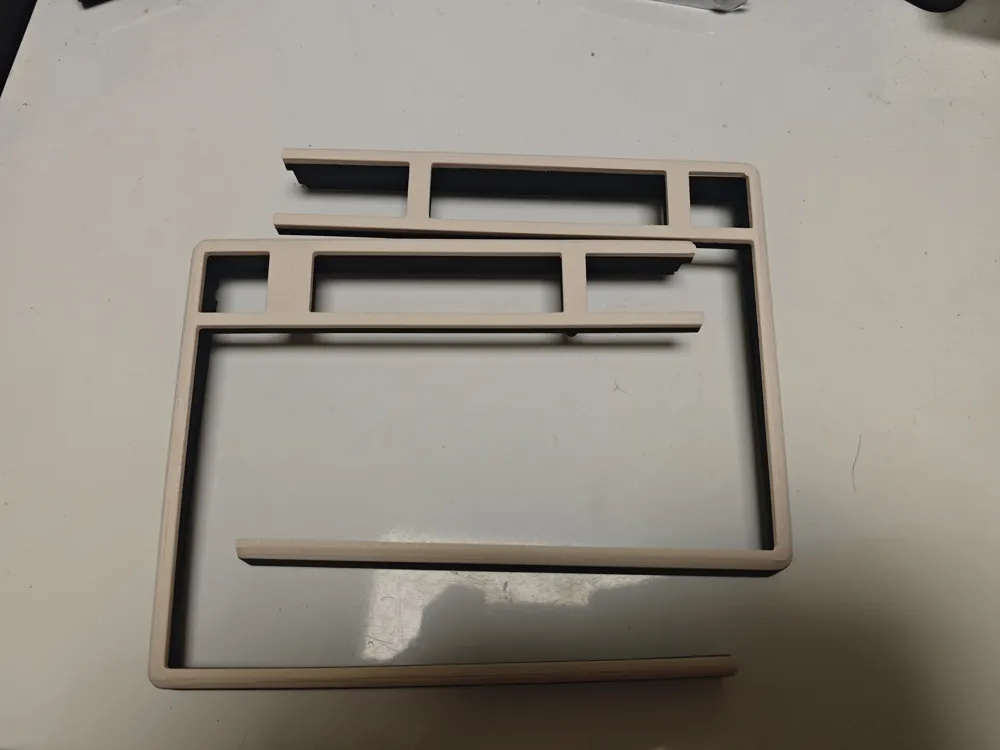

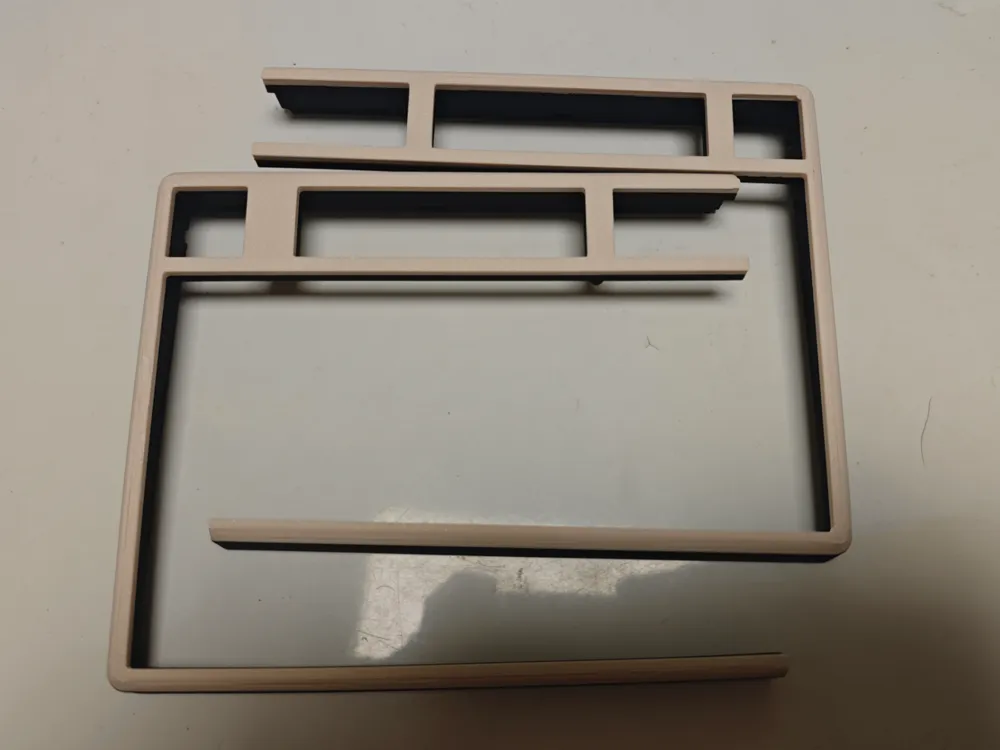

For machines with a print size of 256*256, the original model cannot be printed directly. It can be cut in half after testing. Please use my print profile.

For machines with larger print sizes, it is theoretically possible to print the complete model (but the strength is questionable). You can download the original model file for printing.

Disassembly and Assembly Instructions

Disassembly

Keyboard top case disassembly video link

Installation

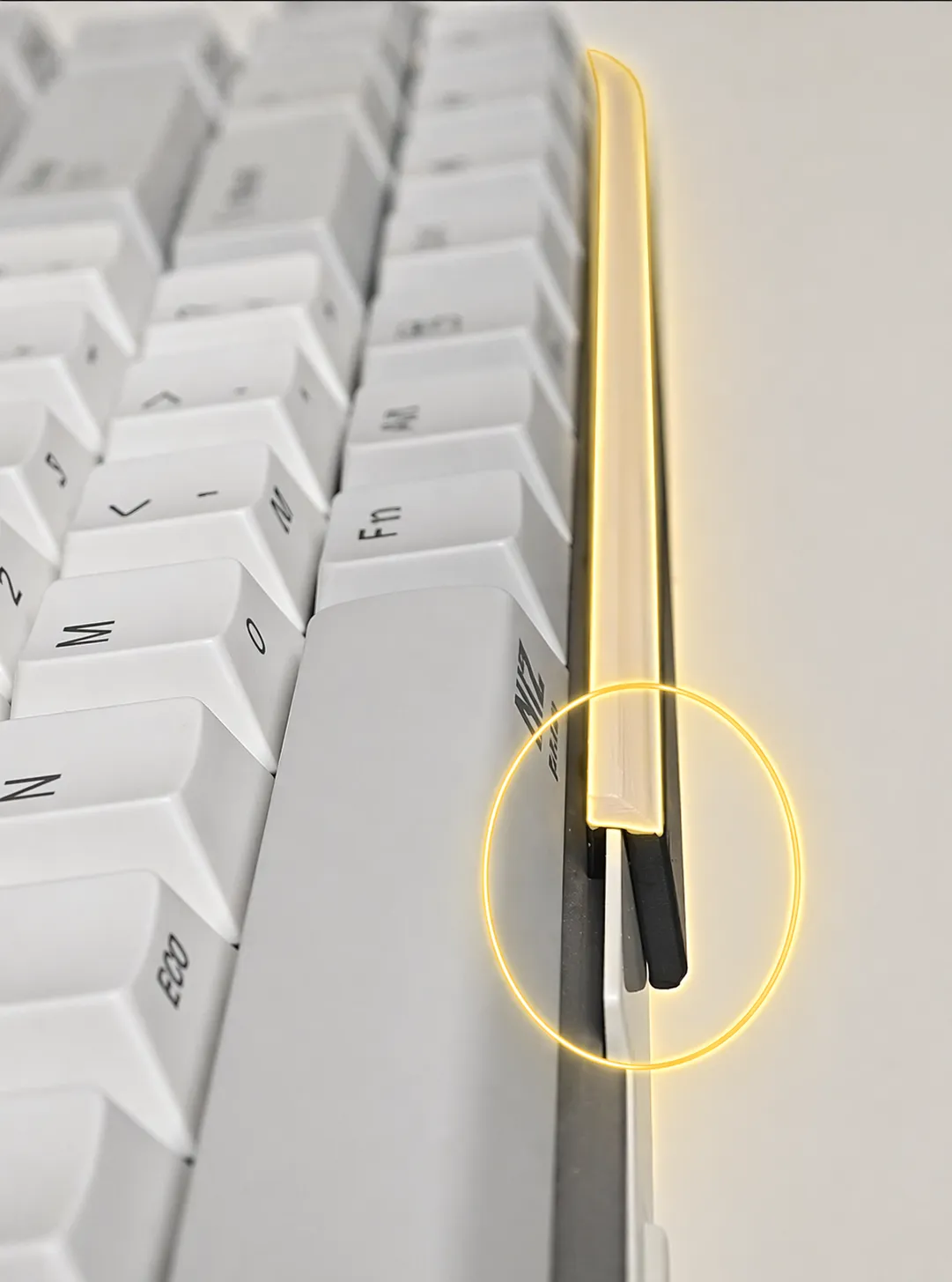

Please refer to the disassembly video to reassemble the case onto the keyboard. However, pay attention to the installation details; please see the image below. During installation, the recessed part of the case must snap onto the edge of the keyboard
