PWM SCR AC 220V 2000W Voltage Regulator Box
Print Profile(1)
Description

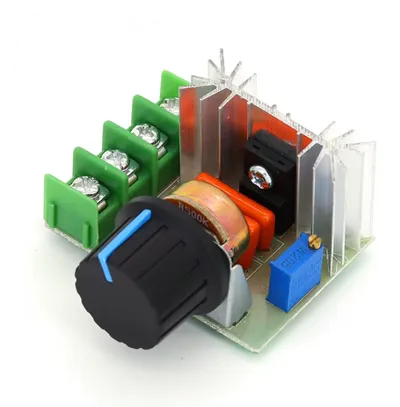

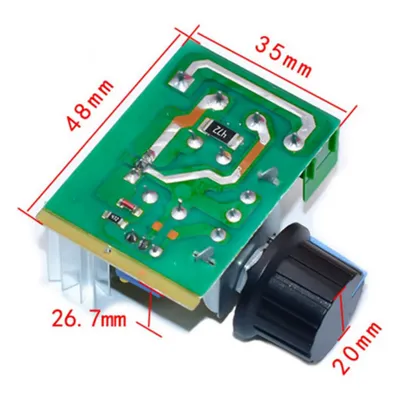

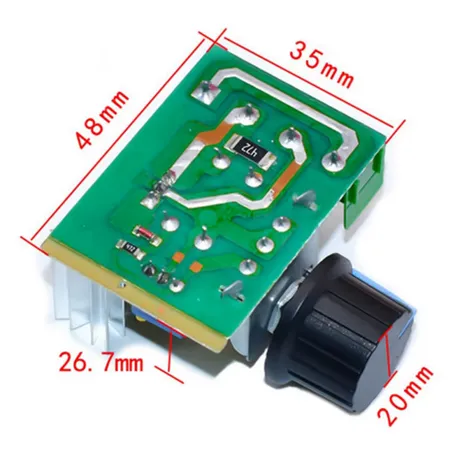

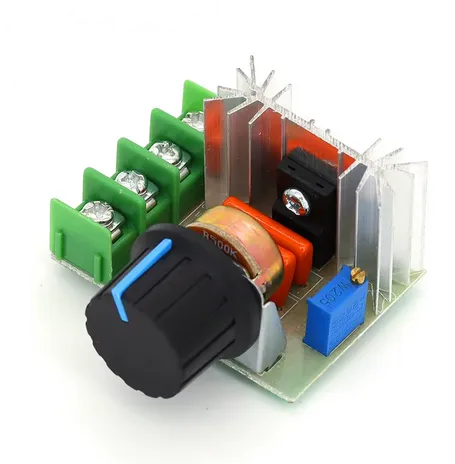

Protective case for fan speed controller / regulator. This model is adapted for the SCR AC 220V 2000W voltage regulator, which I bought at the link: https://a.aliexpress.com/_EIt9wS2

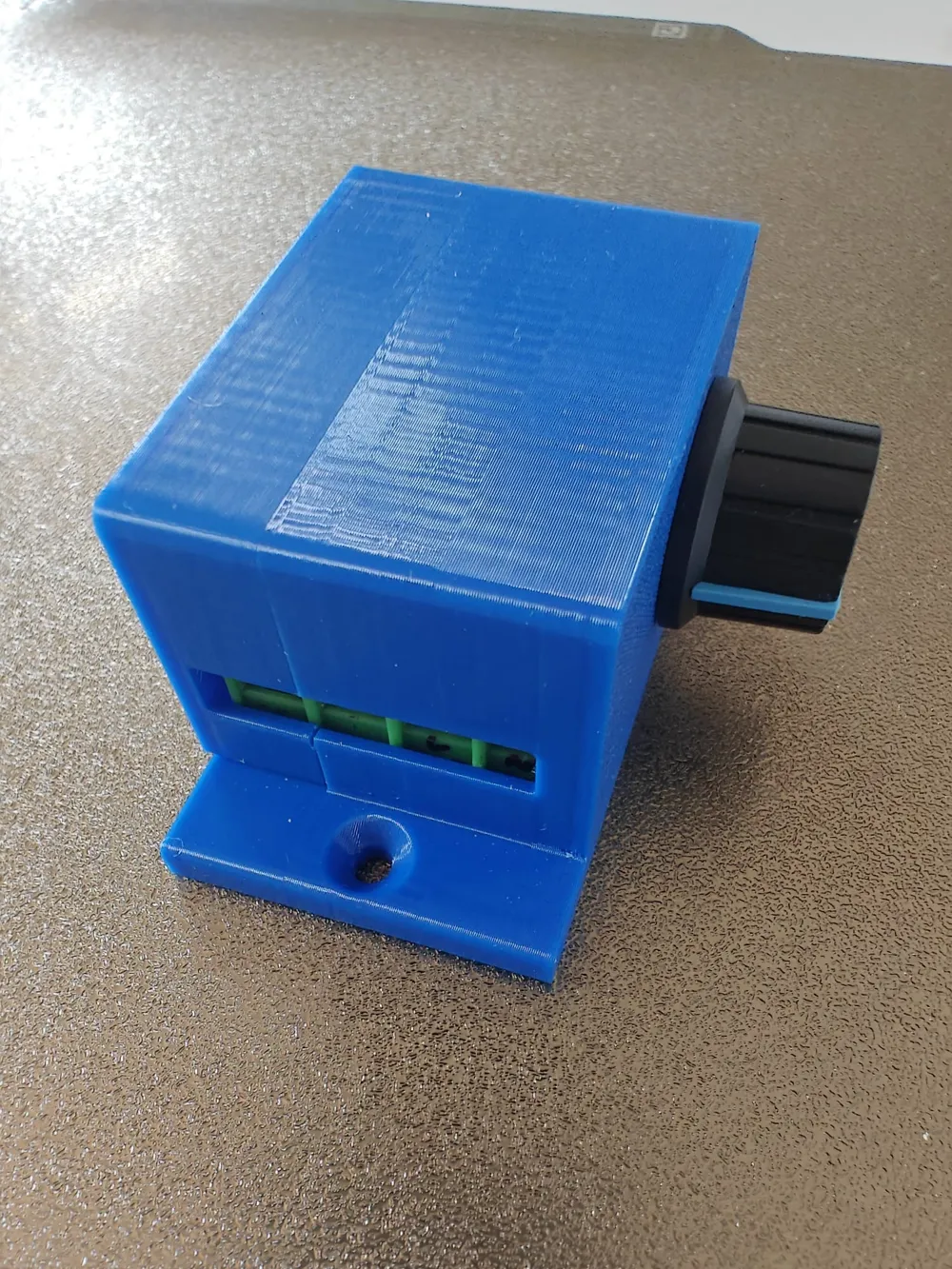

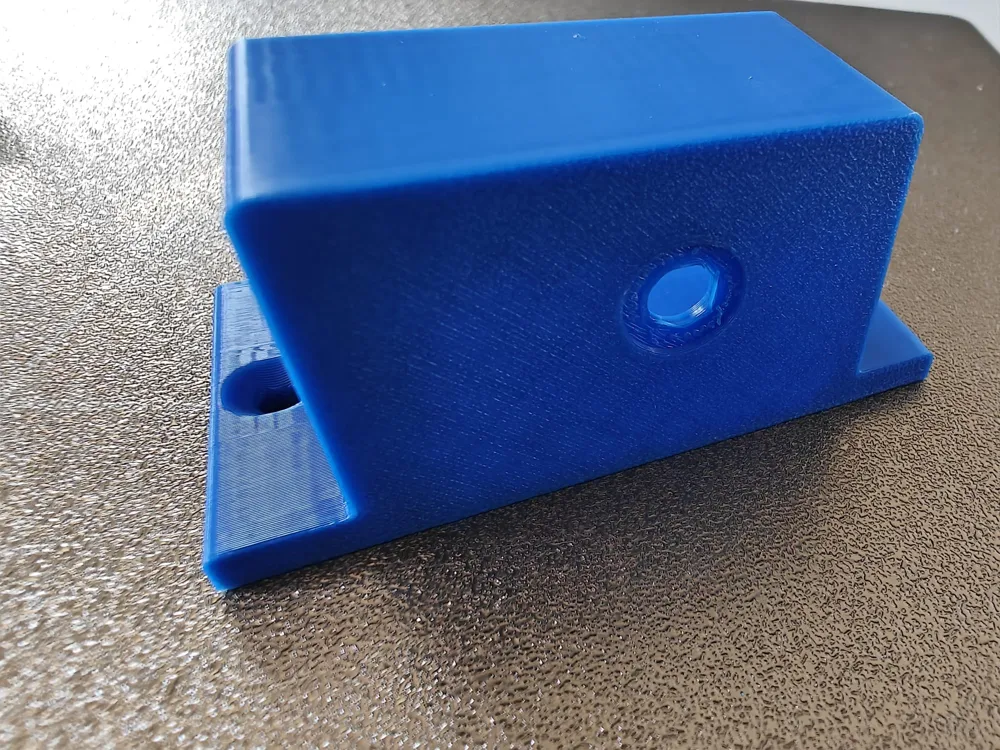

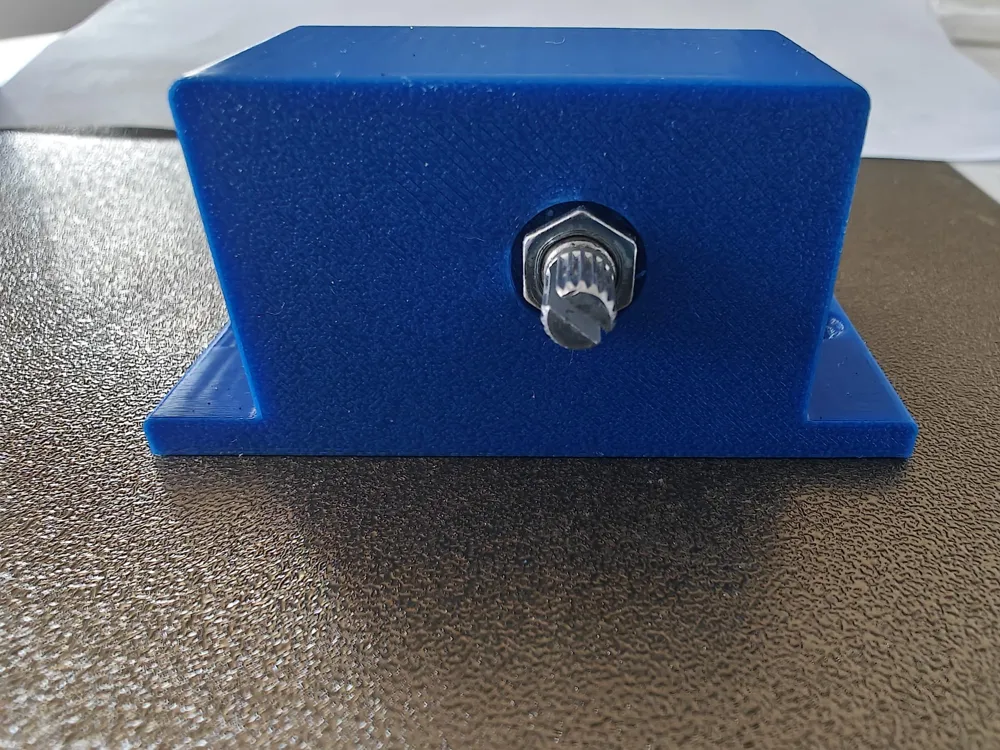

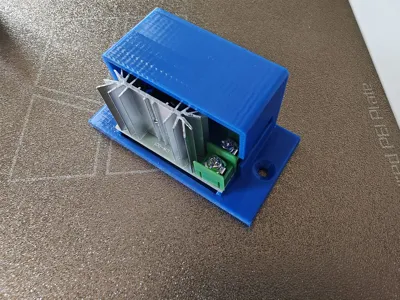

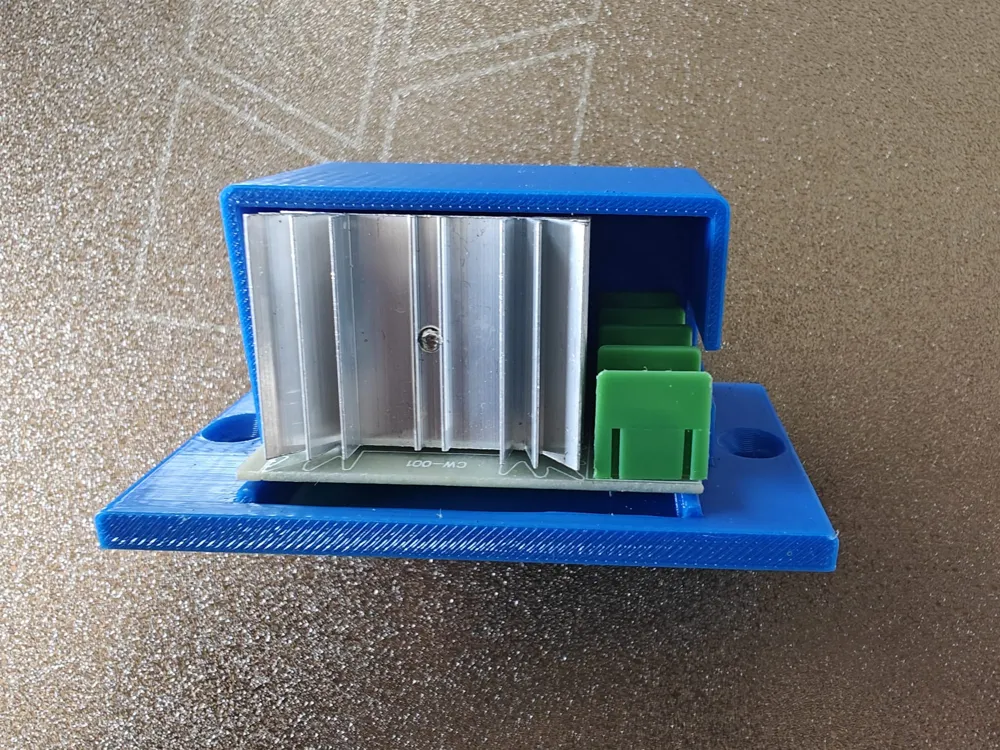

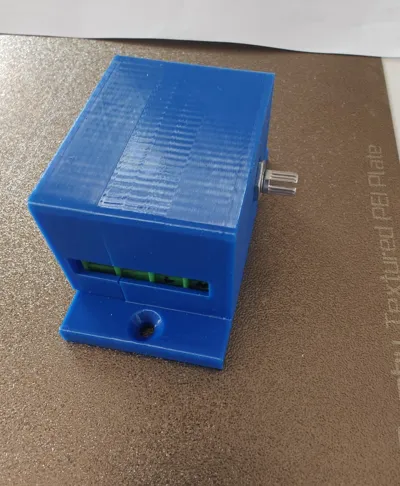

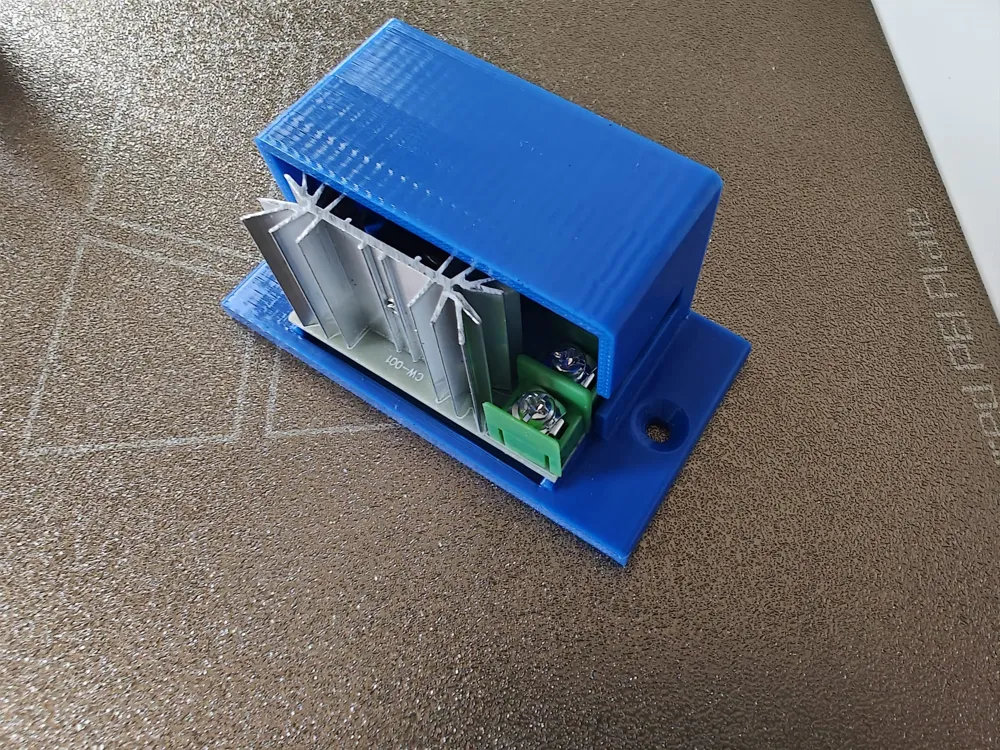

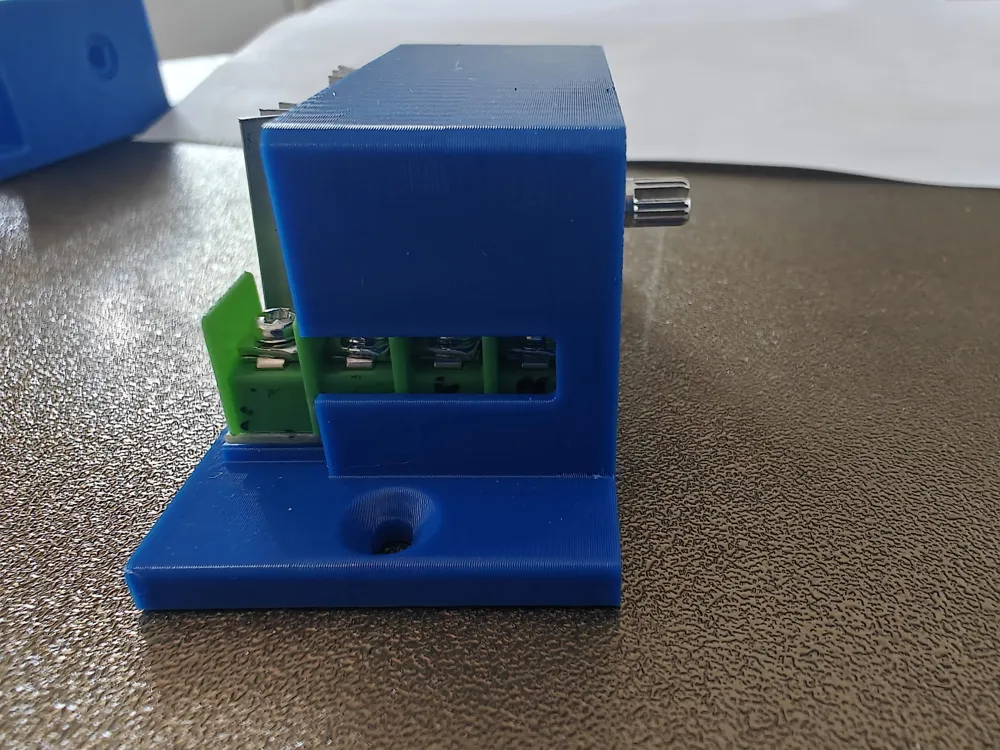

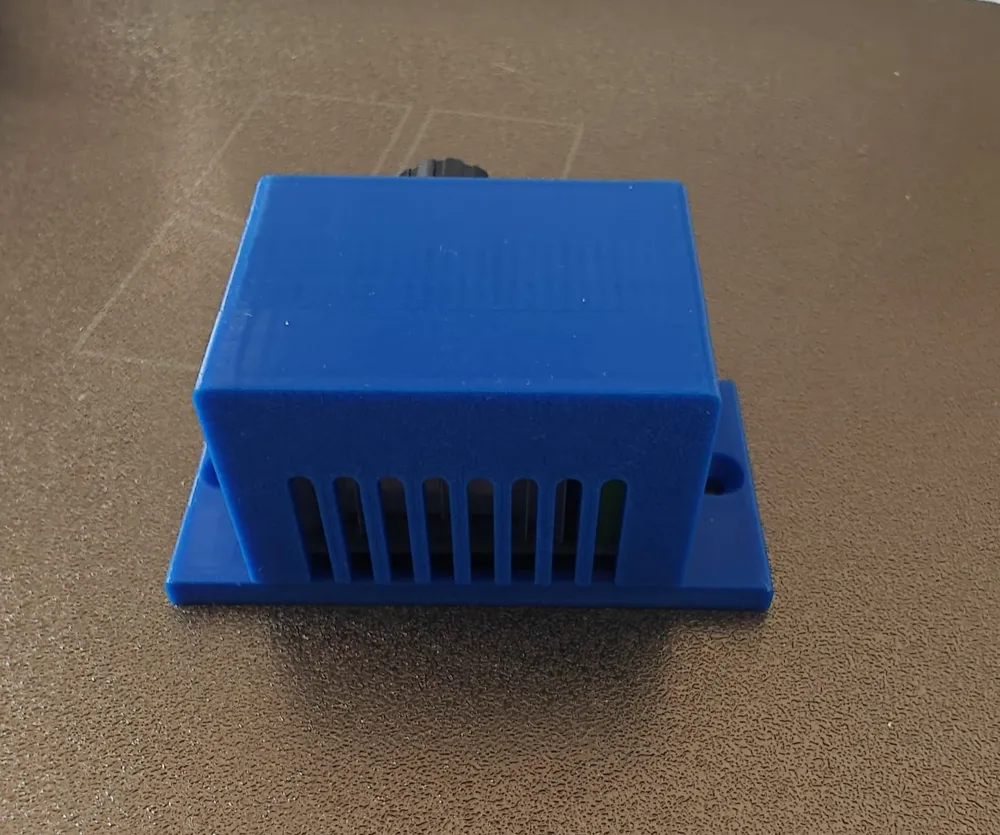

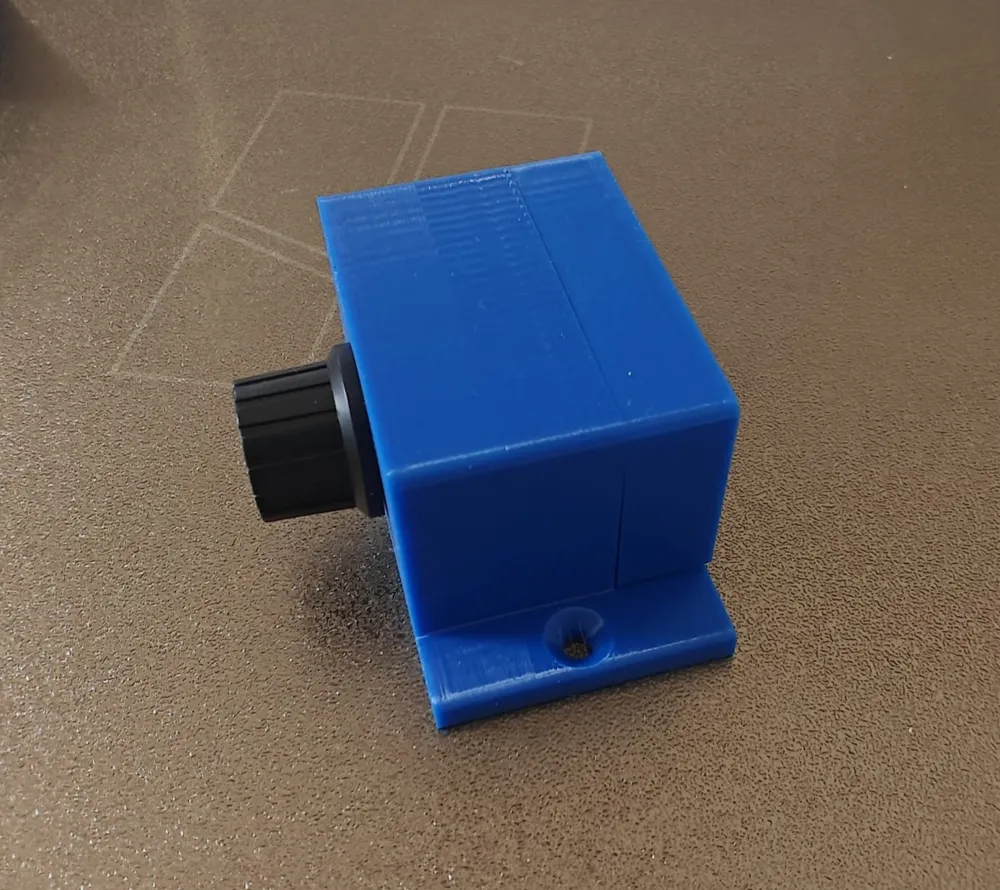

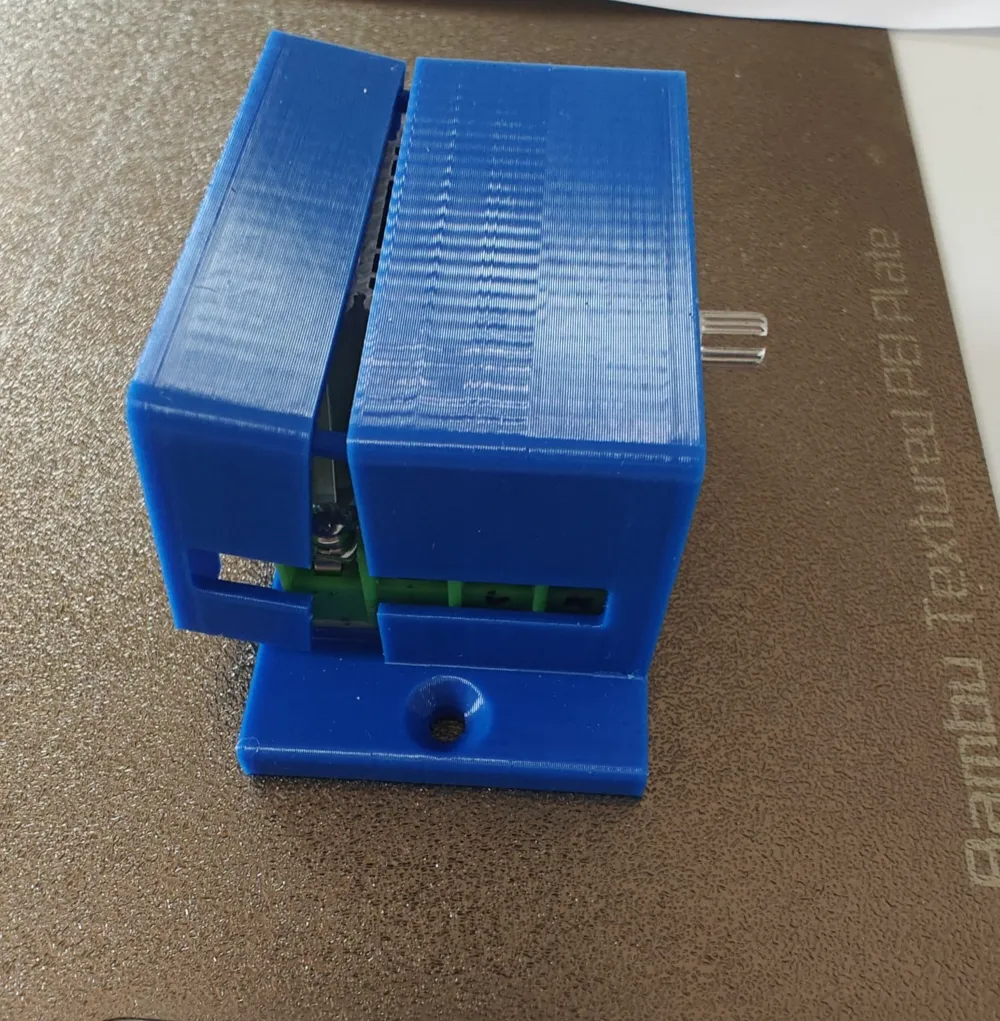

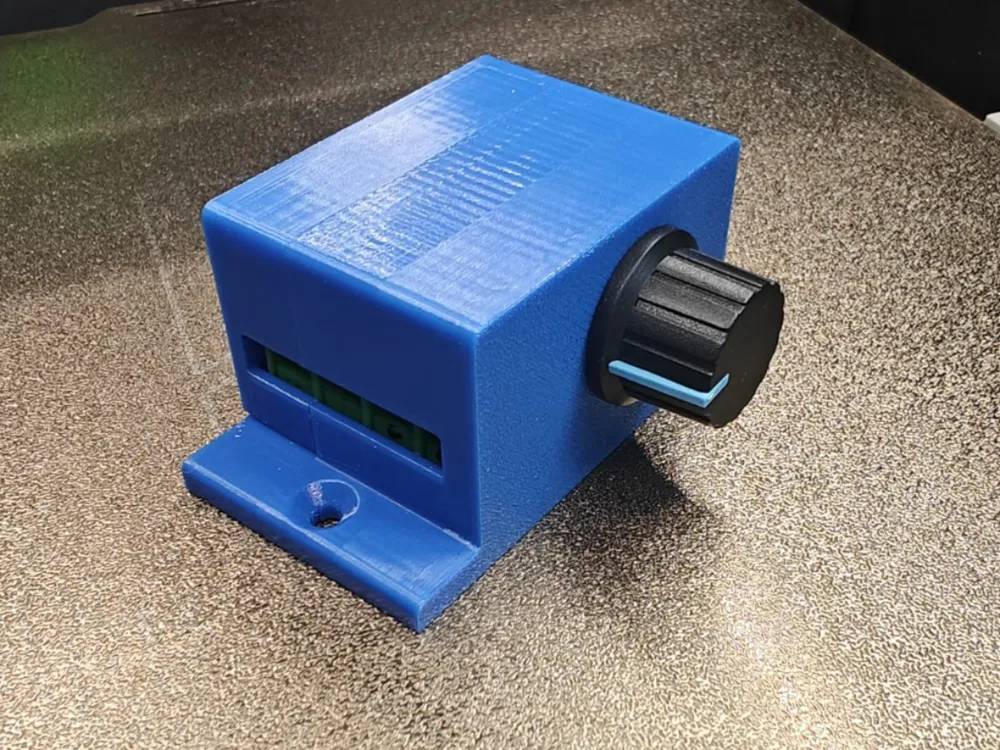

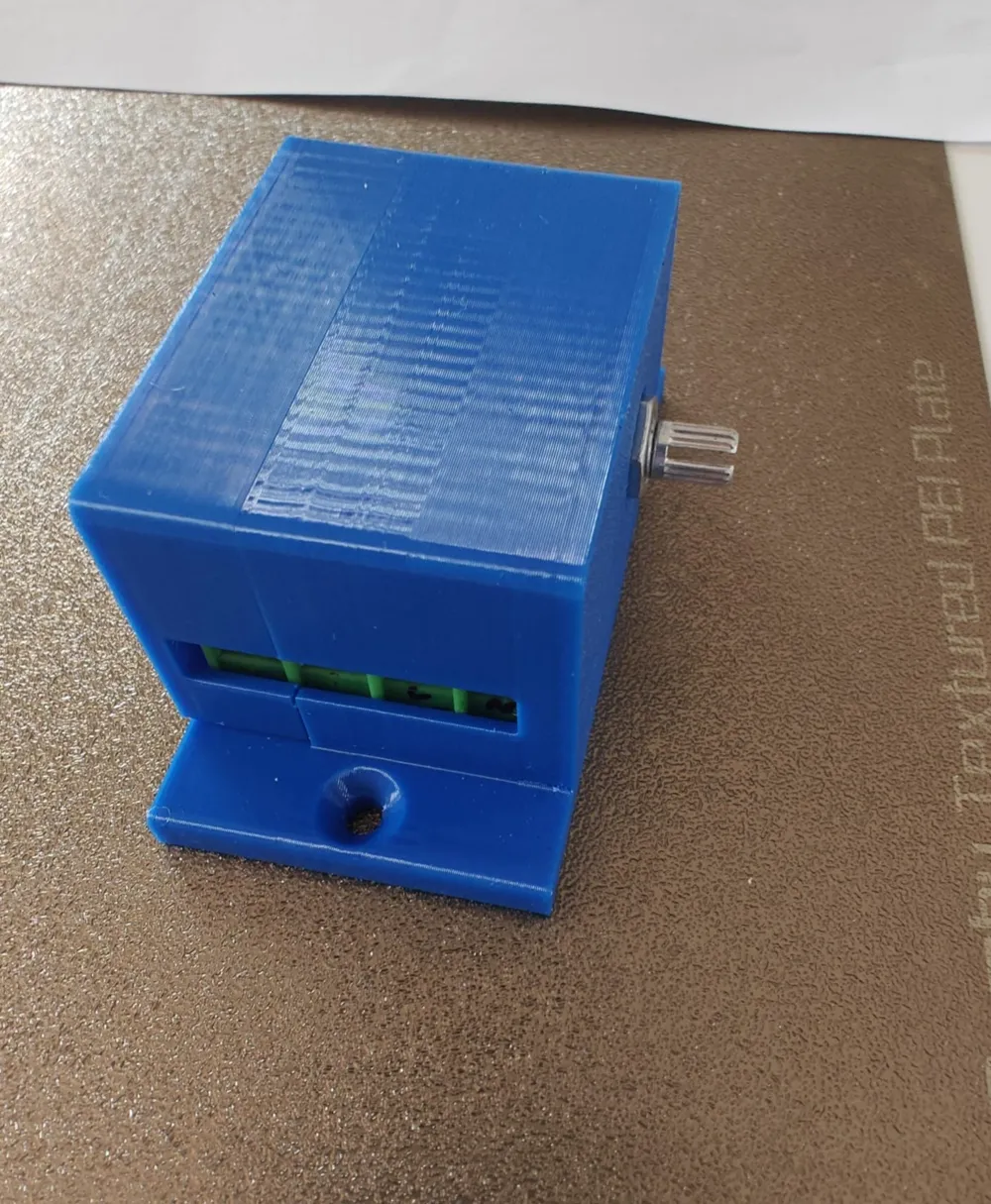

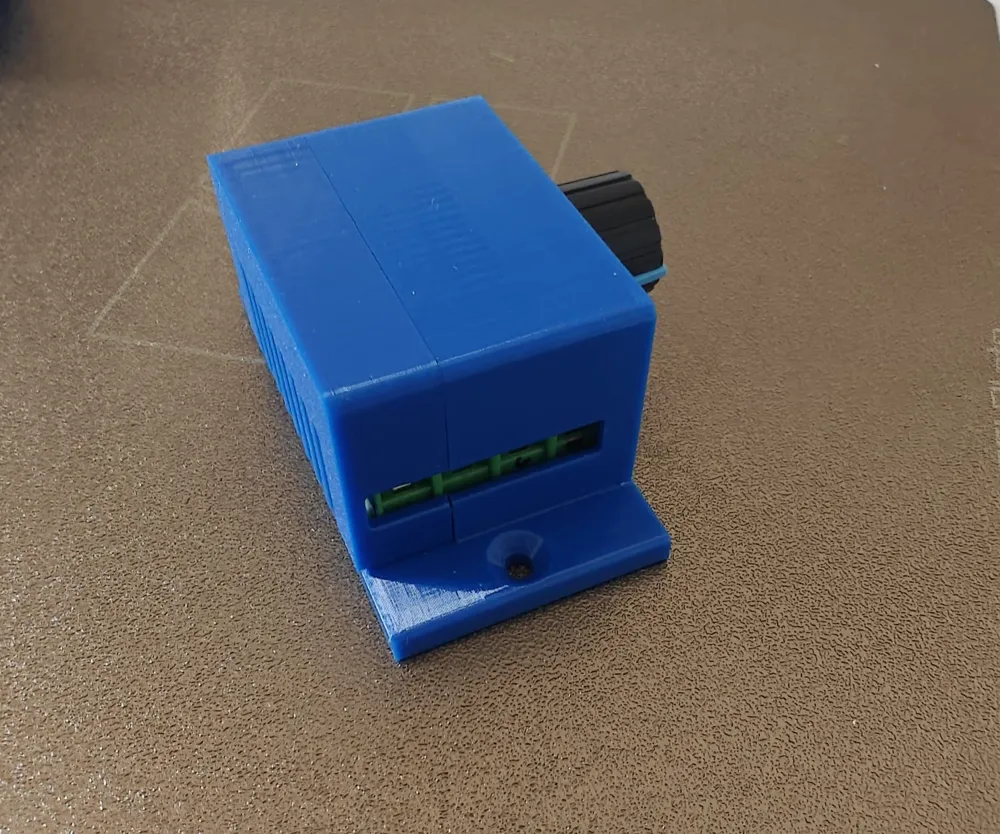

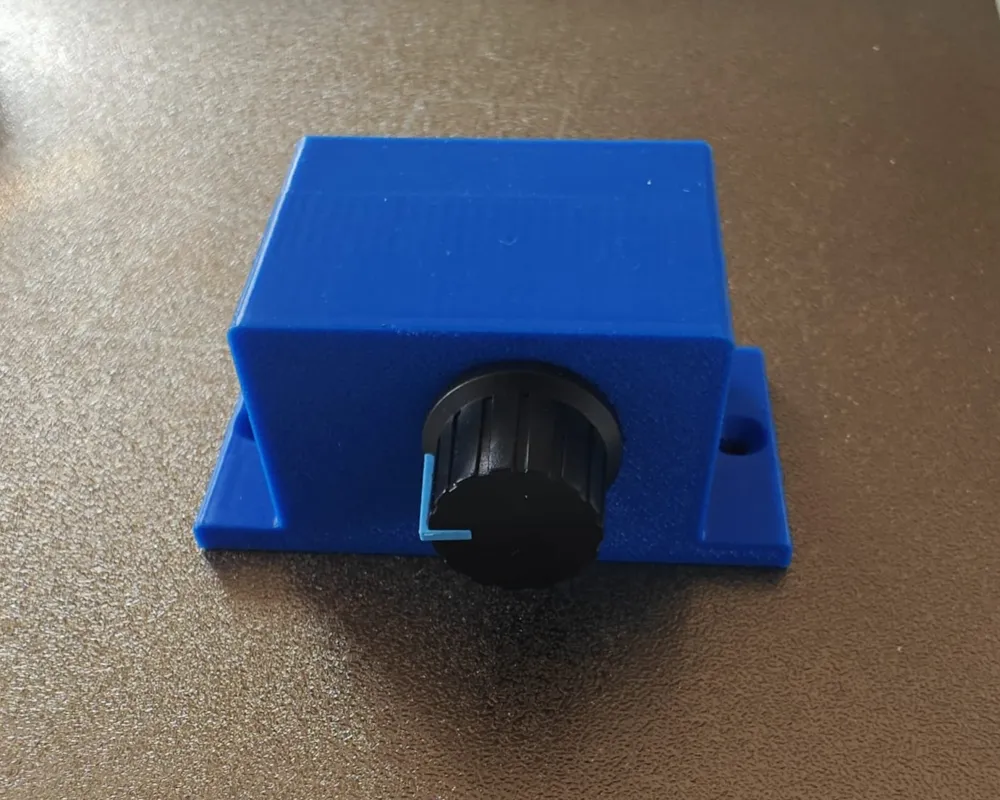

I couldn't find models that fit my regulator, so I adapted a model I found on MakerWorld. I adjusted the size, made a pair of ears on the sides with holes to secure everything with a couple of screws, and also made a small opening to route the input and output cables of the regulator. These cables must be connected before fitting the electronics into the printed part. Then, place the nut on the potentiometer shaft, put on the back cover, and it would be finished
I thank the original designer for providing the idea for the box. The link to the original model is: https://makerworld.com/es/models/1033597-pwm-controller#profileId-1016964
